الوصف

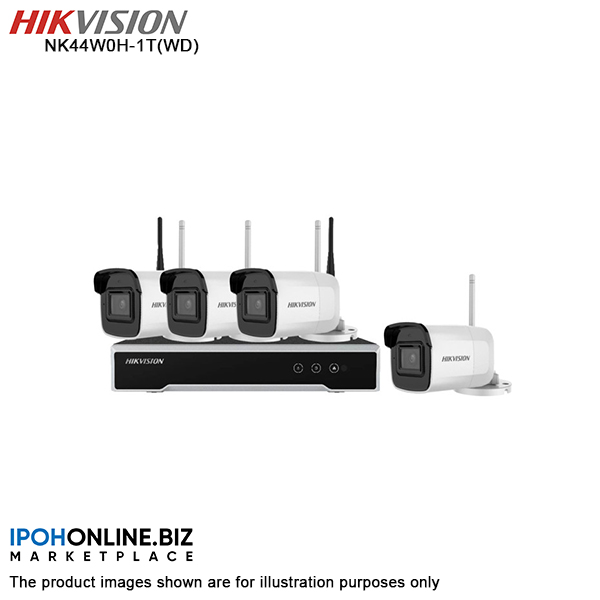

Hikvision NK44W0H-1T(WD) 4 Channel HD Wi-Fi NVR + 4 x 4MP H.265 Bullet WiFi Camera Kit
Key Feature
H.265/H.264 video compression
Automatic Wi-Fi connection

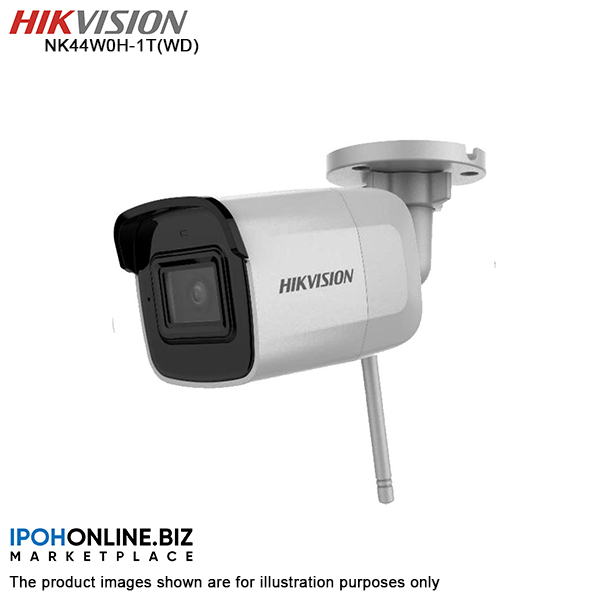

4 × 4 MP IR fixed network bullet camera
1 x NVR, full channel recording at up to 4 MP resolution
Camera
1/3" Progressive Scan CMOS
2560 × 1440 @20 fps
2.8 mm fixed lens
Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
3D Digital Noise Reduction
Audio I/O: 1 built-in mic, mono sound
NVR
Up to 4-ch network camera inputs (up to 4 MP)
2-ch@1080p/1-ch@4 MP decoding capability
Dual external antenna design for Wi-Fi
HDMI/VGA output with up to 1920 × 1080 resolution
Hik-Connect for easy network management
Specification
| NVR | |
| Video and Audio | IP Video Input |
| IP Video Input | 4-ch Up to 4 MP Resolution |
| Incoming/Outgoing Bandwidth | 50 Mbps/40 Mbps |
| HDMI/VGA Output | 1-ch, Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding | |
| Video Resolution | 4 MP/3 MP/1080p/1.3 MP/720p |
| Synchronous Playback | 4-ch |
| Capability | 2-ch@1080p / 1-ch@4 MP |
| Network | |
| Network Interface | 1, RJ45 10/100M Ethernet Interface |
| Network Protocol | IPv6, UPnP™, NTP, SADP, DHCP |
| Remote Connection | 16 |
| Wi-Fi | |
| Frequency Band | 2.4 GHz |
| Antenna Structure | 2 × 2MIMO |
| Transmission Speed | 144 Mbps |
| Transmission Standard | IEEE 802.11b/g/n |
| Auxiliary interface | |
| SATA | 1 SATA Interface |
| Capacity | Up To 6 TB Capacity For Each Dsk |
| USB Interface | Rear Panel: 2 × USB 2.0 |
| Alarm In/Out | No |
| General | |
| Power Supply | 12 VDC |
| Consumption (without HDD) | ≤ 12 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |

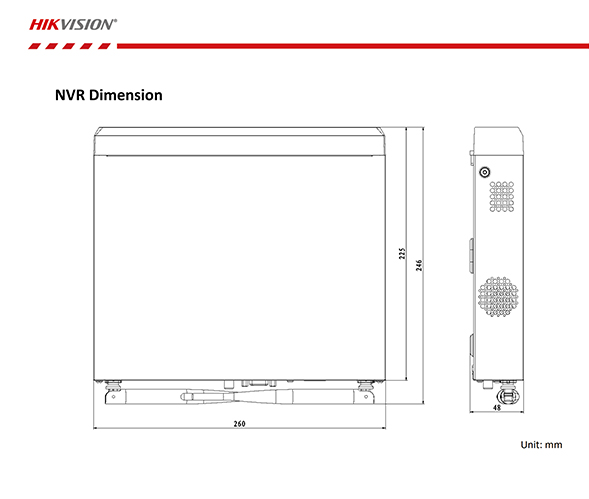

| Dimension (W × D × H) | 260 mm × 246 mm × 48 mm (10.2" × 9.7" × 1.9") |
| Weight (without hard disk) | ≤ 1 kg (2.2 lb) |
| Kit Model | NK44W0H-1T(WD) |
| Camera Model | 4 × DS-2CD2041G1-IDW1 |
| NVR Model | DS-7104NI-K1/W/M |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day &Night | IR Cut Filter |
| WDR | DWDR |
| Angle Adjustment (Bracket) | Pan: 0° To 360°, Tilt: 0° To 90°, Rotate: 0° To 360° |
| Protection Level | IP66 |
| Material | Front Cover: Plastic, Camera Body: Metal |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | Horizontal FOV: 100°, Vertical FOV: 55°, Diagonal FOV: 117° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 30 m |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main Stream Supports |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supports |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50 Hz: 20 Fps (2560 × 1440), 25 Fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 Fps (2560 × 1440), 30 Fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 Fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 Fps (640 × 480, 640 × 360, 320 × 240) |
| Image Setting | Saturation, Brightness, Contrast And Sharpness Are Adjustable Via Client Software And Web Browser |
| Day/Night Switch | Auto/Scheduled/Day/Night |
| Network | |
| Alarm Trigger | Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, Illegal Login, HDD Error, HDD Full |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour |
| General Function | One-key Reset, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Self-adaptive Ethernet Port |
| On-board Storage | Built-in MicroSD/SDHC/SDXC Slot, Up To 128 GB |
| Audio I/O | 1 Built-in Mic, Mono Sound |
| Video Out | No |
| Alarm I/O | No |
| Reset Button | Yes |
| General | |
| Power Supply | 12 VDC ± 25%, 0.5 A, Φ 5.5 mm Coaxial Plug Power |
| Consumption | ≤ 6 W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% Or Less (Non-Condensing) |

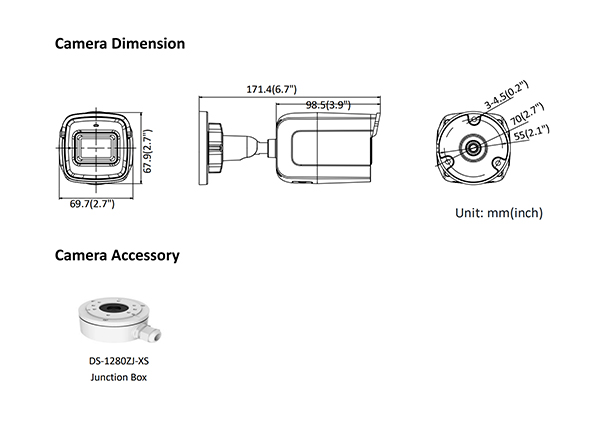

| Dimension | (W × D × H) 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7") |
| Weight |
372g (0.8 lb) |
| Kit | |
| Accessories | Power : 5 Power Cables Network Cable: 4 × 18.3 m (60 ft) Video And Power CableHDMI Cable: 1 HDMI Cable |
| Hard Drive | Pre-installed 1 TB HDD |
| Certification | FCC, CE |
| Weight (With Package) | ≤ 7 kg (15.4 lb) |
What In The Box
- 4 x Network Camera
- 4 x Power Adapter
- 1 x CableHDMI Cable : 1 HDMI Cable
- 1 x Network Cable : 4 × 18.3 m (60 ft) Video And Power
- 1 x Power : 5 Power Cables
- 1 x DVR
Warranty
3 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at Service@accessglobal.com
