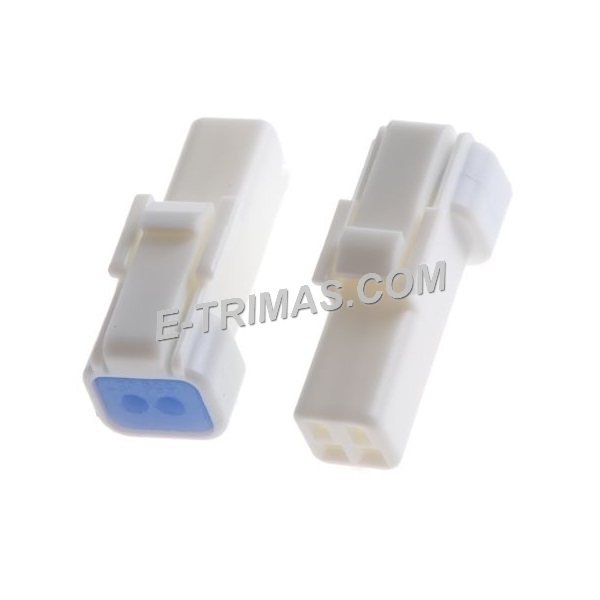

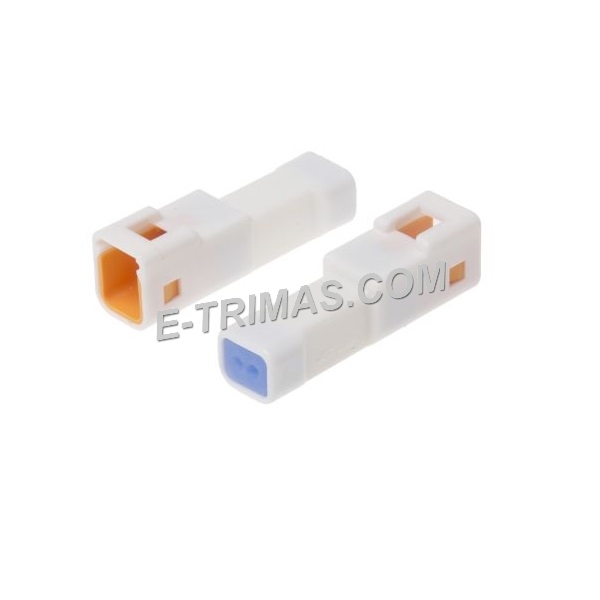

E-trimas 2 Way 2mm Pitch Electronic JST Type Housing Connector Socket (1SET)

SKU: ECON-001-02

• IP67 ingress protection
• Solid rubber rear seals for wire side sealing
• Facial seal for mating face protection
• Compact design
• Spring action housing-to-terminal locks for secure contact retention
• Inner housing lock for secure mating connection

Applications

These waterproof connectors are designed for use in applications where space is at a premium and resistance to water ingress of at least IP67 rating is required.

Applications include:
Appliances: such as refrigeration and washing machines
Automation: such as light cluster units and door mirror control units
Rail: such as internal and external lighting systems and low current power systems
Industrial: factory automation
Lighting: general low current harness looms

Terminal Pin:

Contact Gender: Pin
Contact Material: Brass
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 26AWG
Wire Size AWG Max: 22AWG
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Termination: Crimp
Current Rating: 3A
IP / NEMA Rating: IP67
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V

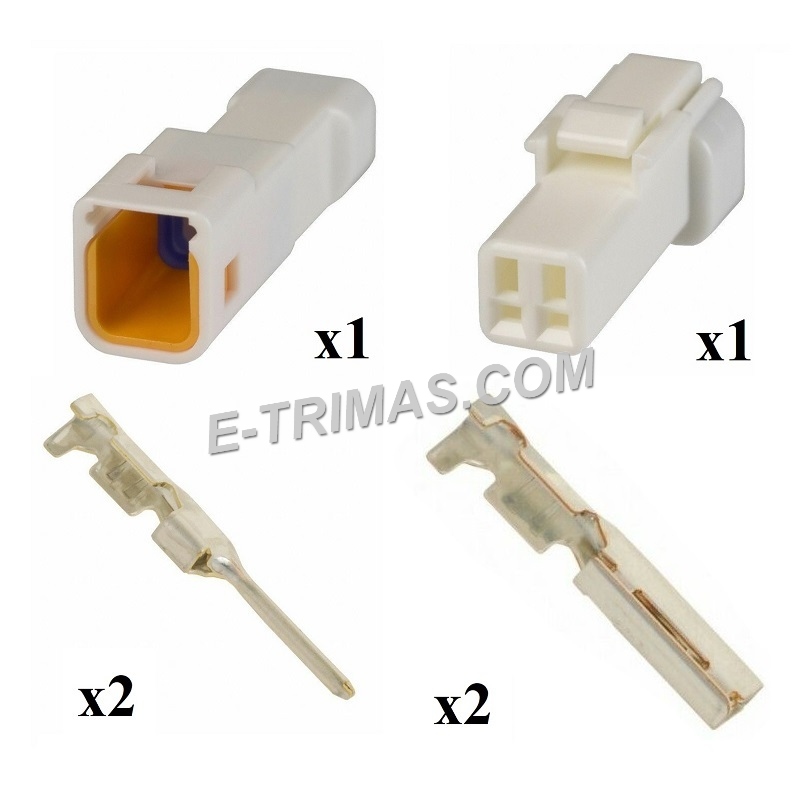

This package includes:

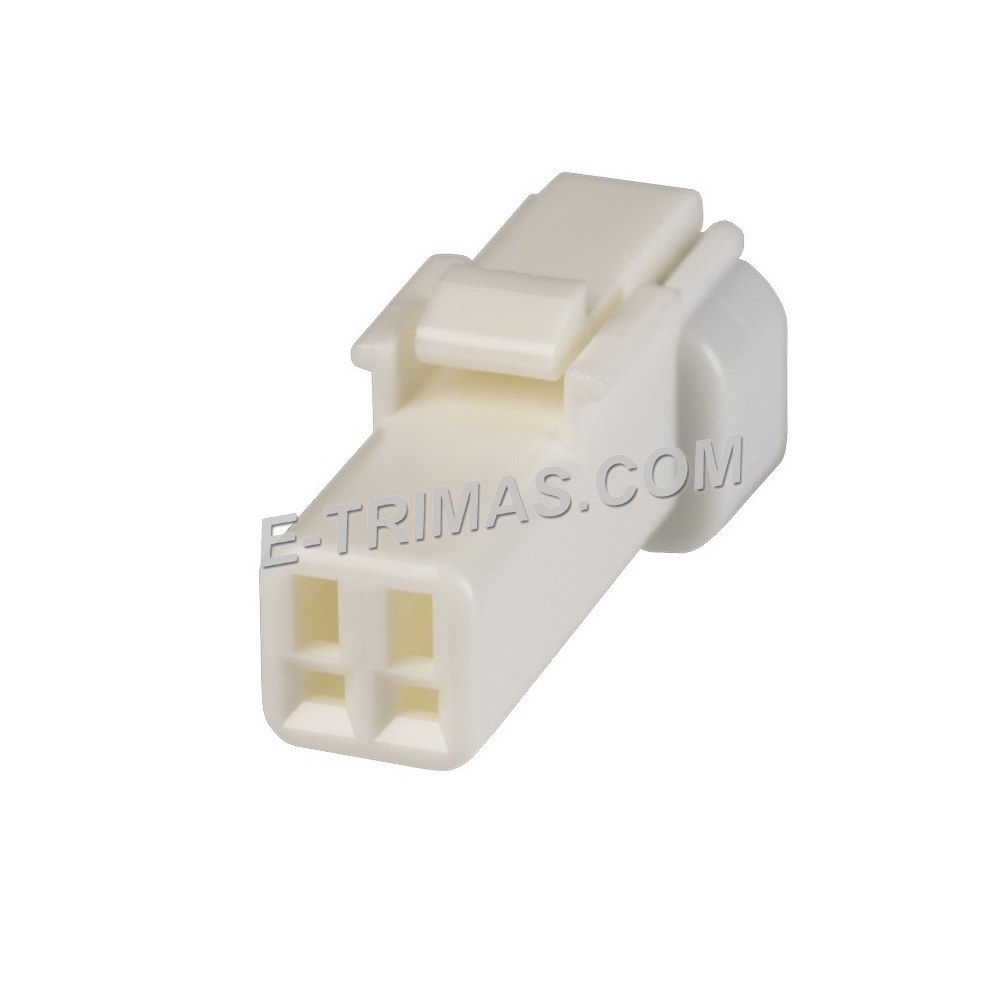

1 x Male Socket

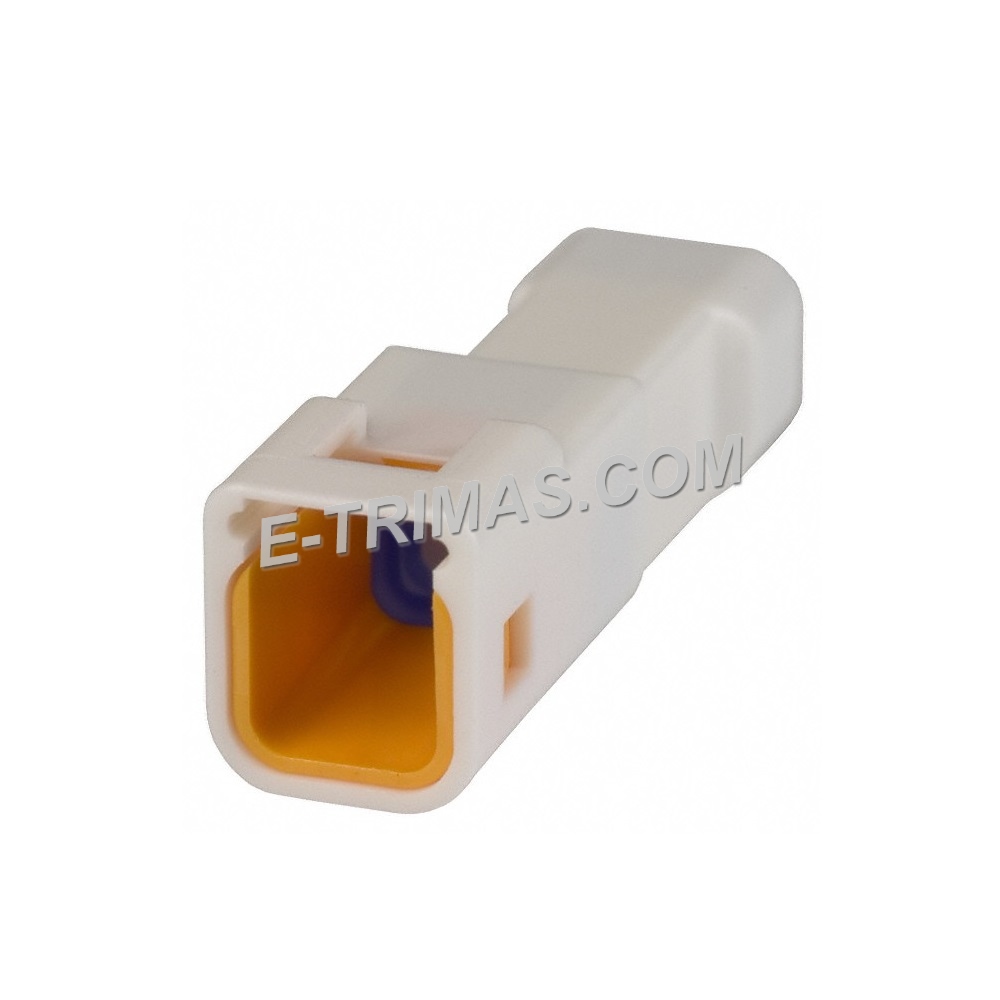

1 x Female Socket

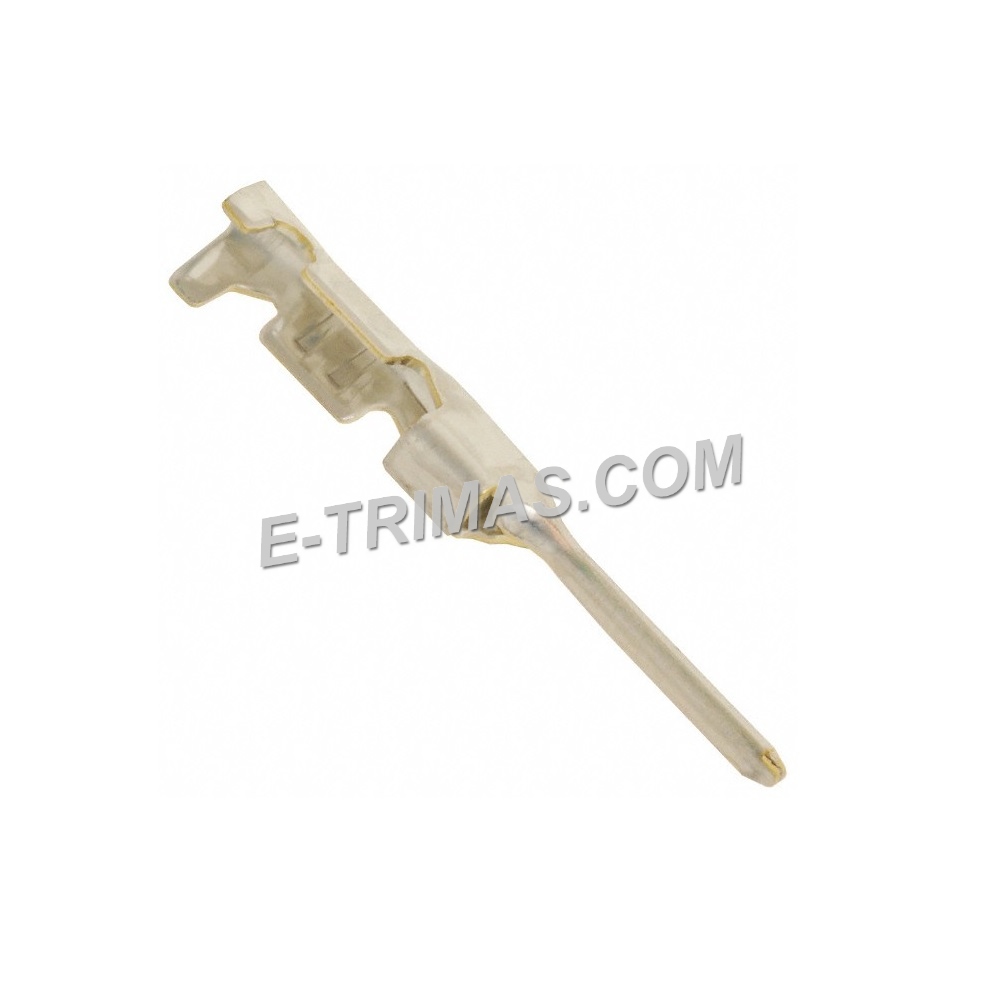

2 x Male Pin

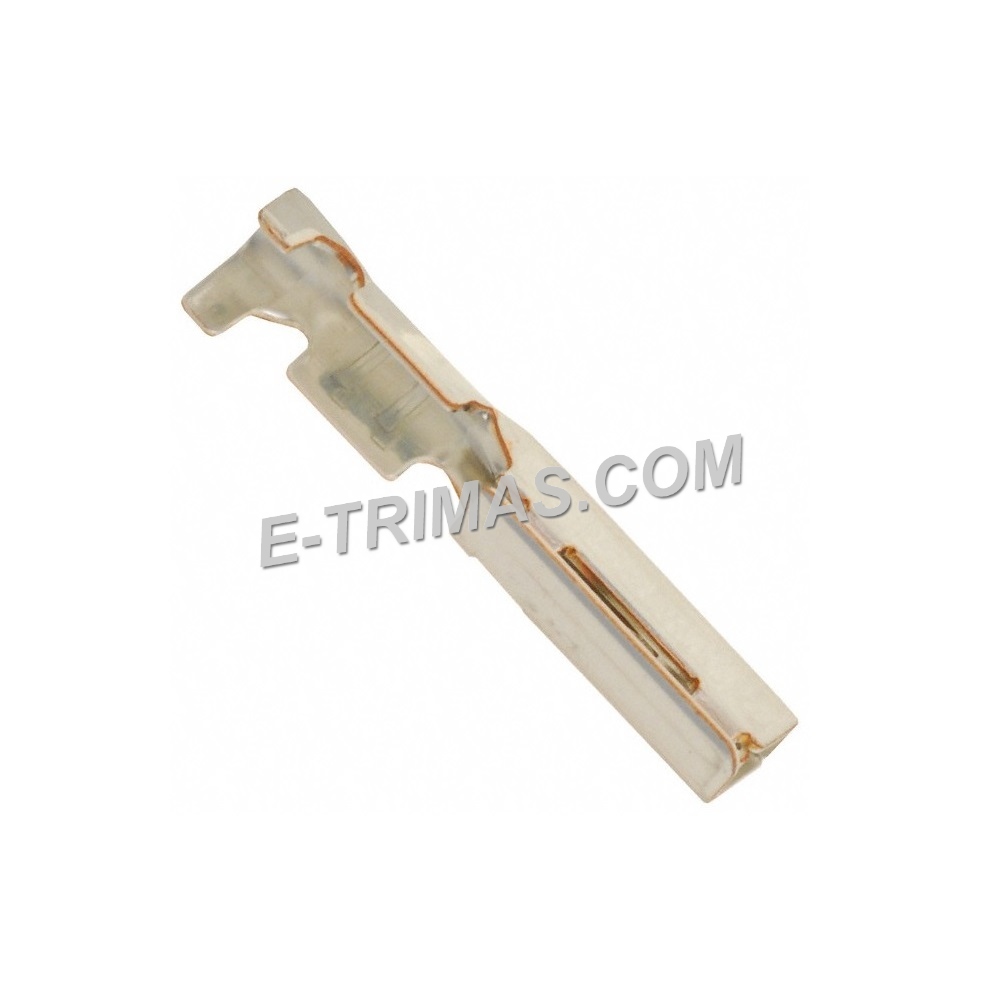

2 x Female Pin
