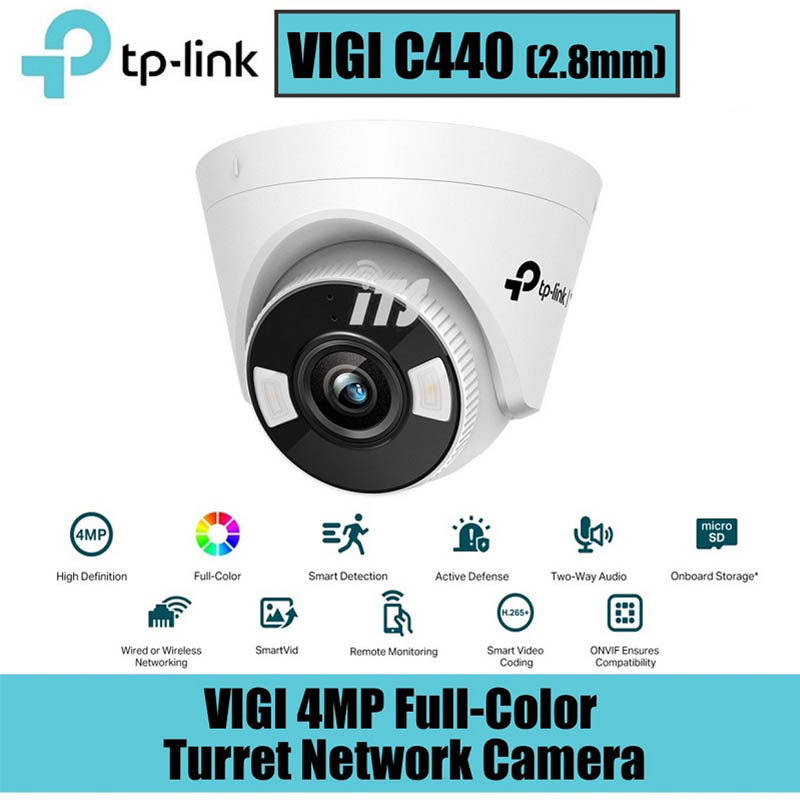

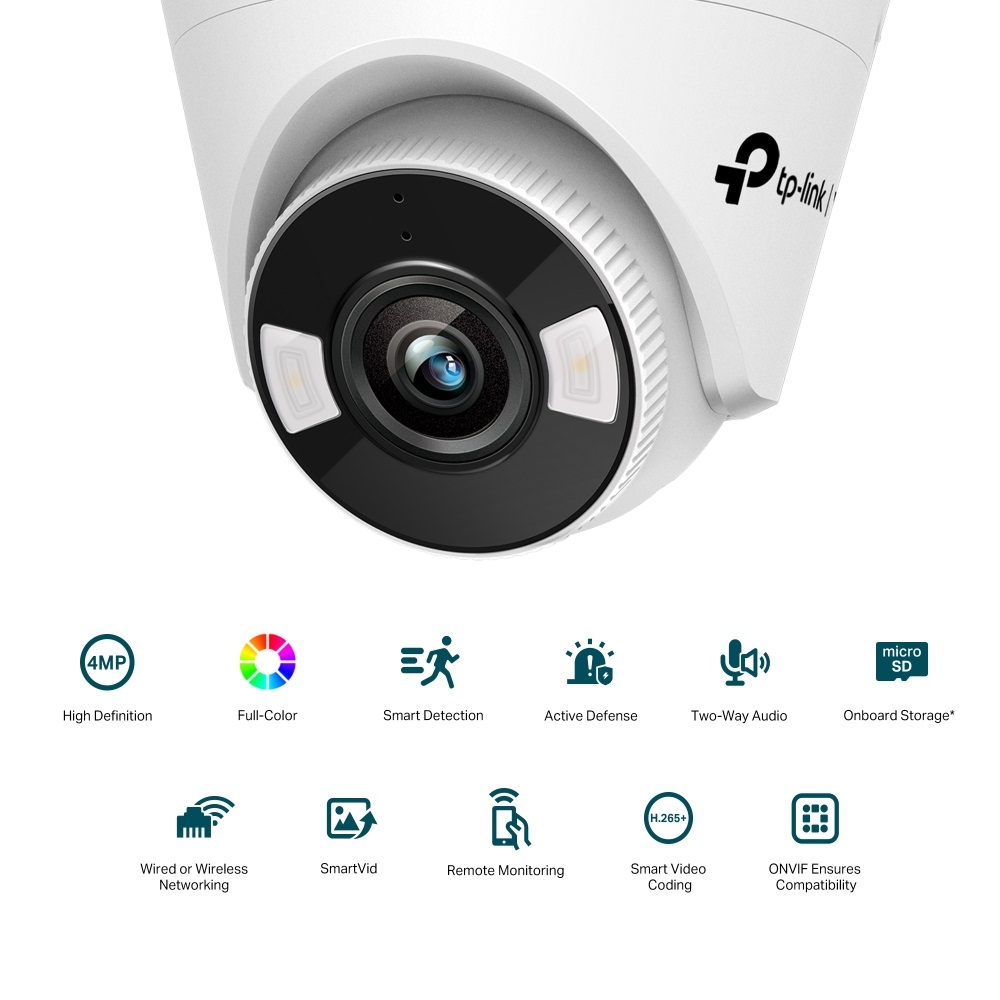

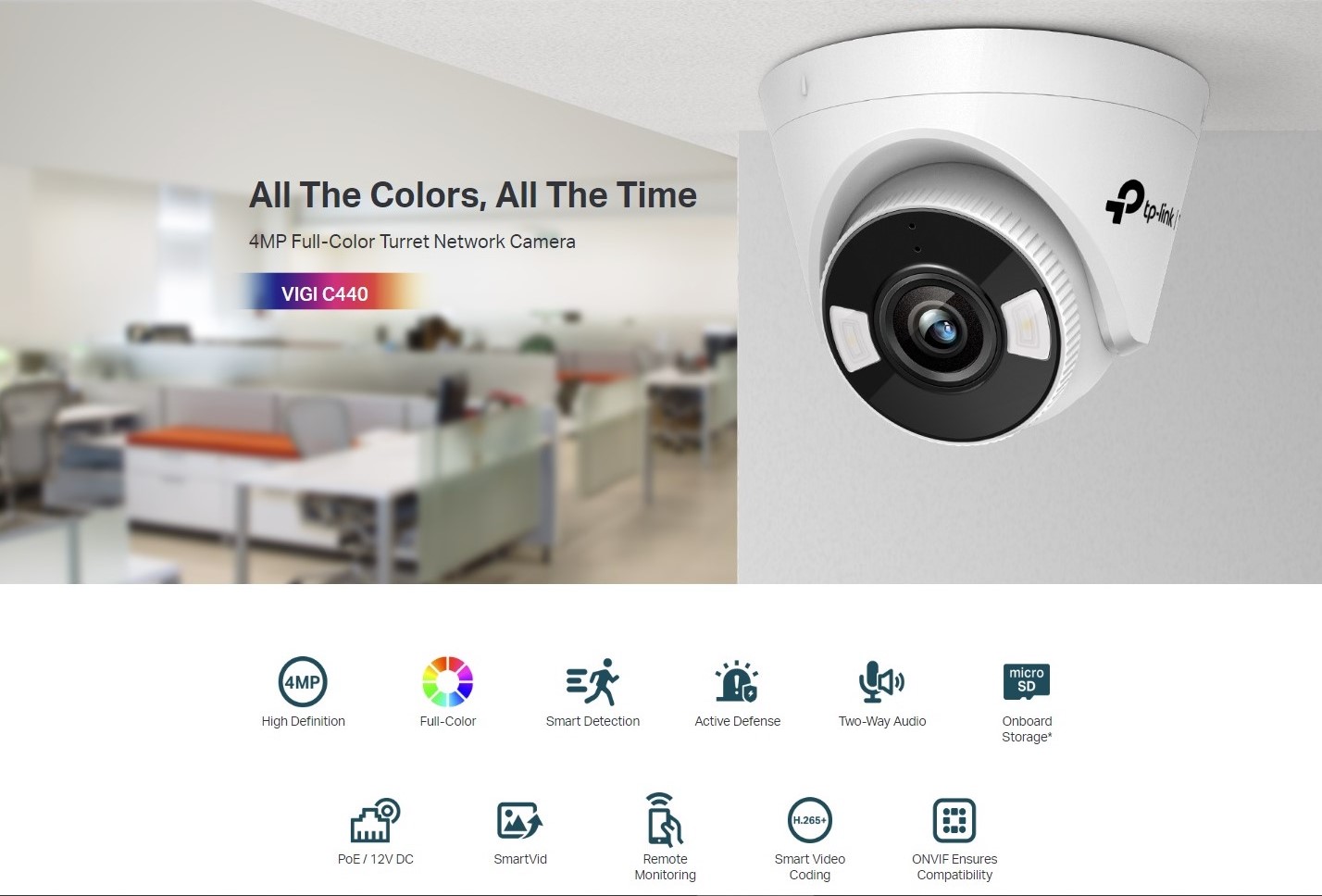

TP-Link VIGI C440 2.8 4MP Full-Color Turret Network Camera (Wired)

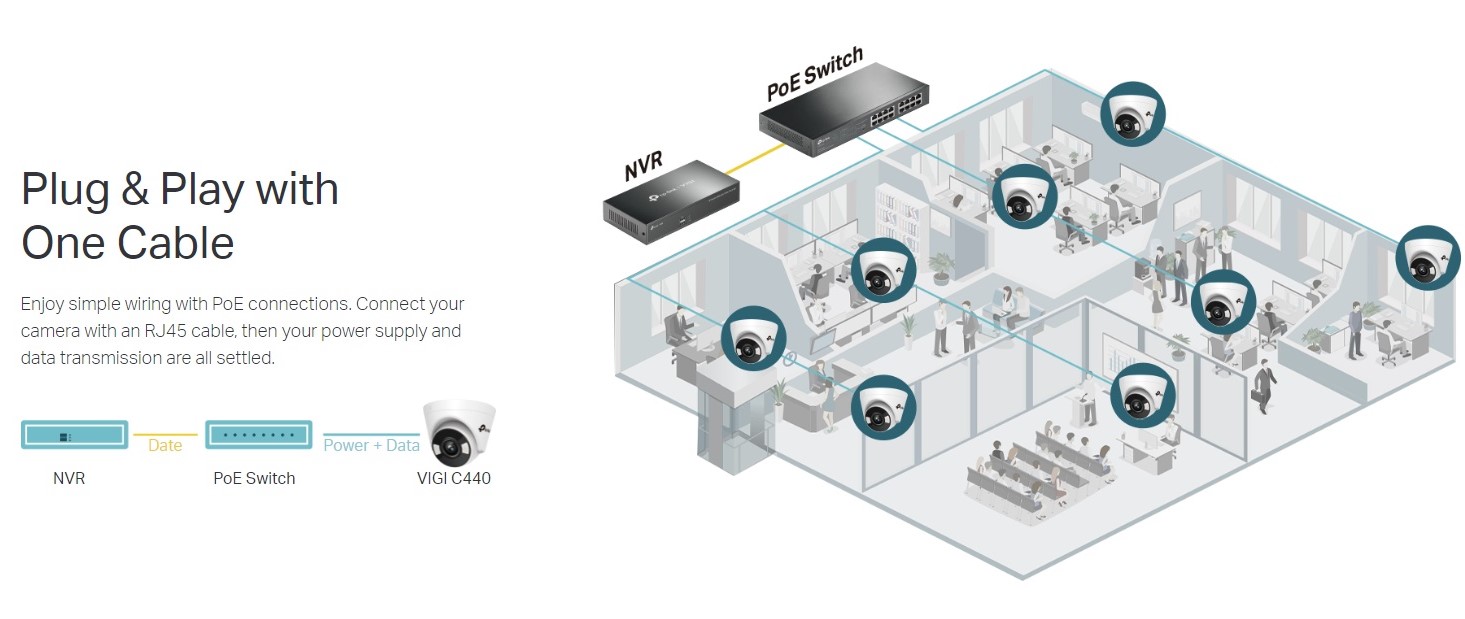

NETWORK Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS API ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams GENERAL Package Contents VIGI Network Camera Quick Start Guide Screws and Anchors Mounting Template Operating Temperature -3060 °C Certifications CE, FCC, RCM, BSMI, VCCI, RoHS Dimensions( H X W X D ) 123 × 123 × 84 mm Material Plastic General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) - VIGI C440 (4mm) 12V DC ± 5%, 5.5mm Coaxial Power Plug - VIGI C440-W (4mm) CAMERA Image Sensor 1/3 Progressive Scan CMOS Lens Fixed focal lens (2.8 mm / 4 mm) Aperture 2.8 mm: F1.6 4 mm: F1.6 Lens Mount M12 Viewing Angle (2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122° (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93° Day/Night Mechanism IR Cut Filter IR Working Distance 30m Illumination Distance 30m (LED) Minimum Illumination 0 lux with IR/white Light Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° Digital Noise Reduction 3D DNR WDR DWDR VIDEO/IMAGE Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps SMART FEATURE-SET Smart Event Area Intrusion Detection, Line-Crossing Detection Basic Event Motion Detection, Video Tampering Detection, Exception ( illegal login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 Region INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Audio Input Built-in Microphone Audio Output Built-in Speaker Button Reset Button Slot Micro SD card
