Overview
Specifications
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | - 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | - 4 mm: Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Illuminator | |
| IR LED | - Quantity: 2 - Range: 30m - Wavelength: 850nm |
| White LED | - Quantity: 2 - Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Video | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | - Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps - Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 - Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | - Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps - Resolution: 704x576,640x480, 352x288, 320x240 - Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | - Main Stream: H.265+/H.265/H.264+/H.264 - Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | - Main Stream: 256 Kbps to 6 Mbps - Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | - Mirror - Brightness - Contrast - Saturation - Sharpness - Exposure - WDR - White Balance - Prevent Overexposure to Infrared Light - HLC Adjustable by Client Software |

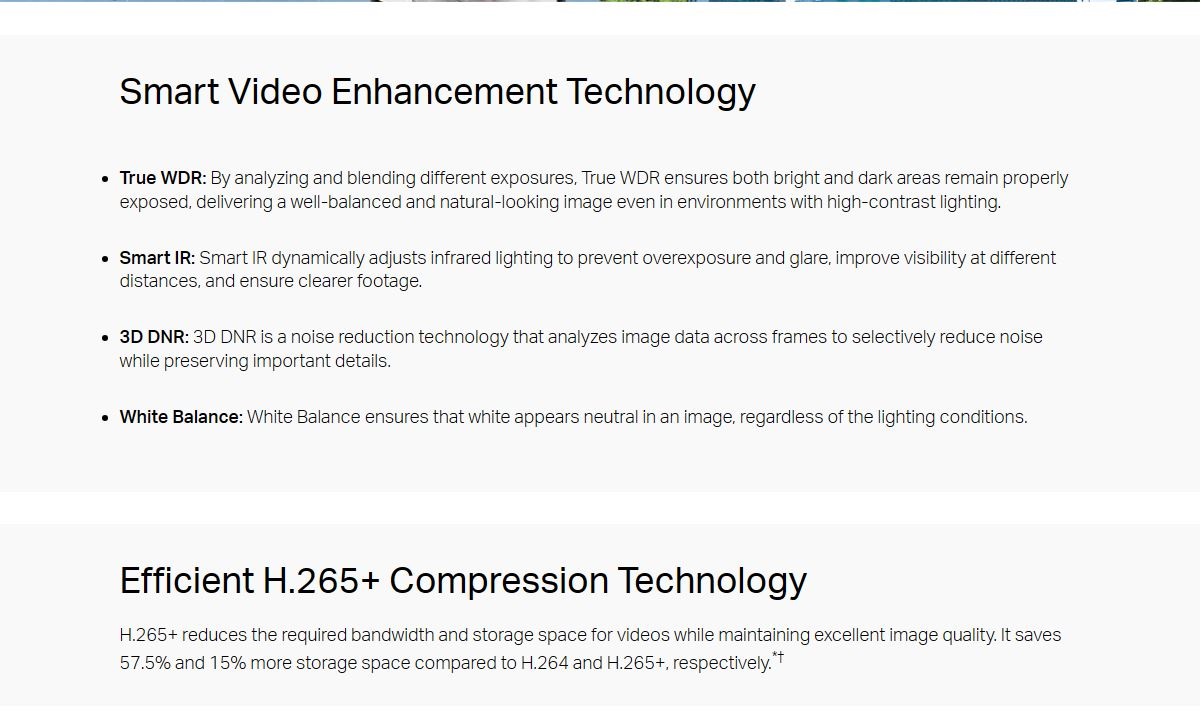

| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | - Google Chrome® 57 and above - Firefox® 52 and above - Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm And Event Management | |
| Smart Event | - Human & Vehicle Classification - Intrusion Detection - Line-Crossing Detection - Region Entering Detection - Region Exiting Detection - Object Abandoned Detection - Object Removal Detection - Loitering Detection - Smart Frame - People Detection - Vehicle Detection |
| Basic Event | - Motion Detection - Video Tampering Detection - Exception (Illegal Login) - Scene Change Detection |
| Alarm Linkage | - Memory Card Video Recording - Message Push - Audible Warning - White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Interfaces | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| General | |
| Operating Temperature | - 30–60 °C |
| Storage Temperature | - 40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | - VIGI Network Camera - Quick Start Guide - Waterproof Cable Attachments - Mounting Accessories |
| Material | Metal |
| Net Weight | 0.525 Kg |
| Power Supply | - 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug - PoE: 802.3af/at, class 0, Max. 11.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 74 × 184 × 74 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |

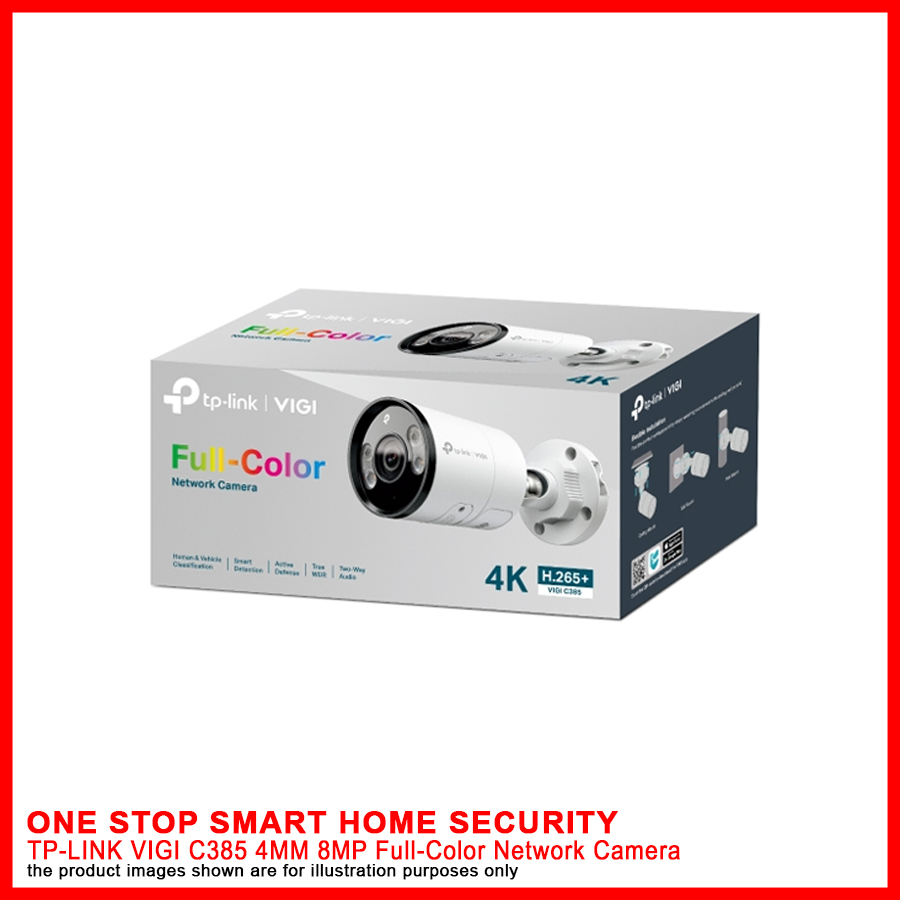

What's in the box

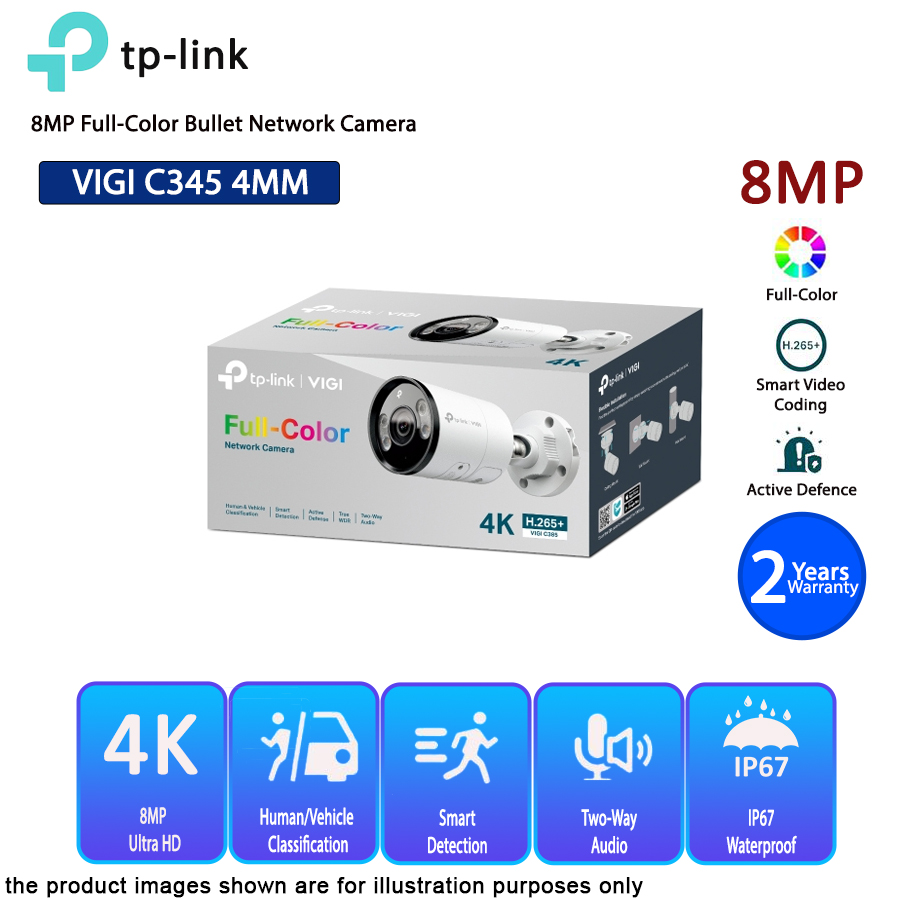

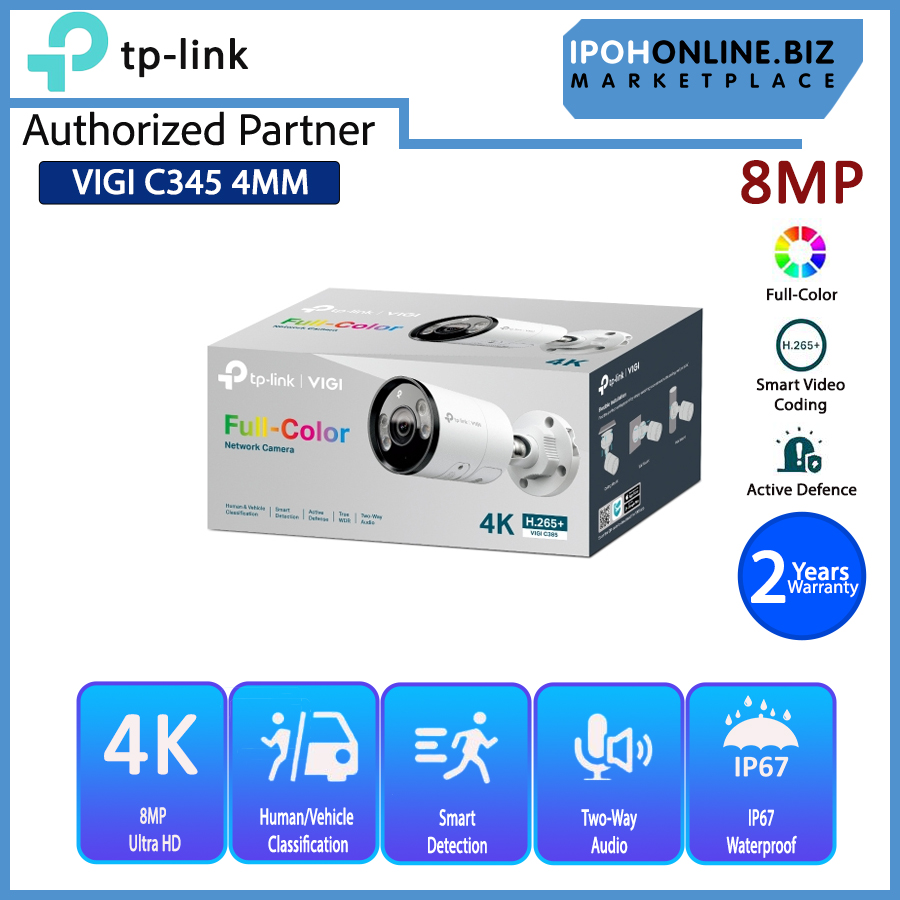

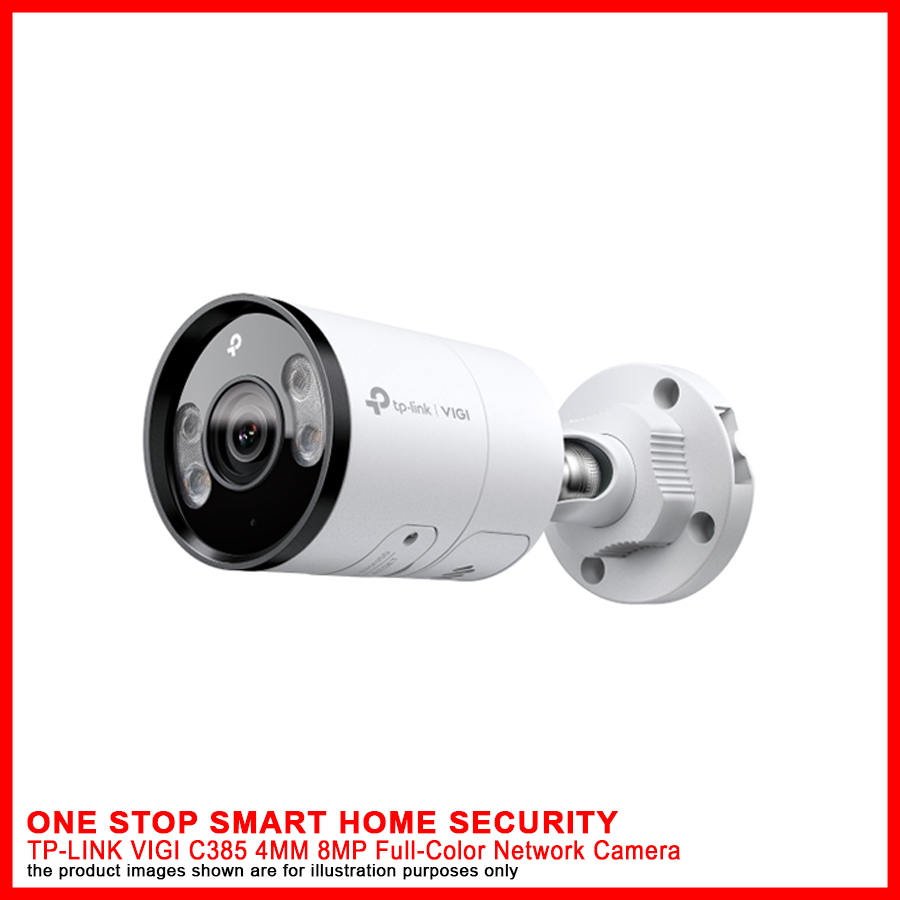

- 1 x TP-LINK VIGI C385 4MM 8MP Full-Color Bullet Network Camera
- 1 x Quick Start Guide
- 1 x Waterproof Accessories
- 1 x Mounting Accessories
Warranty
2 Years Warranty
Local Manufacturer Warranty
