Features
- Effectively Scans Barcode In Sensitive Lighting Conditions.
- Communication Distance : 100 Meters.
- Features Class 1 Laser Ideal For Moderate To Rigorous Scanning Applications.
- Plug And Play, No Software Installation Required.
- Wired Mode And Wireless Mode Are Free To Switch.
- Ergonomic - Fits Perfectly In The Hand And Light-Weight For Comfortable Use Over Extended Periods.
Specification
| Technical Parameter | |
| Model | X-9701C |
| Item | Wireless 2D Barcode Scanner |
| Physical Parameter | |
| Material | ABS+PVC+PC |
| Power Supply | Charge 5V ±5% ; 3.7V 2000mAH Lithium Battery |
| Operating Current | 400mA(Working); 90mA(Standby); 500mA(Maximum) |
| Weight | 146g±5g(Without Cable) |
| Size | L*W*H: 196 * 87 * 70(Unit:mm) |
| Color | Black; Grayish White |
| Button Lifespan | ＞100000 Times |
| Performance Parameter | |
| Interface | USB Cable ; Wireless 2.4G Transmission |
| System Supported | Linux, Android, Windows XP、7、8、10, MAC |
| Language Supported | English; German; French; Spanish; Italian; Japanese (Supports Windows On-Screen Keyboard Keyboard,Under OSK Mode:Support All Languages) |
| Sensor | Planar CMOS Sensor |
| Light Source | Red LED(Aiming)+White LED(Lighting) |
| Processor | 32-bit ARM MCU |
| Storage | 64K(About 3500 14b 1D Barcodes) (The Memory Capacity Can Be Customized) |
| Motion Tolerance | 100mm/s 13mil UPC |
| Resolution | 4mil |
| Transmission Distance | 90m |
| Bit Error Rate | 1/5000000 |
| Reading Mode | Image |
| Trigger Mode | Manual; Continuous Scanning;Auto-Sensing |
| Prompt Mode | Buzzer, Indicator Light(LED) |
| Print Contrast | 35% |
| Charging Time | 8 hours |
| Decoding Capability | |
| 1D | Code25-Interleaved Code25-Standard Code25-Matri Code39-Regular Code39-FullASCII Code32 Code93-Regular Code93-FullASCII Code128 EAN/GSL/UCC-128Auto Codabar MSI EAN/JAN-13 UPC-A JAN-8 Code11 UPCE0 |
| 2D | Data Matrix QR PDF417 |
| Scanning Distance | 10mm-600mm |
| Scanning Angel | Roll360°; Pitch65°; Yew65° |
| Scanning Depth | Code39 5mil : 3cm - 9cm Code39 20mil : 4cm - 35cm QR 20mil : 3cm - 20cm |
| Environment Parameter | |
| IP Grade | IP42 |
| Operating Temp. | 0 To 50°C / 32 To 122°F |
| Storage Temp. | 0 To 50°C / 32 To 122°F |
| Operating Humidity | 20% To 85%(No Condensation) |
| Storage Humidity | 20% To 85%(No Condensation) |
| ESD Protection | 15KV Air Discharge |
| Shock Resistance | 1.5m Free Fall On Concrete Surface |
What In The Box

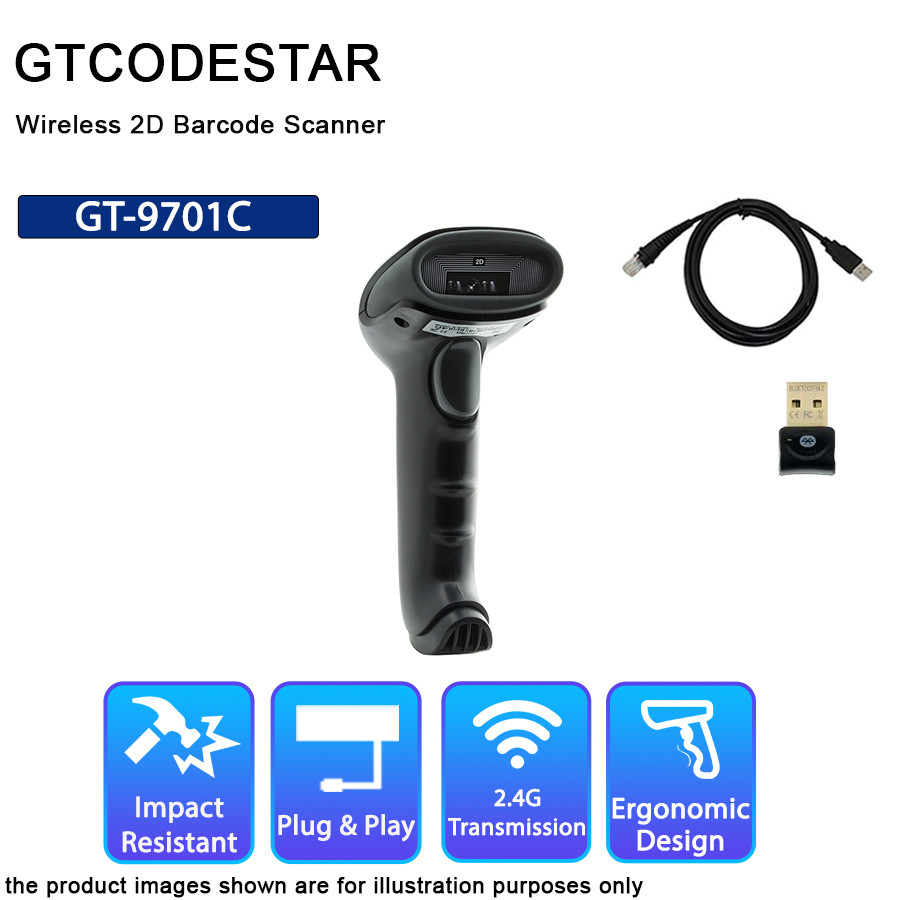

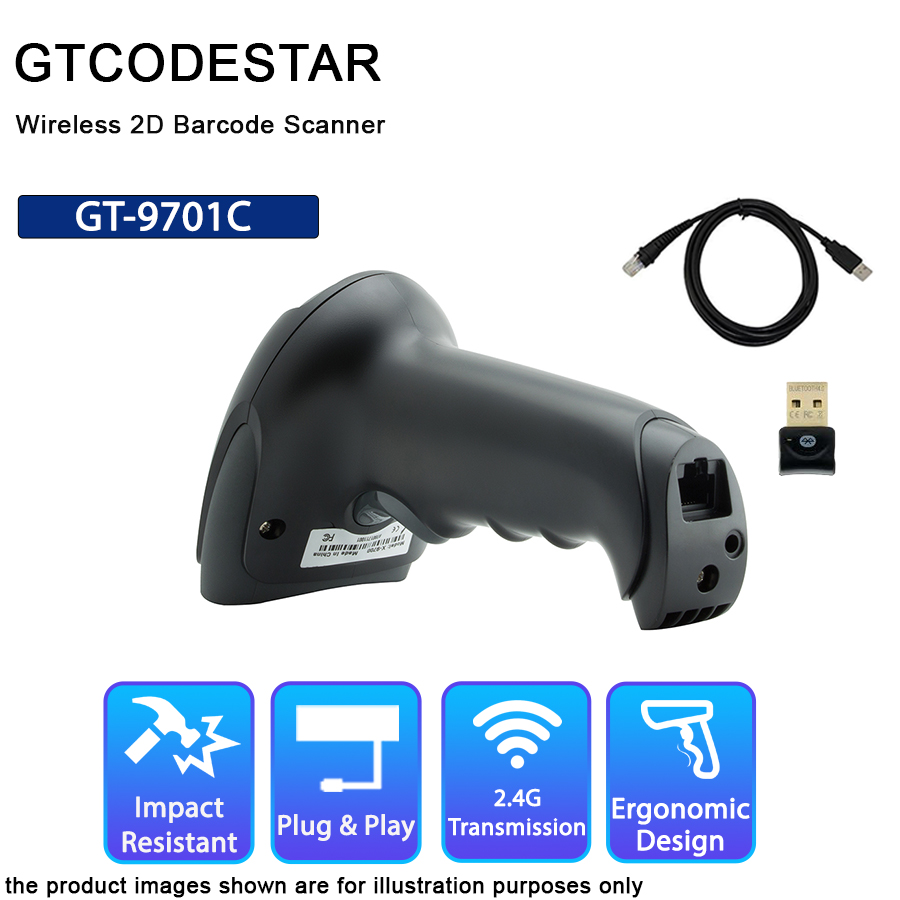

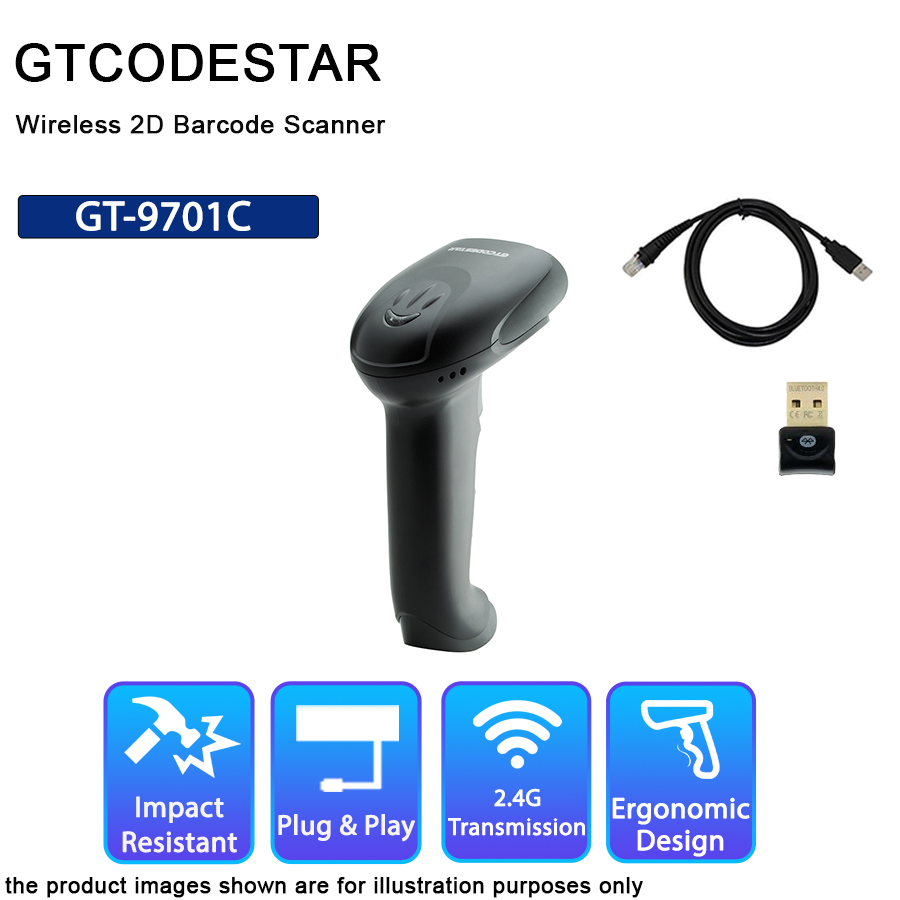

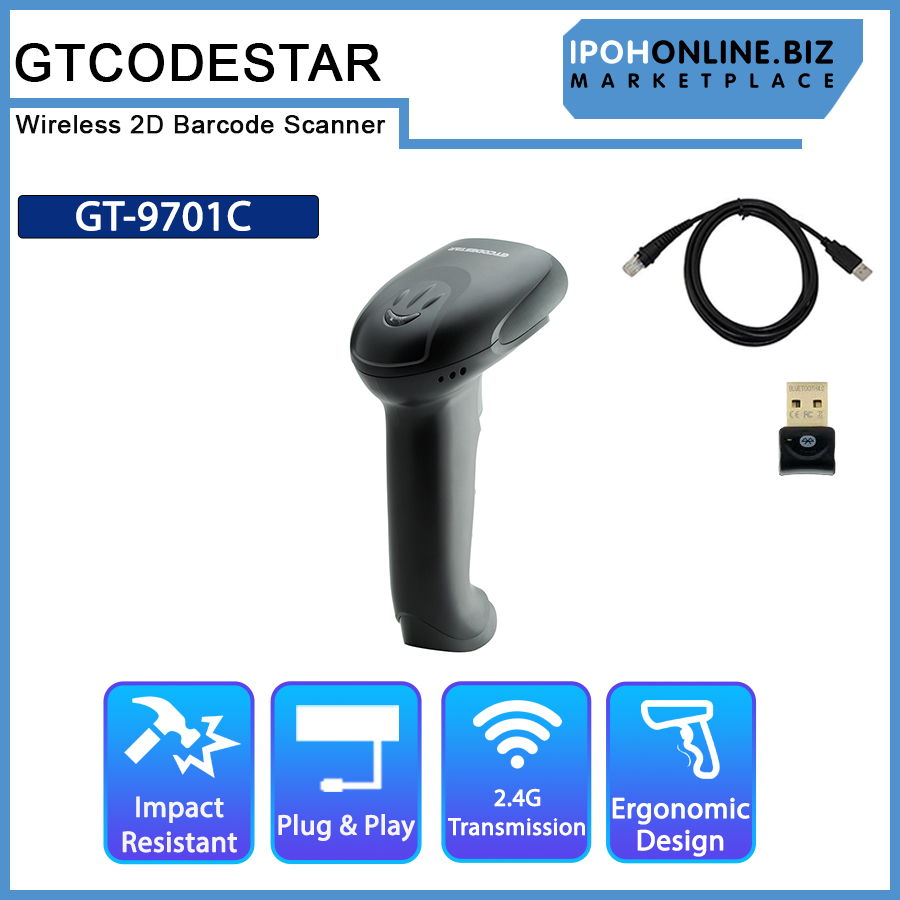

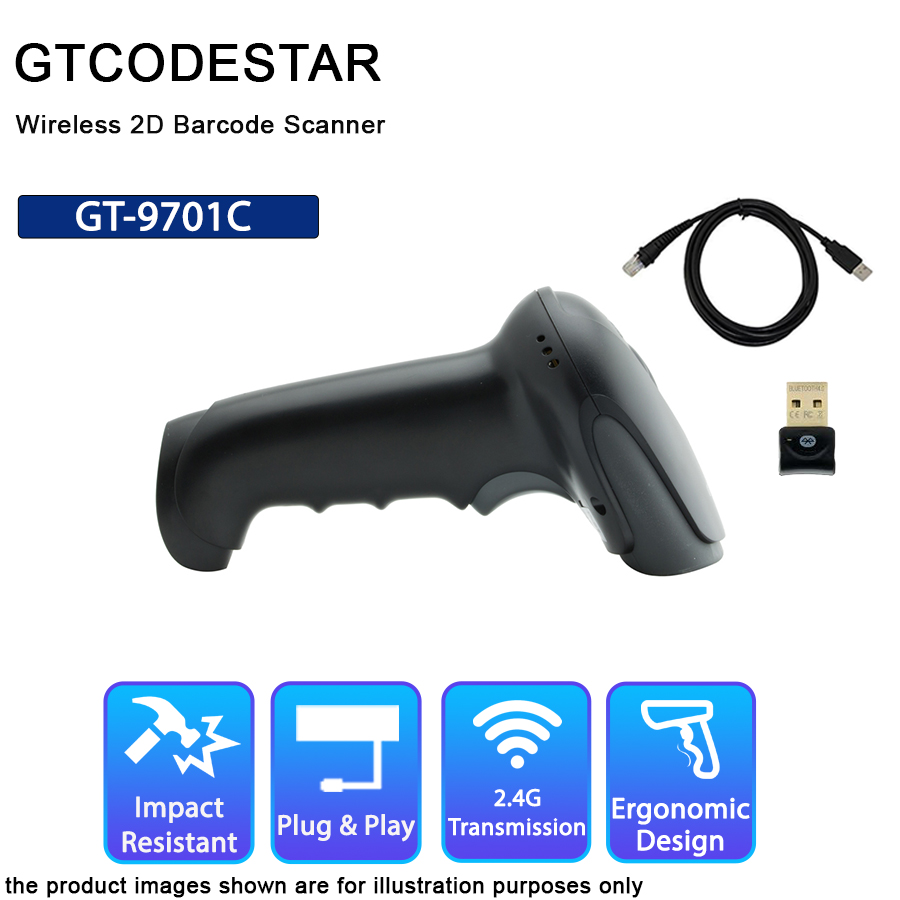

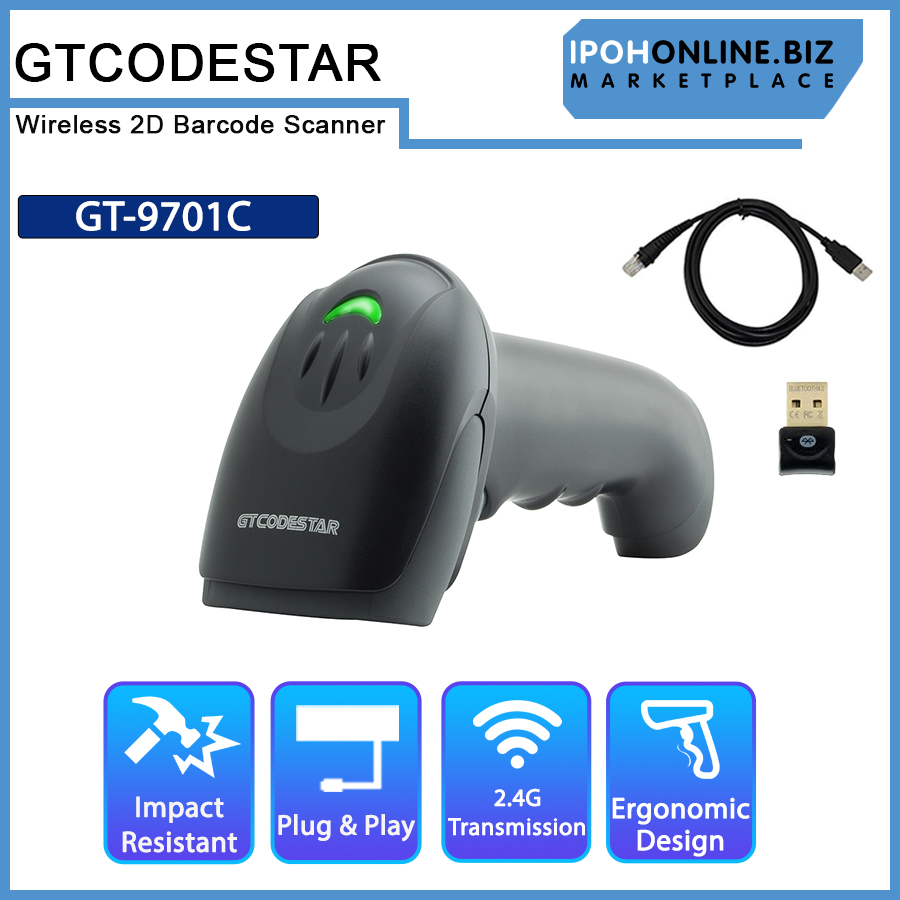

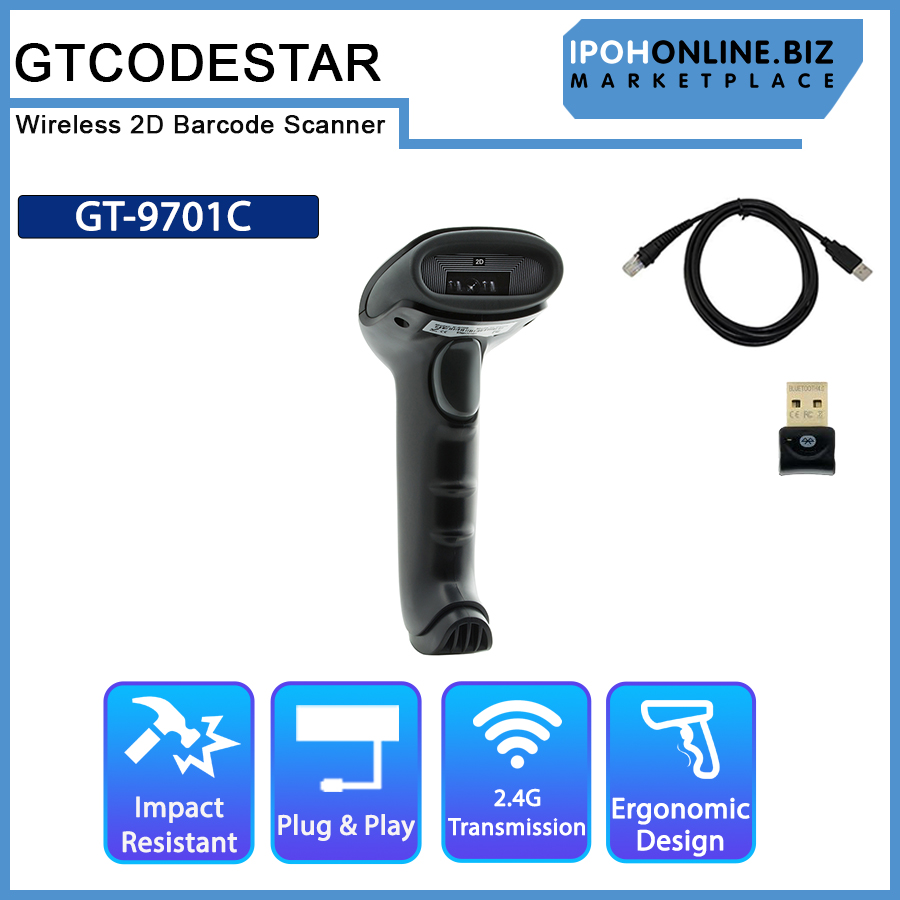

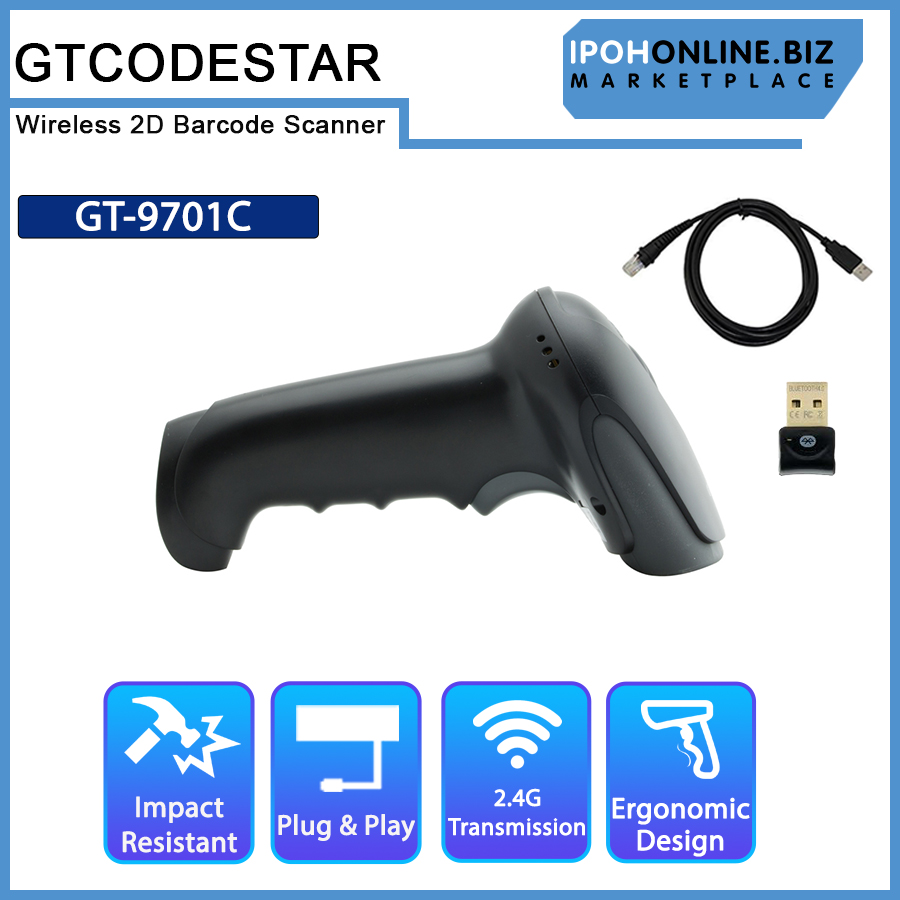

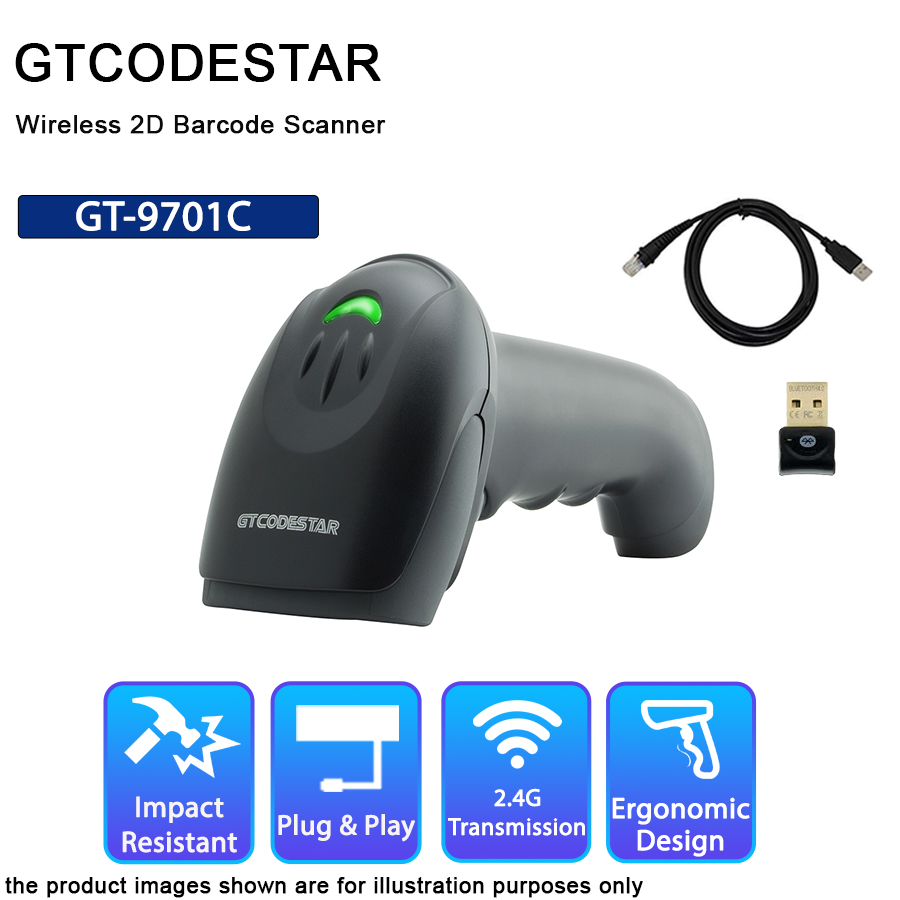

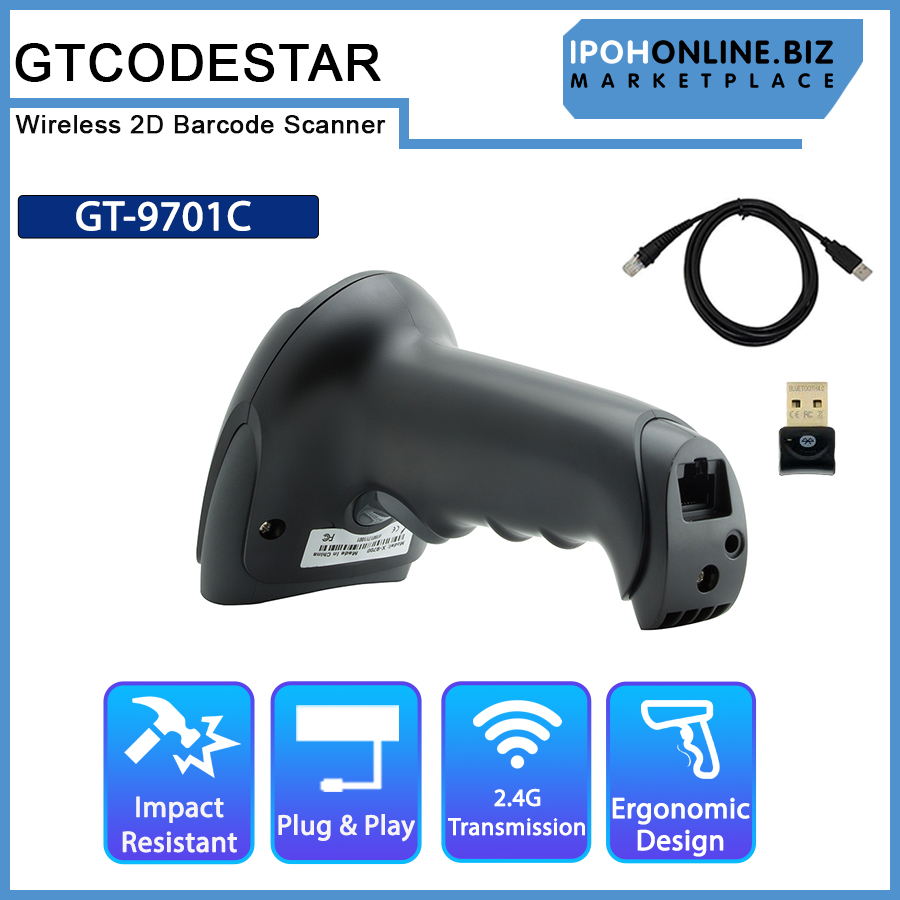

- 1 x GTCODESTAR GT-9701C USB Handheld Wireless Laser 2.4G Transmission 2D Barcode Scanner
- 1 x USB Dongle
- 1 x USB Wire
- 1 x User Manual
Warranty
No Warranty
