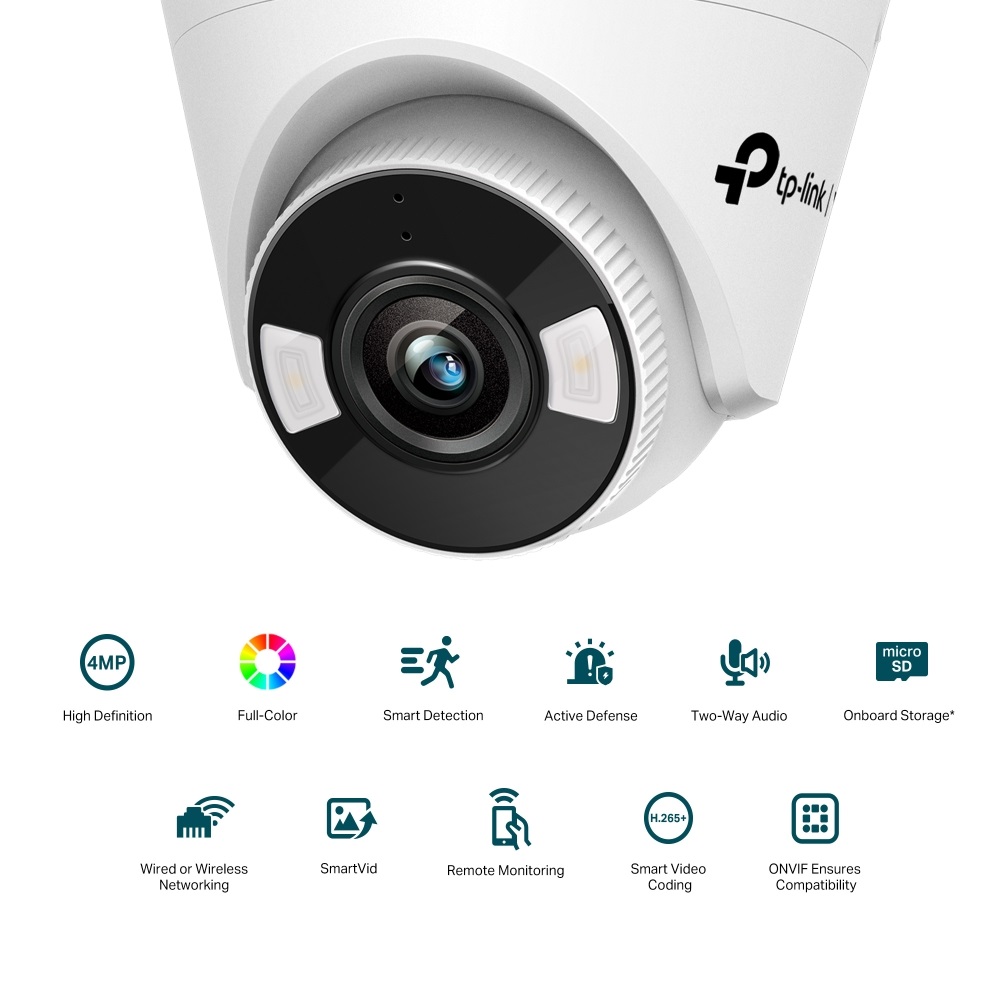

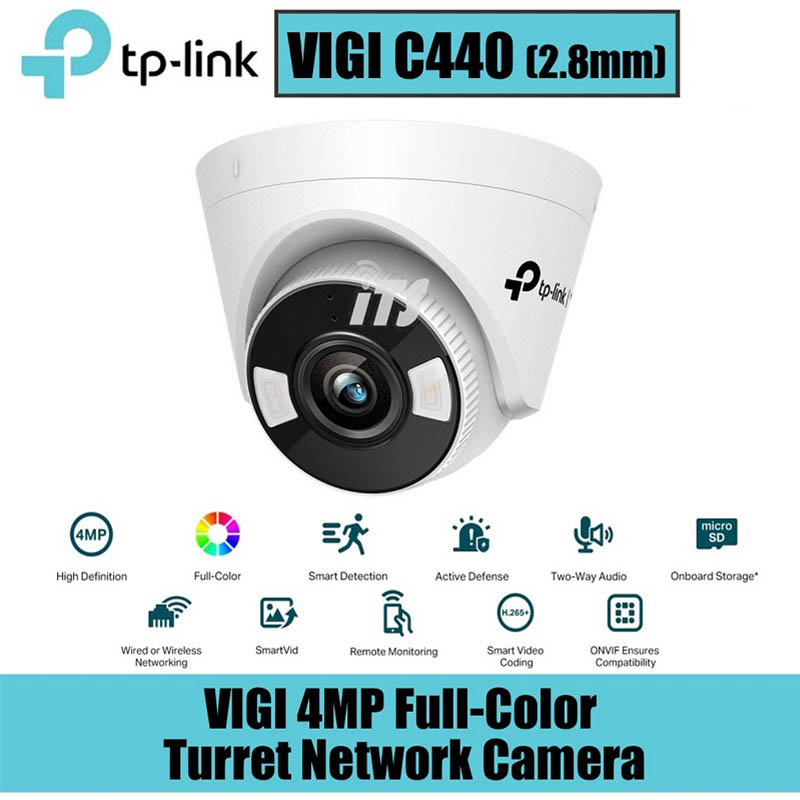

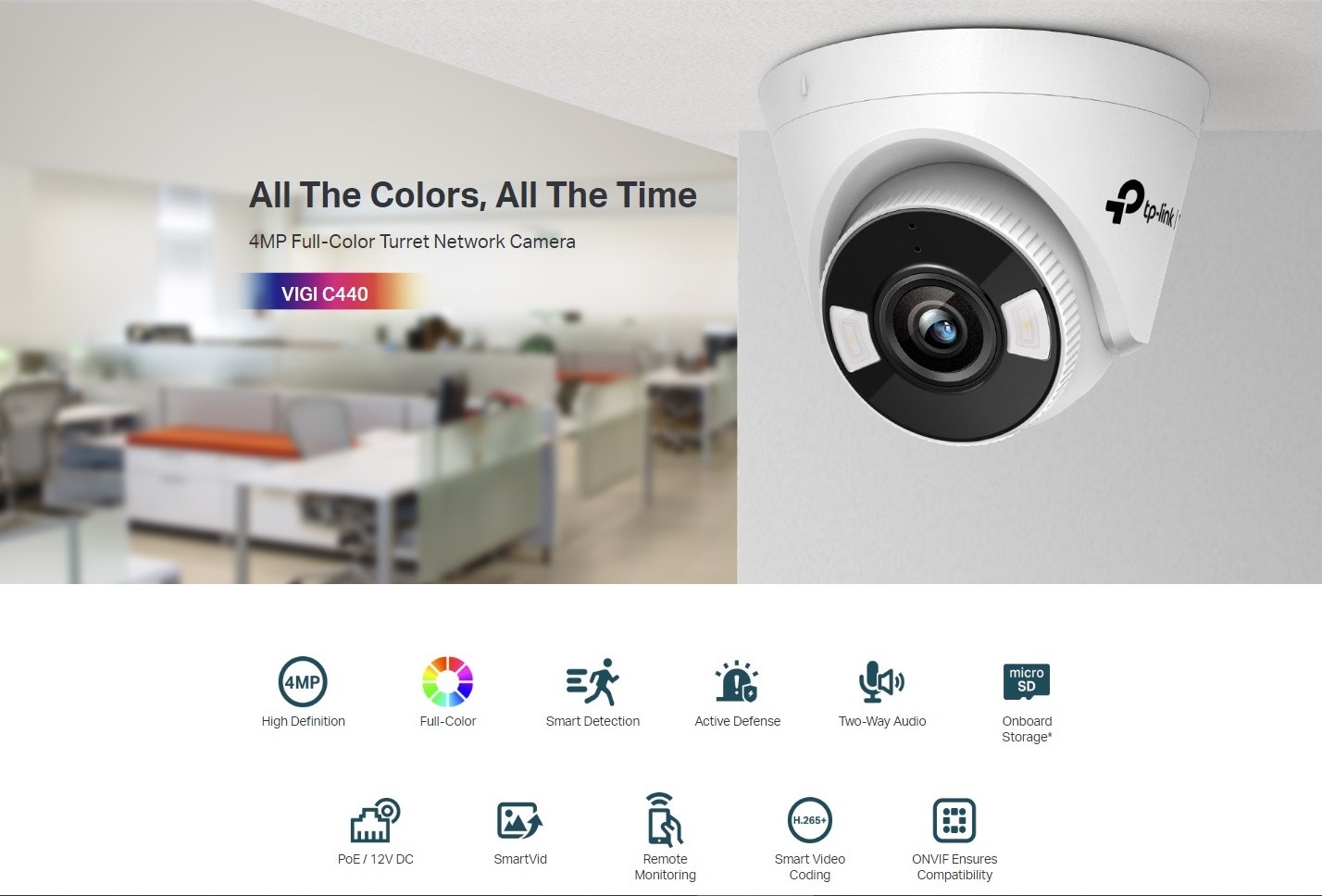

TP-Link VIGI C440 2.8 4MP Full-Color Turret Network Camera (Wired)

TP-Link VIGI C440 2.8 4MP Full-Color Turret Network Camera  (Wired)

"NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

GENERAL

Package Contents

VIGI Network Camera

Quick Start Guide

Screws and Anchors

Mounting Template

Operating Temperature

-30–60 °C

Certifications

CE, FCC, RCM, BSMI, VCCI, RoHS

Dimensions( H X W X D )

123 × 123 × 84 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements

12V DC ± 5%, 5.5mm  Coaxial Power Plug

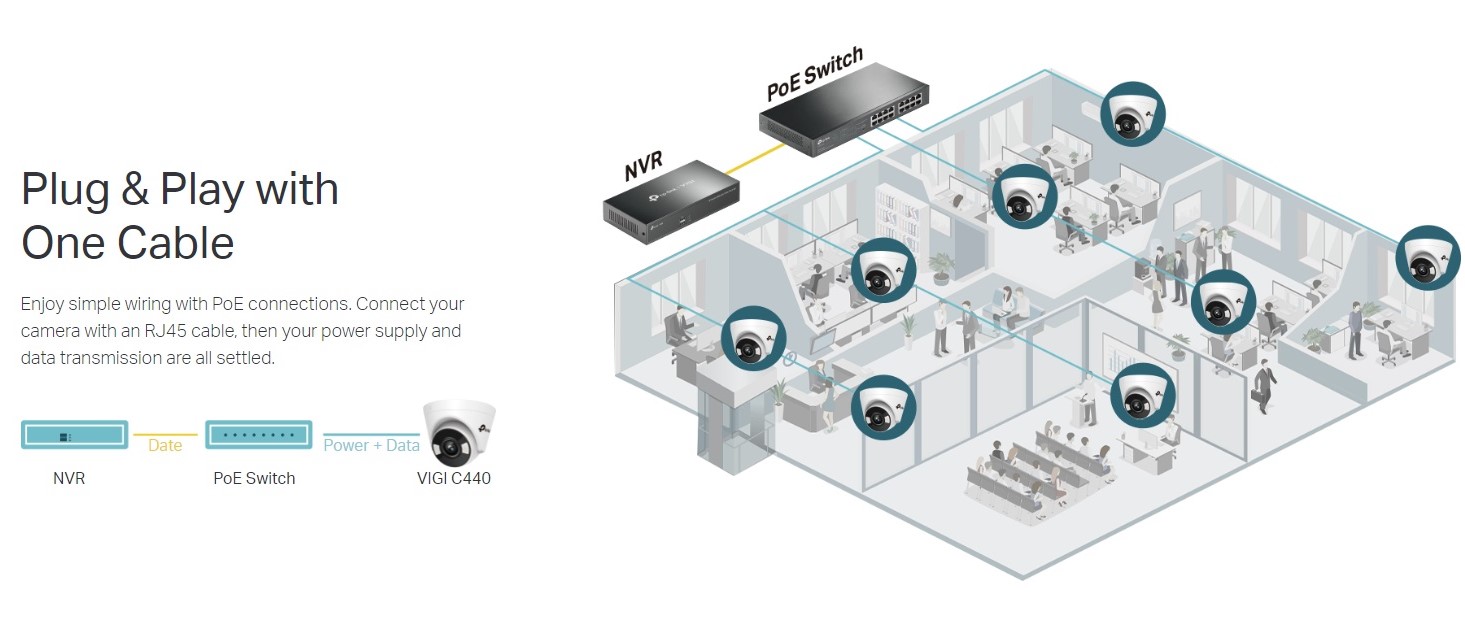

PoE (802.3af/at, class 0) - VIGI C440 (4mm)

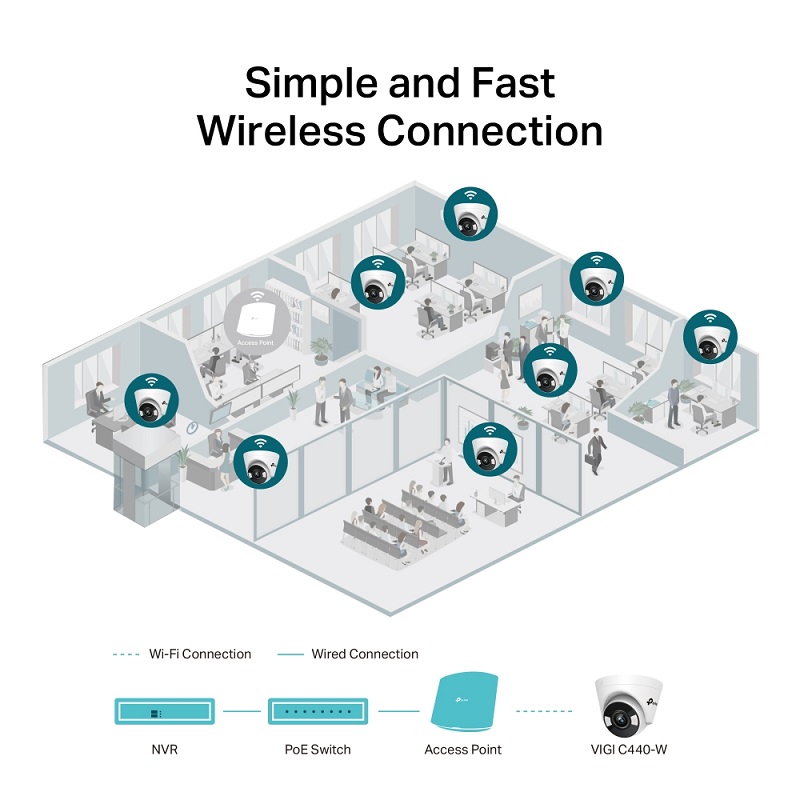

12V DC ± 5%, 5.5mm  Coaxial Power Plug - VIGI C440-W (4mm)

CAMERA

Image Sensor

1/3” Progressive Scan CMOS

Lens

Fixed focal lens (2.8 mm / 4 mm)

Aperture

2.8 mm: F1.6

4 mm: F1.6

Lens Mount

M12

Viewing Angle

(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122°

(4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°

Day/Night Mechanism

IR Cut Filter

IR Working Distance

30m

Illumination Distance

30m (LED)

Minimum Illumination

0 lux with IR/white Light

Pan/Tilt Range

Pan: 0° to 360°,

Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction

3D DNR

WDR

DWDR

VIDEO/IMAGE

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

Smart Event

Area Intrusion Detection, Line-Crossing Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input

Built-in Microphone

Audio Output

Built-in Speaker

Button

Reset Button

Slot

Micro SD card"
