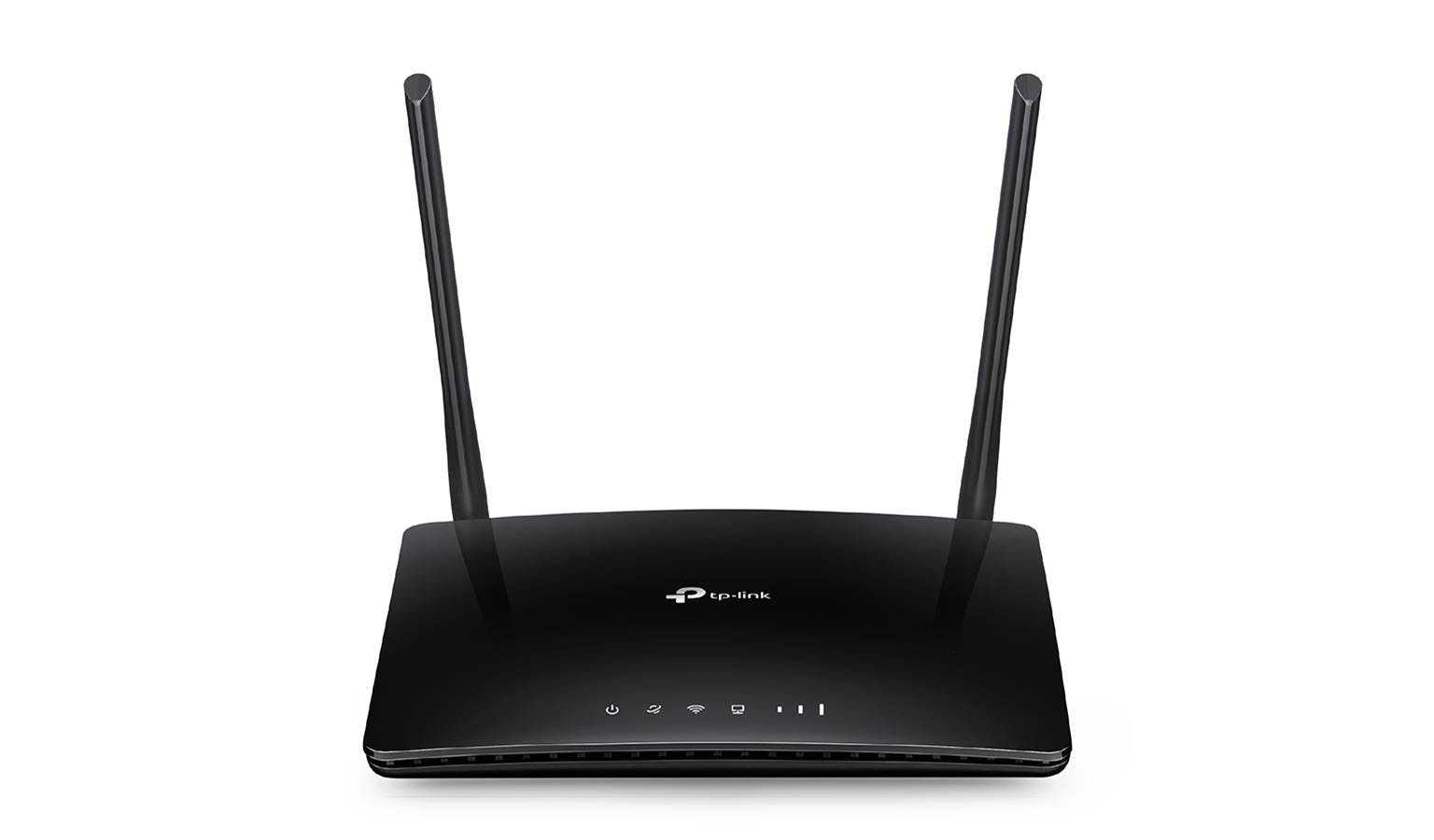

Tp-Link Tl-Mr6400 300Mpbs Wireless-N 4G Lte Router

PRODUCT DETAILS OF TP-LINK TL-MR6400 300MPBS WIRELESS-N 4G LTE ROUTER

SPECIFICATIONS :

HARDWARE FEATURES

Interface    3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,

1 SIM Card Slot

Button    WPS/Reset Button, Wireless On/Off Button, Power On/Off Button

External Power Supply    12V/1A

Dimensions ( W x D x H )    7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

Antenna Type    2 Internal Wi-Fi Antennas,

2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards    IEEE 802.11b/g/n 2.4GHz

Frequency    2.4GHz

Signal Rate    300Mbps at 2.4GHz

Reception Sensitivity    11g 54M: -74dBm

11n HT20: -71dBm

11n HT40: -67dBm

Transmit Power    CE: <20dBm(2.4GHz)

Wireless Functions    Enable/Disable Wireless Radio, WDS Bridge, WMM,

Wireless Statistics

Wireless Security    64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type (V2)    T4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)

TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)

3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)

2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

Network Type    4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)

TDD-LTE B38/B40 (2600/2300MHz)

3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)

2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

SOFTWARE FEATURES

Quality of Service    Not Available

Operating Modes    3G/4G Router, Wireless Router

Management    Access Control, Local Management, Remote Management

WAN Connection Type    Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

DHCP    Server, Client, DHCP Client List, Address Reservation

Port Forwarding    Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS    DynDns, NO-IP

VPN Pass-Through    PPTP, L2TP, IPSec

Access Control    Parental Control, Local Management Control, Host List,

Access Schedule, Rule Management

Firewall Security    DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols    Supports IPv4 and IPv6

Guest Network    2.4GHz guest network x 1

OTHERS

Certification    CE, FCC, RoHS

Package Contents    300Mbps Wireless N 4G LTE Router, TL-MR6400

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

Micro to Standard SIM Card Adapter

Nano to Standard SIM Card Adapter

System Requirements    Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,

MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0,

Safari 4.0 browsers or higher, or other Java-enabled browsers

SIM Card

Environment    Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

WARRANTY :

2 YEARS WARRANTY

WHAT'S IN THE BOX :

1 x TP-LINK TL-MR6400 300MPBS WIRELESS-N 4G LTE ROUTER
