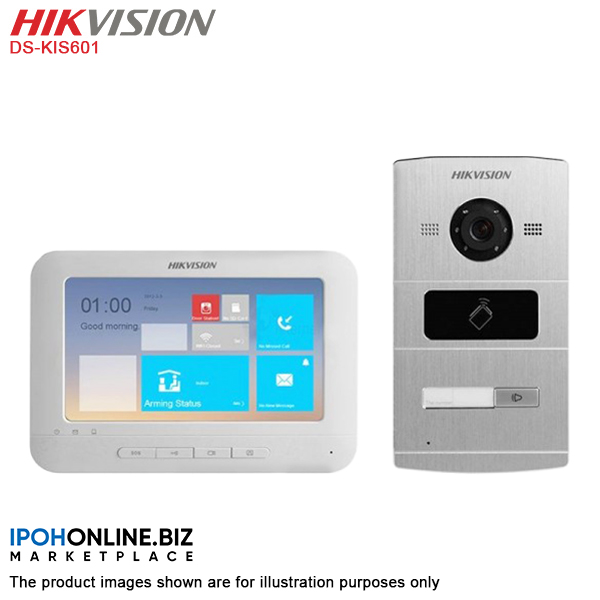

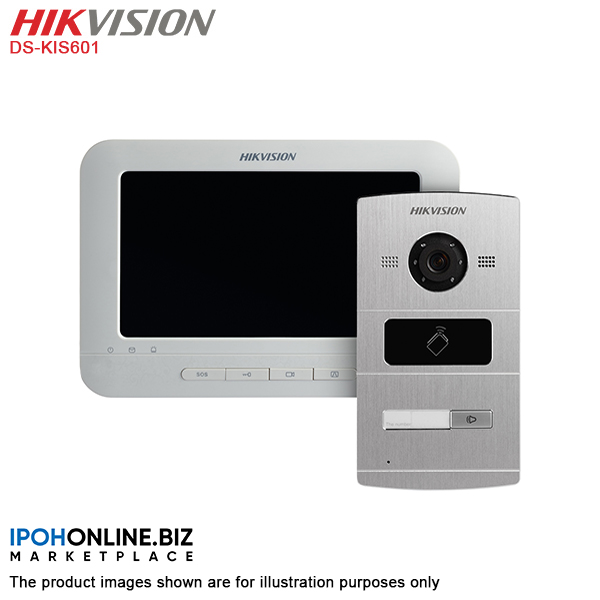

Hikvision DS-KIS601 IP Intercom Kit With Door Access Function

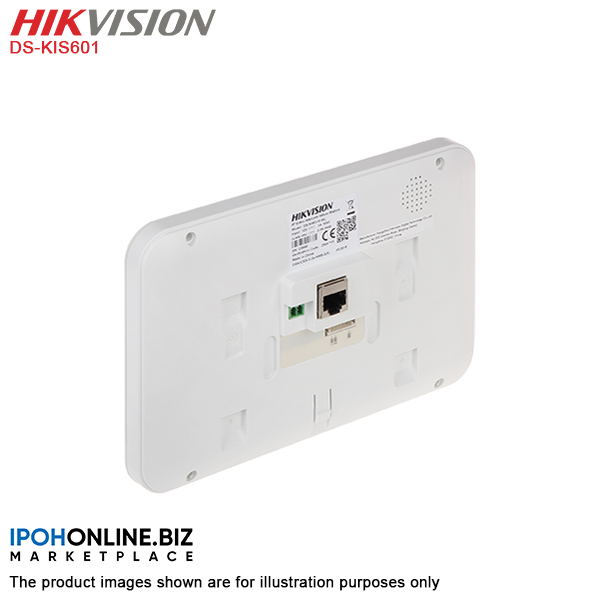

Hikvision KH6310-WL Specification
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded Linux Operation System |
| Display Screen | 7-Inch Colorful TFT LCD |
| Display Resolution | 800 x 480 |
| Operation Method | Capacitive Touch Screen, Physical Button |
| Operation Interface | Flattened UI Operation Interface |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Loudspeaker |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64Kbps |
| Audio Quality | Noise Suppression And Echo Cancellation |
| Ethernet | 10/100Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
| Alarm Input | 2-CH Alarm Input Sensor |
| Network Interface | 1 RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
| RS-485 | 1 RS-485 Half-Duplex Port |
| I/O Output | 1 |
| Memory | 256M |
| Power Supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
| Power Consumption | ≤10W |
| Working Temperature | -10°C To +55°C |
| Working Humidity | 10% To 90% |
| Dimensions | 217mm x 142mm x 26mm (L x W x H) |
| Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |

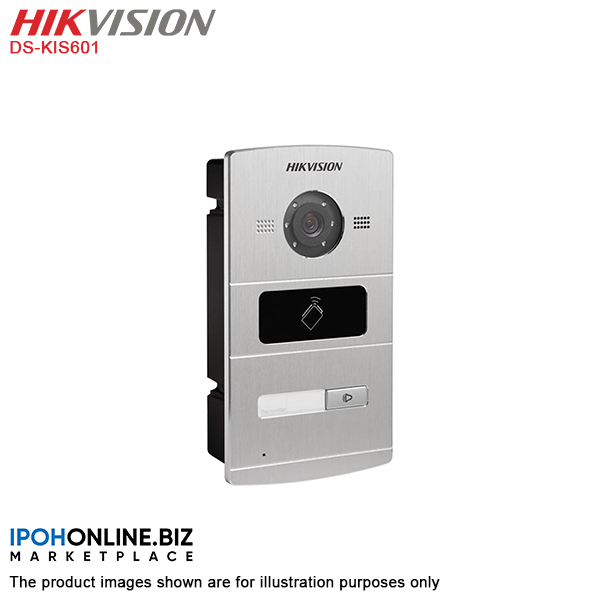

Hikvision DS-KV8102-IM Specification
| Processor | High-Performance Embedded SOC Processor |
| Operating System | Embedded Linux Operating System |
| Camera | CMOS Low Illumination 1.3 MP HD Color Camera |
| Video Compression Standard | H.264 |
| Resolution | 1280 x 720 |
| Video Frame Rate | 25fps |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Loudspeaker |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64Kbps |
| Audio Quality | Noise Suppression And Echo Cancellation |
| Internal Card Reader | Built-In IC Card Reader |
| Exit Button | Exit Button For Opening The Door |
| Door Magnetic | Detection Detects Door Magnetic Status |
| Light Supplement Mode | IR Supplement |
| Ethernet | 10/100Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
| Alarm Input | Door Magnetic Alarm, Tampering Alarm |
| Network Interface | 1 RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
| RS-485 | 1 RS-485 Half-Duplex Port |
| I/O Input | 4 |
| I/O Output | 1 |
| Indoor Station Access Amount | 1 |
| Material | Aluminum Alloy |
| Power Supply | 24 VDC, Power Over Network Cable (KAD606-P) 12 VDC |
| Power Consumption | ≤12W |
| Working Temperature | -40° To +70°C |
| Working Humidity | 10% To 90% |
| IP Protection Level | IP65 |
| Dimensions | 182mm x 100mm x 33mm (L x W x H) |
| Certifications | CE, FCC, UL 60950-1, IC, C-TICK, ROHS, REACH, WEEE |
What In The Box
- 1 x Hikvision KH6310-WL Video Intercom Indoor Station With 7-Inch Touch Screen

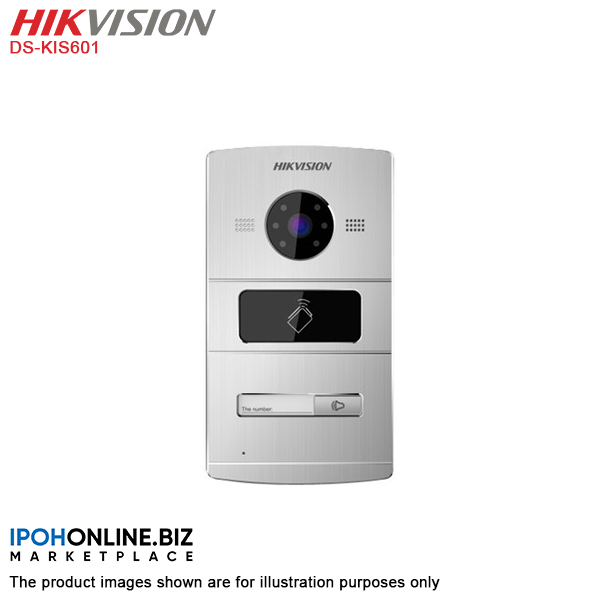

- 1 x Hikvision DS-KV8102-IM Metal Villa Door Station
- 2 x Power Cable
- 1 x Screw Set
- 1 x Installation CD
- 1 x Quick Start Guide
Warranty
1 Year Warranty
Local Manufacturer Warranty
