Description

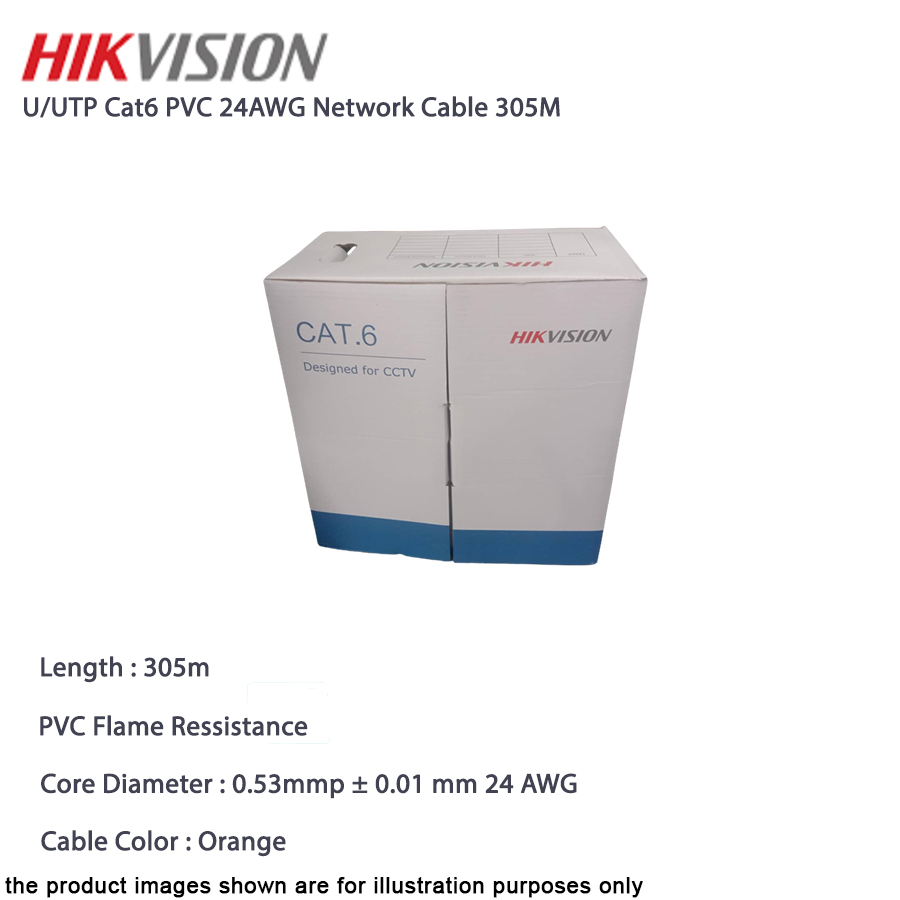

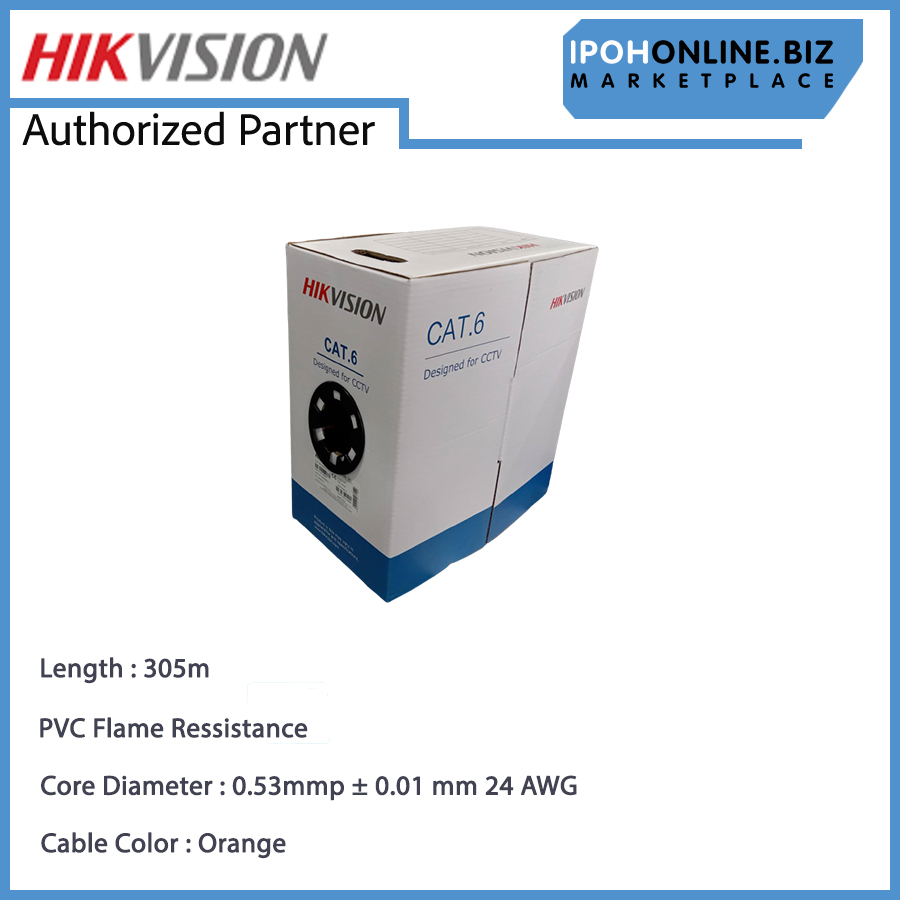

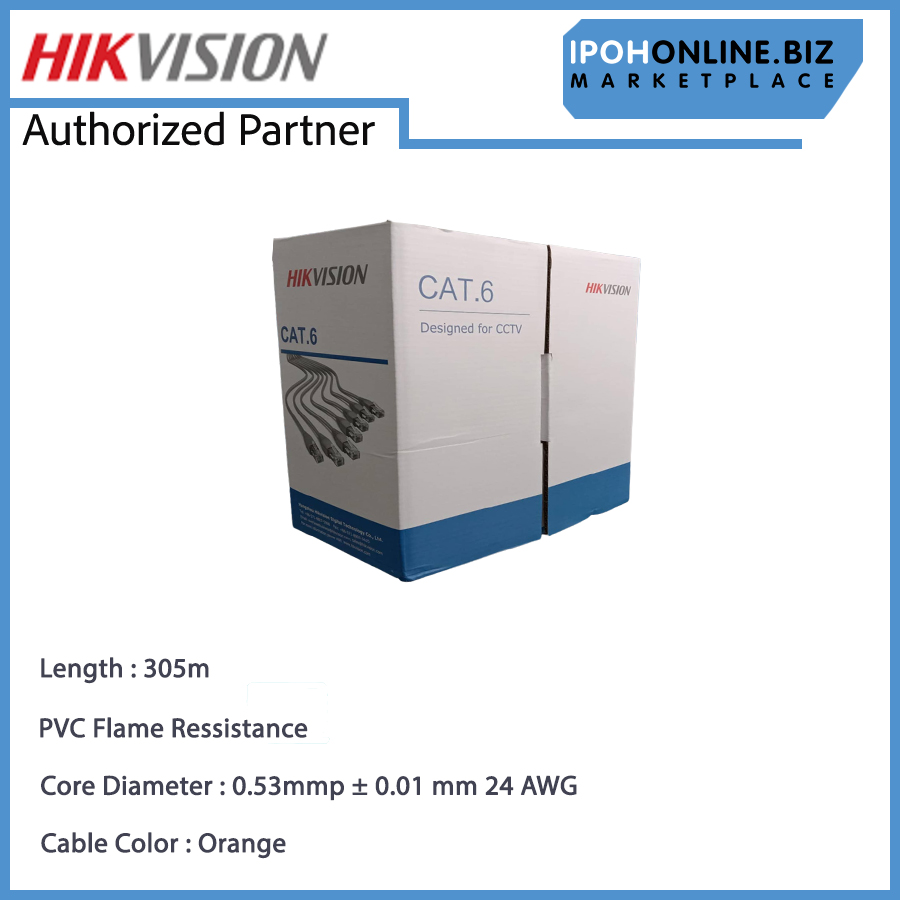

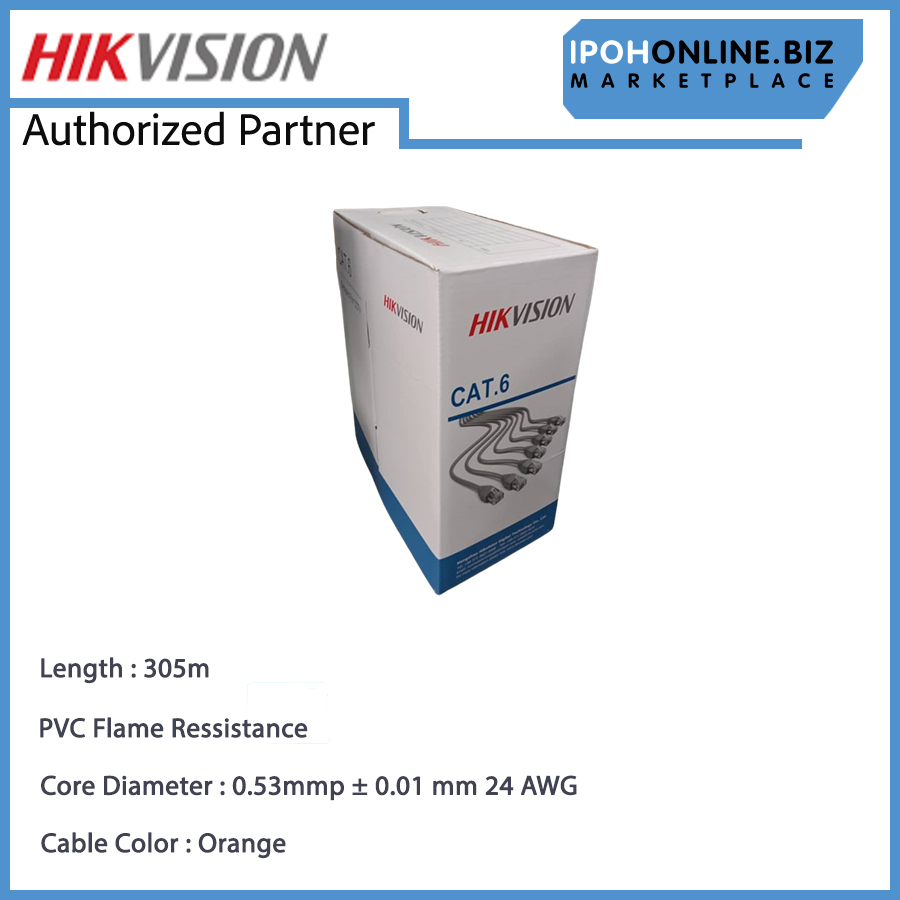

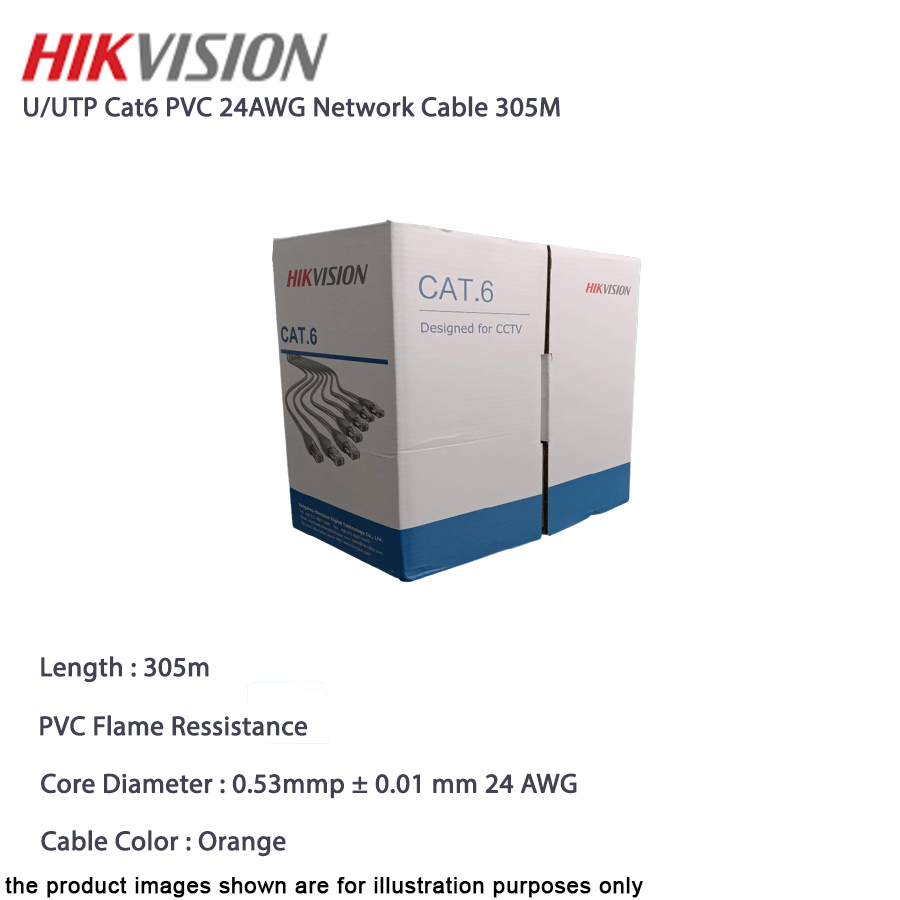

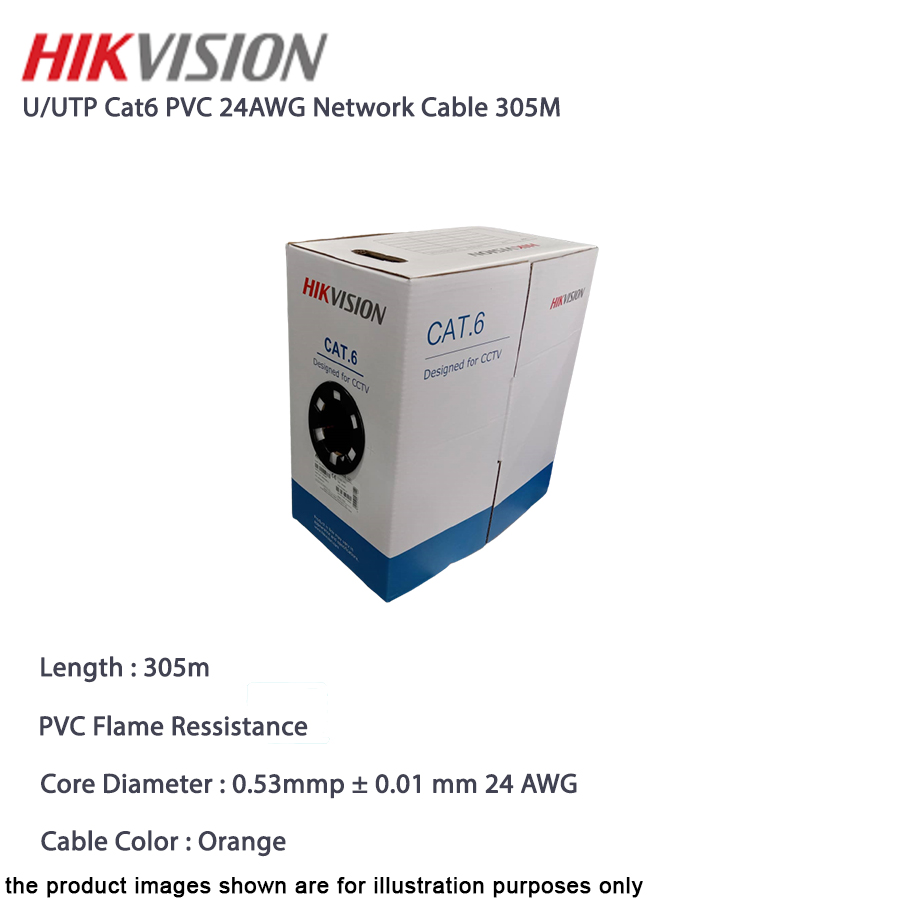

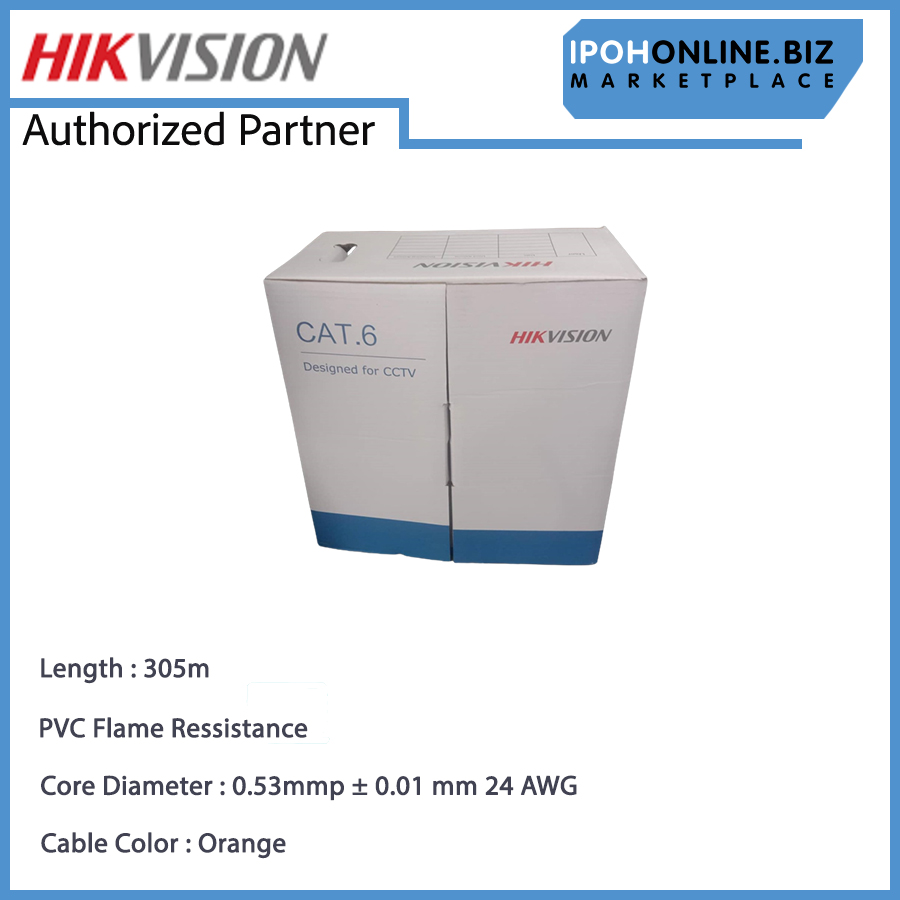

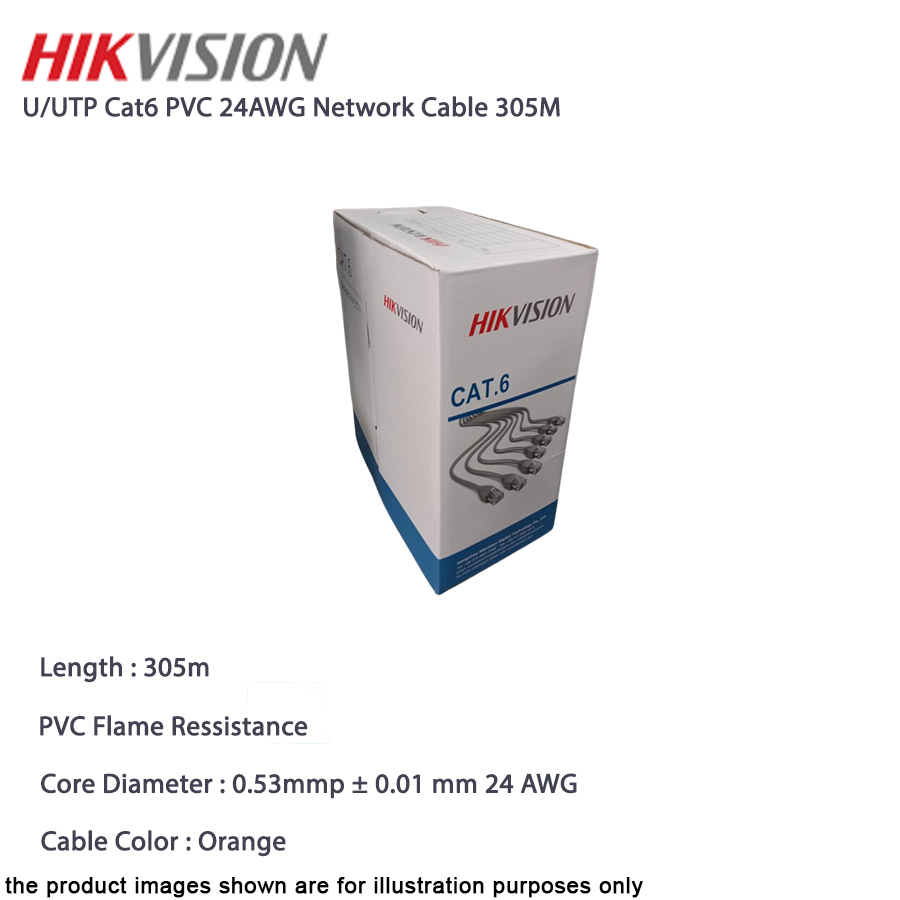

HIKVISION DS-1LN6UEC0 U/UTP Cat6 PVC 24AWG Network Cable Solid Bare Copper 305M Designed for CCTV
Specifications
| Model | DS-1LN6UEC0 | |
| Category | Cat.6 | |
| Reference standard | ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0 | |
| Fire resistance | No | |
| Conductor | Material | Solid-Bare Copper (99.95%) |
| Diameter | 0.53 ± 0.01 mm 24AWG | |
| Insulation | Material | HDPE |
| Diameter | 0.93 ± 0.05 mm | |
| Sheath | Thickness | 0.50 ± 0.05 mm |
| Diameter | 5.50 ± 0.50 mm | |
| Material | PVC | |
| Color | Orange | |
| Rip-cord | Yes | |
| Separator | Yes | |
| Sheath physical properties | Before aging | Tensile strength ≥ 13.5 Mpa Elongation ≥ 150% |
| Aging period | 100°C × 24h × 10d | |
| After aging | Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% |
|
| Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks | |
| Electrical Characteristics (20°C) | 1.0-250.0 MHz impedance |
100 ± 15 Ω |
| 1.0-250.0 MHz delay skew |
≤ 45 ns /100 m | |
| DC resistance | ≤ 9.38 Ω /100 m | |
| DC conductor resistance unbalance |
≤ 4.0% | |
| Package dimension | 390 mm X 390mm X 220 mm | |
| Weight | 11.9 ± 0.5 Kg | |
| Cable length | (305 ± 1.5) m | |
| Ambient temperature | -20°C to 70°C | |
| Operating voltage | 57 V |
What's in the box
- 1 x HIKVISION DS-1LN6UEC0 U/UTP Cat6 PVC 24AWG Network Cable Solid Bare Copper 305M Designed for CCTV
Warranty
No Warranty
