Description
 |
Multiple Verification Methods From fingerprint to card and password verification, R3 provides the possibilities. Optimize your security threshold, with fingerprint verification as your primary enrolment form. |
 |

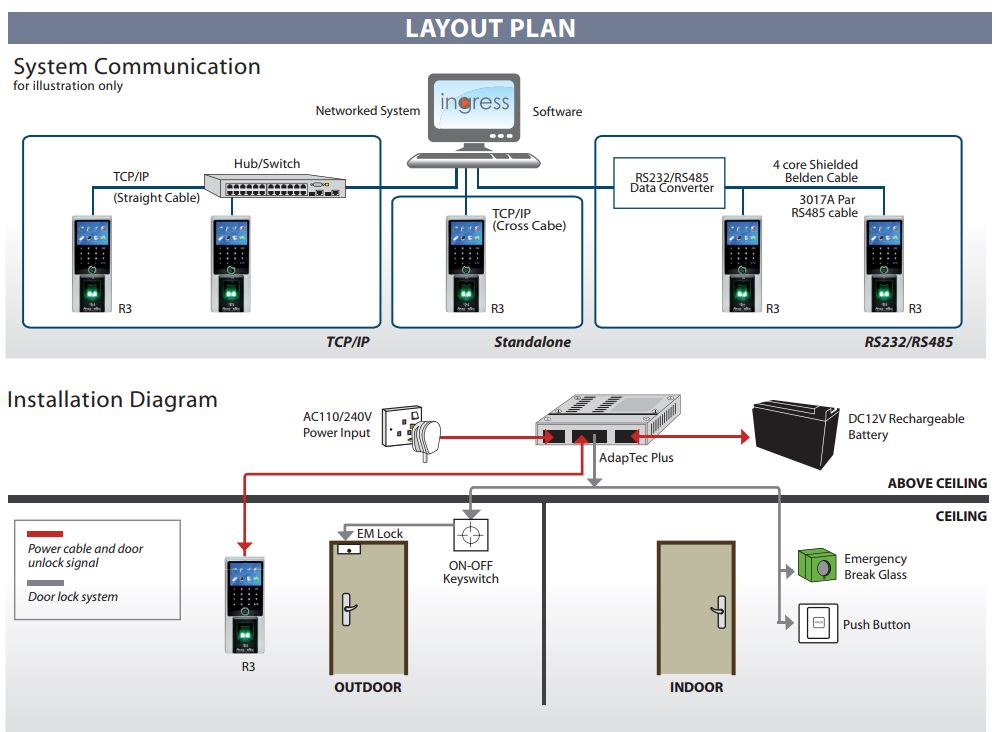

Comprehensive Access Solution Complement your R3 access control terminal with a R2c slave exit reader for a complete door-in and door out experience. |
 |
Data Management Simplified R3 is equipped with TCP/IP connectivity and when that is not available, a USB flash drive is available to transfer transaction logs into your computer. |
 |
Precise Recognition with Biometrics R3 utilizes minutiae matching technology that ensures only enrolled users are granted access, eradicating buddy punching scenarios. |
 |
High Definition Color Display and Touch Panel Combining vibrance and function in a single stroke, our 2.4” color LCD and touch panel is bound to please in terms of aesthetics and function. |
 |
TimeZone Enable Secure your premise with timezone features by R3, providing you total control in your access needs. R3 has TimeZone, GroupTimeZone and Group Verify features at your disposal. |
 |
Built In Alarm R3 allows installation of external alarm to your access system to alert you during emergencies and break-ins. Secure your premise with GroupTimeZone and Group Verify functions. |
 |
Free Firmware and Software Updates Functions and features are constantly evolving through technological research and industrial needs, hence our software and firmware updates for our devices come complimentary. |
SPECIFICATIONS |
|
| MODEL | R3 |
| SURFACE FINISHING | In-mould labelling (IML), poly carbonate (PC) & acrylonitrile butadine systene (ABS) |
| TYPE OF SCANNER | Optical fingerprint scanner |
| MICROPROCESSOR | 400 MHz |
| MEMORY | 32MB SDRAM | 256MB Flash256 MB flash memory & 32MB SDRAM |
| ALGORITHM | BioBridge VX 10.0 |
| DIMENSION (L X W X H), mm | 78 x 32 x 190 |
| STORAGE | |
| • Fingerprint templates | 3000 |
| • Cards | 10000 |
| • Transactions | 100000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Fingerprint (1:1, 1:N), card or password |
| • Recommended Fingerprint per user ID | 2 |
| • Fingerprint placement | Any angle |
| • Verification time (sec) | < 1 |
| • FAR (%) | < 0.001 |
| • FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Made to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, RS232, RS485, Flash disk |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| • Wiegand | 26-bit input / output |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 12V 3A |
| TIME ATTENDANCE | |
| • Siren | Yes (relay output) |
| • Work codes | Yes |
| MULTIMEDIA | |
| • Greeting Voice | Yes |
| • Display | 2.4” 3k color LCD |
| • Short messaging | Yes |
| ACCESS CONTROL | |
| • EM-Lock Driving Output | 12VDC/Relay output |
| • Alarm output | Yes (NO & NC) |
| • Antipassback | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request. |
