Product Details Of FingerTec Contactless Release Button
Description

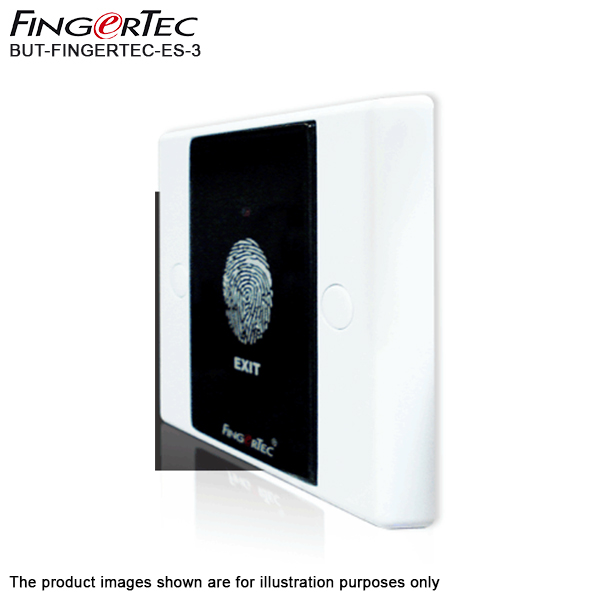

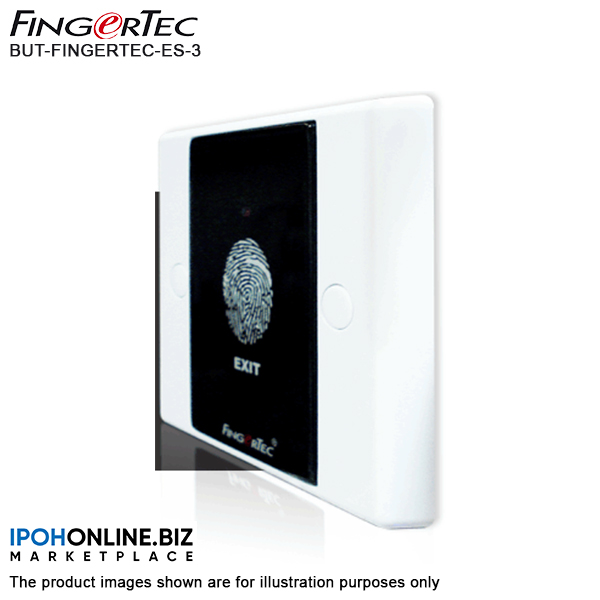

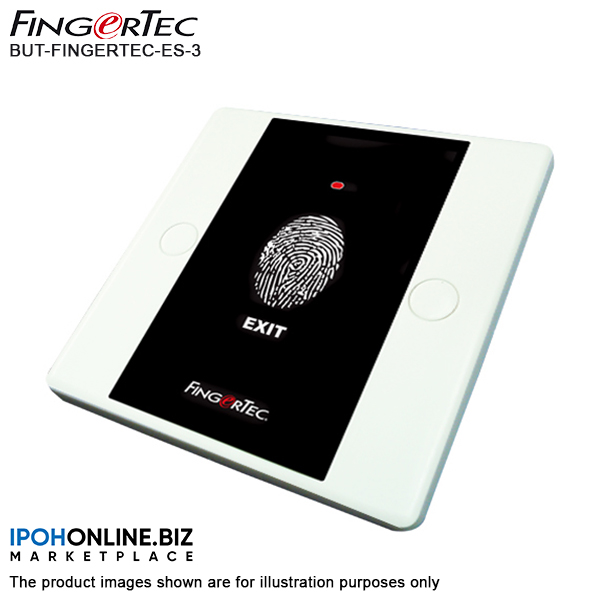

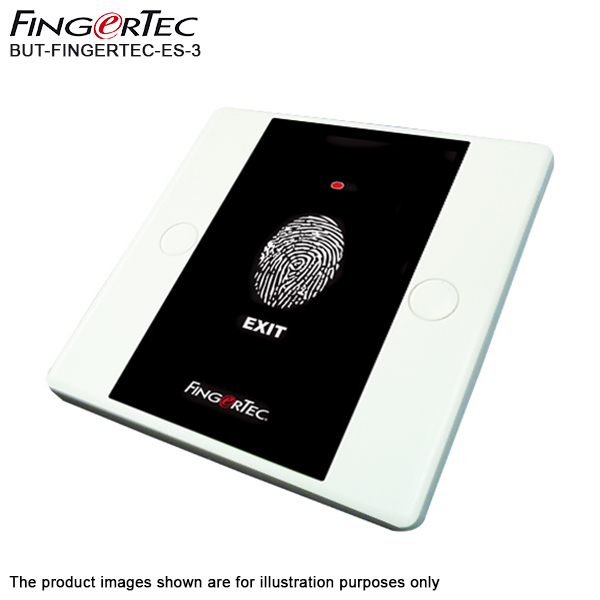

FingerTec ES 3 is a sleek, touch-free exit sensor designed to accompany FingerTec’s fingerprint standalone terminals for an access control solution. It is recommended that the exit sensor be installed indoors not just in view of cost-concerns, but also for low exit security threshold environments. It is also hygienic, as it does not require users to contact the sensor before extting.
Features & Benefits
- Proximity Technology
A high reliability and long functional life due to the absence of mechanical parts and lack of physical contact to the sensor.
- MOSFET Operation
Immediate switching response and high reliability operation as no mechanical parts are involved during switching.
SPECIFICATIONS
| DIMENSIONS (MM) | : 86 x 6 x 86 |
| WEIGHT | : 50g |
| SURFACE FINISHING | : Acrylonitrile Butadiene Styrene (ABS) & Acrylic |
| CONTACTLESS/TOUCH FREE, READING RANGE | : ~1cm |
| OPERATING VOLTAGE | : DC9~18V |
| CONTACT RATINGS | : 0.75 amp |
| OPERATING TEMPERATURE | : 0°C ~ 60°C |
| IP RATING | : IP-55, Protected agaiast dust and water jet |
| OUTPUTS | : Normally Open/Common |
| APPLICATIONS | : Gate/Door/Exit/Automation Control |
What In The Box
1 x FingerTec Contactless Release Button
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage.
