Description

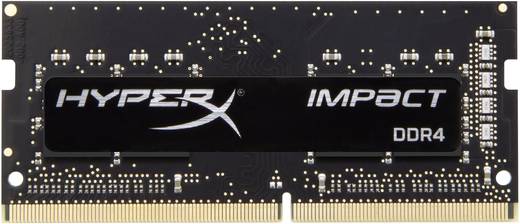

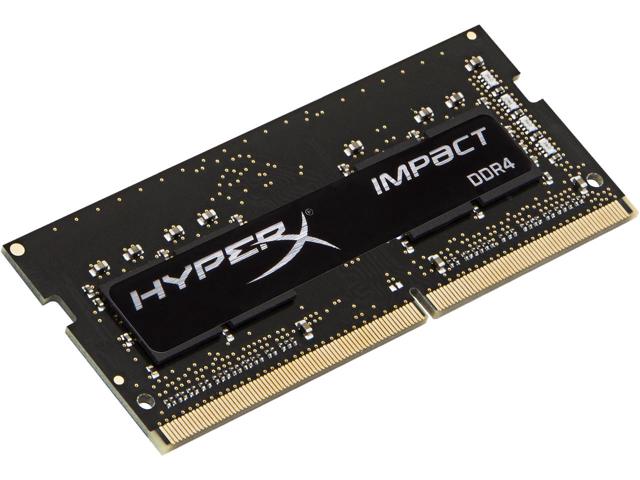

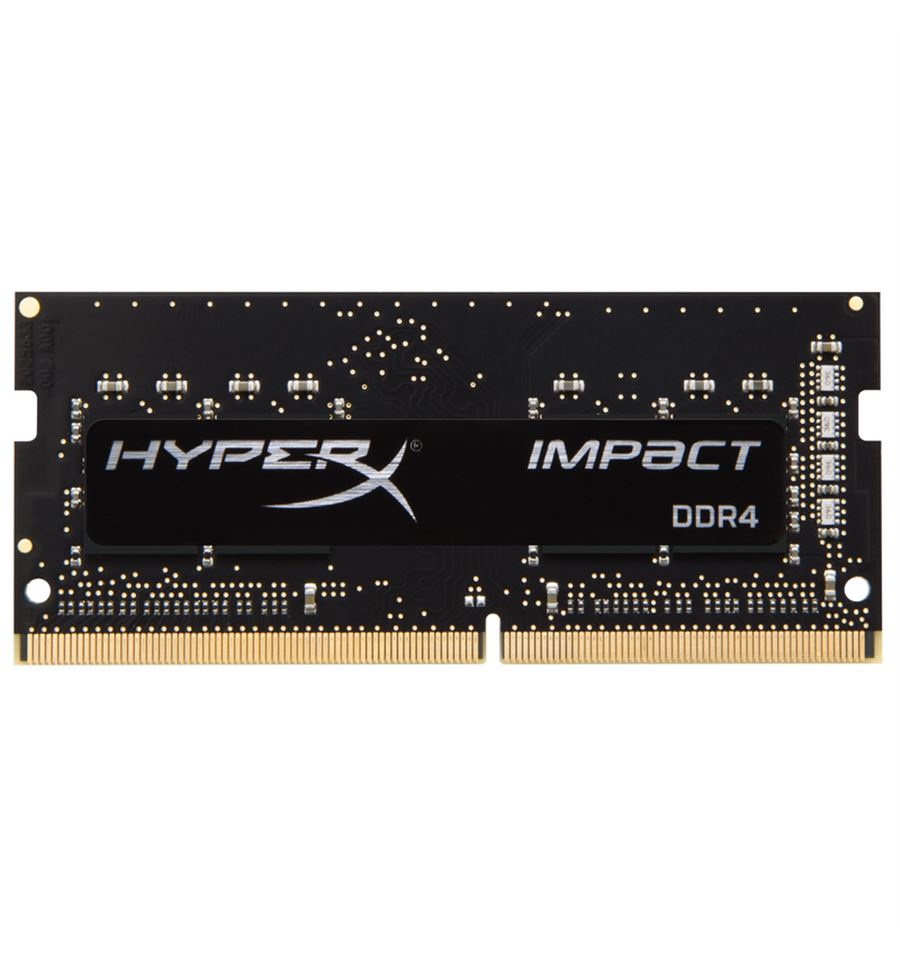

DESCRIPTION HyperX HX424S14IB2/8 is a 1G x 64-bit (8GB) DDR4-2400 CL14 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit DDR4 FBGA components. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. This module has been tested to run at DDR4-2400 at a low latency timing of 14-14-14 at 1.2V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:
SPECIFICATIONS |
|
| CL(IDD) | 14 cycles |
| Row Cycle Time (tRCmin) | 45.75ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns (min.) |
| Row Active Time (tRASmin) | 29.125ns (min.) |
| Maximum Operating Power | TBD W* |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -55°C to +100°C |
*Power will vary depending on the SDRAM used
- JEDEC/PnP: DDR4-2400 CL14-14-14 @1.2V
DDR4-2133 CL13-13-13 @1.2V
- XMP Profile #1: DDR4-2400 CL14-14-14 @1.2V
