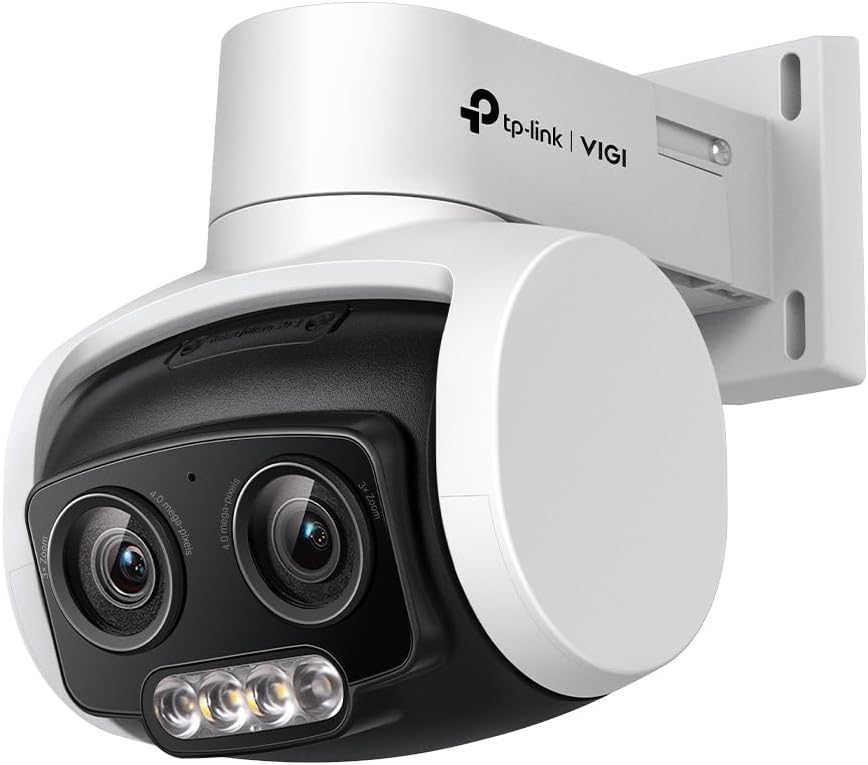

TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Pan Tilt Camera

TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Pan Tilt Camera

Feature:

4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.

24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.

3× Zoom: Allows for closer viewing of objects in expansive areas.

Instant Zoom: Zooming is instant without suffering from delays and image dragging.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.

Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

GENERAL

Material: Plastic

Net Weight: 0.43 Kg

Gross Weight: 0.66 Kg

Power Supply:

- 12V DC ± 5%, 5.5mm Coaxial Power Plug

- PoE (802.3at, class 4)

Power Consumption:

- Maximum: 14 W

- Typical (Day Mode): 2.9 W

- Typical (Night Mode with IR LED): 5.7 W

- Typical (Night Mode with White LED): 6.1 W

Protection: IP66

INTERFACES

Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm: N/A

Reset Button: Yes

Power: DC Power Port

On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB

Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker: Yes

Audio: N/A

LENS

Focal Length: 4-12 mm (Mixed Zoom)

Aperture: F1.6

FOV: Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°

Lens Mount: M12*P 0.5

PTZ

Pan/tilt Range: Pan: 0° to 332°, Tilt: 0° to 120°

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: 0° to 332°, Tilt: 0° to 120°
