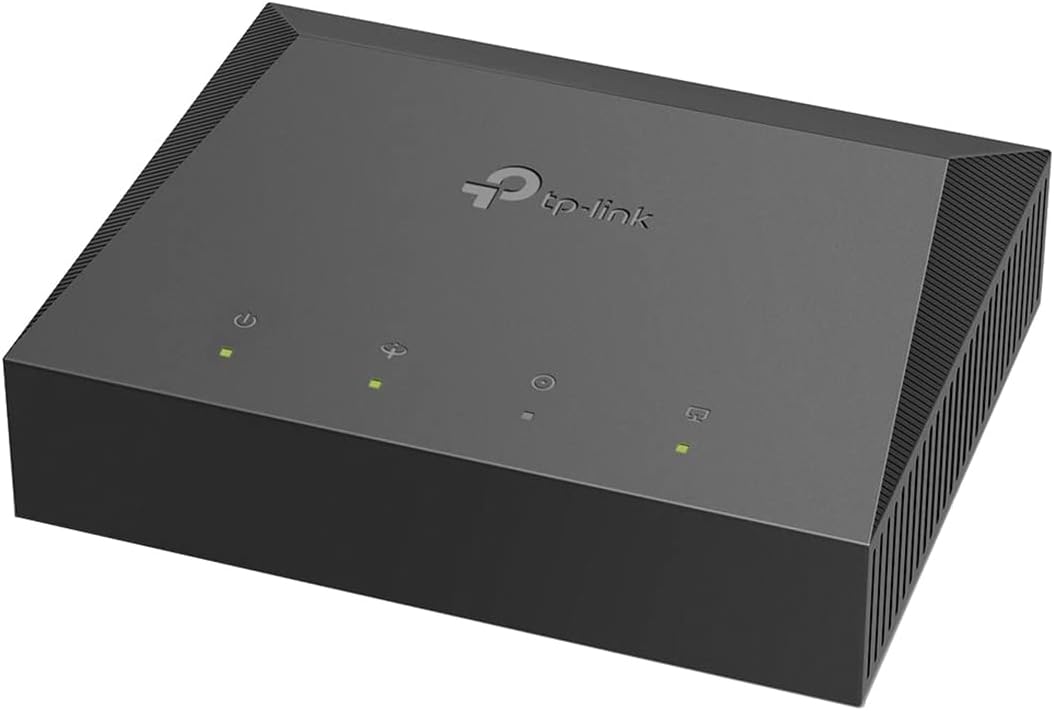

TP-Link GPON GIGABIT 1-DOOR Terminal UN XZ000-G3 (Black)

TP-Link GPON GIGABIT 1-DOOR Terminal UN XZ000-G3 (Black)

High-Speed GPON Service

Compliant with the ITU-T G.984 GPON standards, XZ000-G3 supports maximum data rates of up to 2.488Gbps downstream, 1.244Gbps upstream.

Make Fiber-to-the-Home Yours

TP-Link’s XZ000-G3 is a Gigabit Passive Optical Network(GPON) terminal, ideal for Fiber-to-the-Home solution

Full Gigabit Port

One GPON port and one Gigabit Ethernet port, the XZ000-G3

provides high-performance forwarding capabilities to ensure

smooth VoIP, HD video streaming experiences.

Interface : 1 10/100/1000Mbps RJ45 Port, 1 SC/APC Port

Button : 1 RESET Button

External Power Supply : 9VDC/0.6A

IEEE Standards : IEEE 802.3, 802.3u, 802.1p, 802.1Q

Data Rates : Upstream: 1.244Gbps, Downstream: 2.488Gbps

Dimensions ( W x D x H ) : 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)

Distance : 0 ~ 20Km Max

GPON Standards : ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4

Optical Module : Class B+

Receiver : Super-TIA

Transmitter : DFB Laser

Wavelength : Upstream: 1310nm, Downstream: 1490nm

SOFTWARE

VLAN

802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect

Security

AES Encryption, Packet Filter based on VLAN

Management

Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic

Advanced Features

Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism

IGMP

IGMP v1/v2/v3
