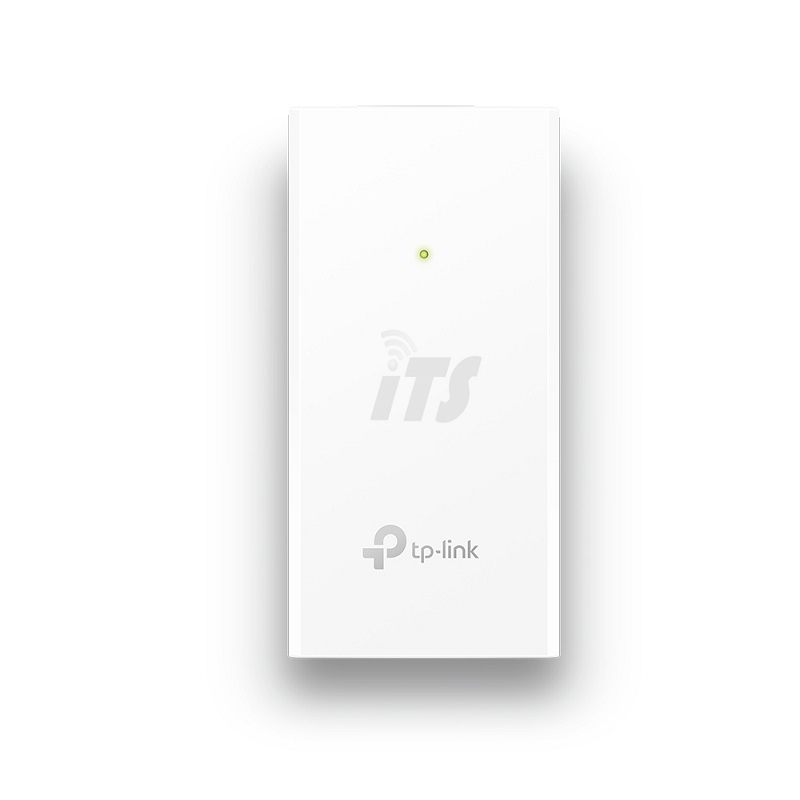

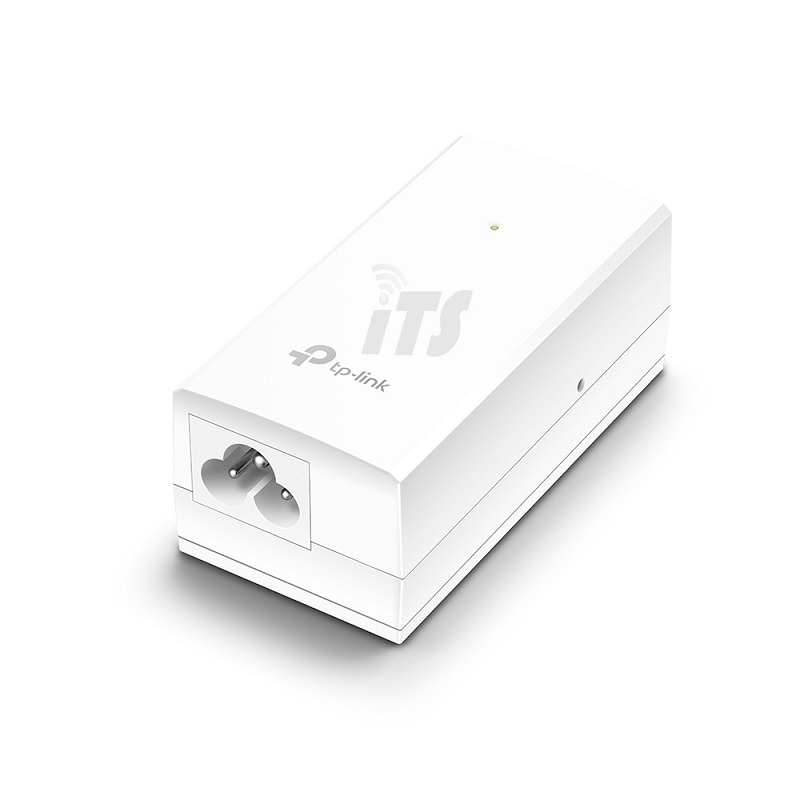

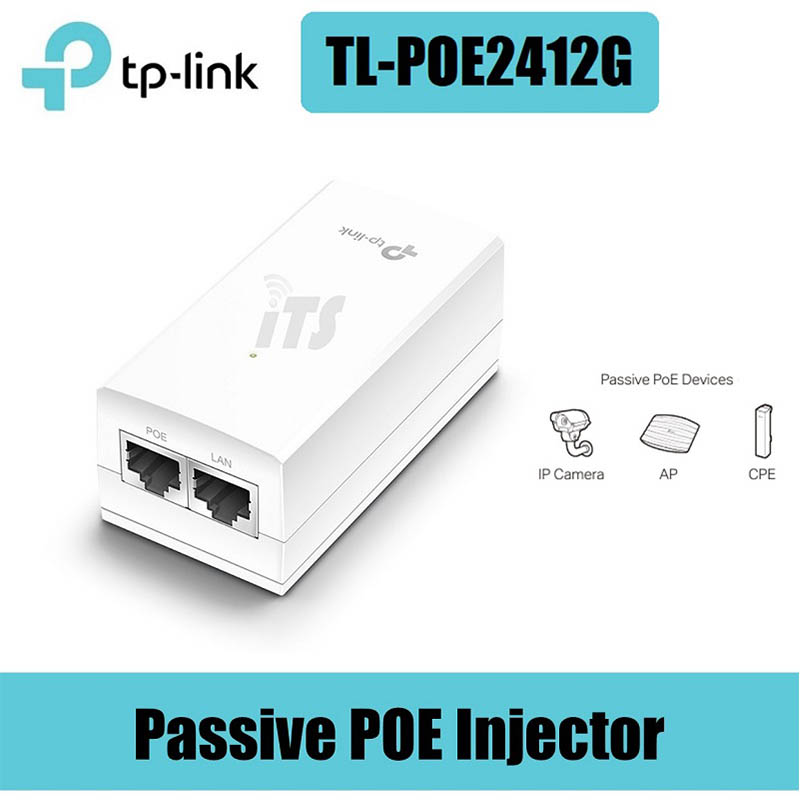

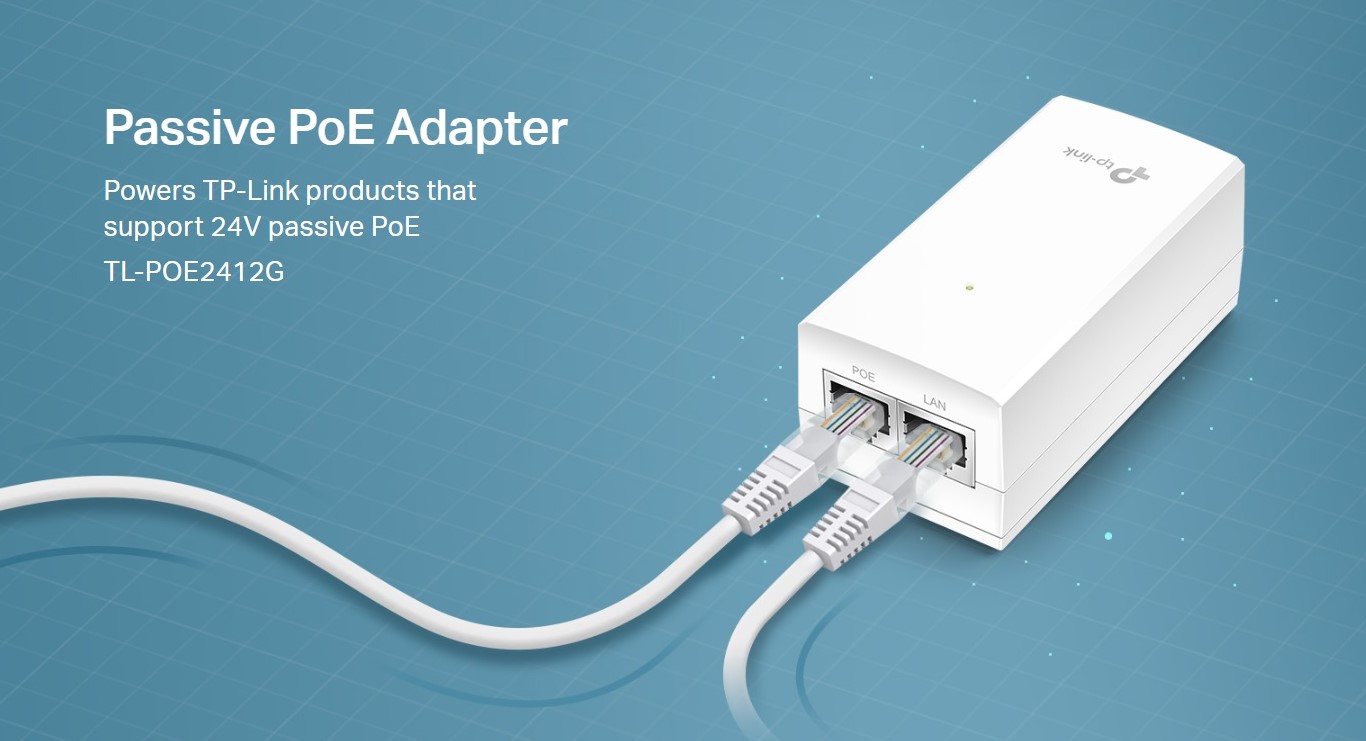

TP-Link Passive PoE Adapter (TL-POE2412G)

TP-Link Passive PoE Adapter (TL-POE2412G)

"HARDWARE FEATURES

Interface

    2 x 10/100/1000Mbps RJ45 Port

              AUTO Negotiation/AUTO MDI/MDIX

              1 100~240V / 50~60Hz AC Power Input Port

Network Media

    10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

               EIA/TIA-568 100Ω STP (Max 100m)

               100BASE-TX: UTP category 5, 5e cable (Max 100m)

               EIA/TIA-568 100Ω STP (Max 100m)

               1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply

    12W (Max. 24VDC)

LED Indicator

    Power (PWR)

Dimensions ( W x D x H )

    3.4 x 1.7 x 1.4 in.

              ( 85.8mm x 43.9mm x 35mm)

OTHERS

Certification

    FCC, RoHS

Package Contents

    24V, 12W Passive PoE Adapter TL-POE2412G

              Power Cord

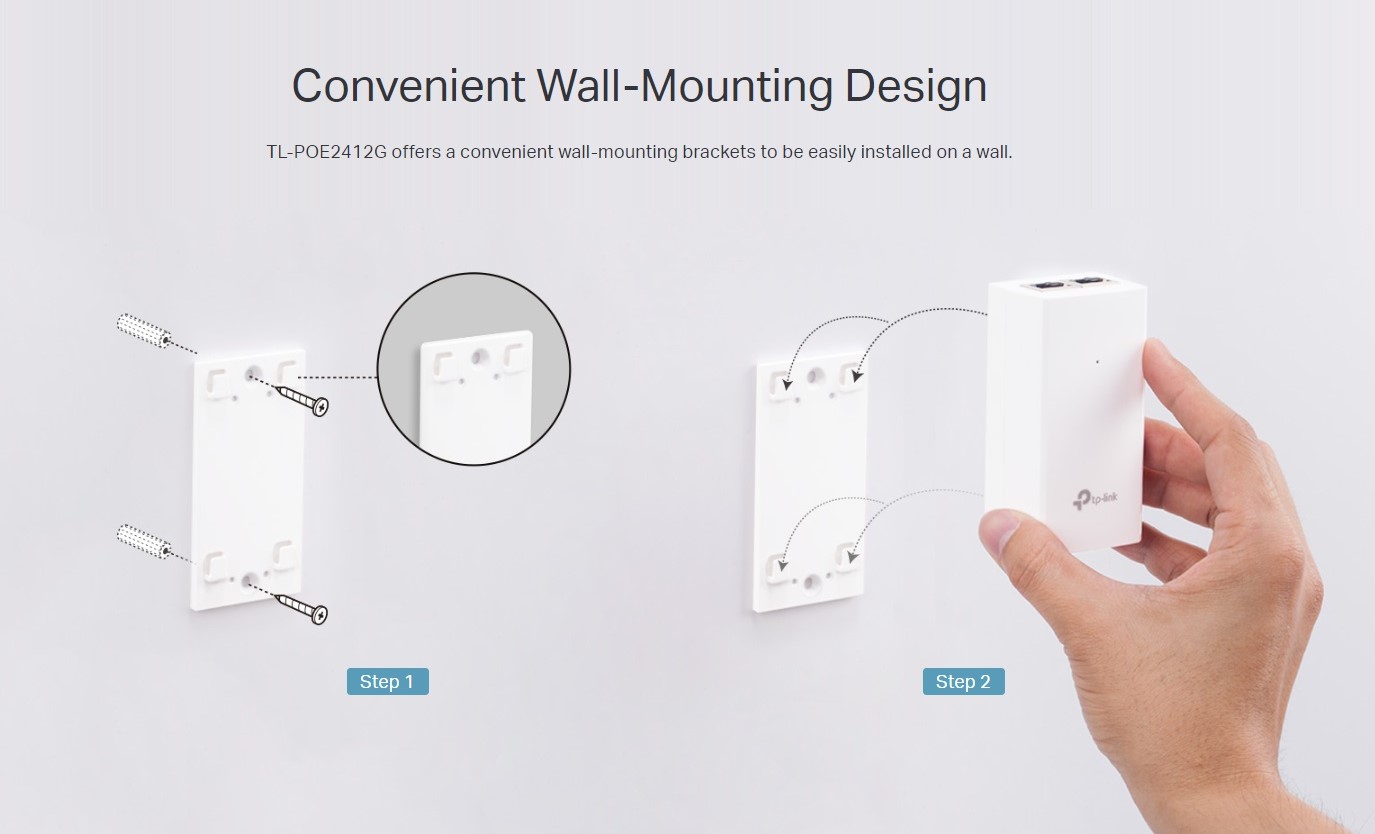

              Wall Mounting Kits

Environment

    Operating Temperature: 0℃~40℃ (32℉~104℉)

              Storage Temperature: -40℃~70℃ (-40℉~158℉)

             Operating Humidity: 10%~90% non-condensing

             Storage Humidity: 5%~90% non-condensing"
