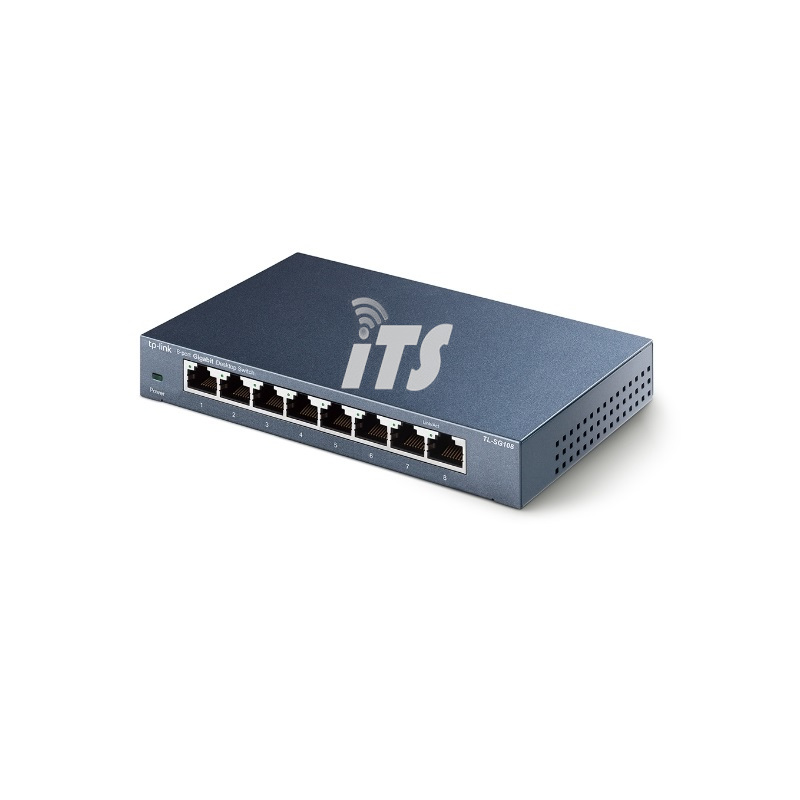

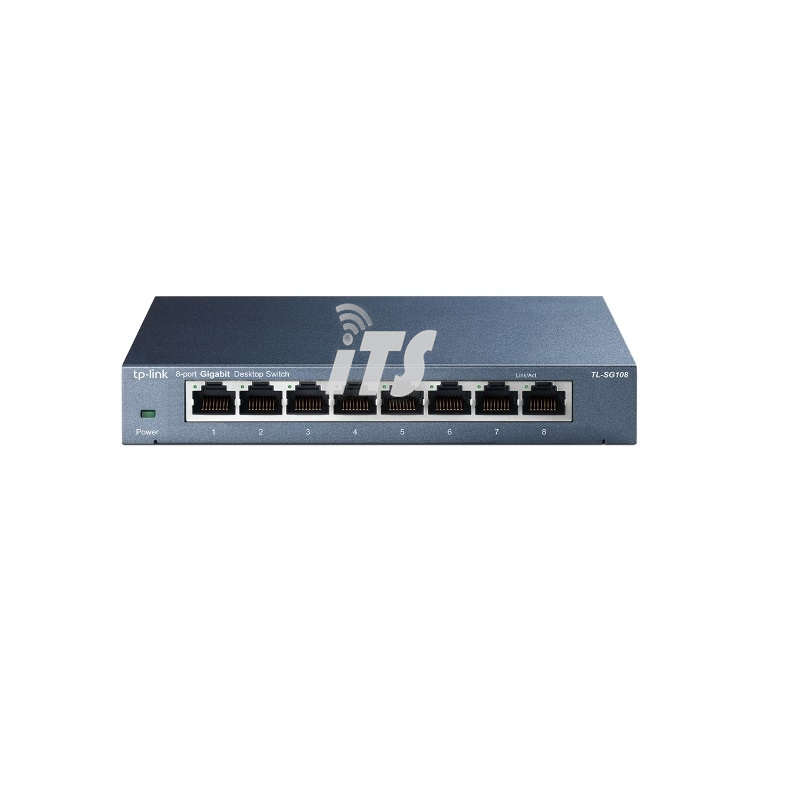

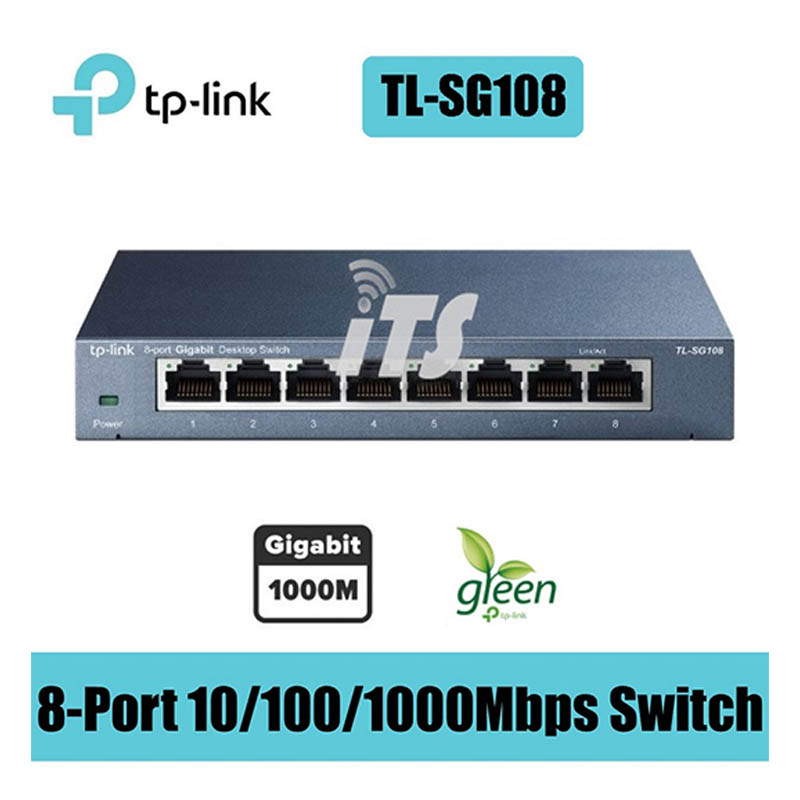

TP-Link 8-Port 10/100/1000Mbps Gigabit Desktop Switch (TL-SG108)

SPECIFICATION:

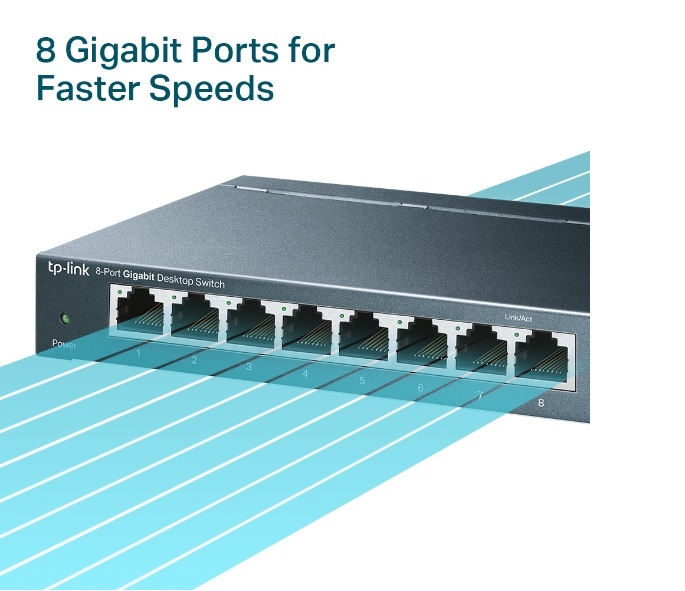

- 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX (TL-SG108)

- Green Ethernet technology saves the power up to 82%

- IEEE 802.3x flow control provides reliable data transfer

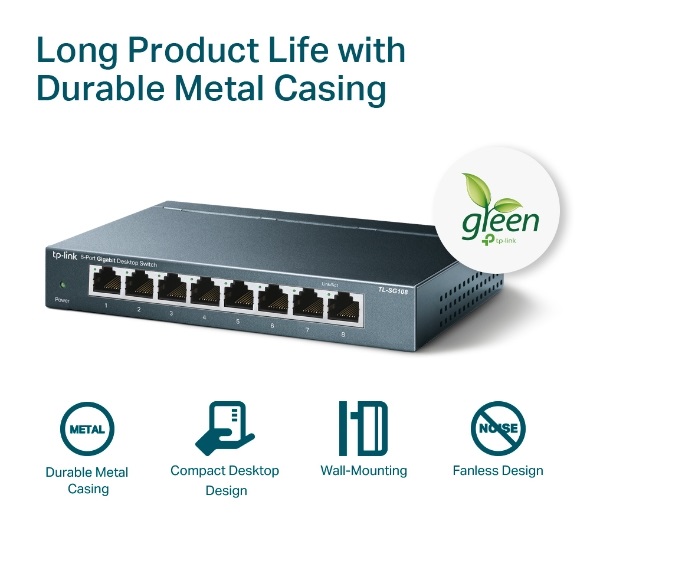

- Steel housing, desktop or wall-mounting design

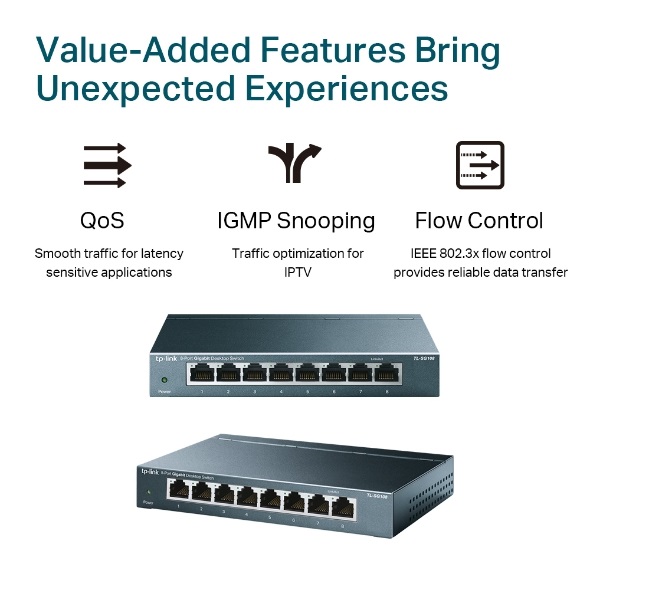

- Support 802.1p/DSCP QoS and IGMP Snooping function

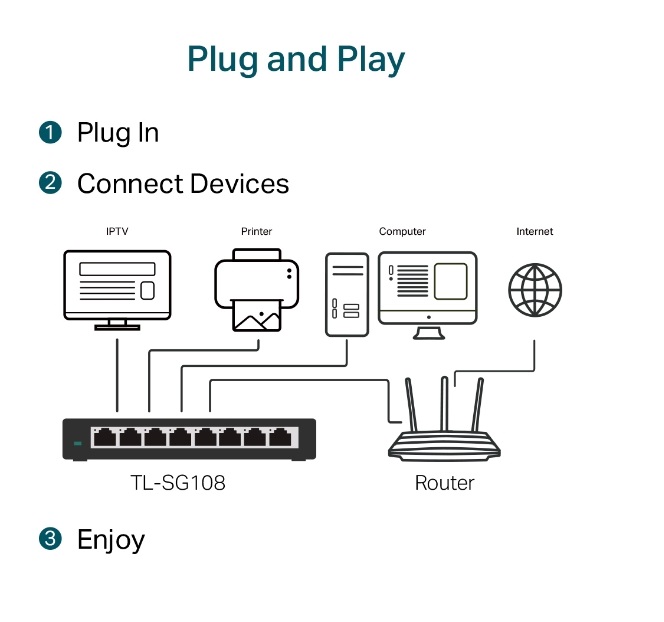

- Plug and play, no configuration needed

HARDWARE FEATURES

Standards and Protocols

   IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface

  8x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX (TL-SG108)

Fan Quantity

    Fanless

External Power Supply

   External Power Adapter (Output: 9VDC / 0.6A) (TLSG-108)

Buffer Size

  1.5Mb (TL-SG108)

LED Indicator

  System Power

  Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

  6.2 x 4.0 x 1.0 in.(158 x 101 x 25 mm) (TL-SG108)

Max Power Consumption

  3.3W (TL-SG108)

Max Heat Dissipation

  11.3BTU/h (TL-SG108)

PERFORMANCE

Packet Forwarding Rate

  11.9Mpps (TL-SG108)

MAC Address Table

  4K (TL-SG108)

Packet Buffer Memory

  1.5Mb (TL-SG108)

Jumbo Frame

  16KB

SOFTWARE FEATURES

 Advanced Features

  Green Technology, saving power up to 82%

  802.3X Flow Control

  802.1p/DSCP QoS

  IGMP Snooping

Transfer Method

   Store and Forward

OTHERS

Certification

   CE, FCC ,RoHS

Package Contents

  8-Port 10/100/1000Mbps Desktop Switch

  Power Adapter

  Installation Guide

Environment

  Operating Temperature: 0°C~40°C (32°F~104°F)

  Storage Temperature: -40°C~70°C (-40°F~158°F)

  Operating Humidity: 10% ~ 90%, non-condensing

  Storage Humidity: 5%~90% non-condensing
