Description

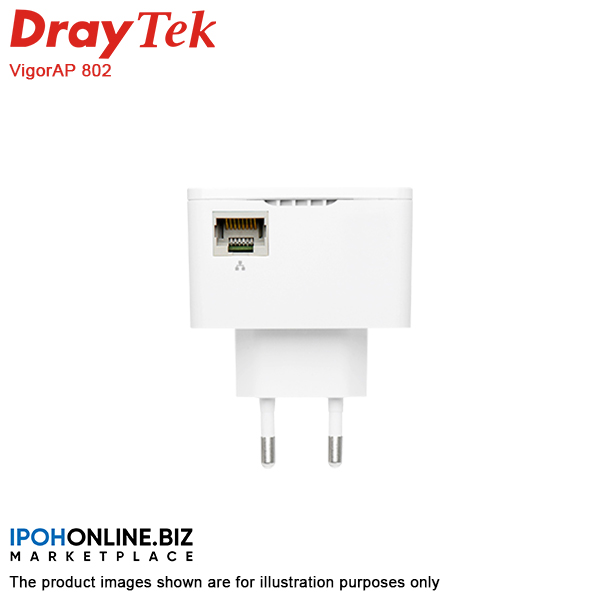

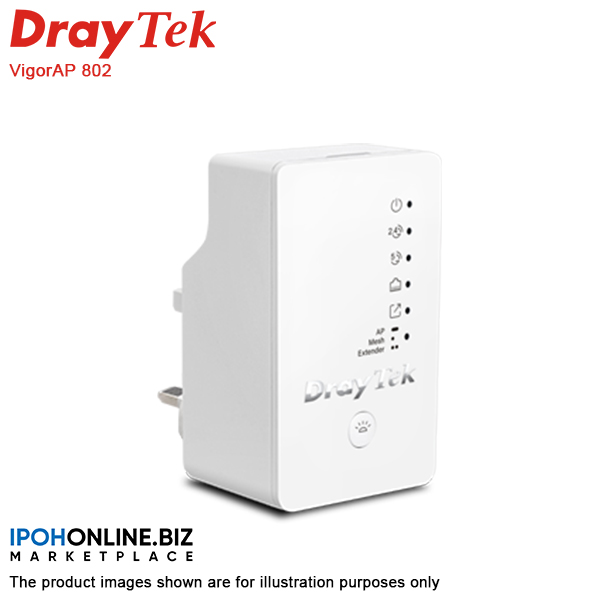

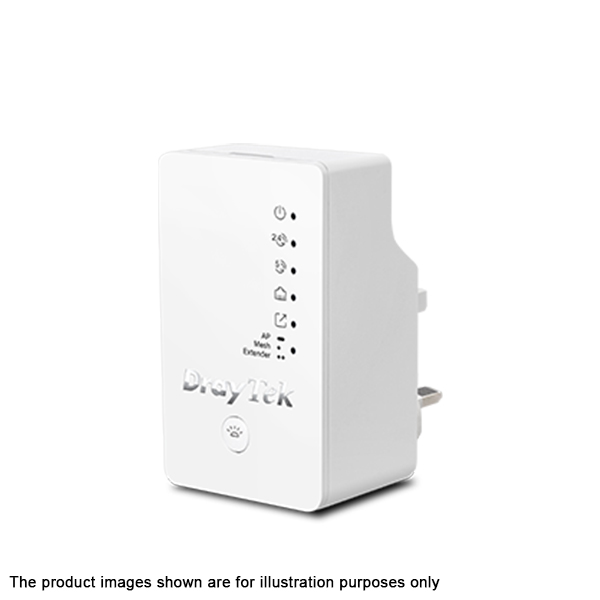

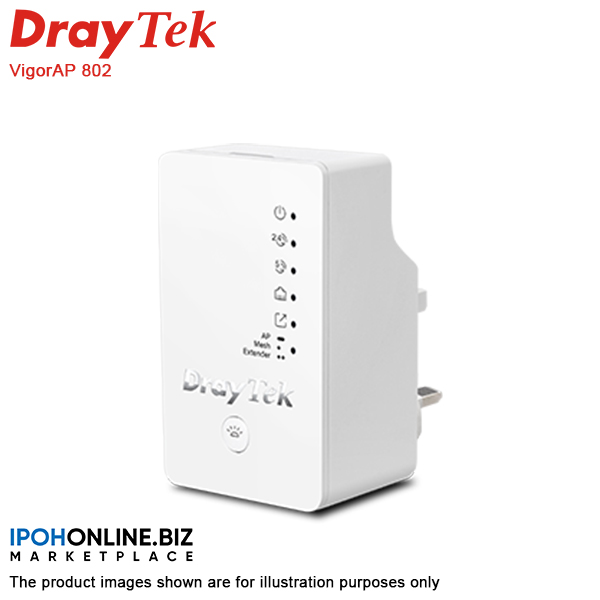

DrayTek VigorAP 802 Mesh Compact & Feature-Rich Wireless 802.11ac Range Extender & Access Point
Key Features
- Mesh - Easily Link To Other VigorAP To Expand The Wireless Network
- Multiple SSID - Mapping Wi-Fi Clients To Different VLANs And Have A Different Set Of Security Standards
- Airtime Fairness - Equalize The Transmission Time Of Each Client So The Legacy Devices Won't Slow Everyone Down
- Band Steering - Redirect 5GHz-Capable Devices To The 5GHz Radio To Get A Faster Speed
- Assisted Wi-Fi Roaming - Solve The Sticky Client Problem And Improve Wi-Fi Roaming Experience
- Wi-Fi Scheduling - Schedule Wi-Fi On And Off To Control Wireless Access And Save Energy
- Central AP Management - Manage, Maintain And Monitor VigorAP 802 From The DrayTek Routers
Specification
| Interface | |
| LAN Port | 1 x 10/100/1000M Base-T, RJ-45 |
| Antenna | 2 x Internal DB PiFA Gain : 4.79 dBi For 5GHz, 3.35 dBi For 2.4GHz |
| Button | 1 x LED On/Off |
| Capacity | |
| 2.4G Peak Speed | 300 Mbps |
| 5G Peak Speed | 867 Mbps |
| Max. Number Of Concurrent Active Clients | 64 (32 Per Band) |
| WLAN | |
| 2.4GHz Standard | IEEE 802.11b/g/n |
| 5GHz Standard | IEEE 802.11a/n/ac |
| MIMO | 2x2 (2-Stream) |
| Operating Mode | AP, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | Yes |
| Band Steering | Yes |
| Auto Channel Selection | Yes |
| Max. Number Of SSID | 4 (2 Per Band) |
| WDS | Yes |
| Bandwidth Limit Per Client | Yes |
| Client Number Limit | Per Radio, Per SSID |
| Connection Time Control | Yes |
| WMM | Yes |
| Security | |
| Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| Hidden SSIDs | Yes |
| MAC Address Filter | Up To 64 Entries |
| Wireless Client Isolation | Yes |
| Mobile Device Management | Yes |
| Application | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP Client | Yes |
| Static IP | Yes |
| MAC Clone | Yes |
| 802.1q VLAN | Yes |
| iOS Keep Alive | Yes |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | Yes |
| Managed By VigorConnect | Yes |
| Managed By VigorACS | Yes |
| Physical | |
| Environment | Indoor |
| Mounting | Wall Plug |
| Power Method | AC100-240V / 0.25A |
| Max. Power Consumption | 10.7 Watts |
| Dimension | 59mm x 91mm x 40mm (W x H x D) |
| Weight | 130 g |
| Operating Temperature | 0 To 40°C |
| Storage Temperature | -20 To 60°C |
| Operating Humidity | 10 To 90% Non-Condensing |
What In The Box
- 1 x DrayTek VigorAP 802 Mesh Compact & Feature-Rich Wireless 802.11ac Range Extender & Access Point
- 1 x RJ-45 Cable (Ethernet)
- 1 x Quick Start Guide
Warranty
2 Year Warranty
Local Manufacturer Warranty
