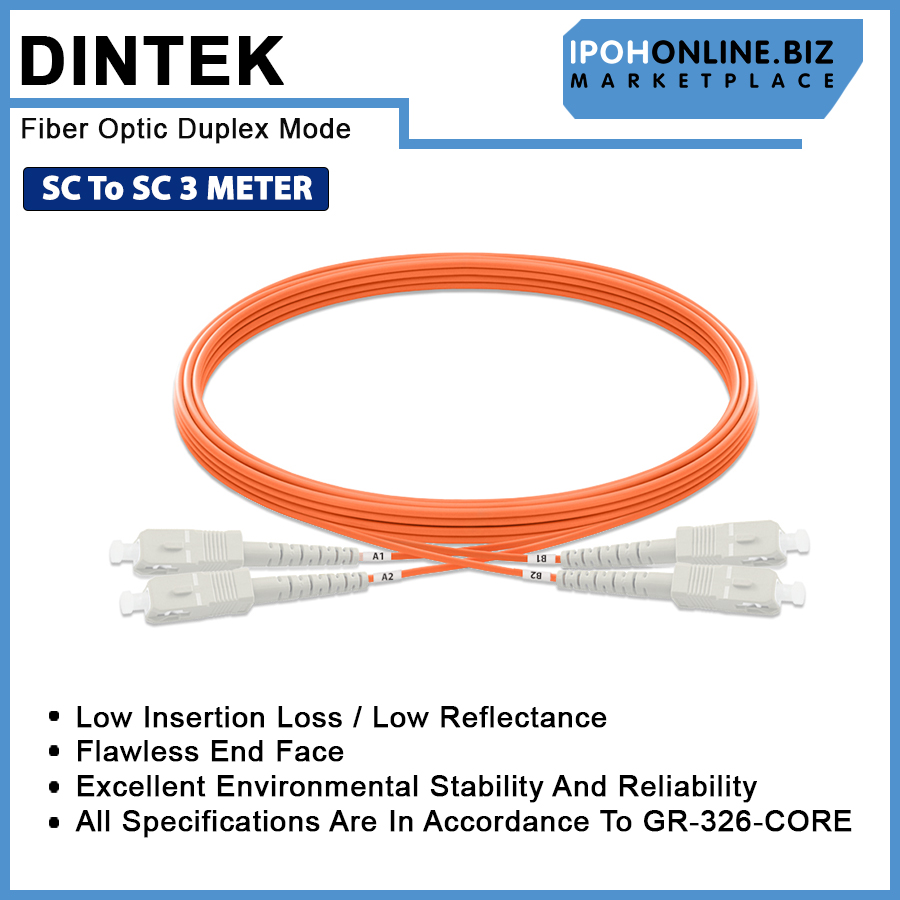

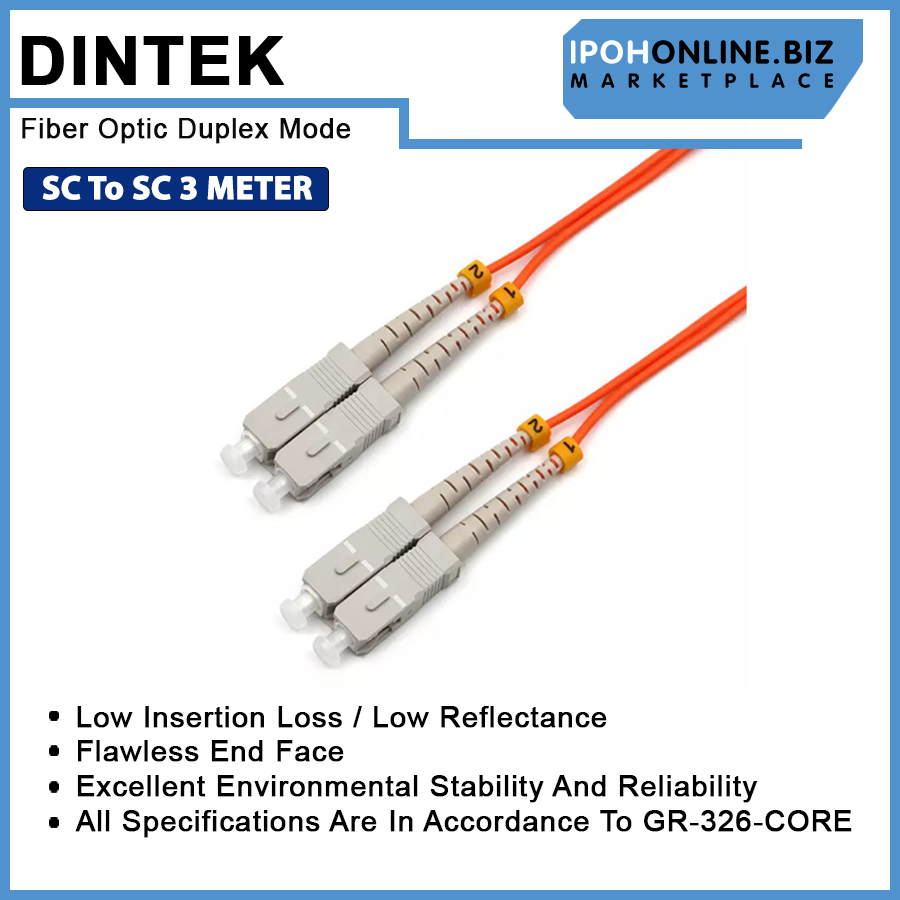

DINTEK SC-SC Multimode OM2 Duplex 50/125um Fiber Patch Cord 3M

DINTEK Light-LINKS Multimode Patch Cords Are High Quality Patch Cords Used For High Speed Local Area Networks. These Multimode Patch Cords Are Manufactured Using LSZH Jackets Which Conform To IEC & TIA Standards. The Patch Cords Are Terminated With Multiple High Quality Connector Types Which Give Optimum Optical Performance.

DINTEK’s Light-LINKS OM2 SC To SC Multimode Duplex Fiber Optic Patch Cords Are Assembled With Data Center Grade Duplex SC Connectors And DINTEK OM2 Fiber; Making These High Bandwidth Patch Cords Optimally Suited For High Speed 1 Gig Networks.

Features

• All Assemblies Are Machine Polished Providing Highest Quality
• Multimode 50/125um 1G OM2 Fiber Optic Cables
• Insertion Loss Per Connection: 0.15db Typical; 0.30db Maximum
• Patch Cords Are Tested To Support Network Transmission Speeds Up To 1 Gb/S For Link Lengths Up To 300 Meters With An 850nm Source

Technical Properties

• Connector Type: SC - SC
• Insertion : Multimode  ≤ 0.15dB Typical  / ≤ 0.30dB Maximum
• Return Loss : PC ≤ 35dB
• Jacket Type : LSZH
• Polish Type : PC
• Operating Temperature : -40 To +85°C
• Flammability : IEC 60332 Part 3

Benefits

• Low Insertion Loss / Low Reflectance
• Flawless End Face
• Excellent Environmental Stability And Reliability
• All Specifications Are In Accordance To GR-326-CORE

Standards Conformance

• Fire Retardant (IEC 60332-3)
• Corrosion Resistant (IEC 60754-2)
• Compliant To TIA 604-5 And IEC 61754-7
• Standards ISO/IEC 11801 / Cenelec EN 50173-1 / TIA-568 C.0
• Data Center Cenelec EN 50173-5 / ISO/IEC 24764/ TIA-942
• Ethernet IEEE 802.3; 10/40/100gbe
• ROHS-6 Compliant

What In The Box

• 1 x DINTEK SC-SC Multimode OM2 Duplex 50/125um Fiber Patch Cord - 3M

Warranty

No Warranty
