Description
Specification
| Print Method | Thermal line printing |
| Interface | Standard: Serial+USB. Option: Parallel, Ethernet 10/100 BaseT |
| Driver | ESC/POS, Windows XP Pro, Windows 7 Pro, POS Ready, OPOS, UPOS, JavaPOS, Ubuntu 9.04, Fedora 14, open SUSE 11.1 |
| Print Speed (max) | 7.9"/sec (200mm/sec) text and graphics |
| Autocutter | Yes (partial, left edge remains) |
| Paper Dimensions | 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ±0.5 (W) x 83mm) 58mm: 2.26" ± 0.02" x 3.27" diameter (57.5 ±0.5 (W) x 83mm) |
| Paper Thickness | 55-80 µm |
| Print Density | 180x180 dpi |
| Column Capacity | Font A: 42/30, Font B: 56/40, Kanji: 21/25 for 80/58mm |
| Font (WxH) | 9 x 17, 12 x 24 dots/character |
| Character Size (WxH mm) | Font A: 1.41 x 3.39, Font B: 0.99 x 2.40, Kanji: 3.39 x 3.39 |
| Character Set | 95 Alphanumeric, 18 sets International, 128 x 42 Graphic (including user-defined page), Japanese, Simplified Chinese, Traditional Chinese |
| Barcode | 1D: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODABAR, CODE93, CODE128 2D: PDF417, QR-Code |
| Data Buffer | Receive: 45 bytes or 4KB, selectable; User-defined: 12KB; Macro: 2KB; NV graphics: 256KB; NV user memory: 1KB; Downloadable graphics: 208KB; User-defined page: 64KB |
| Cashdrawer Port | 1 (2 drivers) |
| Buzzer | Yes |
| Sensors | Cover Open, Paper End, Near End (not applicable when wallmounted) |
| Power Consumption | 24 VDC ± 7%, 1.8A (mean) |
| Reliability | MTBF: 360,000 hours MCBF: 60 million lines Thermal Head: 6.3 million inches (160 kilometers) Autocutter: 1.5 million cuts |
| Environment | Operating Temperature: 41° to 113° F (5° to 45° C) Storage Temperature: 14° to 122° F (-10° to 50° C) Operating Humidity: 10% to 90% RH Storage Humidity: 10% to 90% RH |
| Dimension (WxDxH) | 5.51 x 7.83 x 5.95 inches (140 x 199 x 151 mm) |
| Weight (Net) | 3.75 lbs (1.7 kgs) |
| Color | Black |
| Power Supply | 100-240V, 50-60Hz, 1.3A |
| Safety Standards | FCC-A, CE, UL, TUV, CSA, VCCI-A, CCC |
| Installation | Standard horizontal, Vertical on the counter, Wallmount |
What's in the box

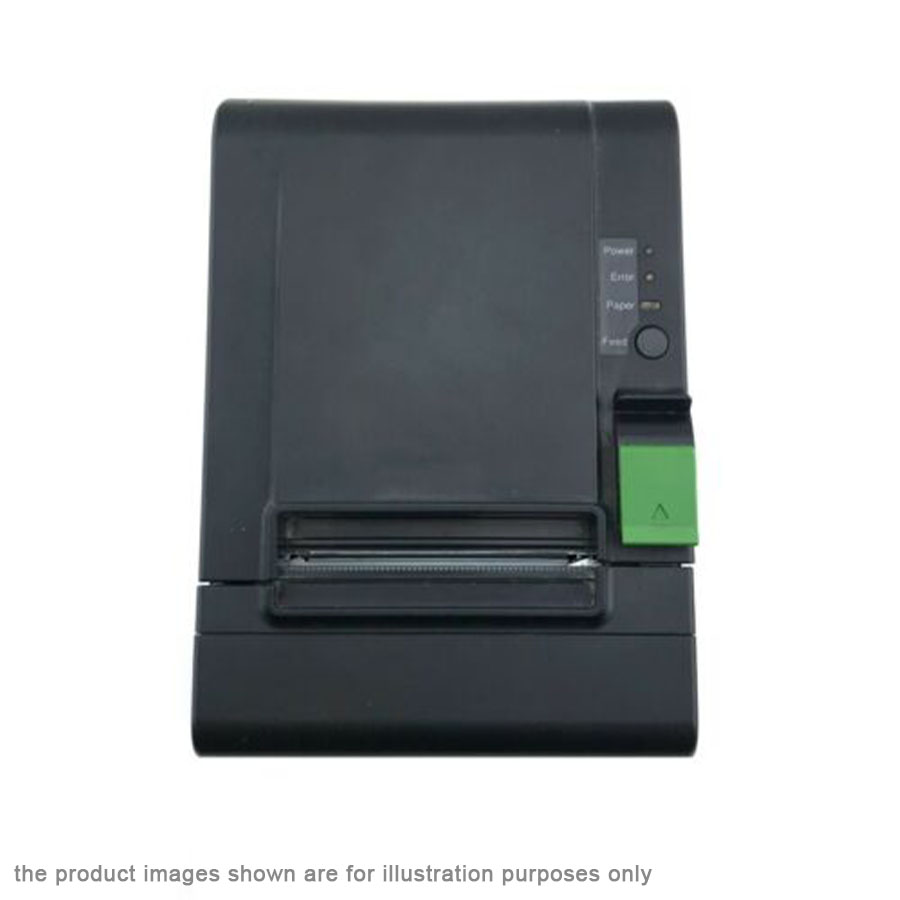

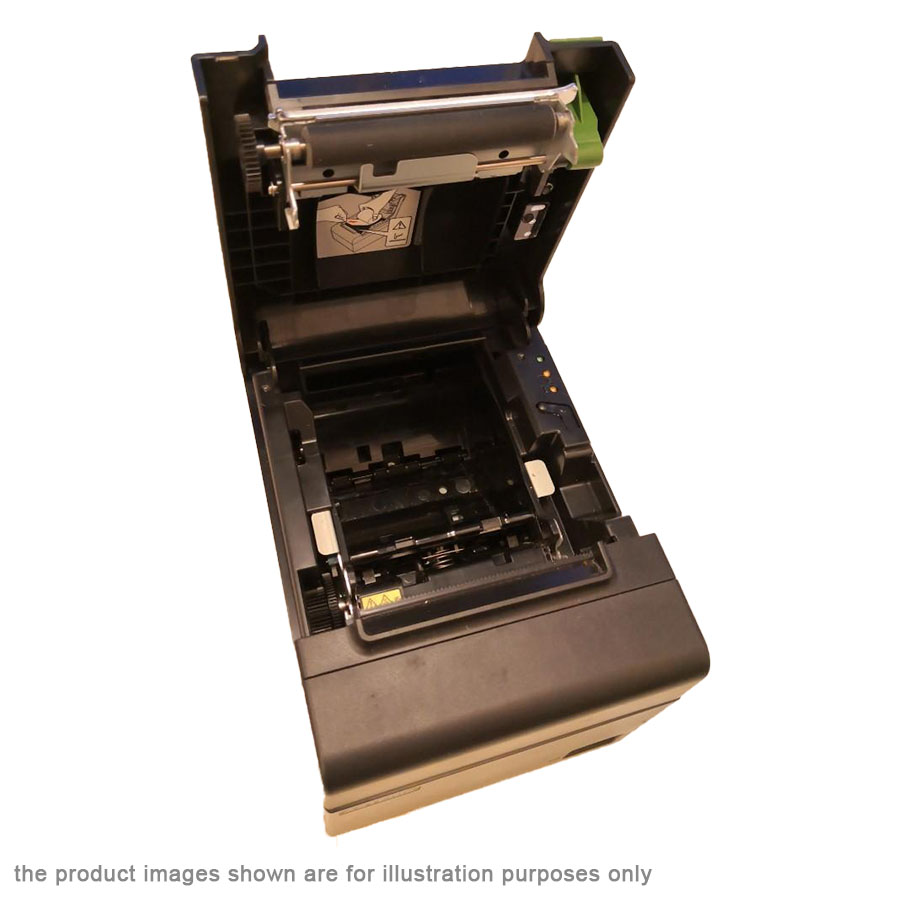

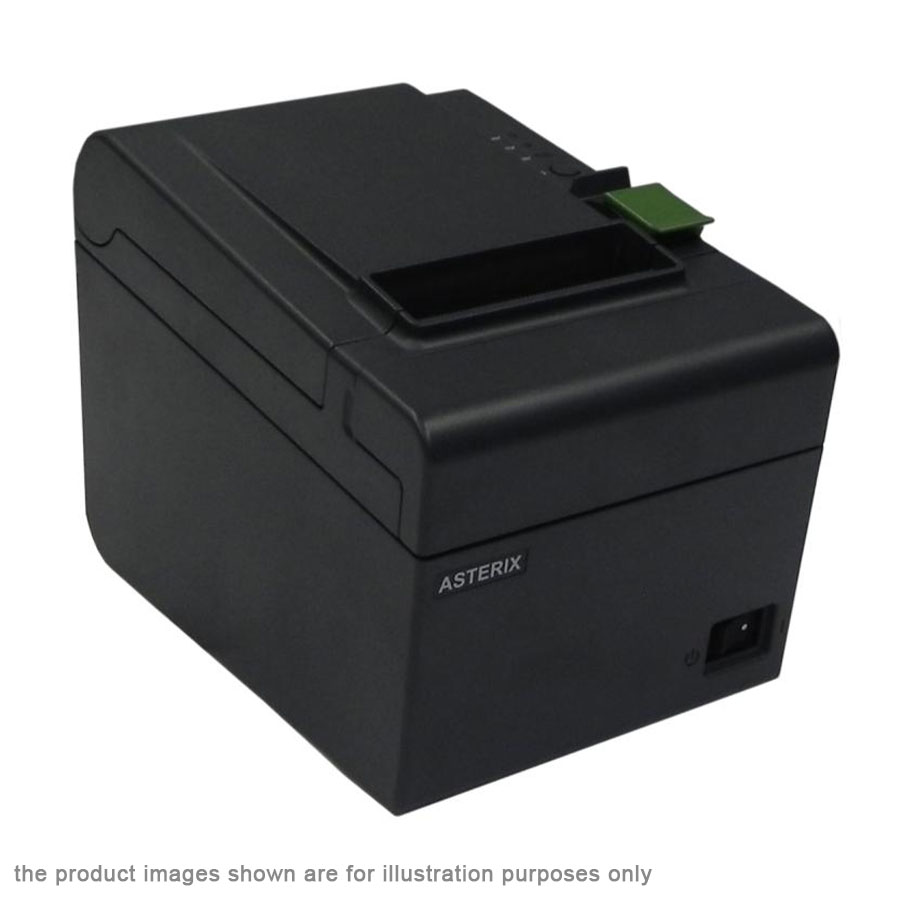

- 1 x ASTERIX ST-EP4 USB Thermal Printer
Warranty
No Warranty
