Description
APPLICATIONS
- POST
- Pharmacy
- Medical Treatment
- Financial Services
- Retail
- Manufacturer
Specification
| Light source | 660 nm visible red LED |
| Optical system | 2048 pixel CCD (charge-coupled device) |
| Depth of scan field | 150 mm (Code 39, 500Lux, PCS=90%, 20mils) |
| Scanning width |
95mm wide @ 55mm distance |
| Scan speed | 100 scans/sec |
| Current - sleep mode | Nil |
| Resolution | 0.1mm(4mils) - Code 39, PCS=90 % |
| Print contrast | 45% or more |
| Scanning angle | Pitch: Max 60° ,Yaw: Max 70° |
| Decode capability | Auto discriminates all standard one dimension barcodes; including GS1 databar |
| Cable - universal type | Nil |
| Beeper operation | 7 tones or no beep |
| Indicator | Green LED |
| Length | 176 mm |
| Width-handle | / |
| Width-head | / |
| Depth-handle | 30 mm |
| Depth-head | 40 mm |
| Weight | 90 g (cable not included) |
| Cable - K/B wedge | Straight 2.0 m |
| Connector type | Crimp type female connector |
| Case material | ABS plastic + TPR |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Input voltage | 5 VDC ± 0.25V |
| Power - operating | Max 250mA |
| Power - standby | 30 mA @ 5 VDC |
| Current - operating | MAx 250 mA @ 5 VDC |
| Current - standby | 30 mA @ 5 VDC |
| Operating Temperature | / |
| DC transformers | Class 2; 5VDC @ 500 mA |
| Storage | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90% relative humidity, non-condensing |
| Light level | Up to 20000 Lux |
| Shock | 1.5m drop onto concrete |
| Programming method | Manual (reading special barcode) |
| Contaminants | Sealed to resist airborne particulate contaminants |
| Program upgrade | N/A |
| Programmable characteristics | Code type selection, check digit selection decoding option transmitted character delay, header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection keyboard emulation type (intermessage delay, keyboard type and keyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/stop bits) |
| Agency Listing | CE, FCC, CCC, RoHS |
| Attention | *This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual. |

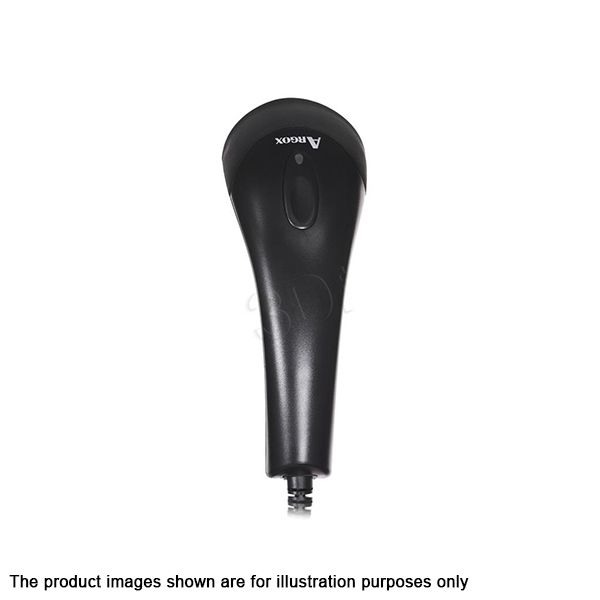

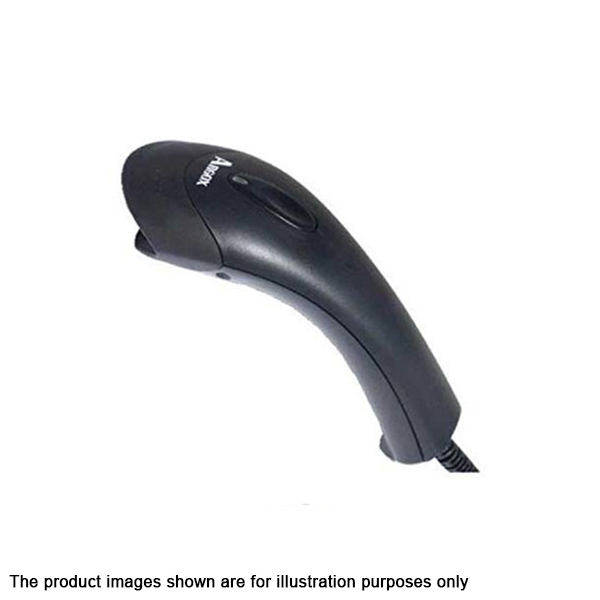

What's in the box : -1 x Argox AS-8000 RS232 Serial Barcode Scanner
