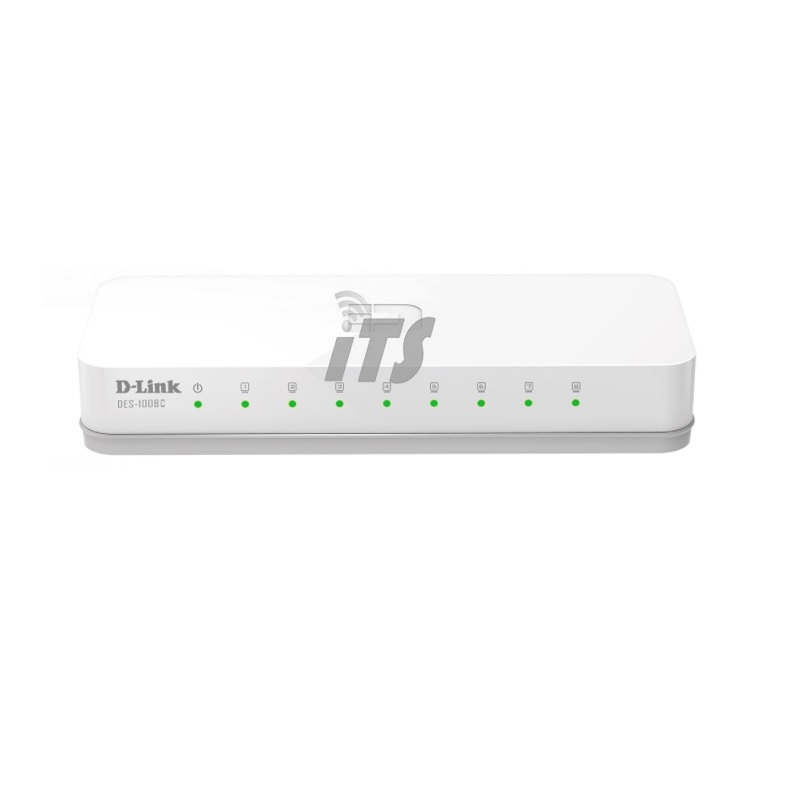

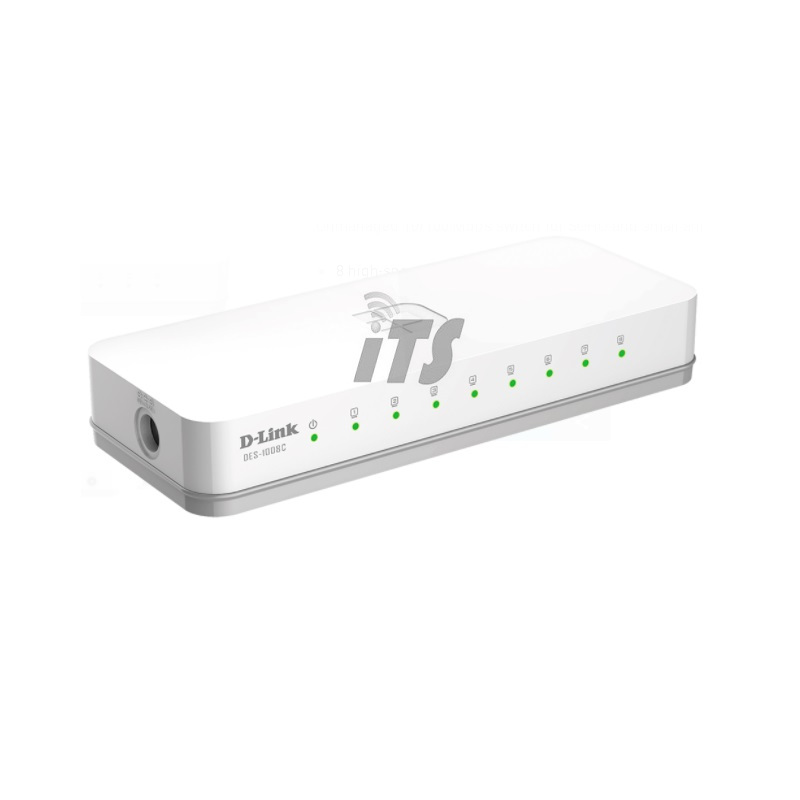

D-Link 8 Ports 10/100Mbps Unmanaged Desktop Switch (DES-1008C)

D-Link 8 Ports 10/100Mbps Unmanaged Desktop Switch (DES-1008C)

"Device Interfaces

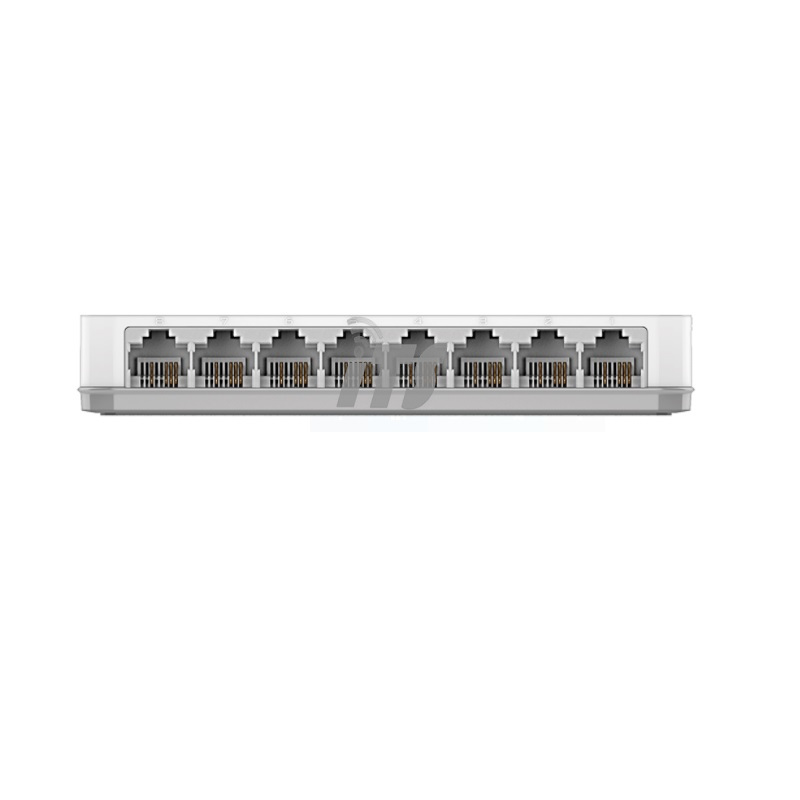

    • 8 x 10/100 Mbps LAN ports

Standards

    • IEEE 802.3 10BASE-T

    • IEEE 802.3u 100BASE-TX

    • IEEE 802.3x Flow Control

Switching Capacity

    • 1 Gbps switching fabric

Advanced Features

    • Auto MDI/MDIX crossover for all ports

    • Secure store-and-forward switching scheme

    • Full/half-duplex for Ethernet/Fast Ethernet speeds

    • Back pressure at half-duplex operation

    • Wire-speed reception and transmission

    • Store-and-Forward switching method

    • Auto-negotiation for each port

    • IEEE compliant IEEE 802.3 10BASE-T

    • IEEE 802.3u 100BASE-TX

    • IEEE 802.3x flow control

Data Transfer Rates    • Ethernet:

    • 10 Mbps (half duplex)

    • 20 Mbps (full duplex)

    • Fast Ethernet:

    • 100 Mbps (half duplex)

    • 200 Mbps (full duplex)

Transmission Method

    • Store-and-forward

MAC Address Table Size

   • 1K

Packet Filtering/Forwarding Rates

    • Ethernet: 14,880 pps per port

    • Fast Ethernet: 148,800 pps per port

RAM Buffer

    • 56 KB per device

LED Indicators

    • Per port: Link/Activity/Speed

    • Per device: Power

Dimensions

    • 87 x 47 x 21 mm (3.42 x 1.85 x 0.83 inches)

    • 132 x 53 x 21 mm (5.19 x 2.09 x 0.83 inches)

Weight

    • 45 grams (1.58 ounces)

    • 74.8 grams (2.64 ounces)

Power

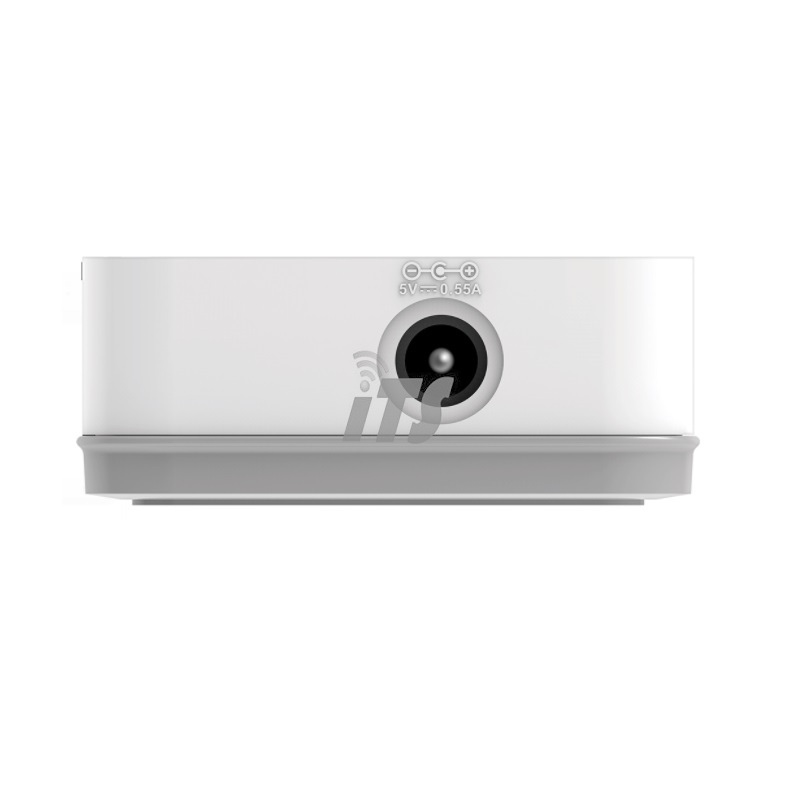

    • DC 5 V / 0.55 A

Power Consumption

    • Power On (Standby): 0.4 watts

    • Maximum: 1.55 watts (DES-1008C)

Temperature

    • Operating: 0 to 40 °C (32 to 104 °F)

    • Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

    • Operating: 10% to 90% non-condensing

    • Storage: 5% to 95% non-condensing

MTBF

    • 1,588,251 hours (DES-1008C)

Maximum Heat Dissipation

    • 5.28 BTU/h (DES-1008C)

Certifications

    • CE Class B

    • CE LVD

    • FCC Class B

    • ICES 003

    • RCM Class B

    • BSMI Class B"
