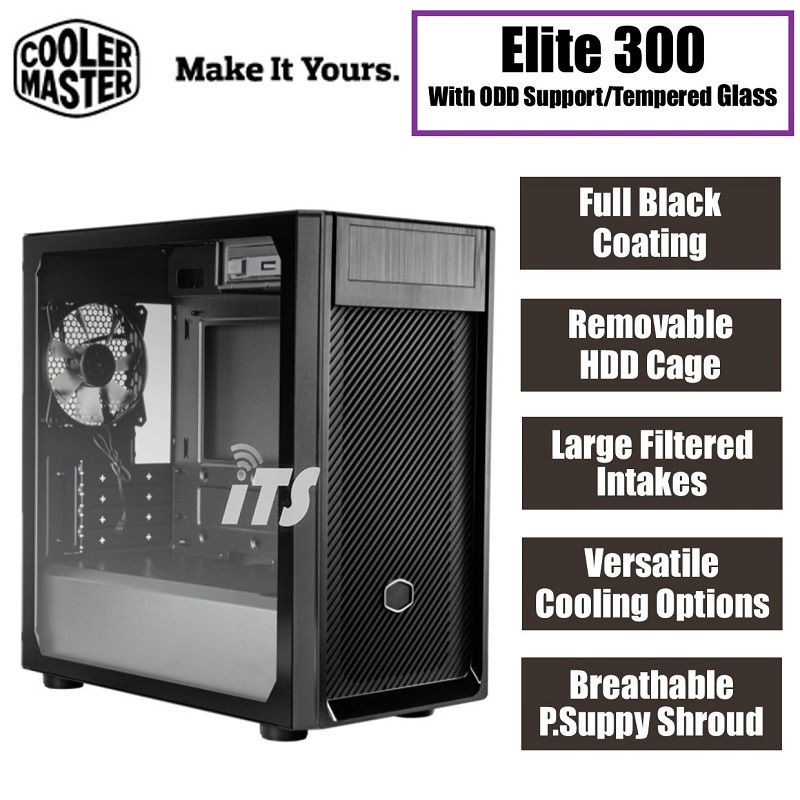

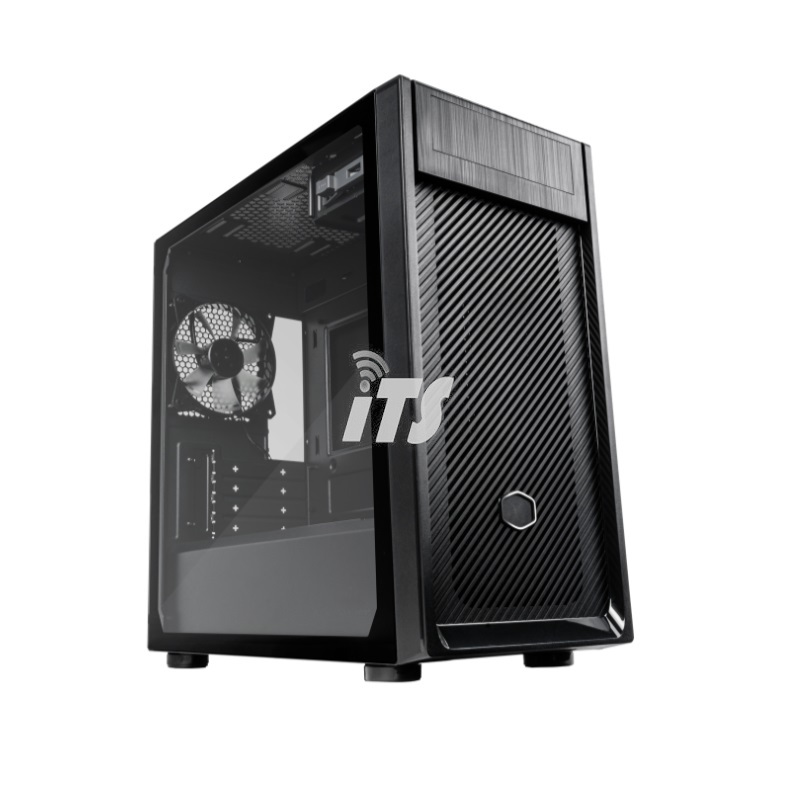

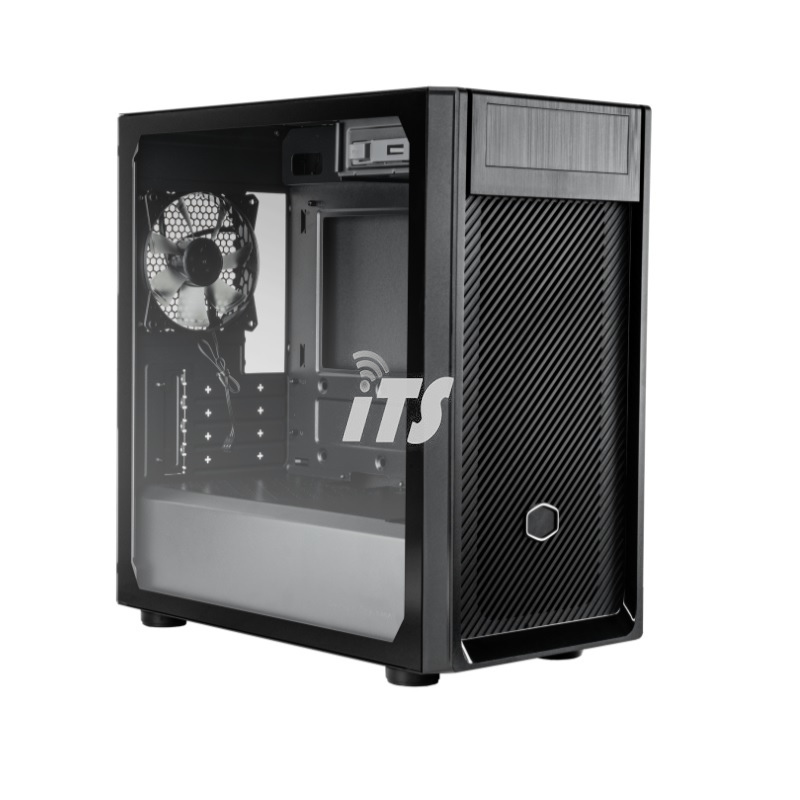

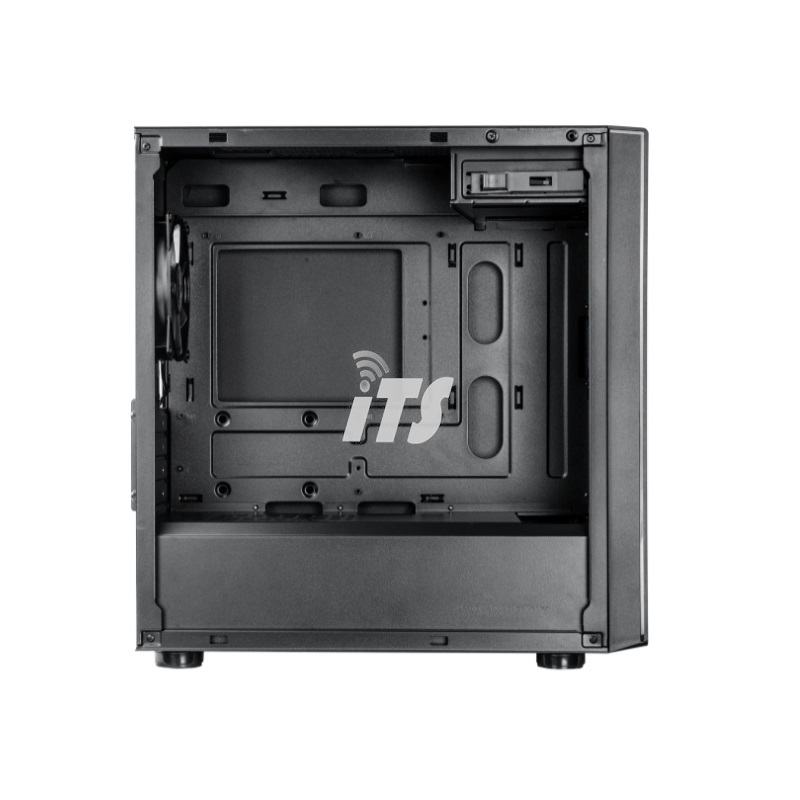

Cooler Master MasterBox E300 Tempered Glass Chassis (with ODD)

Cooler Master MasterBox E300 Tempered Glass Chassis (with ODD)

Model Number

E300-KG5N-S00 (TG)

Exterior Color

Black

Materials - Exterior

Steel, Plastic

Materials - Left Side Panel

Tempered Glass, Steel

Dimensions (L x W x H)

370 x 203.5 x 410mm (Body Size), 413.5 x 203.5 x 425mm (Incl. Protrusions)

Volume 35.76L (Excl. Protrusions)

Motherboard Support

Mini ITX, Micro ATX

Expansion Slots

4

5.25" Drive Bays

1

2.5" / 3.5" Drive Bays (Combo)

2

2.5" Drive Bays

2

I/O Panel

2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans - Rear

1x 120mm (Black)

Fan Support

- Top 1x 120mm, 1x 140mm, 2x 120mm*, 2x 140mm* (*Remove ODD bracket)

Fan Support - Front

2x 120mm

Fan Support - Rear

1x 120mm

Radiator Support - Top

120mm, 140mm, 240mm*, 280mm* (*Remove ODD bracket)

Radiator Support - Front

120mm, 240mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

TG: 163.5mm, Steel: 165.5mm

Clearance - PSU

160mm

Clearance - GFX 365mm / 14.37" (w/o front fans & radiator)

Cable Routing

18.5mm / 0.73"

Dust Filters

Front, Top, Bottom

Power Supply Support

Bottom Mount, ATX

Series

Elite Series

Size

Mini Tower
