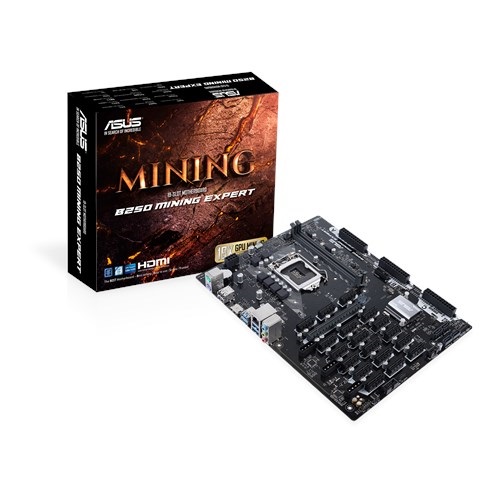

Asus B250 Mining Expert Intel Atx Motherboard - LGA1151

World's First 19-Slot Mining Motherboard Asus B250 Mining Expert

Max out your megahash rates!

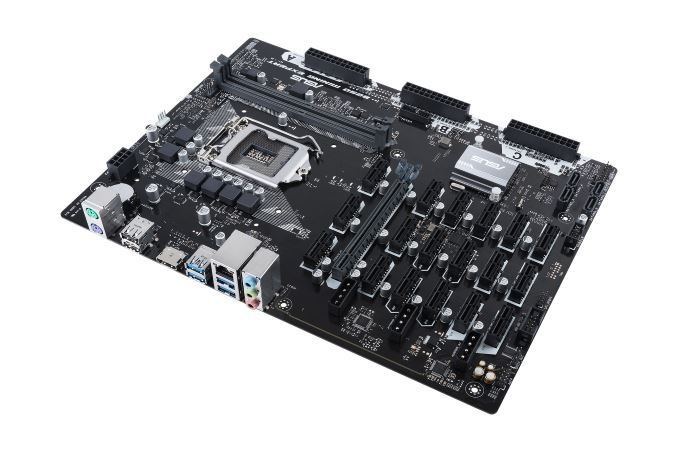

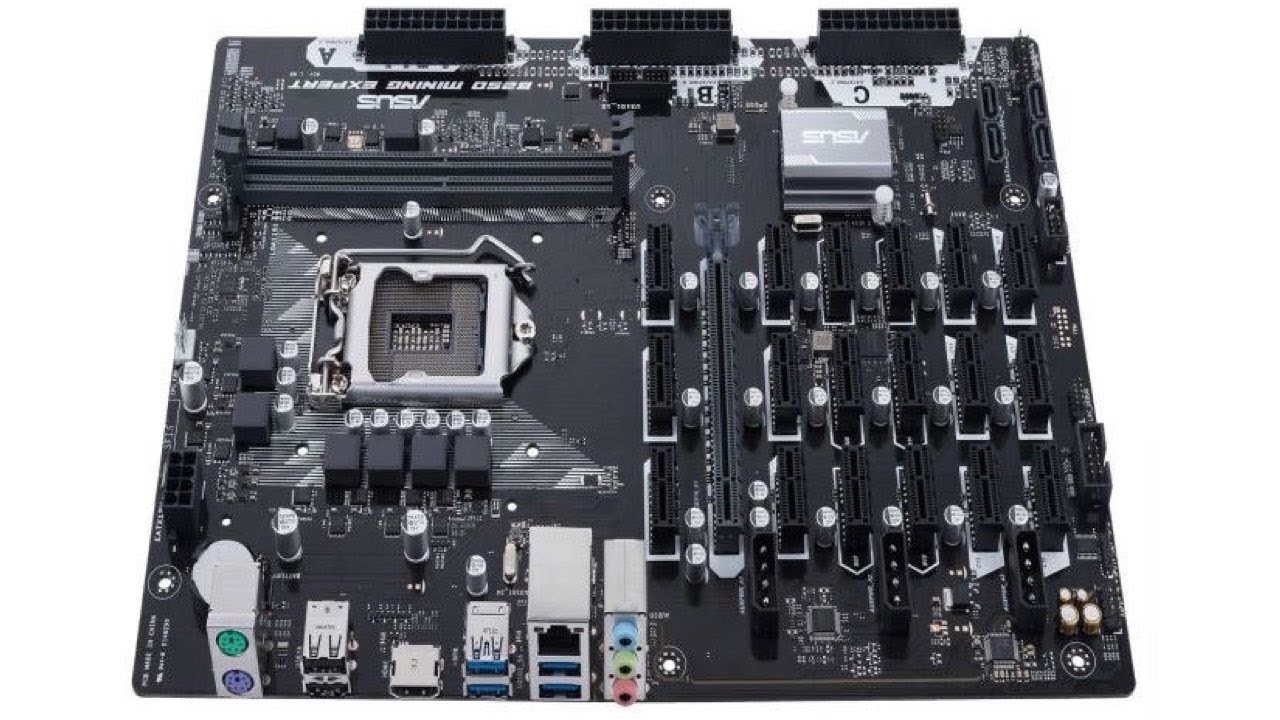

ASUS B250 Mining Expert is the world's first mining motherboard to feature 19 PCI Express® (PCIe®) slots. With 18 PCIe x1 and one PCIe x16 slots on board, plus three zoned ATX12V power connectors, B250 Mining Expert lets you run up to 19* NVIDIA or AMD GPUs in parallel to max out your megahash rates!

* B250 Mining Expert Intel B250 Hdmi Sata 6gb\ 3.1 currently supports a total of up to eight NVIDIA and AMD GPUs. An unlimited number of GPUs will be supported following a driver update that is planned for Q4 2017.

Triple-ATX12V Power Delivery

Engineered to deliver the power your graphics cards need

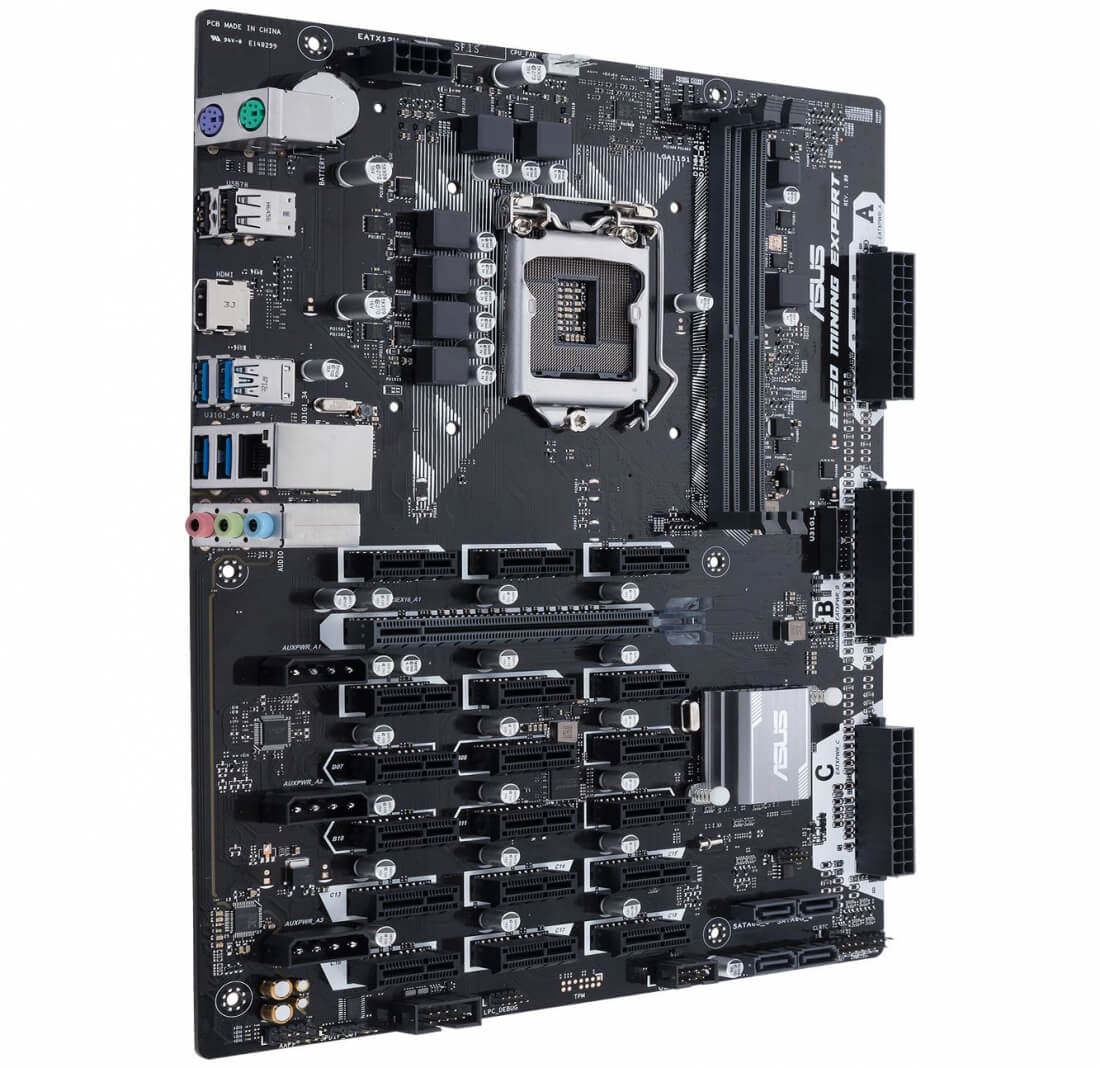

Asus B250 Mining Expert has been engineered to provide all the power your GPUs demand, cleanly and efficiently. The 19 PCIe slots are grouped into three distinct zones, each powered by its own, dedicated 24-pin ATX12V power connector — reducing wiring complexity and ensuring ample power delivery to all PCIe slots.

Voltage-Stabilization Capacitors

Stable, low-noise power for your GPUs

Stable, low-noise power is a serious benefit for 24/7 cryptocurrency mining. That's why we've engineered B250 Mining Expert with 19 decoupling capacitors. These quality components smooth voltages and reduce high-frequency noise, so your GPUs get the good-quality power delivery needed for reliable operation.

PCIe Slot State Detection

Easy management and debugging

B250 Mining Expert has built-in smarts to show the status of each and every graphics card from the moment you power up. The moment the Power-On, Self-Test (POST) screen appears, you'll see a graphical representation of the status of every slot — so you'll know instantly if there's a problem or whether your mining operation is good to go.

Mining Mode BIOS Optimization

Simple setup Intel B250 Motherboard

Unlike some rival boards, B250 Mining Expert has a special Mining Mode that's enabled by default, removing the hassle of having to make BIOS-level changes that are necessary to maximize mining performance. Mining Mode sets the PCI Express speed to PCIe 1.0 and disables the Compatibility Support Module, so you get the best stability and compatibility right out of the gate.

Best Network Performance

Intel Gigabit LAN and ASUS LANGuard

B250 Mining Expert is equipped with Intel Gigabit Ethernet for the best throughput and lower CPU overhead, ensuring optimum performance from your mining rig.

ASUS-exclusive LANGuard employs advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput — protecting the B250 Mining Expert from lightning strikes and static electricity.

Specifications


• CPU

  Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® B250

• Memory

  2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

• Graphic

  Integrated Graphics Processor- Intel® HD Graphics support
  VGA output support : HDMI port
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  Maximum shared memory of 1024 MB

• Expansion Slots

  1 x PCIe x16 (x16 mode)
  18 x PCIe x1

• Storage

  4 x SATA 6Gb/s port(s),

• LAN

  Intel® I219V, 1 x Gigabit LAN Controller(s)

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC

• USB Ports

  Intel® B250 Chipset :
  6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
  Intel® B250 Chipset :
  4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)

• Special Features of Asus B250 Mining Expert Lga1151

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  3 x 4-pin AUXPWR Header

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD

• BIOS

  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

• Manageability

  WfM 2.0, DMI 3.0, WOL by PME, PXE

• Operating System

  Windows® 10 64-bit
  Windows® 7 64-bit *1

• Form Factor

  ATX Form Factor
  12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )

• Note

  1.Windows® 7 64-bit is only supported when using 6th Generation Intel® Processors
