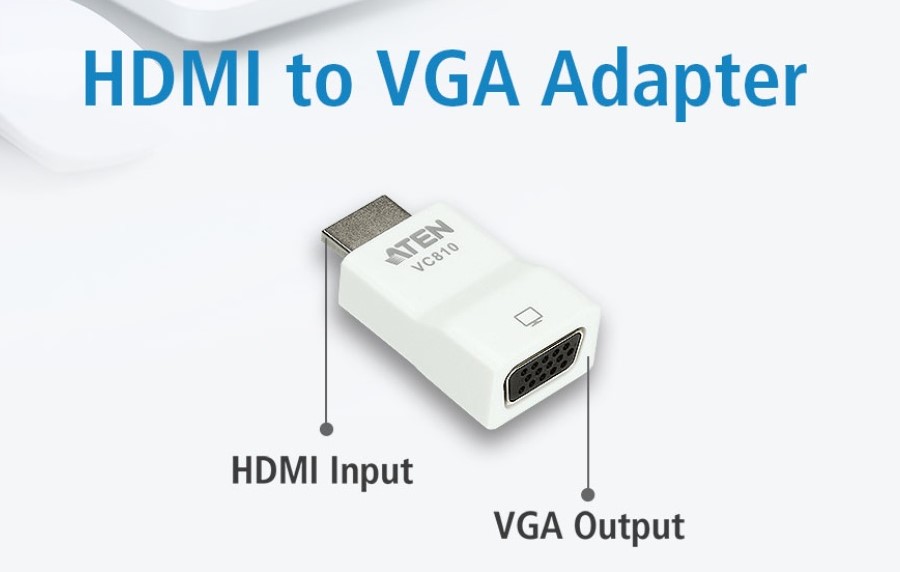

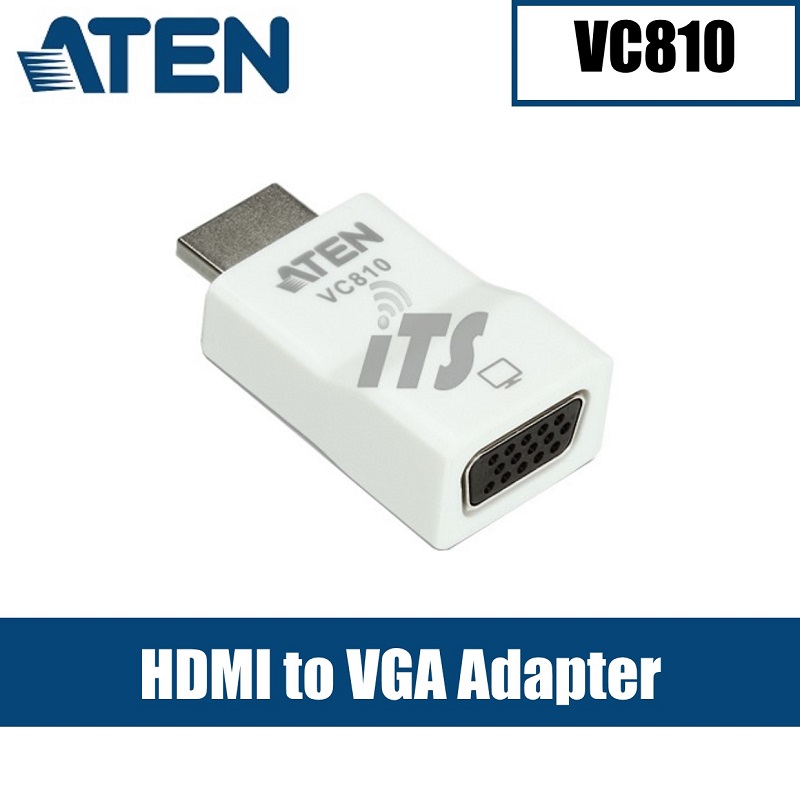

ATEN HDMI to VGA Adapter (VC810)

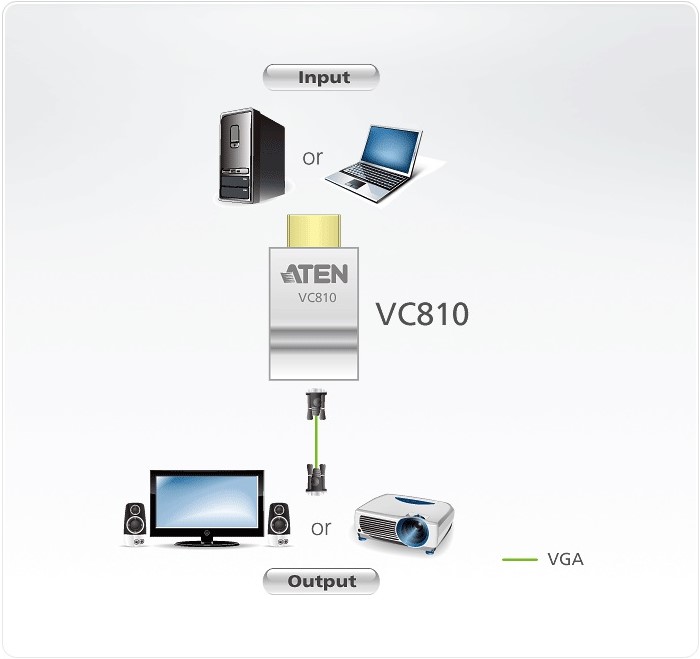

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability. - Converts HDMI signals to VGA output - Superior video quality up to 1920 x 1200, 1080p - Supports wide screen formats - Non-powered Video Input Interfaces 1 x HDMI Type A Male (Black) Impedance 100 ? Video Output Interfaces 1 x HDB-15 Female (Black) Impedance 75 ? Video Max. Pixel Clock 200 MHz Max. Resolution Up to 1920 x 1080/60Hz Environmental Operating Temperature 0 - 60 ºC Storage Temperature -10 - 70 ºC Humidity 40 - 85% RH, Non-Condensing Physical Properties Housing Plastic Weight 0.01 kg ( 0.02 lb ) Dimensions (L x W x H) 4.55 x 2.30 x 1.48 cm (1.79 x 0.91 x 0.58 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
