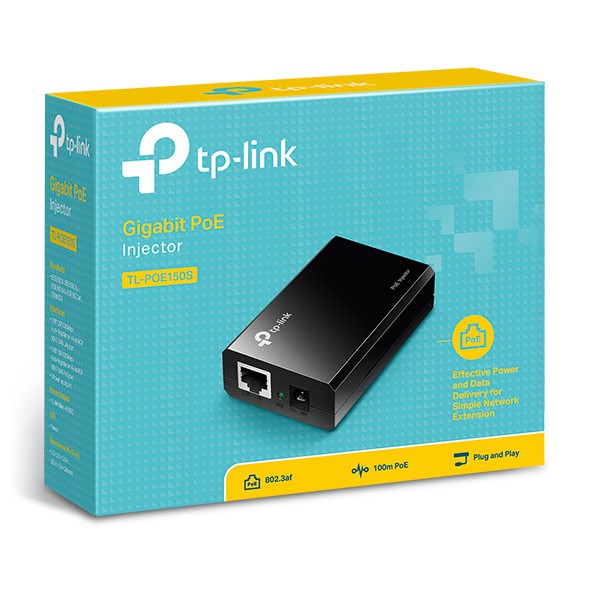

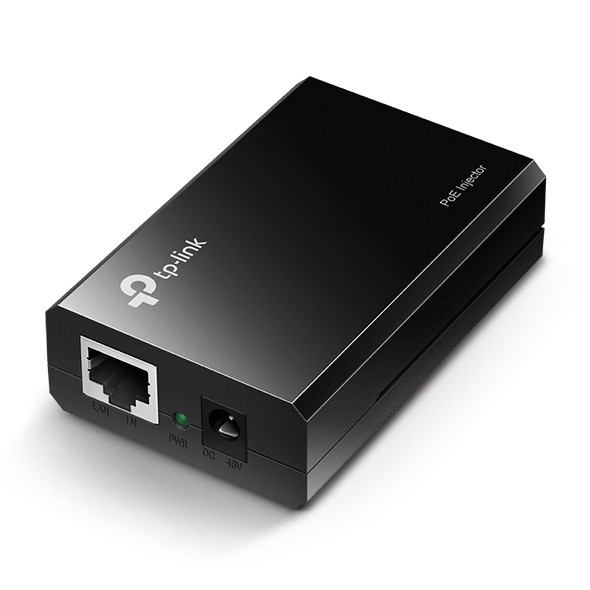

TP-LINK Ethernet POE Injector Adapter TL-POE150S

TP-LINK Ethernet POE Injector Adapter TL-POE150S

PoE Injector

TL-POE150S

IEEE 802.3af compliant

Auto-determine the necessary power requirements

Gigabit speed support

Plug-and-Play, requires no configuration

HARDWARE FEATURES

Interface

2 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 48VDC POWER INPUT PORT

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply

15.4W (Max. 48VDC)

LED Indicator

PWR

Dimensions ( W x D x H )

3.2*2.1*0.9 in.(80.8*54*24 mm)

SOFTWARE FEATURES

Basic Function

Compatible With IEEE 802.3af Compliant PDs

Delivers Power Up To 100 Meters

Auto-Determine The Necessary Power Requirements

OTHERS

Certification

FCC, CE, RoHS

Package Contents

Gigabit PoE Injector TL-POE150S

Power Adapter

RJ45 Cable

Installation Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
