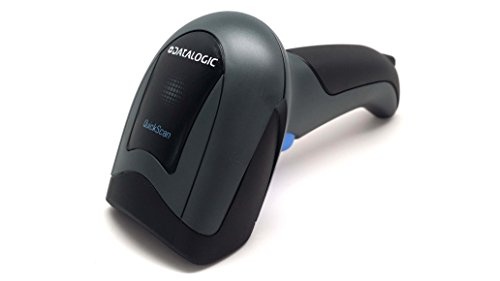

QuickScan
Entry level corded 2D area imager featuring innovative characteristics, outstanding reliability and the best comfortable use for operators
Features
- Item model num : QD2430-BK
- Nominal Voltage-DC 4.5 -14 V
- Outstanding snappiness
- Advanced motion tolerance optics
- Datalogic’s patented ‘Green Spot’ technology for good-read feedback
- Handheld barcode reader can be used to scan and decode linear 1D, 2D, and PDF417 barcodes
- Laser produces light in an omnidirectional pattern to scan barcodes at different angles
- USB cable can be plugged into the USB port of a computer or host system (sold separately) to transmit barcode data
- Motion tolerance enables barcode reader to scan barcodes with accuracy even when in motion
Specifications
| PRINTER |
| Barcodes |
Australian Post, Aztec code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, MaxiCode, Micro QR code, MicroPDF417, British Post, PDF417, PLANET, Postnet, QR code, Royal Mail, Canadian Post, China Han Xin Code, China Post, Data Matrix, EAN/JAN, GS1 DataBar, GS1 DataBar Composites |
| INPUT DEVICE |
| Connectivity Technology |
Wired |
| TTL Decoding |
Dedoded |
| OK Notification |
LED indicator, beeper |
| BARCODE |
| Interface Type |
USB / serial RS-232 / keyboard wedge |
| Interface |
RS-232, USB, keyboard wedge |
| Light Source Wave Length |
610-650 nm |
| Scan Mode |
Single-pass |
| Scan Element Type |
2D imager |
| POWER |
| Electric Current Required |
140 mA (typical), 50 mA (standby) |
| Electric Current Required |
140 mA (typical), 50 mA (standby) |
| MISCELLANEOUS |
| Compliant Standards |
RoHS, IP42 |
| Color |
black |
| ENVIRONMENTAL PARAMETERS |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
122 °F |
| Humidity Range Operating |
5 - 95% (non-condensing) |
|
BASIC FEATURES
BASIC HOLDER is a bar code scanner holder, belonging to the QuickScaner to the desired position for reading bar codes by bending the flexible tubing.
General Information
|
| Product Name |
Gooseneck Stand Black, Quickscan QD24XX |
| Manufacturer Part Number |
STD-QD24-BK |
| Product Type |
Handheld Scanner Holder
|
| Product Information |
| Features |
Flexible Gooseneck |
| Physical Characteristics |
| Color |
Black |
| Miscellaneous |
| Compatibility |
QuickScan QD2400 Handheld Scanner
|
| |
Brand Name: Datalogic
Product Model: 90A052065
Product Name: USB Cable
Product Type: Data Transfer Cable
Cable Type: USB
Cable Length: 2M
Connector on First End: Type A USB
Device Supported: Scanner
|
