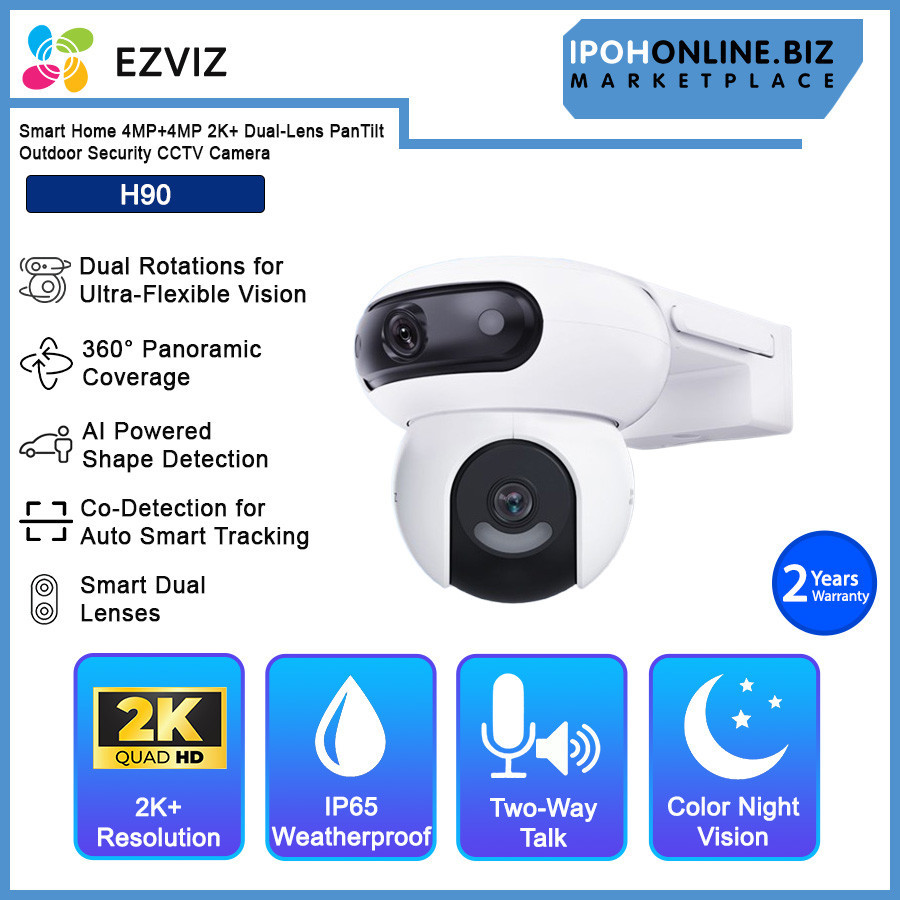

Ezviz H90 Smart Home 4MP+4MP 2K+ Dual-Lens Pan/Tilt Outdoor Security CCTV Camera

Features

- Dual Rotations for Ultra-Flexible Vision

- Co-Detection for Auto Smart Tracking

- One-Tap Control for Linked View Change

- Two Patrol Modes for Auto-Security

- 2K+ & 2K+ Dual Lenses

- AI-Powered Human / Vehicle Shape Detection

- 360° Panoramic Coverage

- Two-Way Talk

- Active Defense with Siren and Strobe Light

-Weatherproof Design

- H.265 Video Compression

- Color Night Vision

- Balanced Image Exposure with Smart Lights

- Easy Installation

- Smart Integration with Google Assistant & Amazon Alexa

- Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage

Specifications

CameraImage Sensor1/3" Progressive Scan CMOSShutter SpeedSelf-adaptive shutterLensTop Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°

Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°

PT AngleTop Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle )

Bottom Lens: Pan: 324°, Tilt: 90°

Minimum Illumination0.5 Lux @(F1.6, AGC ON),

0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens MountM12Day & NightIR-cut filter with auto switchDNR3D DNRWDRDigital WDRIR Night Vision30 m (98 ft)Color Night VisionUp to 40 m (131 ft) when two lenses point in the same directionVideo & AudioMax Resolution2K+ (2560 × 1440)Frame RateSelf-adaptive during network transmissionVideo CompressionH.265 / H.264H.265 TypeMain ProfileVideo Bit RateQuad HD; Full HD; Standard adaptive bit rateAudio Bit RateSelf-AdaptiveNetworkWi-Fi StandardIEEE802.11b, 802.11g, 802.11nFrequency Range2.4 GHz ~ 2.4835 GHzChannel BandwidthSupports 20MHzSecurityWPA-PSK/WPA2-PSKTransmission Rate11b 11 Mbps, 11g 54 Mbps, 11n: 150 MbpsWi-Fi PairingAP paringProtocolEZVIZ cloud proprietary protocolInterface ProtocolEZVIZ cloud proprietary protocolWired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)FunctionsSmart AlarmAI-powered human shape detection

AI-powered vehicle shape detection

Motion detection

Auto TrackingSupportsCustomized Alert AreaSupportsTwo-way TalkSupportsPreset LocationsSupportsGeneral FunctionAnti-Flicker, Dual-Stream, Heart Beat, Password Protection, WatermarkStorageLocal StorageSupports microSD card (max. 512 GB)Cloud StorageSupports EZVIZ CloudPlay storage (subscription required)GeneralOperating Conditions-30°C to 50°C ( -22 °F to 122 °F )

Humidity 95% or less (non-condensing)

IP GradeWeatherproof DesignPower SupplyIP65 + 2h rainstormPower ConsumptionMAX. 18W

What's in the box

- 1 x H90 Dual 2K+ Camera

- 1 x Power Adapter

- 1 x Drill Template

- 1 x Waterproof Kit

- 1 x Screw Kit

- 2 x Regulatory Information

- 1 x Quick Start Guide
