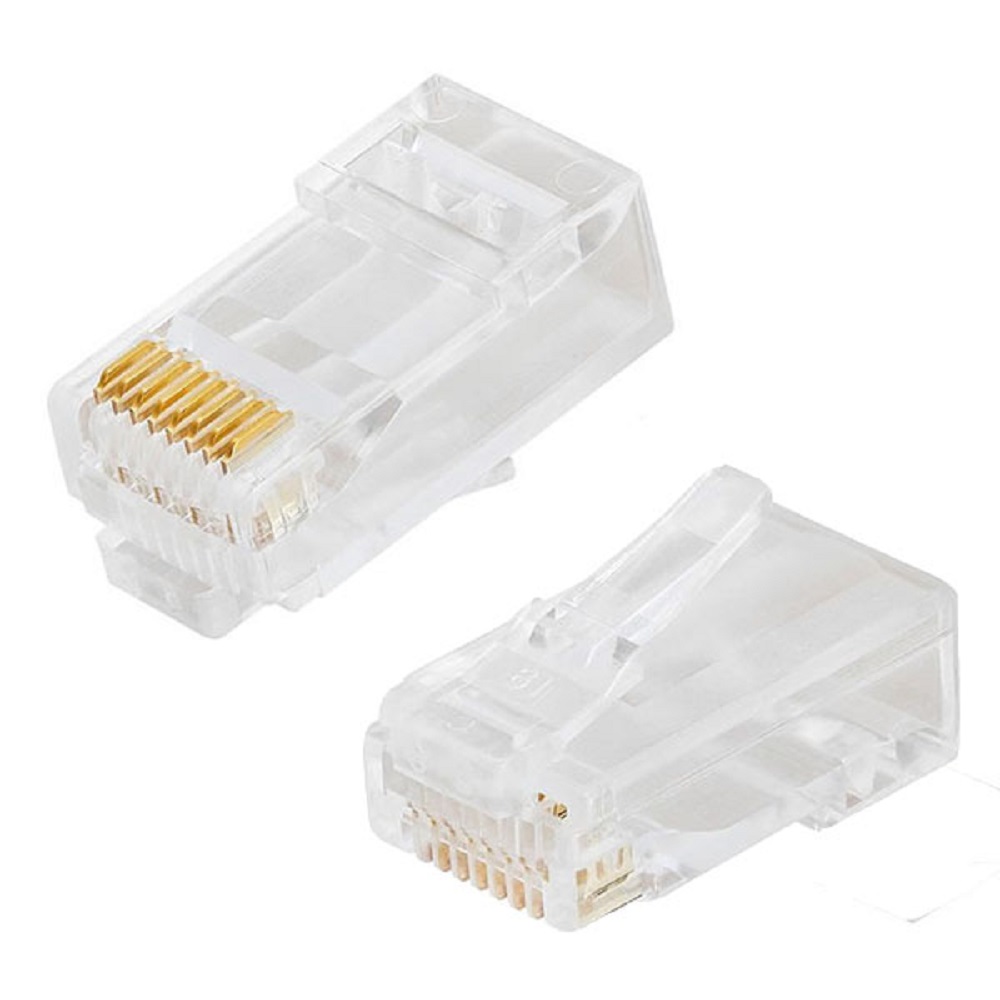

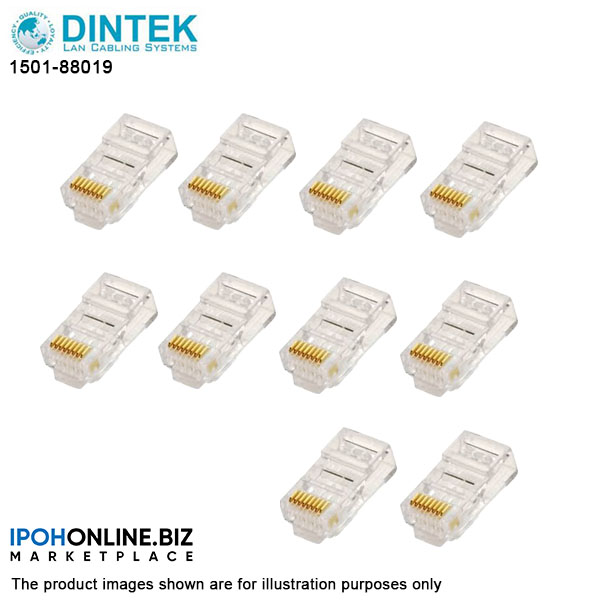

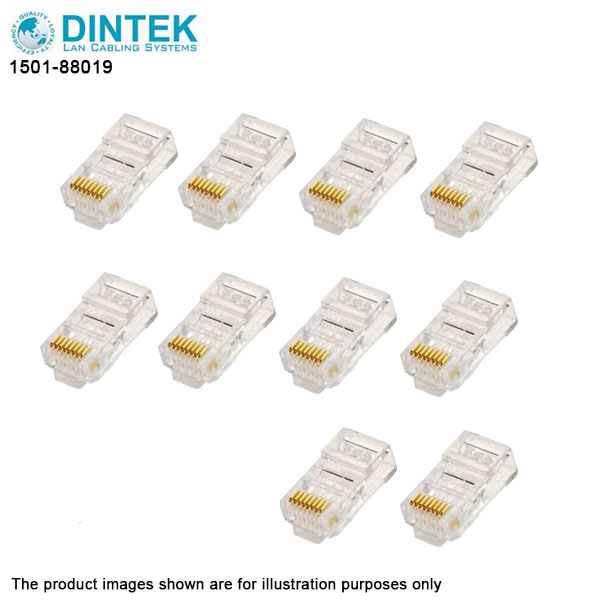

Ipohonline (10PCS) DINTEK CAT5e RJ45 Network Plug

(10PCS) DINTEK CAT5e RJ45 Network Plug

Applications

• 10 Base-T (IEEE 802.3)
• Fast Ethernet (IEEE 802.3u)
• 100Vg-AnyLAN (IEEE 802-12)
• Token Ring (IEEE 802.5)
• TP-PMD (ANSI X 3T9.5)
• 100 Mbps CDDI
• ATM 155
• Gigabit 1000 Mbps (802.3z)

Standards

• ETL Verified
• ANSI/TIA-568-2.D
• ISO/IEC 11801
• EN 50173

Material and Finish

• Housing: Poly-Carbonate
• Contact:Copper Alloy 50u” Gold Over Nickel

Electrical Characteristics

• Dielectric With Standing Voltage: 1000VAC (RMS)
• Contact Resistance: 10 MilliOhms Max
• Current Rating: 30 VAC At 1.5 AMPS
• Insulation Resistance: 500 Megaohms Min

Mechanical

• Cable-To-Plug Tensile Round & Flat Cable Available
• Strength:20 lbs. Min
• Durability:750 Cycles Min
• Operating Temperature : -20°C To +75°C

What In The Box

• 1 x (10PCS) DINTEK CAT5e RJ45 Network Plug

Warranty
No Warranty
