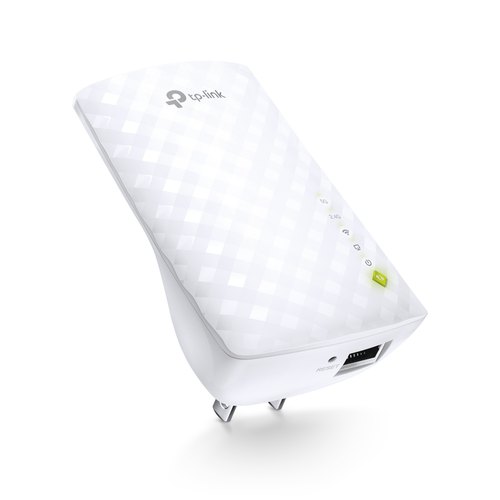

Tp-Link Re200 Ac750 Wifi Dualband Range Extender

PRODUCT DETAILSOF TP-LINK RE200 AC750 WIFI DUALBAND RANGE EXTENDER

SPECIFICATIONS :

HARDWARE FEATURES

Plug Type    EU, UK, US, AU

Standards and Protocols    IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface    1 * 10/100M Ethernet Port (RJ45)

Button    RE (Range Extender) Button, Reset Button

Power Consumption    About 6.5W

Dimensions ( W x D x H )    4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna    3 * internal

WIRELESS FEATURES

Frequency    2.4GHz & 5GHz

Signal Rate    5GHz:Up to 433Mbps

2.4GHz:Up to 300Mpbs

Reception Sensitivity    2.4G:

270M: -70dBm@10% PER

130M: -70dBm@10% PER

108M: -73dBm@10% PER

54M: -75dBm@10% PER

11M: -86dBm@8% PER

6M: -92dBm@10% PER

1M: -94dBm@8% PER

5G:

390M: -60dBm@10% PER

29.3M: -83dBm@10% PER

180M: -64dBm@10% PER

13.5M: -87dBm@10% PER

78M: -68dBm@10% PER

6.5M: -90dBm@10% PER

54M: -75dBm@10% PER

6M：-90dBm@10% PER

Transmit Power    < 20 dBm (EIRP)

Wireless Modes    Range Extender

Wireless Functions    WMM (Wi-Fi Multimedia)

Wireless Statistic

Domain Login Function

Wireless Security    64/128/152-bit WEP

WPA-PSK / WPA2-PSK

OTHERS

Certification    CE, FCC, RoHS

Package Contents    AC750 Wi-Fi Range Extender RE200

RJ-45 Ethernet Cable

Resource CD

Quick Installation Guide

System Requirements    Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment    Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
