الوصف
Specification
Mechanical / Electrical
Dimensions (LxWxH) : 98mm x 126mm x 155mm
Weight : 140g
Input Voltage : 5 +- 0.5V DC
Operating Power : 90mW, 180mA (Typical) @ 5V DC Standby
Power : 500mW, 100mA (Typical) @ 5V DC
Interface : USB, R232, KBW
LED Source : 630 nm Visible Red LED
Environmental
Operating Temperature : 0ºC To 50ºC
Storage Temperature : -40ºC To 60ºC
Humidity : 95%
Drop : 1 - 1.5 At Random
Environmental Sealing : IP40
Light Level : 0 To
ESD : Direct Discharge : 4kV, Air Discharged ; 8kV
Scan Performance
Scan Pattern : Single Line
Scan Rate : Up To 300 Scans Per Second
Print Contrast : 20%
Pitch, Skew: 65º , 75º
Minimum Width : 3 mil
Decode Capabilities : Reads All Standard 1D And GS1 DataBarT MSymbologies
Optional External Power Supply Requirements : Use Only A Listed Limited Power Source (LPS) Or Class 2 Type Power Supply With Output Rated 5 To 5.2V DC, 1A
What's In The Box

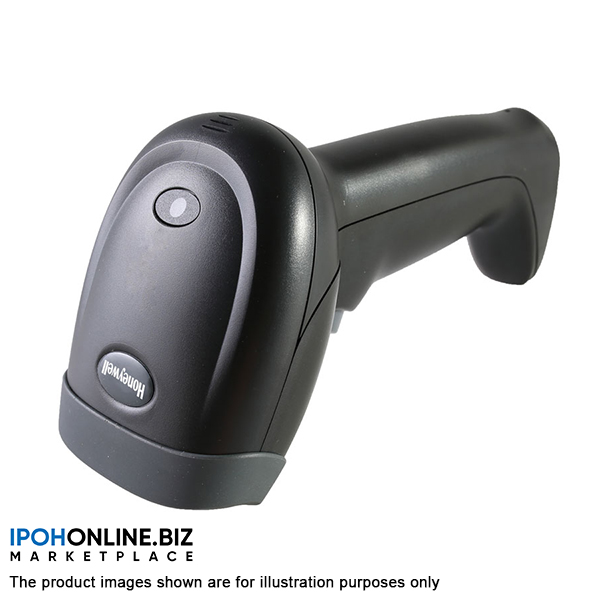

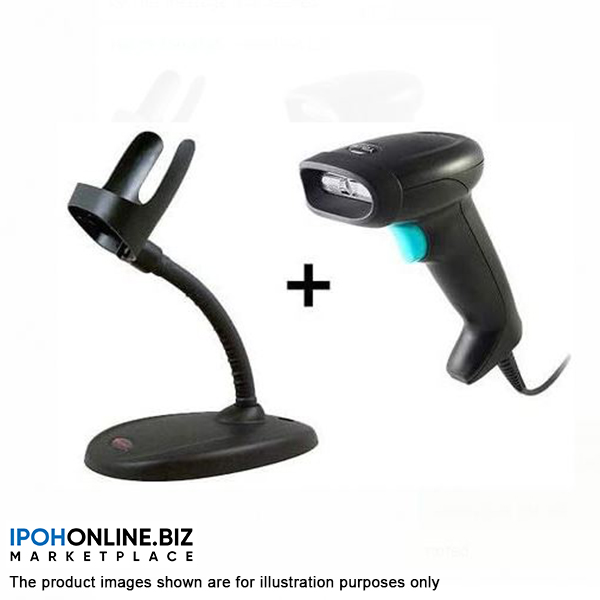

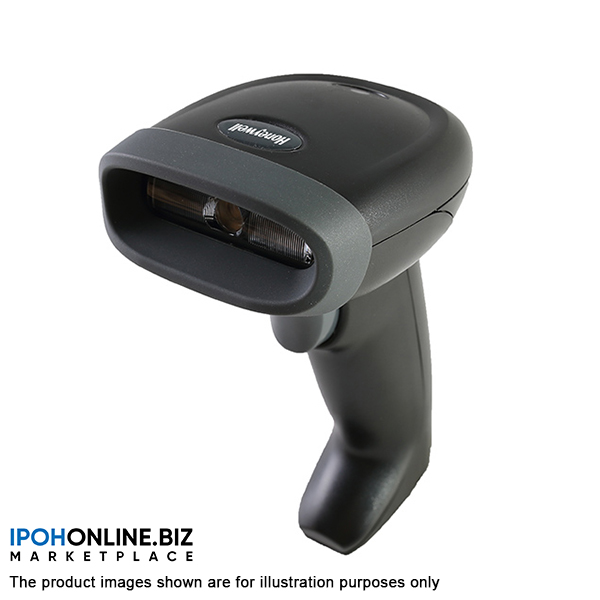

1 x Honeywell Youjie HH360 USB Wired 1D Barcode Scanner with STAND Black YJ-HH360-R-2USB-1
1 x USB Cable
1 x Stand Holder
1 x User Manual
