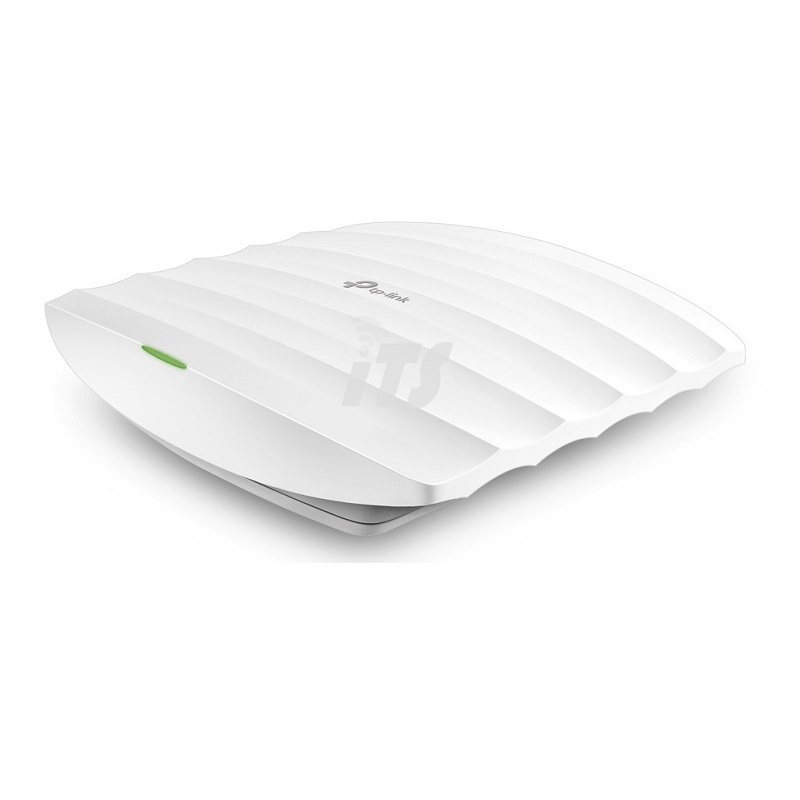

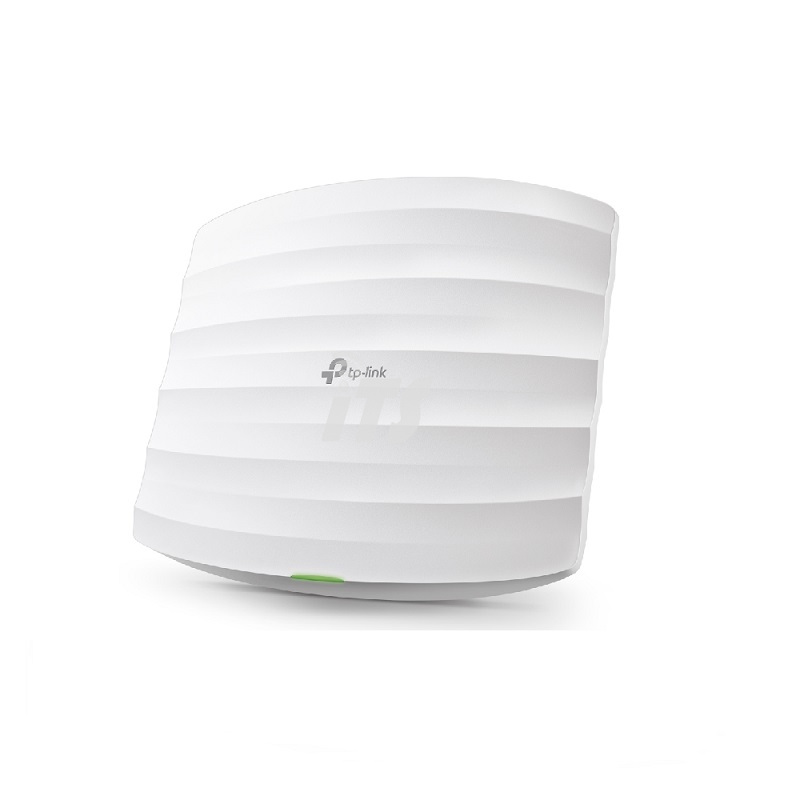

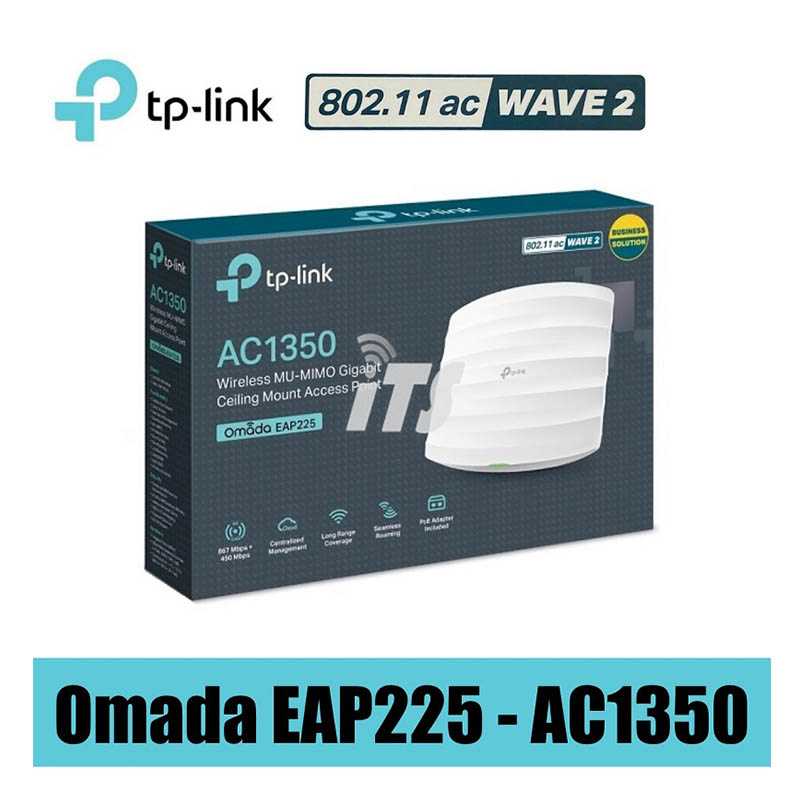

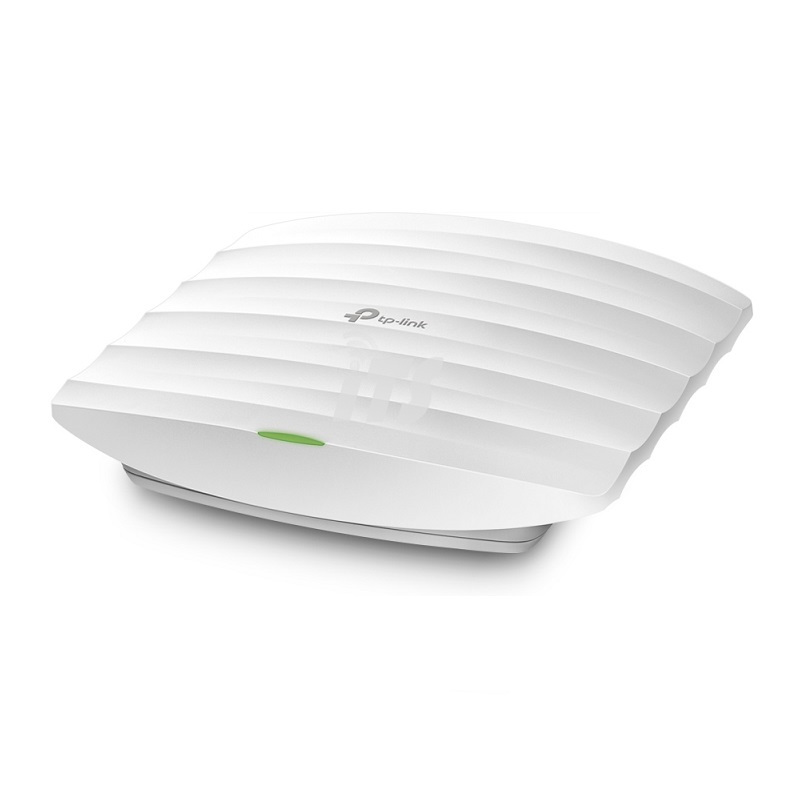

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP225)

HARDWARE FEATURES :

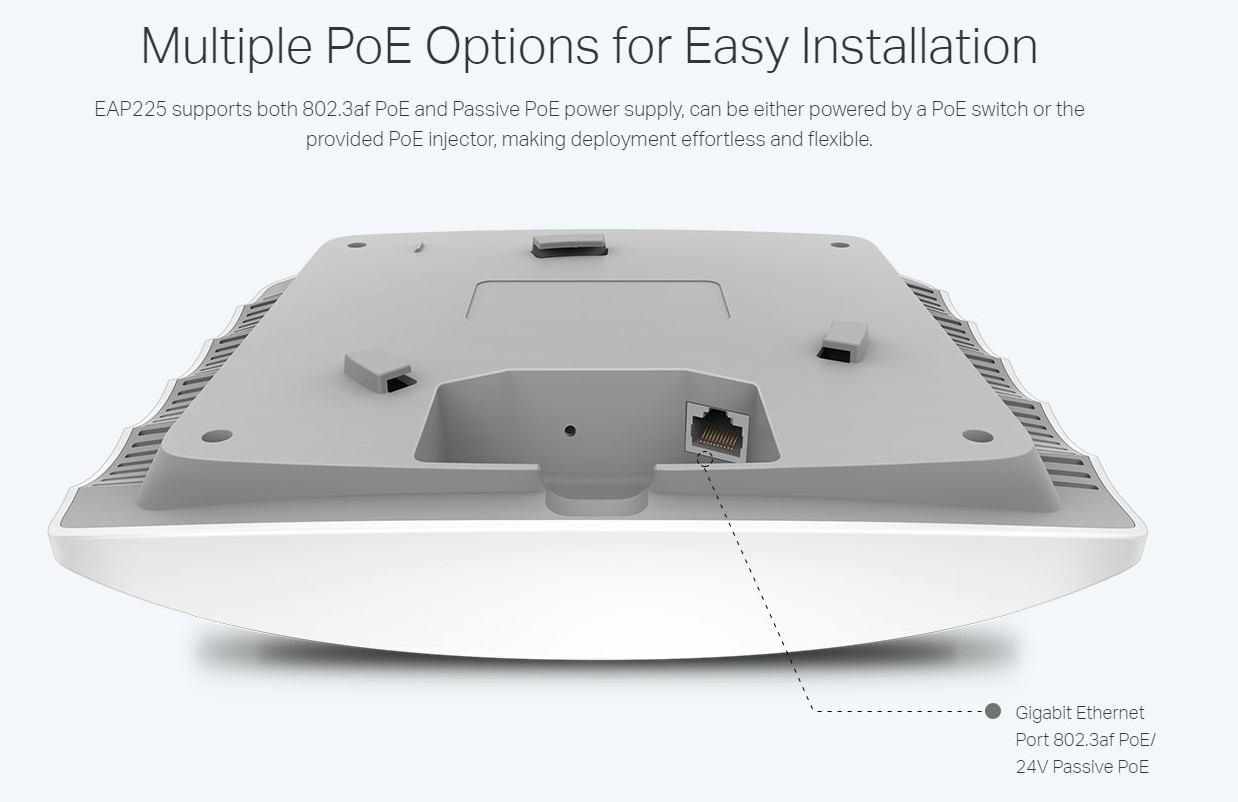

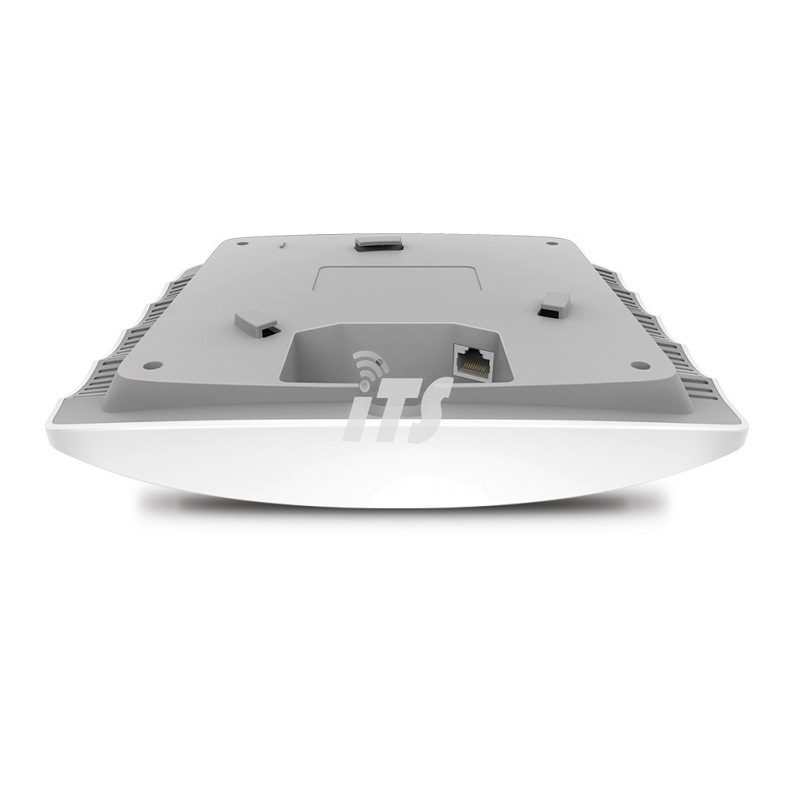

Interface   Gigabit Ethernet (RJ-45) Port x 1

(Support IEEE802.3af or passive PoE)

Physical Security Lock    Yes

Button   Reset

Power Supply   802.3af PoE or passive PoE

Power Consumption  12.6W

Dimensions   8.1 × 7.1 × 1.5 in

(206 × 182 × 37 mm)

Antenna Type  Internal omni directional

2.4GHz: 4dBi x 3

5GHz: 5dBi x 2

Mounting Ceiling mount or wall mount (mounting kit included)

WIRELESS FEATURES

Wireless Standards  IEEE 802.11ac/n/g/b/a

Frequency  2.4GHz and 5GHz

Signal Rate  5GHz:Up to 867Mbps*

2.4GHz:Up to 450Mbps*

Wireless Functions   Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Seamless Roaming

Band Steering

Load Balance

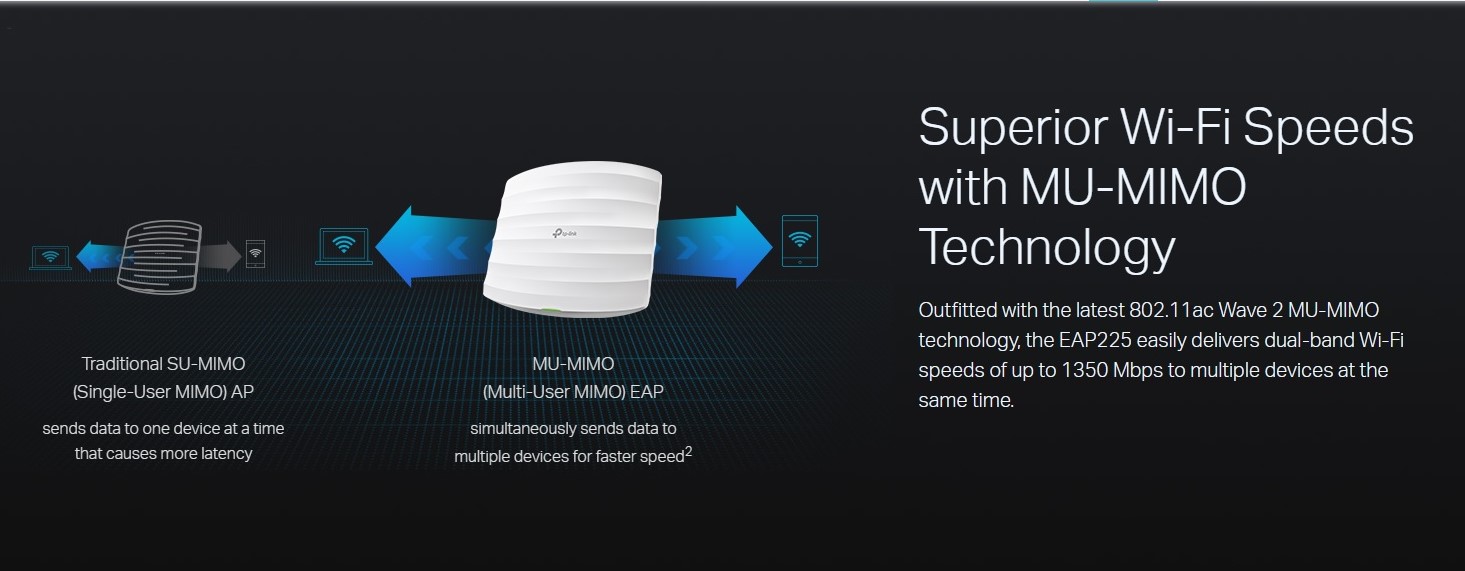

MU-MIMO*

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

Transmission Power ≤24dBm(2.4GHz)

≤22dBm(5GHz)

MANAGEMENT

Omada Cloud Access  Yes

Omada App  Yes

Omada Cloud Controller  Yes

Omada Controller Software  Yes

Email Alerts  Yes

LED ON/OFF Control  Yes

Management MAC Access Control  Yes

SNMP  v1,v2c

System Logging Local/Remote Syslog   Local/Remote Syslog

Telnet   Yes

SSH   Yes

Web-based Management   HTTP/HTTPS

L3 Management  Yes

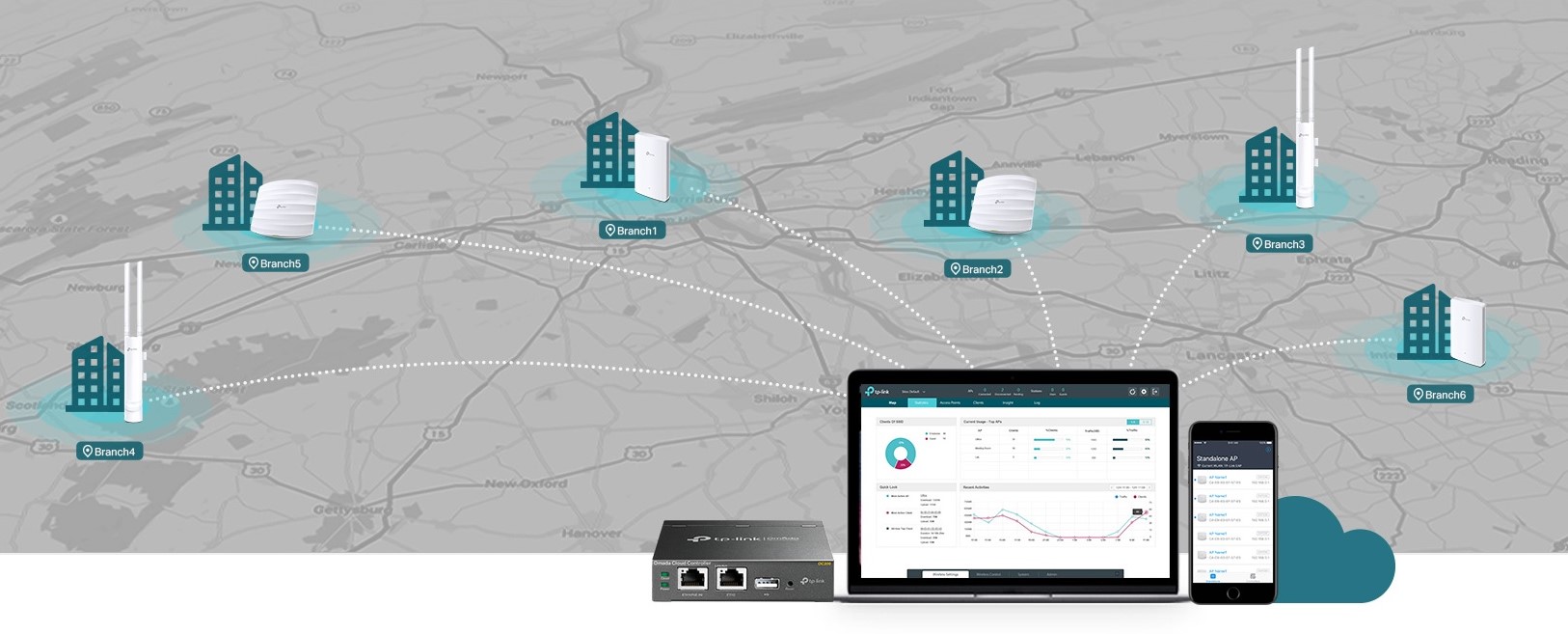

Multi-site Management  Yes

Management VLAN   Yes
