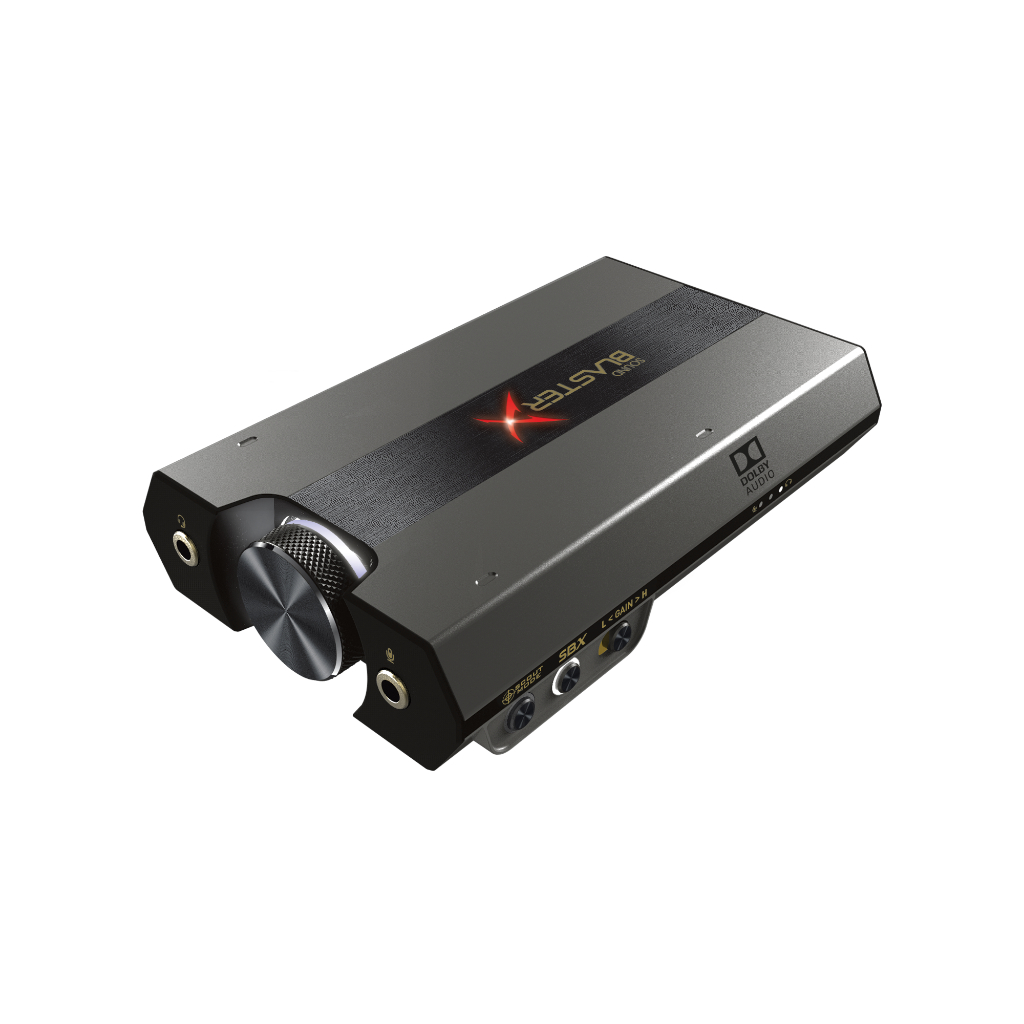

Sound BlasterX G6 7.1 HD External Console Gaming DAC Amp with Xamp

Sound BlasterX G6 7.1 HD External Console Gaming DAC Amp with Xamp

Specifications

GameVoice Mix

PS4 (*Requires optical connection)

Controls

Volume control knob, Scout Mode button, SBX button, Gain switch

Weight

144g

Dimensions

111 x 70 x 24 mm

Headphone Amp

Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω

Dynamic Range (DNR)

130 dB

Audio Technology

SB-Axx1™

Max. Playback Quality

DSP Mode: PCM 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0 kHz, Direct Mode: PCM 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384.0 kHz*

DoP 24-bit / 176.4 , 352.4 kHz

* 384 kHz playback only available in Windows 10 or higher

Max. Recording Quality

Mic-in:

16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz, Optical-in:

16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Recording Resolution

Mic-in: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Line-in: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Optical In: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Platform

USB 2.0, USB 3.0

Connectivity Options (Main)

1 x 1/8″ Line In/mini TOSLINK In Combo Jack, 1 x 1/8″ Line Out/mini TOSLINK Out Combo Jack, 1 x 1/8″ Headphone / Headset Jack, 1 x 1/8″ Ext. Mic-in Jack, 1 x micro USB port for PC/Mac

Headphone Amp

Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω

Max Channel Output

Stereo

System Requirements

Windows® OS

Intel® Core™i3 or AMD® equivalent processor

Intel, AMD or 100% compatible motherboard

Microsoft® Windows 10 32/64 bit, Windows 8.1/8.0 32/64 bit, Windows 7 32/64 bit

1GB RAM

>600 MB of free hard disk space

USB 2.0 / USB 3.0 port

Mac® OS

Mac OS X® 10.9 or higher

1GB RAM

USB 2.0 / USB 3.0 port

PS4

Firmware Version 5.0 or later

Available USB port

Available Optical Out port (for Dolby Digital decoding)

Xbox One

Xbox OS Version 10.0 or later

Available Optical Out port (for Dolby Digital decoding)

External USB Power (not included)

Voice communications not supported

Nintendo Switch

Switch OS 5.0 or later

Available 3.5mm headphone port

Available USB port (in docking mode)

External USB Power (not included)

Voice communications not supported

Package Contents

Sound BlasterX G6

1 x Optical Cable

1 x MicroUSB Cable

Quick Start Leaflet

Warranty Leaflets
