Description

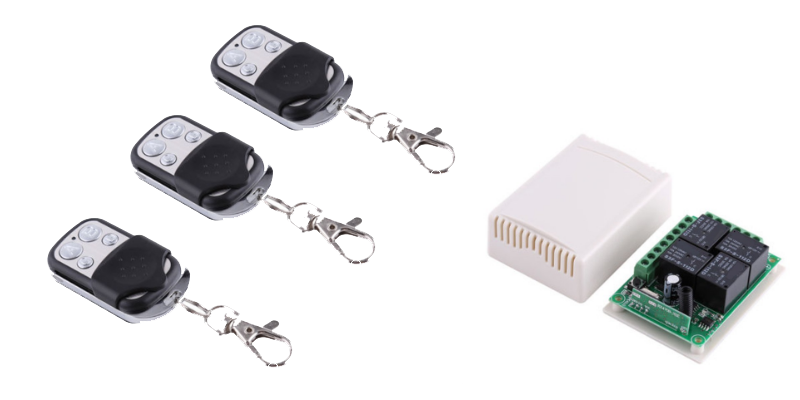

- It has 4 channel relays which can make the equipment turn or reverse, on/off and so on come true.
- Wireless remote control has 4 programmable function keys.
- The output way/working way can be changed as you like.
- Widely used in auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.
Specifications

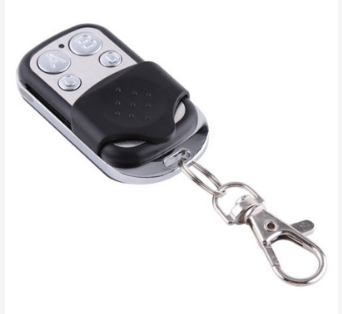

Remote Control
| Item Condition | 100% Brand New |
| Material | ABS |
| Color | As Pictures Show |
| Remote control power supply | 12V/27A battery(Not included) |
| Working frequency | 433MHZ |
| Code type | Rolling Code |
| Key | 4 Keys |
| Transfers distance | 100m -150m (in the open space) |

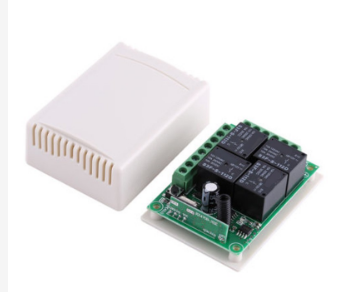

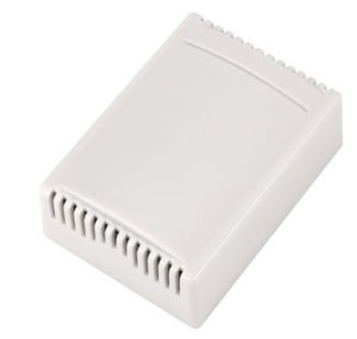

Receiver
| Working voltage | DC 12V |
| Static current | ≤ 7mA |
| Max load output current | 10A |
| Working frequency | 433 MHz |
| Receiving sensibility | -100 dBm |
| Encode mode | Rolling Code |
| Switch output | Normally open & Normally closed |
Output working way
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
