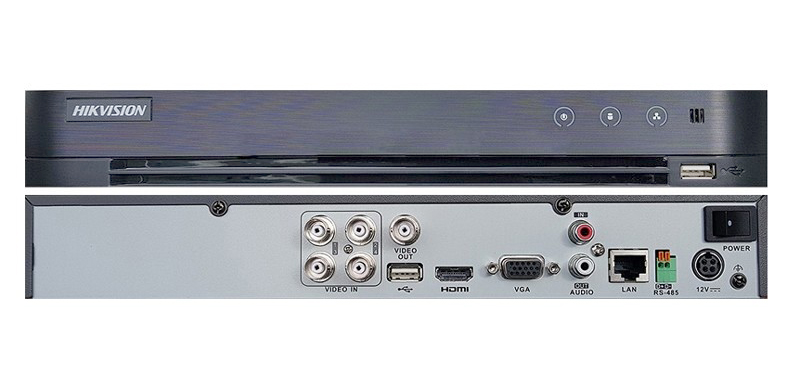

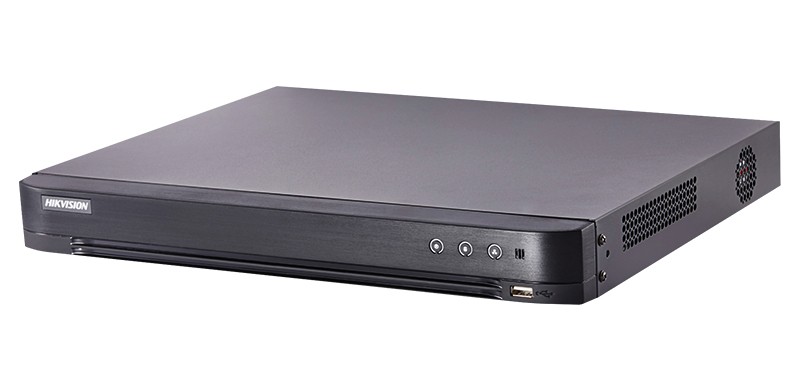

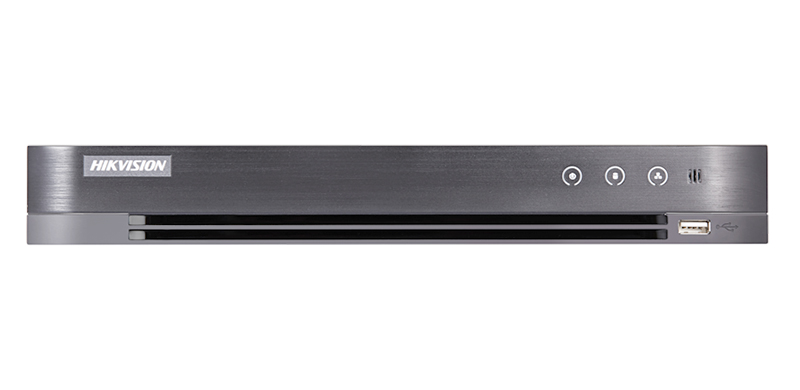

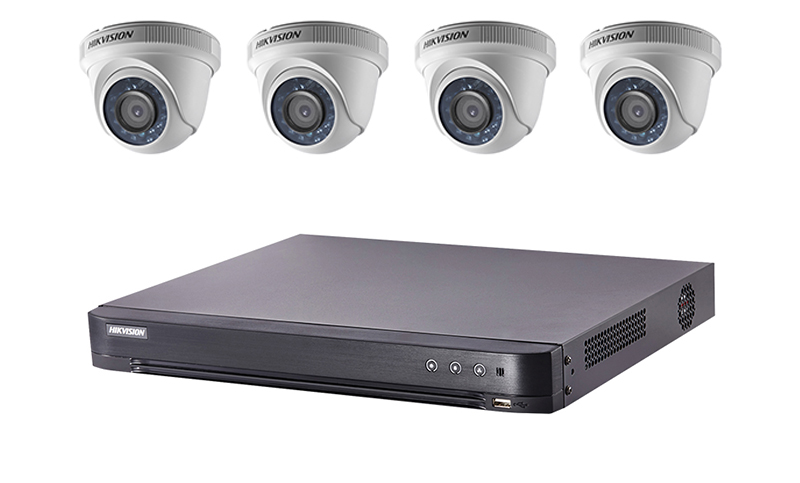

Hikvision DS-7204HQHI-K1 DVR
Specifications
| Video / Audio Input |
| Audio Input |
1-ch |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Analog and HD-TVI video input |
4-ch, BNC interface (1.0Vp-p, 75Ω) connection |
| Supported camera types |
Support HDTVI input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input |
| Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
| Audio Compression |
G.711u |
| Audio Input Interface |
RCA (2.0 Vp-p, 1kΩ) |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1KΩ), (using the 1st channel of audio input) |
| Video / Audio Output |
| CVBS Output |
1-ch
BNC (1.0Vp-p, 75Ω)
resolution:
PAL: 704x576
NTSC: 704x480 |
| HDMI/VGA Output |
1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution |
When 1080p Lite mode not enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite mode enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF |
| Frame Rate |
Main stream:
When 1080p Lite mode not enabled:
For 3MP stream access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
For 1080p stream access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
When 1080p Lite mode enabled:
3MP@15fps
1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
Sub-stream:
WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N) |
| Video Bit Rate |
32 Kbps - 6 Mbps |
| Stream Type |
Video / Video & Audio |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) (using the audio input) |
| Audio Output |
1-ch RCA (Linear, 1kΩ) |
| Audio Bit Rate |
64 kbps |
| Dual Stream |
Support |
| Playback Resolution |
3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Synchronous Playback |
4-ch |
| Network management |
| Remote connections |
128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver |
| Interface Type |
1 SATA Interface |
| Capacity |
Up to 6TB capacity for each disk |
| External Interface |
| External Interface |
1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface |
2 USB 2.0 Interfaces |
| Serial Interface |
1; standard RS-485 serial interface, half-duplex |
| General |
| Power Supply |
12V DC |
| Consumption |
≤ 6W (without hard disks) |
| Working Temperature |
-10ºC to + 55ºC (14ºF to 131ºF) |
| Working Humidity |
10% to 90% |
| Dimensions |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight |
≤ 1.16 kg (2.6 lb) |

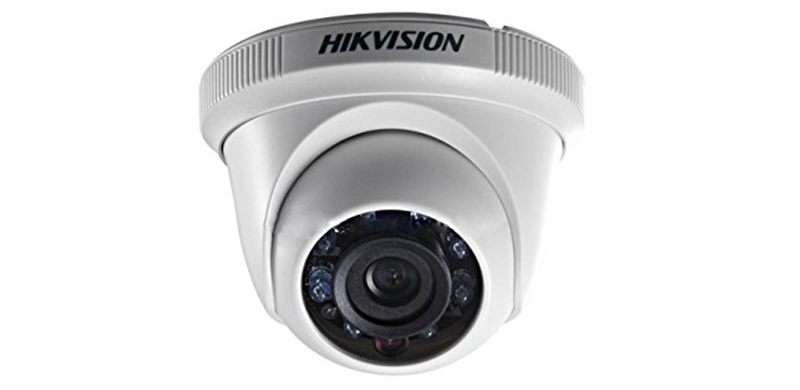

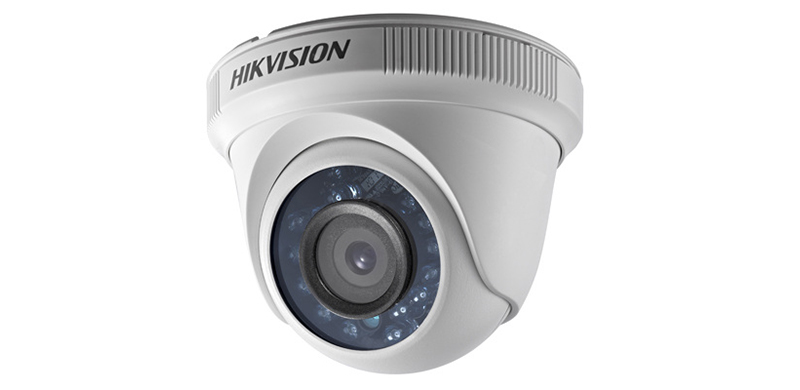

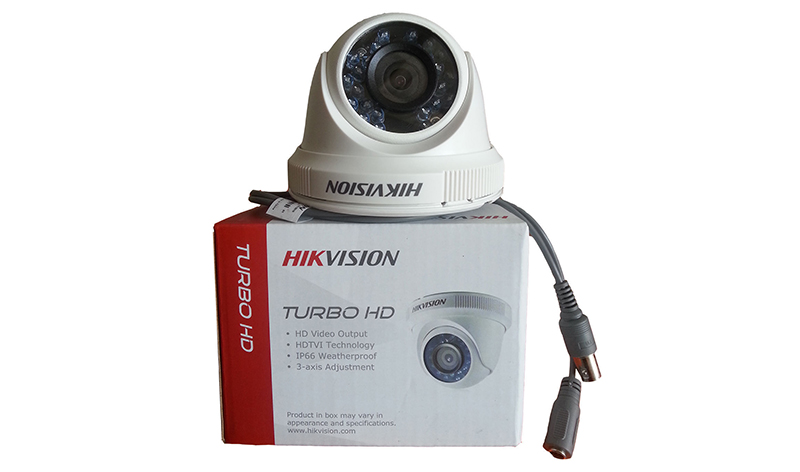

Hikvision DS-2CE56D0T-IR Camera
Specifications
| Camera |
| Image Sensor |
2MP CMOS Image Sensor |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1920(H) x 1080(V) |
| Shutter Time |
1/25(1/30) s to 1/50,000 s |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360° |
| Day & Night |
IR cut filter with auto switch |
| Video Frame Rate |
1080p@25fps / 1080p@30fps |
| HD Video Output |
1 Analog HD output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More than 62 dB |
| General |
| Operating Conditions |
-40°C - 60°C (-40°F - 140°F)
Humidity 90% or less (non-condensing) |
| Power Supply |
12 VDC±15% |
| Weather Proof |
IP66 |
| IR Range |
Up to 20m |
| Dimension |
Φ89.5 × 69.8 mm (Φ3.52” × 2.75”) |
| Weight |
280 g (0.57 lbs) |
|
