Description
Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color : 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux With IR |
| Shutter Time | Support |
| Lens | 2.8mm Horizontal FOV : 98° Vertical FOV : 55° Diagonal FOV : 114° |
| Lens Mount | M12 |
| Adjustment Range | Pan : 0° To 360° Tilt : 0° To 90° Rotate : 0° To 360° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Code Profile | Main Profile / High Profile |
| Video Bit Rate | 256Kbps ~ 16Mbps |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-160Kbps(MP2L2) |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 2688x1520 |
| Sub Stream | 50Hz : 25fps (640x480, 640x360, 320x240) 60Hz : 30fps (640x480, 640x360, 320x240) |
| Frame Rate | 50Hz : 25fps (2688x1520, 2560x1440, 2304x1296, 1920x1080) 60Hz : 30fps (2688x1520, 2560x1440, 2304x1296, 1920x1080) |
| Third Stream | 50Hz : 25fps (1280x720, 640x360, 352x288) 60Hz : 30fps (1280x720, 640x360, 352x240) |
| Image Enhancement | BLC / 3D DNR / BLC |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable By Client Software Or Web Browser |
| ROI | Support 1 Fixed Region For Main Stream And Sub-Stream Separately |
| Day / Night Switch | Day / Night / Auto / Schedule / Triggered By Alarm In |
| Network | |
| Network Storage | MicroSD / SDHC / SDXC Card (128G), Local Storage And NAS (NFS, SMB / CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function | One-Key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | 1 Built-In Mic, 1 Built-In Speaker, Mono Sound |
| Communication Interface | 1 RJ45 10M / 100M Ethernet Interface |
| On-Board Storage | Built-In Micro SD / SDHC / SDXC Slot, Up To 128GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Smart Feature-Set | |
| Line Crossing Detection | Cross A Pre-Defined Virtual Line |
| Intrusion Detection | Enter And Loiter In A Pre-Defined Virtual Region |
| Recognition | Face Detection |
| Wi-Fi Specification (-W) | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Channel Bandwidth | 20/40MHz Support |
| Transmission Rate | 11b : 11Mbps 11g : 54Mbps 11n : Up To 150Mbps |
| Wireless Range | 50m (Depend On Environment) |
| Protocols | 802.11b : DQPSK, DBPSK, CCK 802.11g/n : OFDM / 64-QAM, 16-QAM, QPSK, BPSK |
| General | |
| Operating Conditions | -10°C ~ 40°C (14°F ~ 104°F), Humidity 95% Or Less (Non-Condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.5A, Max. 6W, Φ 5.5mm Coaxial Plug Power PoE (802.3af, 36V To 57V), 0.2A To 0.1A, Max. 7W |
| IR Range | Up To 10m |
| PIR | 10m |
| Dimensions | 102.8x65.2x32.6mm |
| Weight | Camera : Approx. 128g |
What In The Box

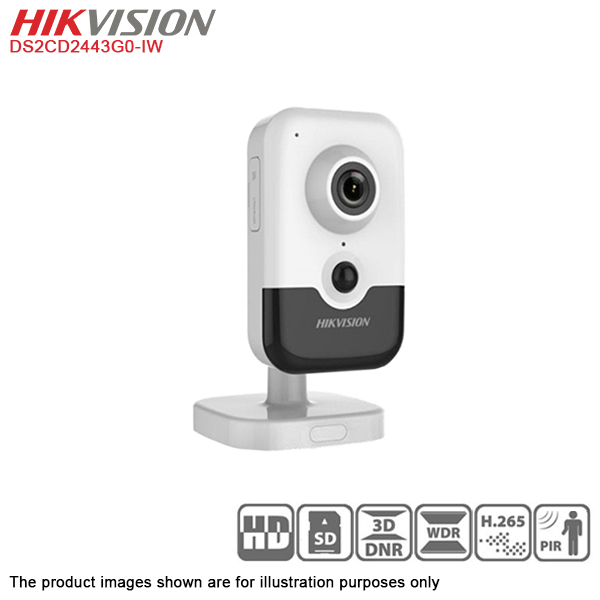

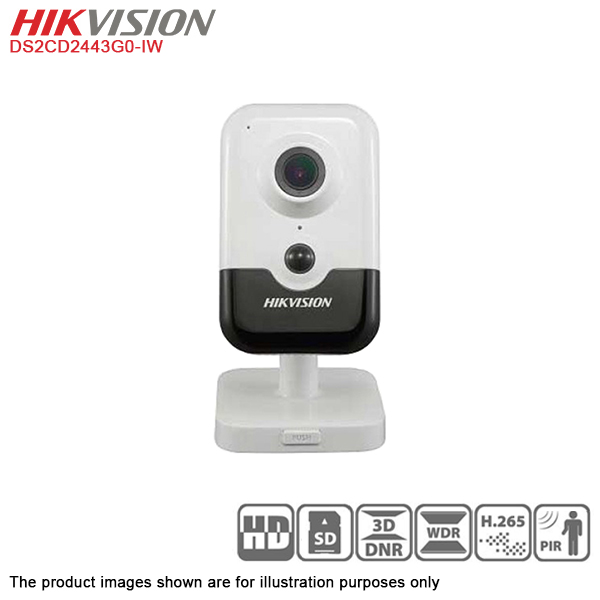

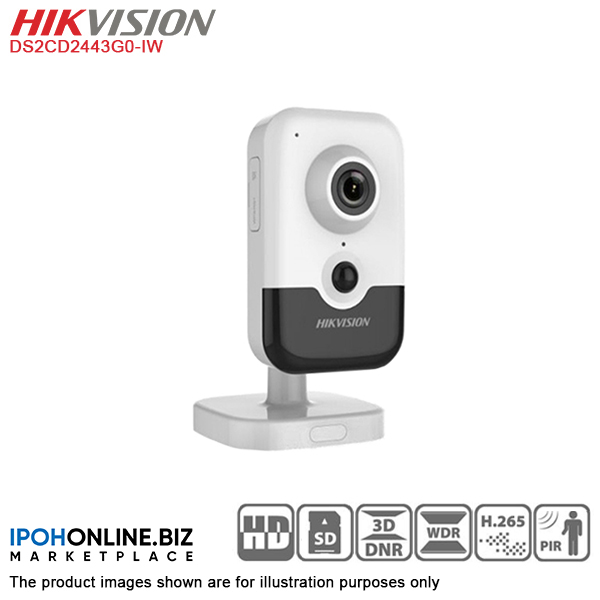

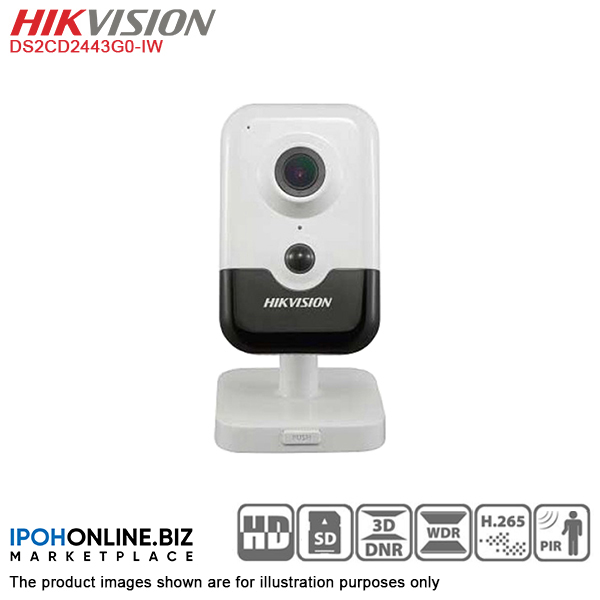

- 1 x Hikvision DS-2CD2443G0-IW 4MP H.265+ EXIR Fixed Cube IR Wi-Fi Network IP Camera with Wireless and microSD support
- 1 x Screw Set
- 1 x CD
- 1 x Quick User Guide
Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage.
