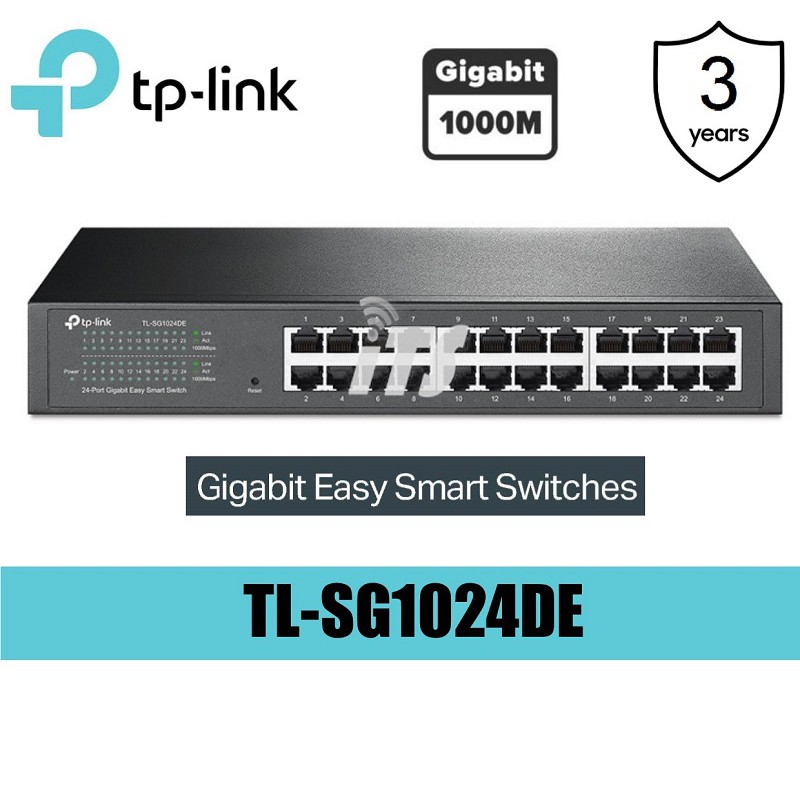

TP-Link 24-Port Gigabit Easy Smart Switch (TL-SG1024DE)

TP-Link 24-Port Gigabit Easy Smart Switch (TL-SG1024DE)

- 24 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration

HARDWARE FEATURES
Standards and Protocols    IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface    16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity    Fanless
Physical Security Lock    No
Power Supply    100-240VAC, 50/60Hz
Dimensions ( W x D x H )    11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting    Rack Mountable
Max Power Consumption    19.2W
Max Heat Dissipation    65.3 BTU/h
PERFORMANCE
Switching Capacity    32Gbps
Packet Forwarding Rate    23.8Mpps
MAC Address Table    8K
Packet Buffer Memory    512KB
Jumbo Frame    9KB
SOFTWARE FEATURES
Quality of Service    Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features    IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN    Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method    Store-And-Forward
OTHERS
Certification    FCC, CE, RoHS
Package Contents    TL-SG1016DE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
