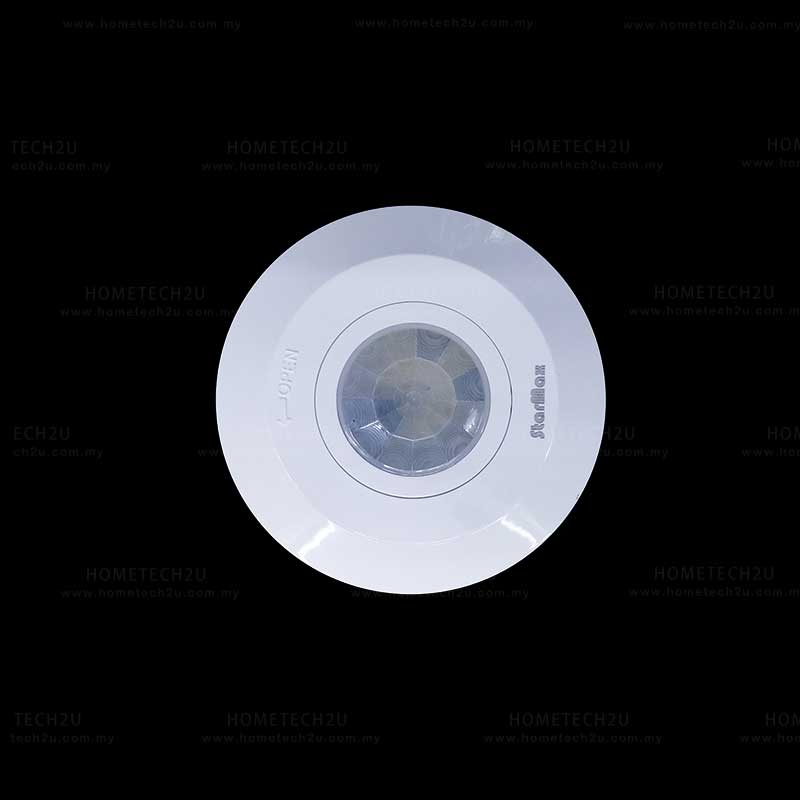

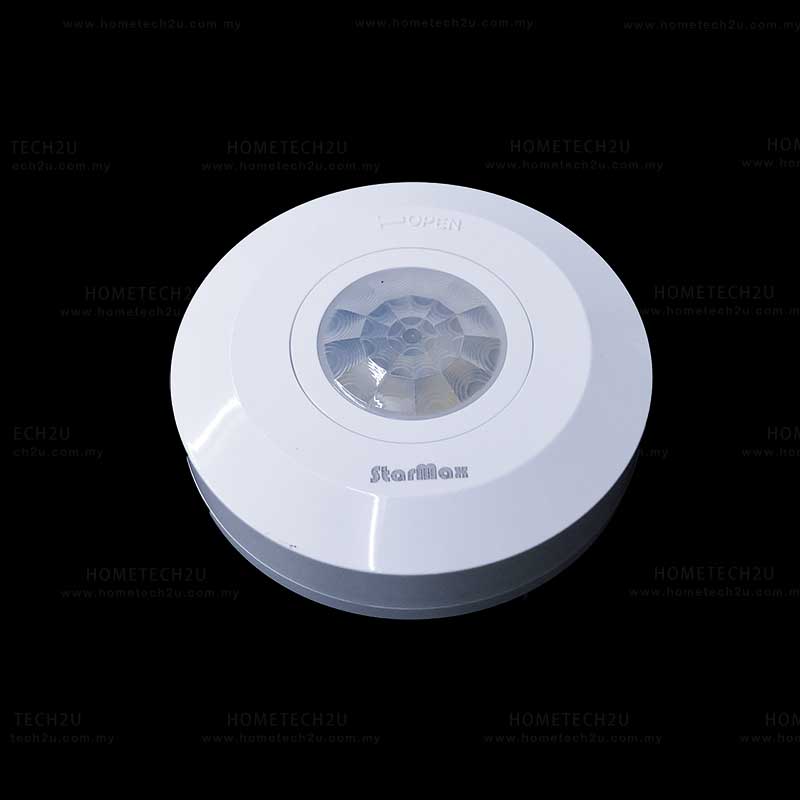

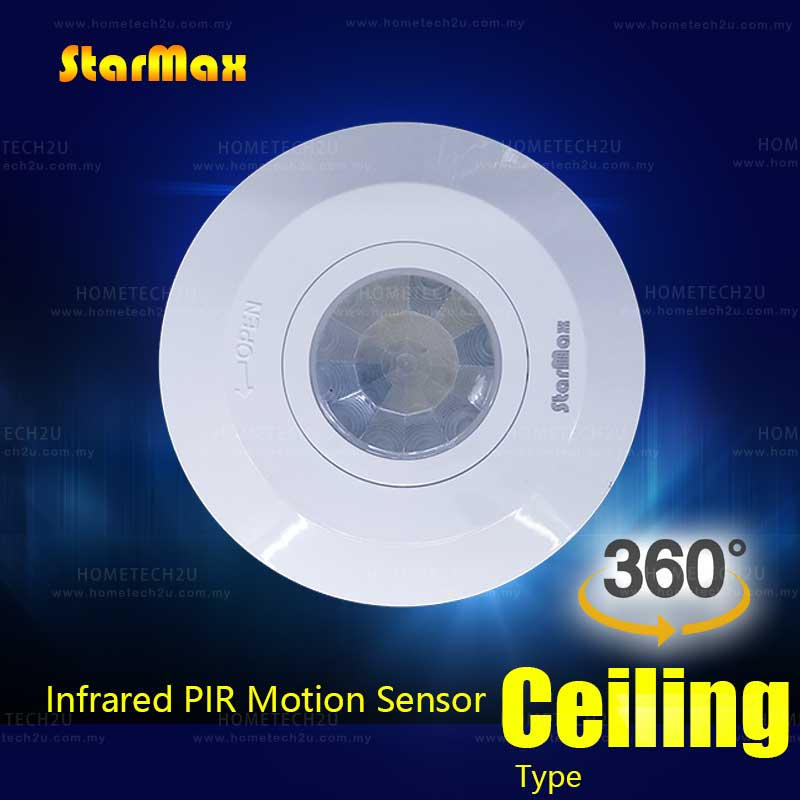

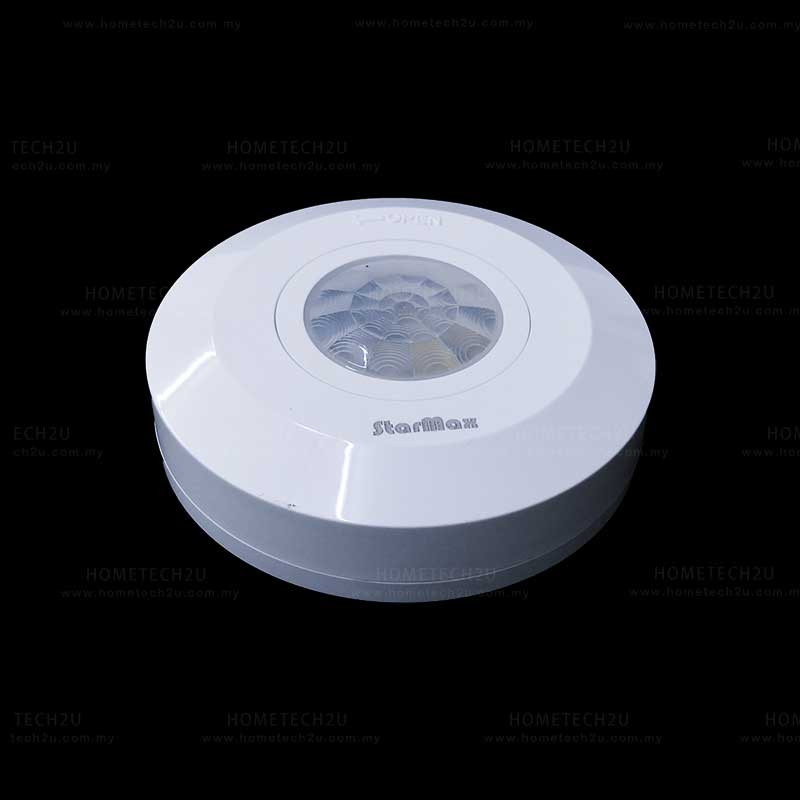

StarMax 360 Degree Ceiling AC PIR Infrared Motion Sensor LED Lamp

StarMax 360 Degree Ceiling AC PIR Infrared Motion Sensor LED Lamp

Working Humidity

<93%RH

Time-Delay

Min.:20s    Max.:45s

Power Consumption

0.45W (work)   0.1W (static)

Detection motion speed

0.6~1.5m/s

Rated Load

3W -500W Lamps or Exhaust Fan

 FUNCTION

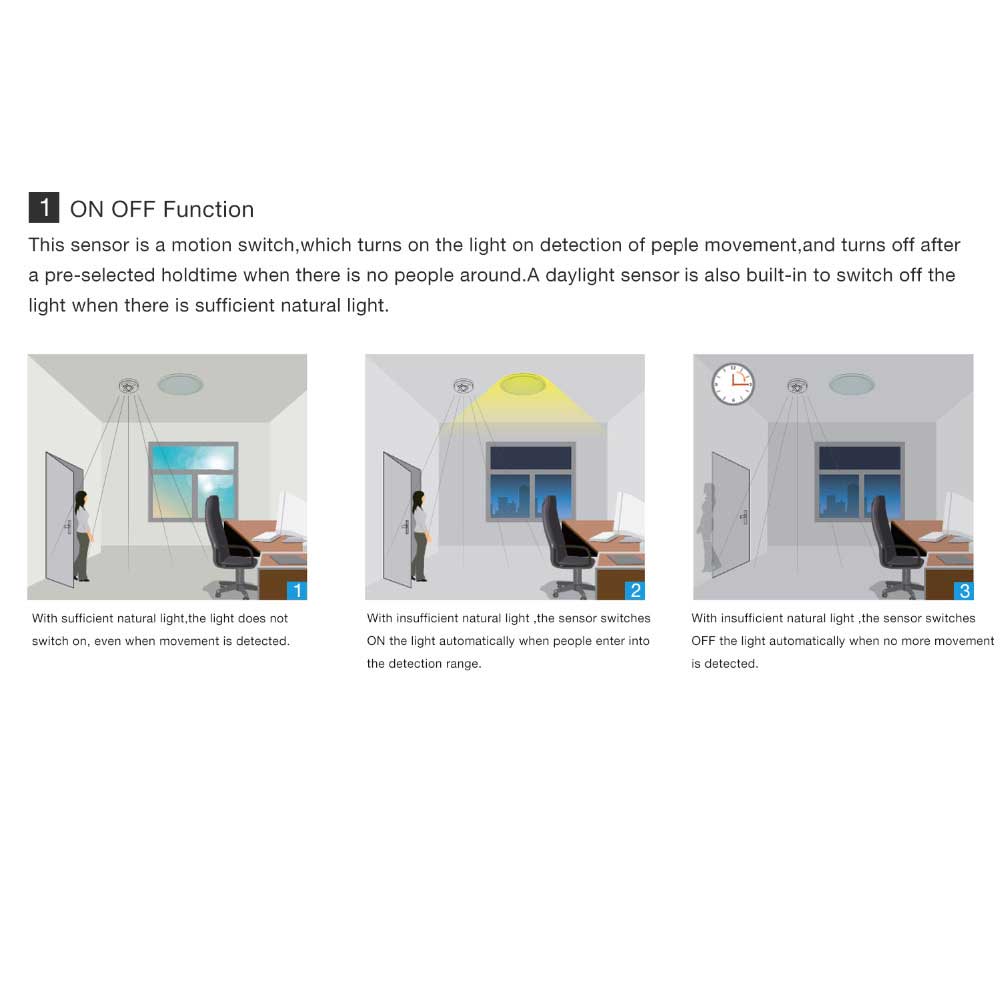

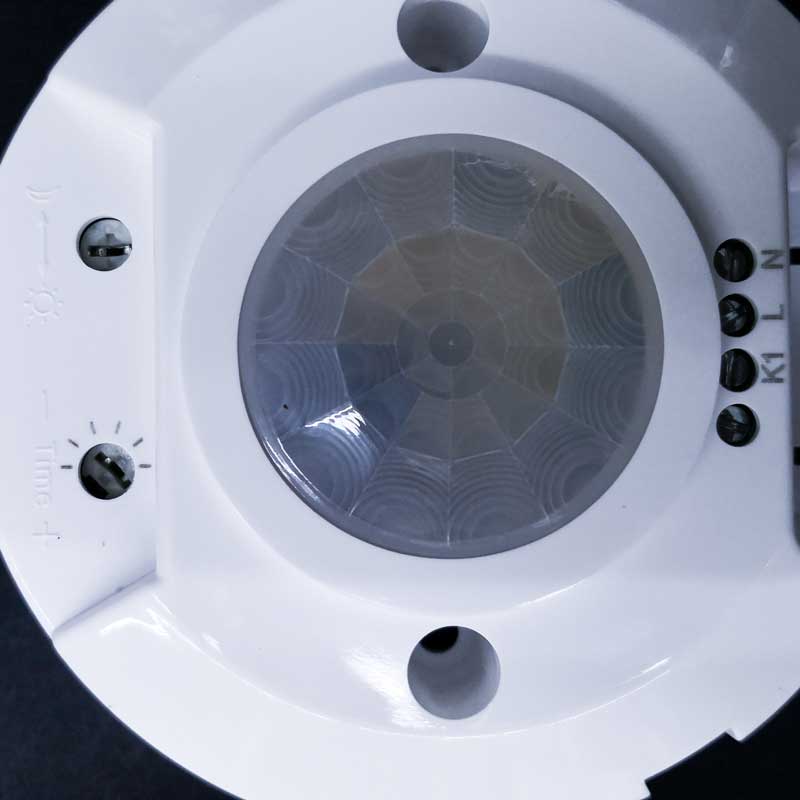

1.Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime
and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

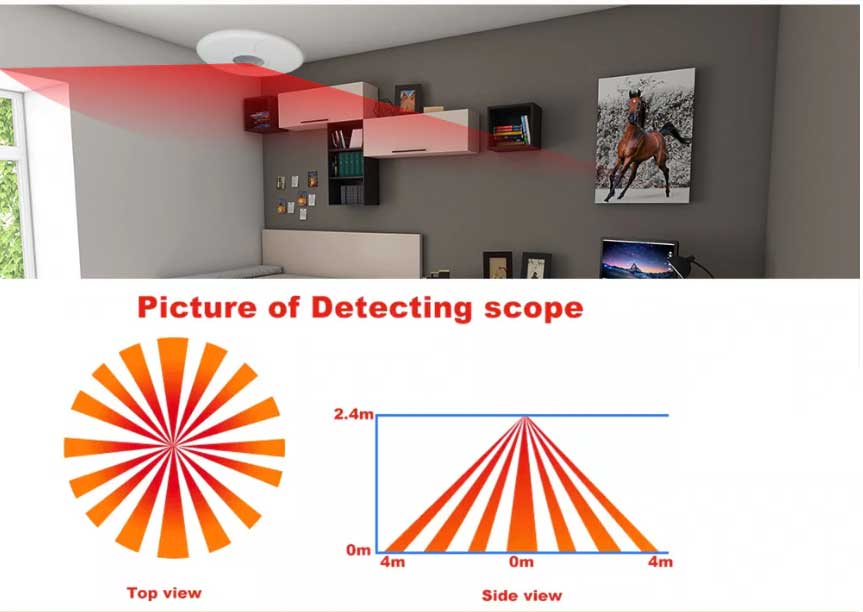

2.SENS adjustable: It can be adjusted according to using location; low sensitivity with 3m for detection distance;high sensitivity with 6 or 12m, it fits for large room.
3.Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
4.Time-Delay is adjustable. It can be set according to the consumer's desire.


INSTALLATIION (see the diagram)

1.Switch off the power.

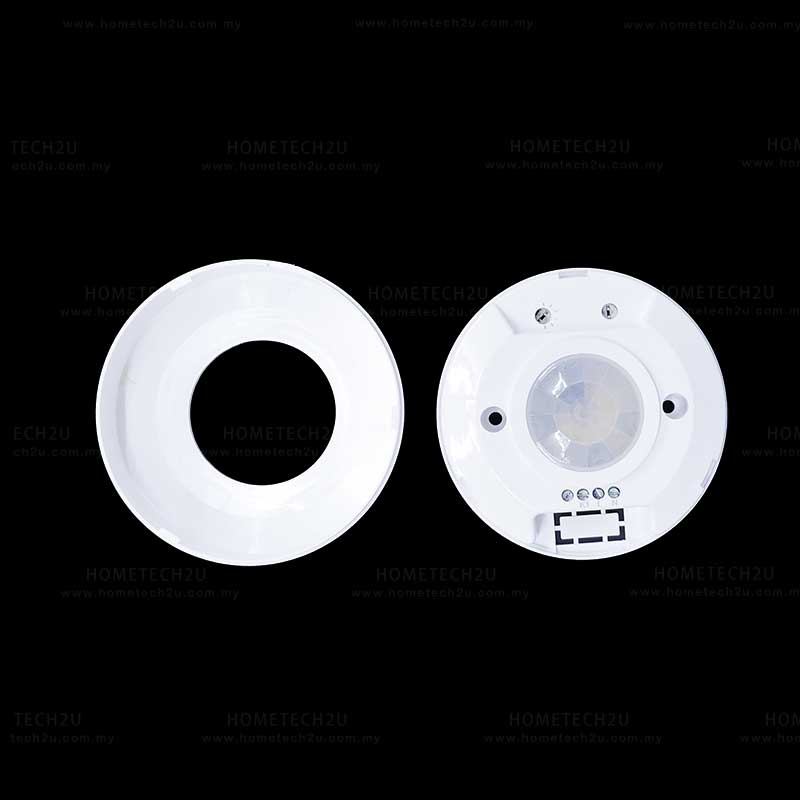

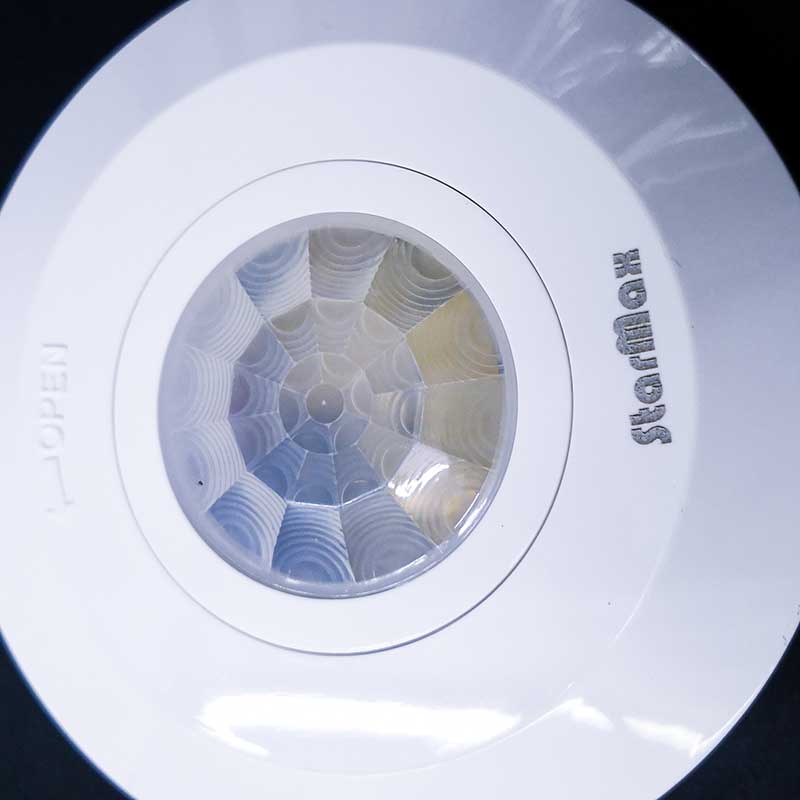

2.Please moving the upper cover with anti-clockwise whirl as per the diagram in the crust.

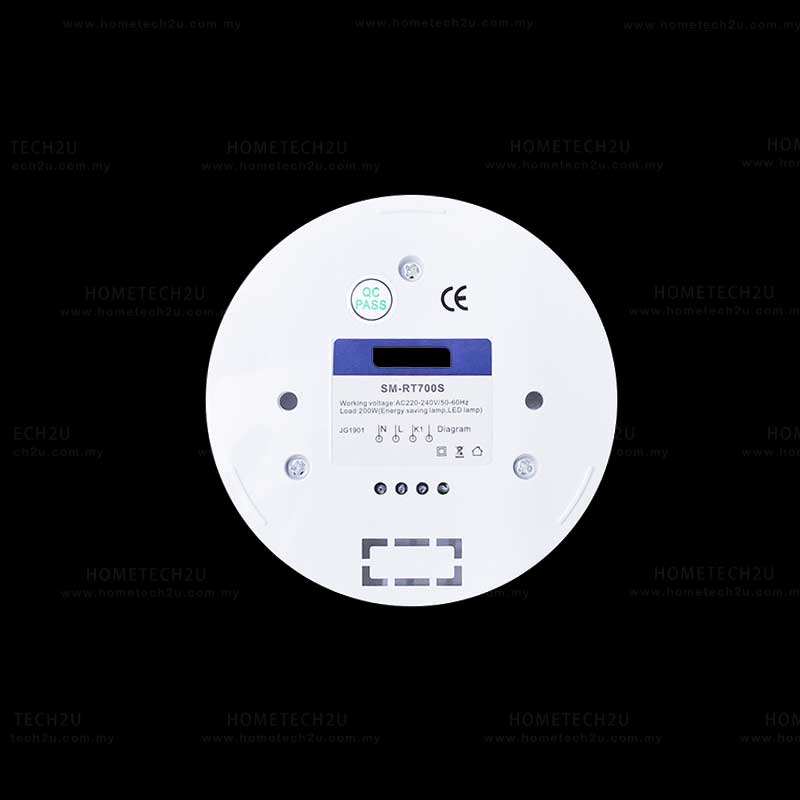

3.Fix the bottom on the selected position with the inflated screw.

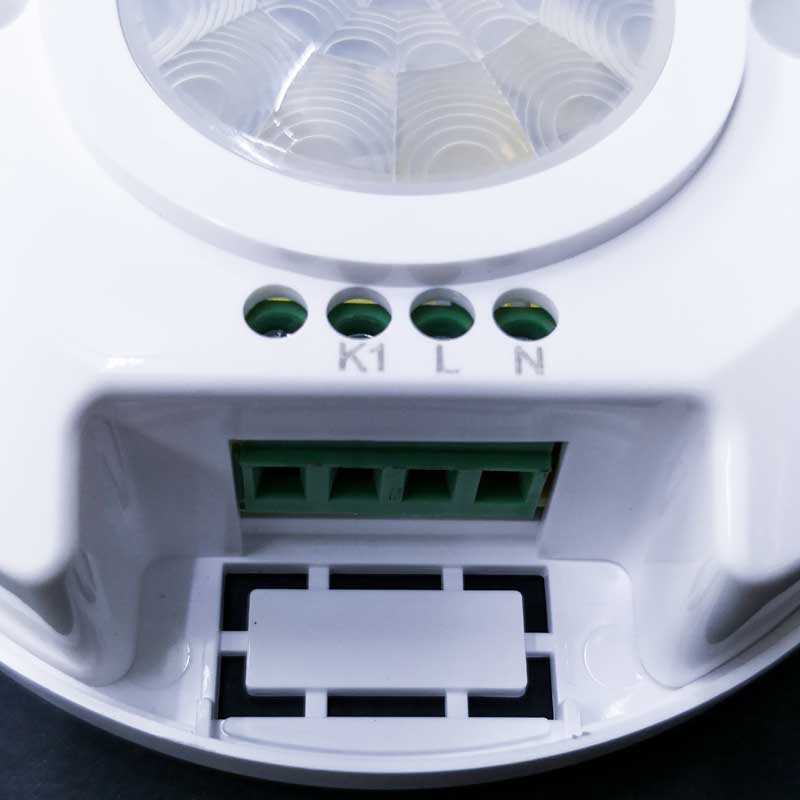

4.Connecting the power and the load to sensor as per the connection-wire sketch diagram.
5.Buttoning the upper cover on the sensor, whirling the cover with clockwise when LED light bare, then you could switch on the power and test it.
