Description

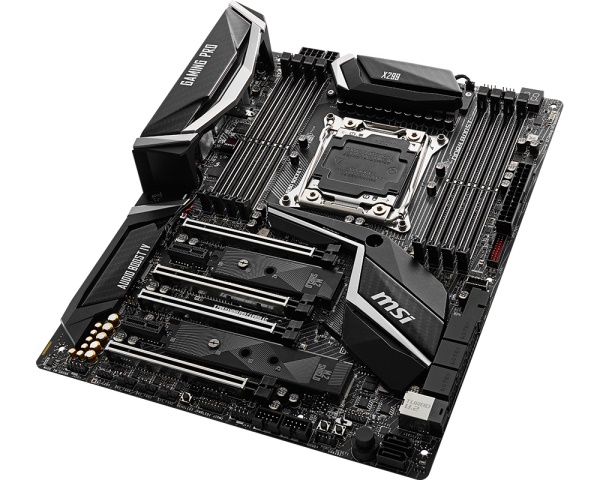

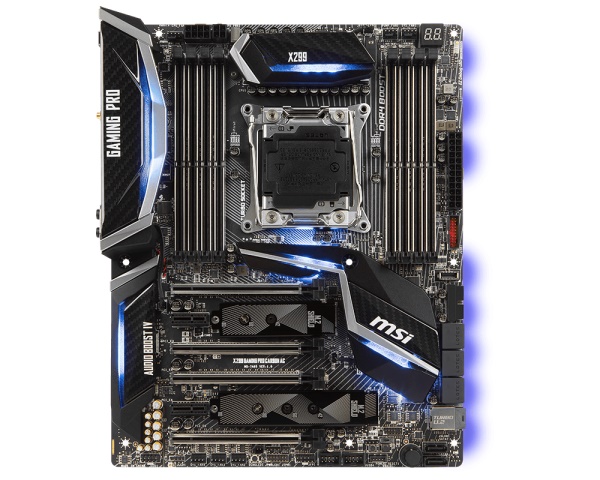

MSI X299 Gaming Pro Carbon AC Intel Wifi Bluetooth DDR4 Motherboard
| CPU | Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket - Core X series LGA 2066 | |
| Chipset | Intel® X299 Chipset - USB 3.1 SLI ATX | |
| Main Memory |
• 8 x DDR4 memory slots, support up to 128GB* • Dual channel memory architecture with the CPU that supports up to 2-channels DDR4** |
|
| Slots | • 4 x PCIe 3.0 x16 slots - Support x16/ x4/ x16/ x8 mode with the 44-lane CPU. - Support x16/ x4/ x8/ x0,x8/ x4/ x8/ x8 modes with the 28-lane CPU. - Support x8/ x0/ x8/ x0, x8/ x4/ x4/ x0 modes with the 16-lane CPU. • 2 x PCIe 3.0 x1 slots |
|
| Multi-GPU | • Supports 3-Way AMD® CrossFire™ Technology • Supports 3-Way NVIDIA® SLI™ Technology |
|
| Storage | • Intel® X299 Chipset • 8 x SATA 6Gb/s ports* • 2 x M.2 slots (Key M)* - Supports up to PCIe 3.0 x4 and SATA 6Gb/s - M2_1 slot supports 2242/ 2260 /2280 storage devices - M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices - Intel® Optane™ Memory Ready** • 1 x U.2 port * - Supports PCIe 3.0 x4 NVMe storage • Supports Intel® Smart Response Technology*** * M.2 slots, U.2 port and SATA ports share the same bandwidth. ** Please refer to manual for Intel® Optane™ Memory Configuration. ***The functions will be supported depend on the CPU. |
|
| RAID | • Intel® X299 Chipset • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices • Supports RAID 0 and RAID 1 for M.2 storage devices* * M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to manual for M.2 PCIe SSD RAID. |
|
| USB | • ASMedia® ASM3142 Chipset - 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C ports(1 port on the back panel, 1 port available through the internal USB connector) • ASMedia® ASM1074 Hub - 3x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on theback panel • Intel® X299 Chipset - 5x USB 3.1 Gen1 (SuperSpeed USB) ports (1 port on the back panel, 4 ports available through the internal USB connectors) - 7x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors) |
|
| Wirsless LAN & Bluetooth® | • Intel® Dual Band Wireless-AC 8265 module (optional) - The Wireless module is pre-install in the M2_3 (Key-E) slot. - Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed. - Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 |
|
| Audio | • Realtek® ALC1220 Codec - 7.1-Channel High Definition Audio - Supports S/PDIF output |
|
| LAN | • 1 x Intel® I219-V Gigabit LAN controller | |
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector |
- 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Clear CMOS jumper - 1 x Slow mode booting jumper - 1 x GAME BOOST knob - 1 x Power button - 1 x Reset button - 1 x Multi-BIOS switch - 1 x RGB LED connector - 1 x Virtual RAID on CPU connector (VRAID1) |

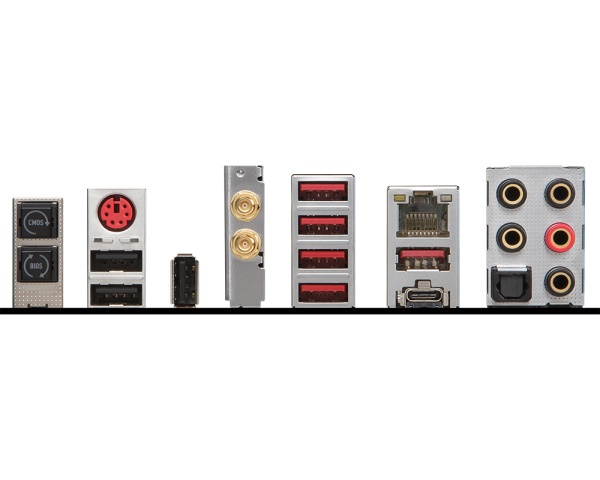

| Back Panel I/O Ports | - 1 x Clear CMOS button - 1 x BIOS FLASHBACK+ button - 1 x PS/2 keyboard/ mouse combo port - 3 x USB 2.0 Type-A ports - 2 x Wi-Fi Antenna connectors (optional) - 4 x USB 3.1 Gen1 Type-A ports - 1 x LAN (RJ45) port - 1 x USB 3.1 Gen2 Type-A port - 1 x USB 3.1 Gen2 Type-C port - 1 x Optical S/PDIF OUT connector - 5 x OFC audio jacks |
|
| Dimension | • 12 in. x 9.6 in. (30.5 cm x 24.4 cm) • ATX Form Factor - SATA 6Gb/s |
|
| Mounting | • 9 mounting holes |
