Description

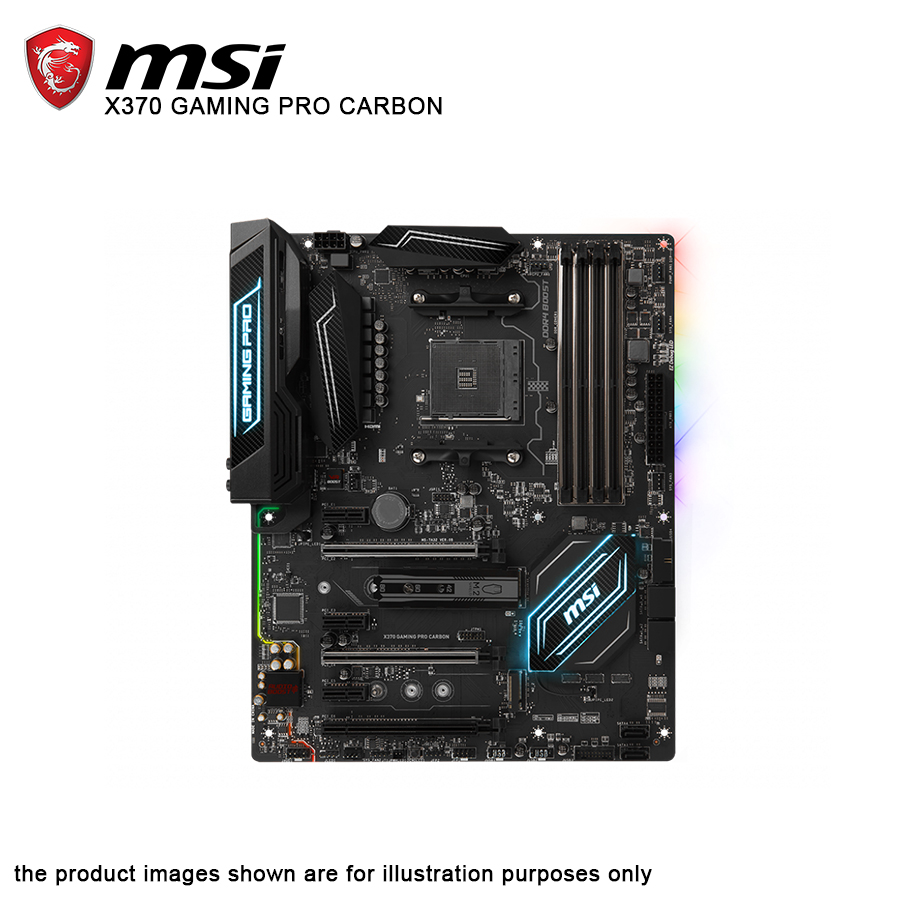

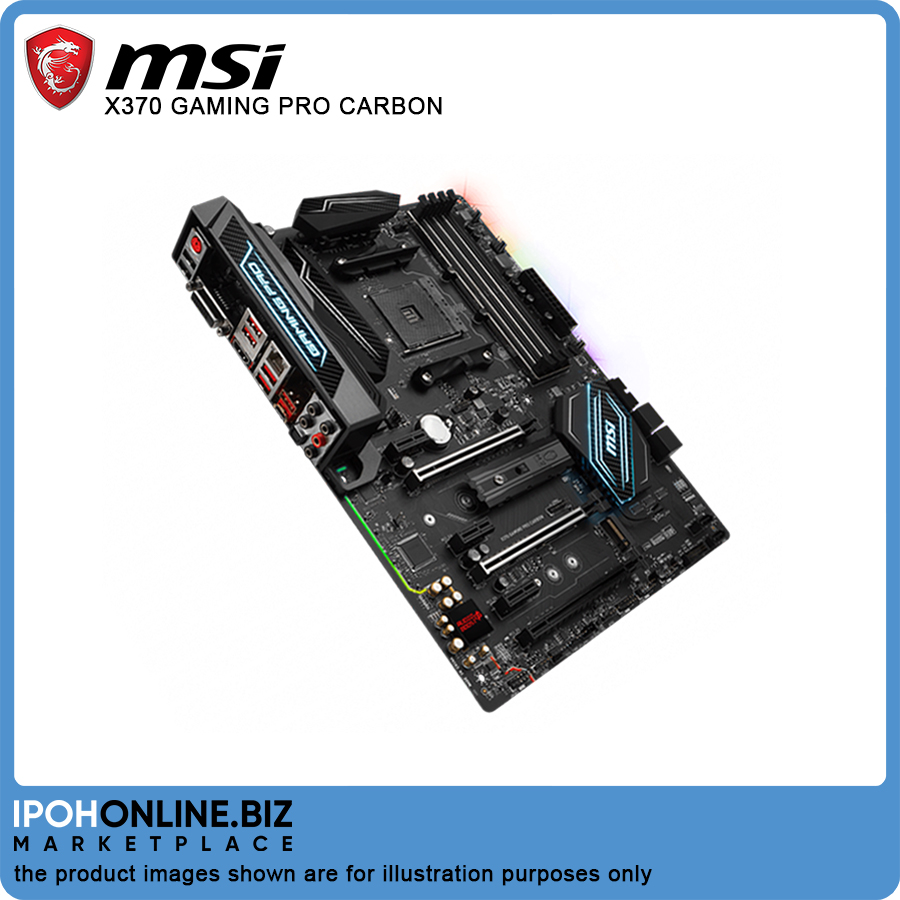

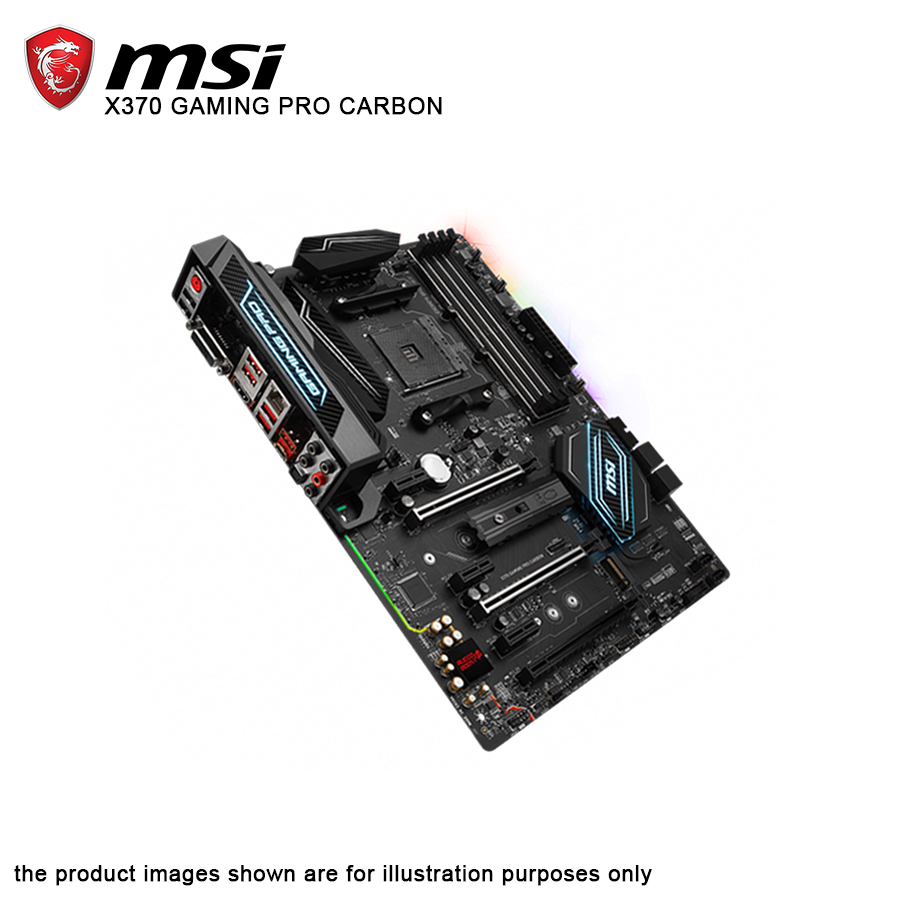

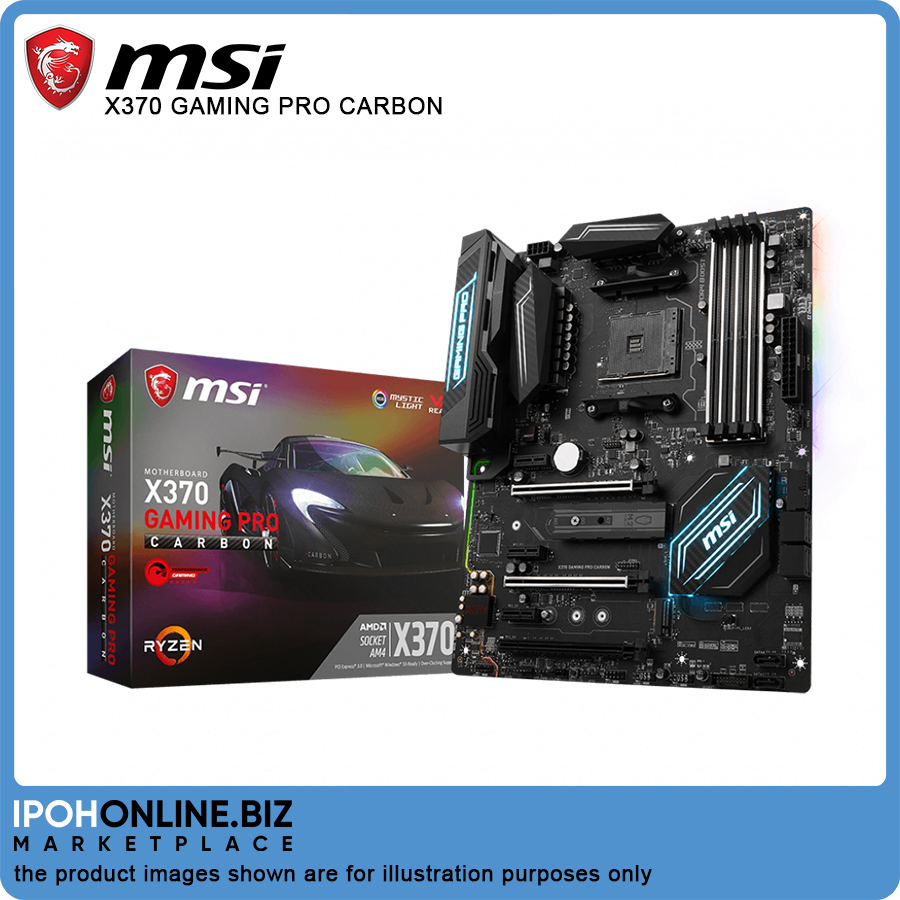

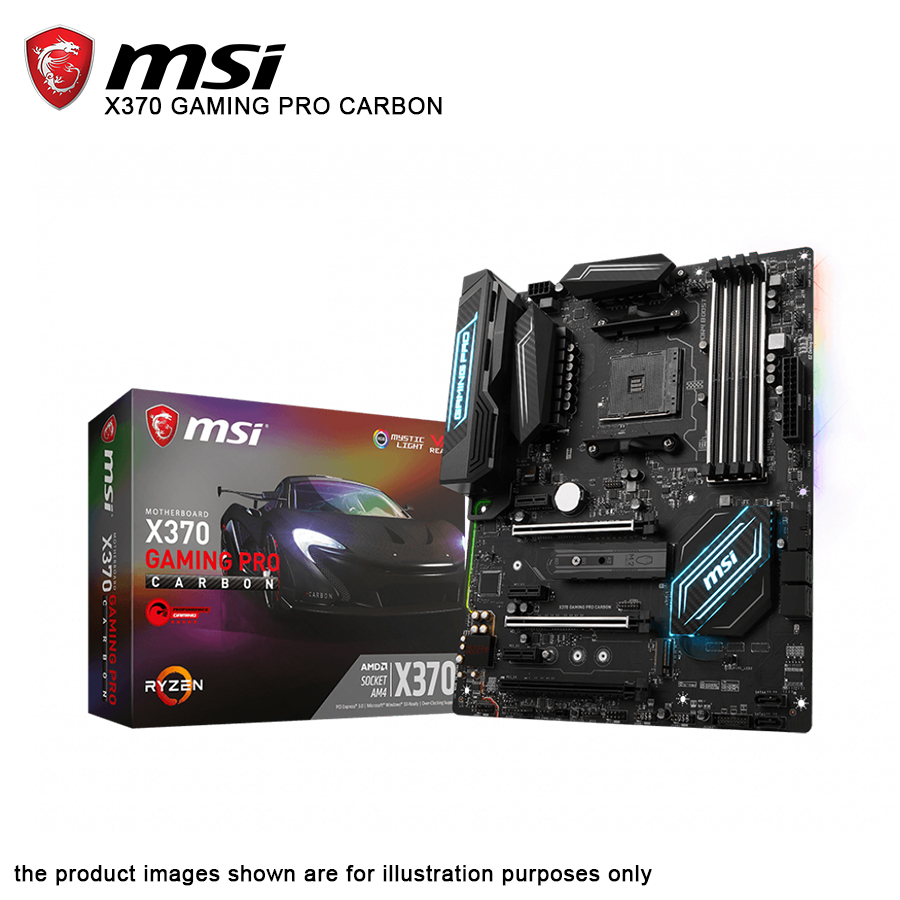

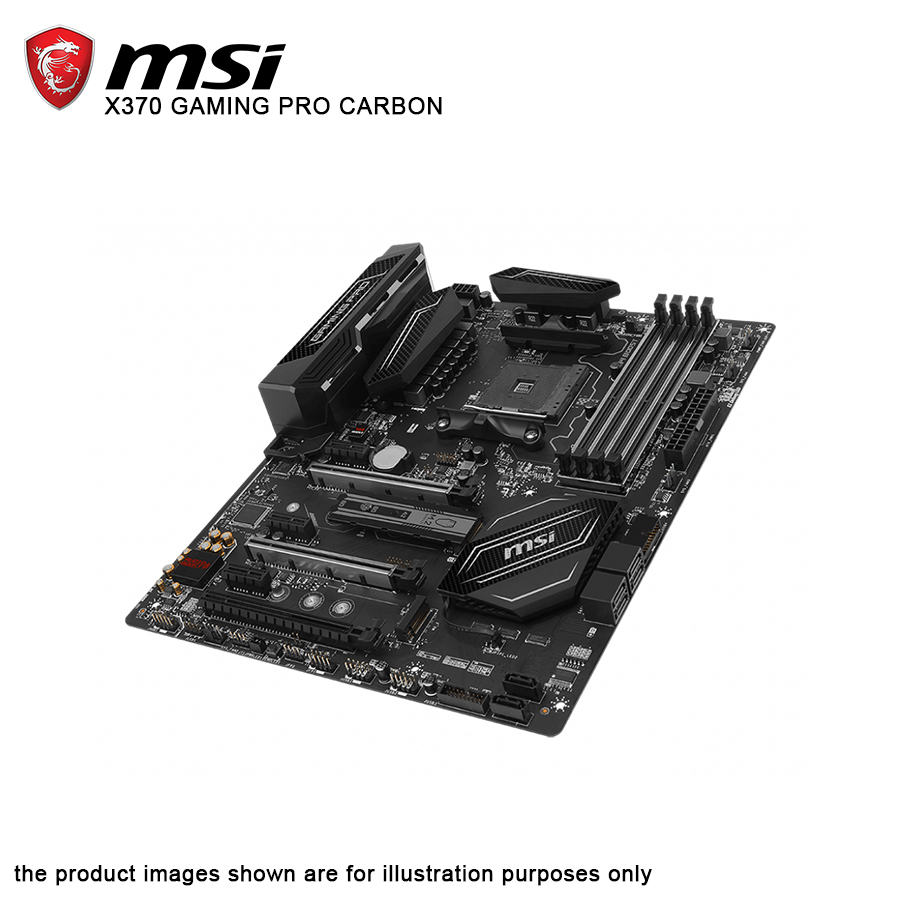

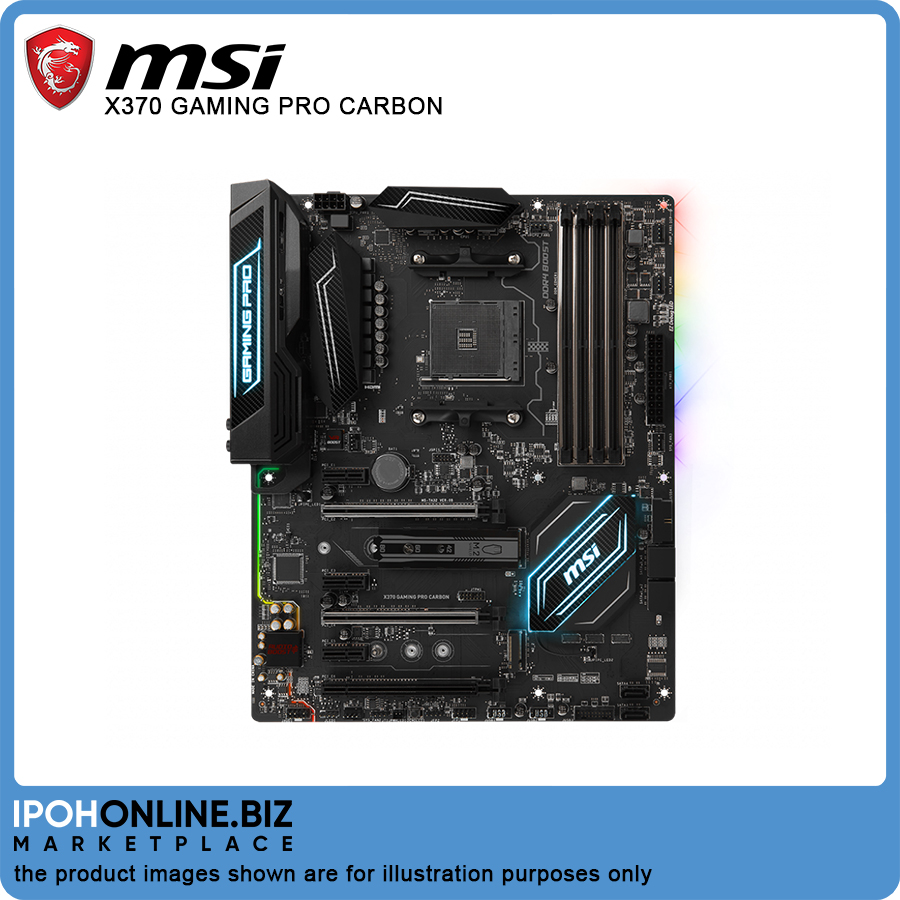

MSI X370 Gaming PRO Carbon AMD RYZEN DDR4 AM4 VR Ready HDMI 1.4 DVI-D USB 3.1 ATX Gaming Motherboard
Specification
| Processor | Supports AMD® Ryzen 1st And 2nd Generation/Ryzen™ With Radeon™ Vega Graphics/Athlon™ With Radeon™ Vega Graphics And A-Series/Athlon™ X4 Processors For Socket AM4 |
| Chipset | AMD® X370 Chipset |
| Memory | 4 x DDR4 Memory Slots, Support Up To 128GB *ComboPI 1.0.0.3-Based And Above BIOS Are Required Supports DDR4 1866/2133/2400/2667(OC)/ 2933(OC)/3200(OC)+ Mhz Dual Channel Memory Architecture Supports Non-ECC UDIMM Memory Supports ECC UDIMM Memory (Non-ECC Mode) A-Series / Athlon™ X4 Processors Support Up To 2400 MHz Only |
| Slots | 2 x PCIe 3.0 x16 Slots (PCIE_2, PCIE_4) - RYZEN Series Processors Support x16/x0, x8/x8 Mode - Ryzen™ With Radeon™ Vega Graphics And A-Series / Athlon™ X4 Processors Support x8/x0 Mode - AMD® Athlon™ With Radeon™ Vega Graphics Processors Support x4/x0 Mode 1 x PCIe 2.0 x16 Slot (PCIE_6, Supports x4 Mode) 3 x PCIe 2.0 x1 Slots PCI_E6 Slot Will Be Unavailable When Installing M.2 PCIe SSD In M2_2 slot |
| Onboard Graphics | 1 x DVI-D Port, Supports A Maximum Resolution Of 1920x1200@60Hz 1 x HDMI™ 1.4 Port, Supports A Maximum Resolution Of 4096x2160@24Hz Only Support When Using AMD® Ryzen™ With Radeon™ Vega Graphics/Athlon™ With Radeon™ Vega Graphics And A-Series Processors Due To CPU Spec Limitation, When Using AMD Athlon™ With Radeon™ Vega Graphics Processors, It Could Only Support HDMI Display Output Maximum Shared Memory Of 2048 MB |
| Multi-GPU | RYZEN Series Processors - Supports 3-Way AMD® CrossFire™ Technology - Supports 2-Way NVIDIA® SLI™ Technology AMD® Athlon™ With Radeon™ Vega Graphics And A-Series / Athlon™ X4 Processors - Supports 2-Way AMD® CrossFire™ Technology |
| Storage | AMD® X370 Chipset 6x SATA 6Gb/s Ports 2x M.2 Slots (Key M) - M2_1 Slot Supports PCIe 3.0 x4 (RYZEN Series Processors) Or PCIe 3.0 x2 (AMD® Athlon™ With Radeon™ Vega Graphics And A-Series / Athlon™ X4 Processors) And SATA 6Gb/s 2242/2260/2280/22110 Storage Devices - M2_2 Slot Supports PCIe 2.0 x4 And SATA 6Gb/s 2242/2260/2280 Storage Devices M.2 And SATA Ports Combination Details Please Refer User Manual. PCI_E6 Slot Will Be Unavailable When Installing M.2 PCIe SSD In M2_2 Slot. SATA3 Port Will Be Unavailable When Installing The SATA SSD Card In M2_2 Slot |
| RAID | AMD® X370 Chipset - Supports RAID 0, RAID1 And RAID 10 For SATA Storage Devices |
| USB | ASMedia® ASM2142 Chipset - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C Port On The Back Panel - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A Port On The Back Panel AMD® X370 Chipset - 4 x USB 3.1 Gen1 (SuperSpeed USB) Ports Available Through The Internal USB 3.1 Gen1 Connectors - 6 x USB 2.0 (High-Speed USB) Ports (2 Type-A Ports On The Back Panel, 4 Ports Available Through The Internal USB 2.0 Connectors) AMD® CPU - 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A Ports On The Back Panel |
| Audio | Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF Output |
| LAN | 1 x Intel® I211AT Gigabit LAN Controller |
| Internal Connectors | 1 x 24-Pin ATX Main Power Connector 1 x 8-Pin ATX 12V Power Connector 6 x SATA 6Gb/s Connectors 2 x USB 2.0 Connectors (Support Additional 4 USB 2.0 Ports) 2 x USB 3.1 Gen1 Connectors (Support Additional 4 USB 3.1 Gen1 Ports) 1 x 4-Pin CPU Fan Connector 1 x 4-Pin Water-Pump-Fan Connector 4 x 4-Pin System Fan Connectors 1 x TPM Module Connector 1 x Front Panel Audio Connector 2 x System Panel Connectors 1 x Chassis Intrusion Connector 1 x Clear CMOS Jumper 1 x 4-Pin RGB LED Strip Connector |

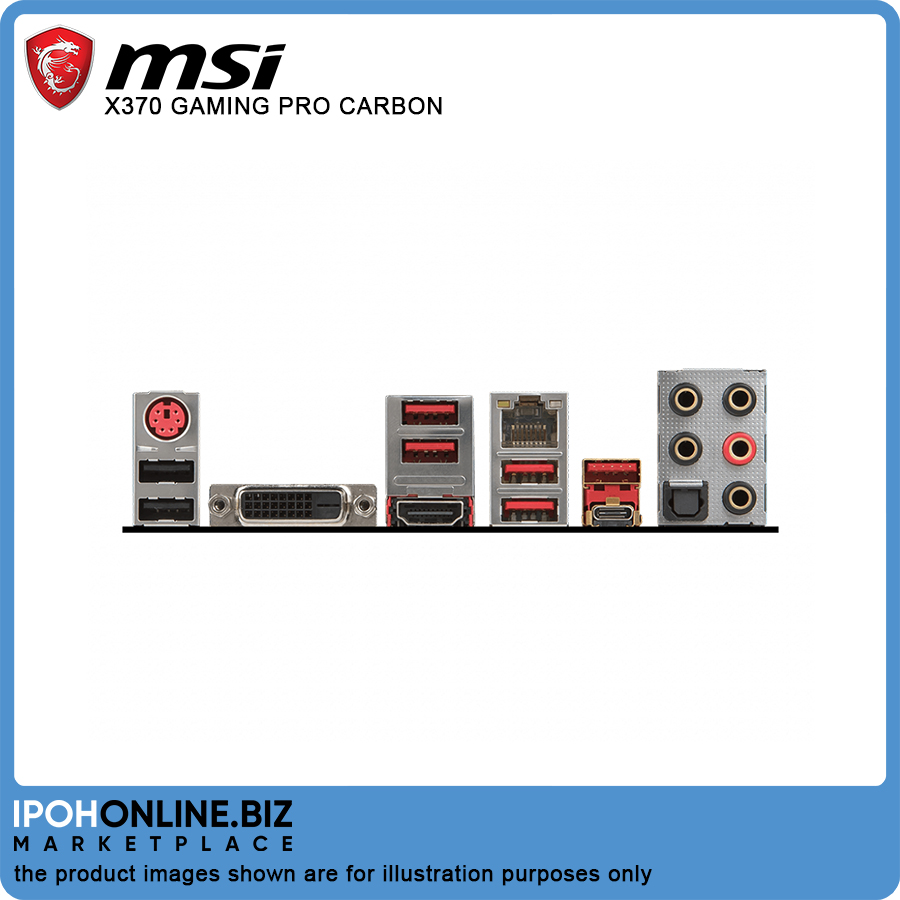

| Back Panel Ports | PS/2 Gaming Device Port DVI-D USB 3.1 Gen1 Ports Intel® Gigabit LAN Port Golden Audio Connectors USB 2.0 Ports HDMI VR Ready USB 3.1 Gen1 Ports Golden USB 3.1 Gen2 Type-A/C Optical S/PDIF-Out |
| Form Factor | 30.5 CM x 24.4 CM ATX Form Factor |
| Mounting | 9 Mounting Holes |
| Operating System | Support For Windows® 10 64-Bit Support For Windows® 7 64-Bit *To Support Windows® 7 64-Bit, You Must Install An AMD Pinnacle Ridge & Summit Ridge CPU |
What In The Box
- 1 x MSI X370 Gaming PRO Carbon AMD RYZEN DDR4 AM4 VR Ready HDMI 1.4 DVI-D USB 3.1 ATX Gaming Motherboard
- 1 x I/O Shield
- 1 x SLI Bridge
- 2 x SATA Cable
- 1 x RGB Connector Cable
- 1 x Cable Lable
- 1 x Driver CD
- 1 x User Manual
- 1 x Quick Installation Guide
Warranty
3 Year Warranty
Local Manufacturer Warranty
