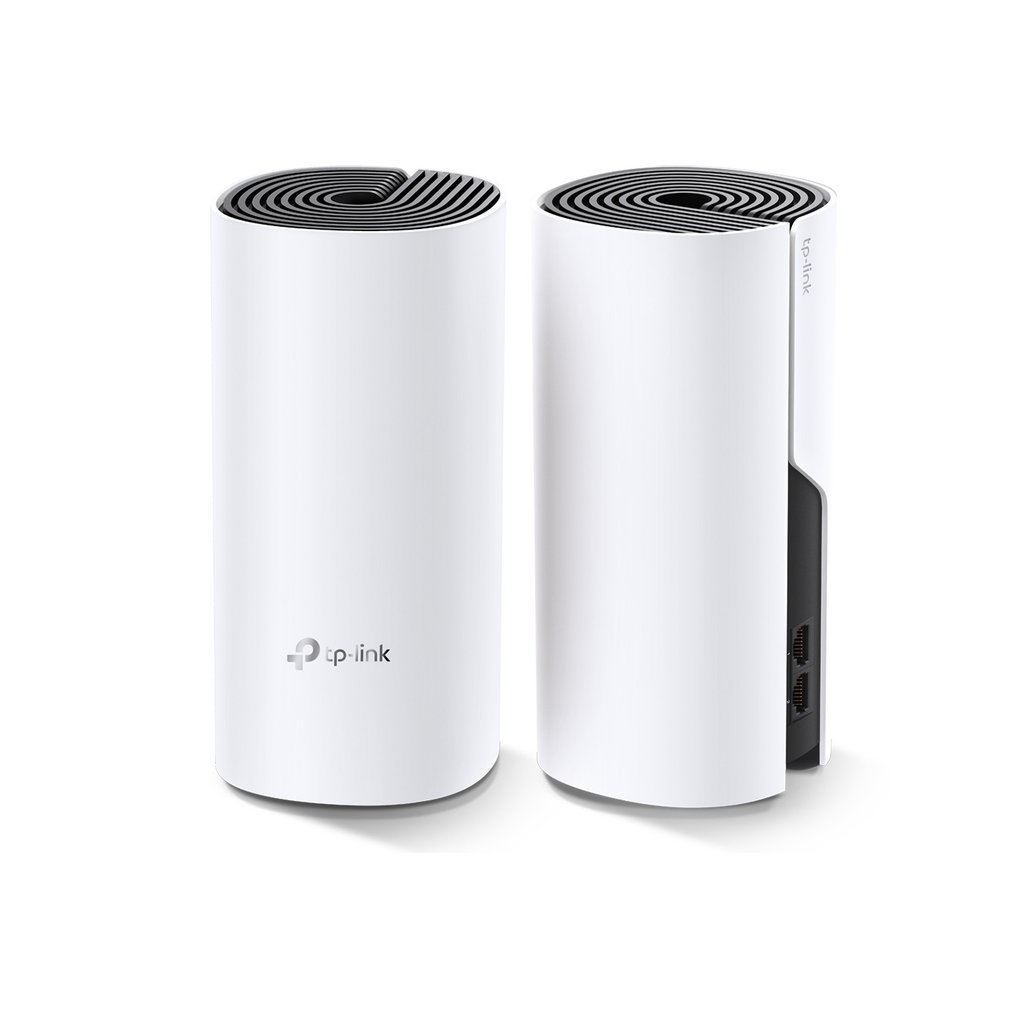

product details of TP-LINK DECO M4 AC1200 WHOLE MESH WIFI SYSTEM
specifications :
POWER
AC adapter input 100-240V ~ 50/60Hz 0.4A
AC adapter output 12V ⎓ 1.2A
HARDWARE FEATURES
Processor Quad-core CPU
Interface 2 Gigabit Ethernet Ports (WAN/LAN auto-sensing) per Deco unit
Button 1 Reset button on the underside
External Power Supply 12 V/1.2 A
Flash 16 MB
SDRAM 128 MB
Dimensions Φ3.6 in. x 7.5 in. (Φ90.7 mm x 190 mm)
Antenna Type 2 internal dual-band antennas per Deco unit
Bluetooth version 4.2 and above
WIRELESS FEATURES
Wireless Standards IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 300 Mbps on 2.4 GHz
867 Mbps on 5 GHz
Transmit Power FCC: <30 dBm
CE: <20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Wireless Security WPA-PSK/WPA2-PSK
Advanced Functions ● Router/ Access Point Mode
● Optional Ethernet Backhaul
● Guest network
● TP-Link Mesh Technology:
MU-MIMO
Auto Path Selection
Self-Healing
AP Steering
Band Steering
Beamforming
SOFTWARE FEATURES
Quality of Service WMM
IPv6 Support
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, Remote Management
DHCP Server, Client
Port Forwarding Support
Access Control Blacklist
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
Advanced Features Parental Controls
Quality of Service
Advanced Functions Speedtest
Monthly Usage Reports
Auto FW Update
Expand Wi-Fi by adding more Deco units
Guest Network 2.4 GHz guest network x 1
5 GHz guest network x 1
Beamforming Support
APP Easy setup via Deco App
OTHERS
Certification CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Package Contents ● Deco M4 (3-pack):
3 Deco units
1 RJ45 Ethernet Cable
3 power adapters
1 quick installation guide
● Deco M4 (2-pack):
2 Deco units
1 RJ45 Ethernet Cable
2 power adapters
1 quick installation guide
● Deco M4 (1-pack):
1 Deco unit
1 RJ45 Ethernet Cable
1 power adapter
1 quick installation guide
Smartphone/Tablet Requirements iOS 9.0 or later
Android 4.3 or later
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
