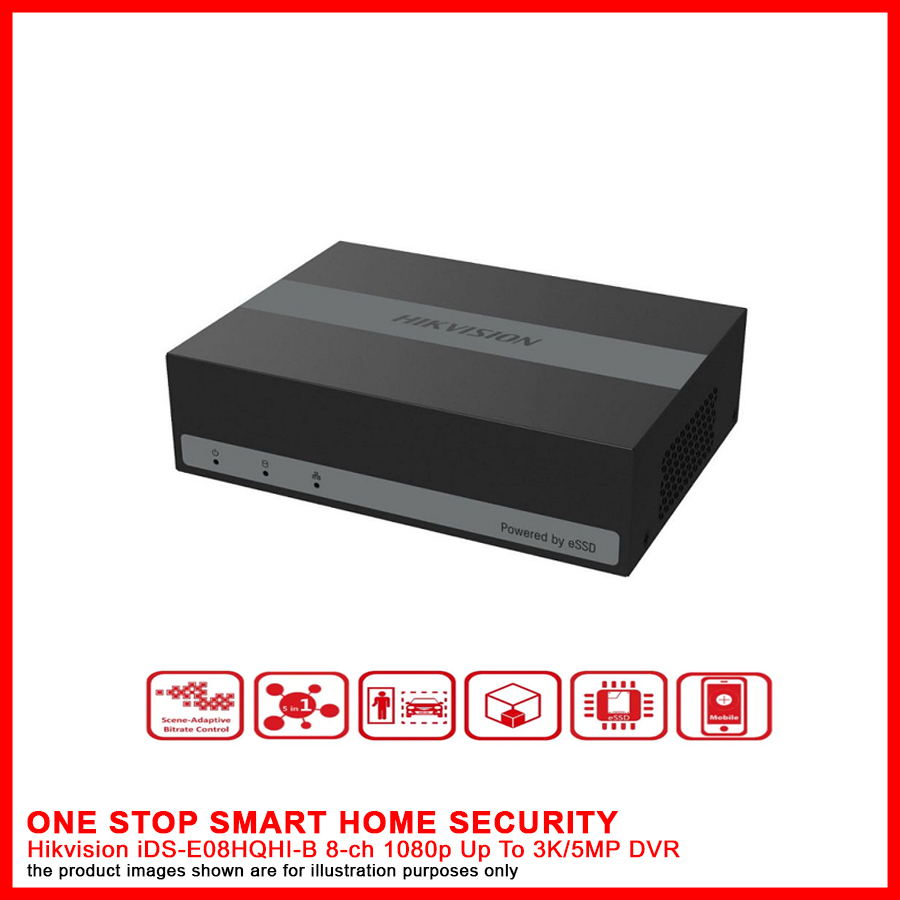

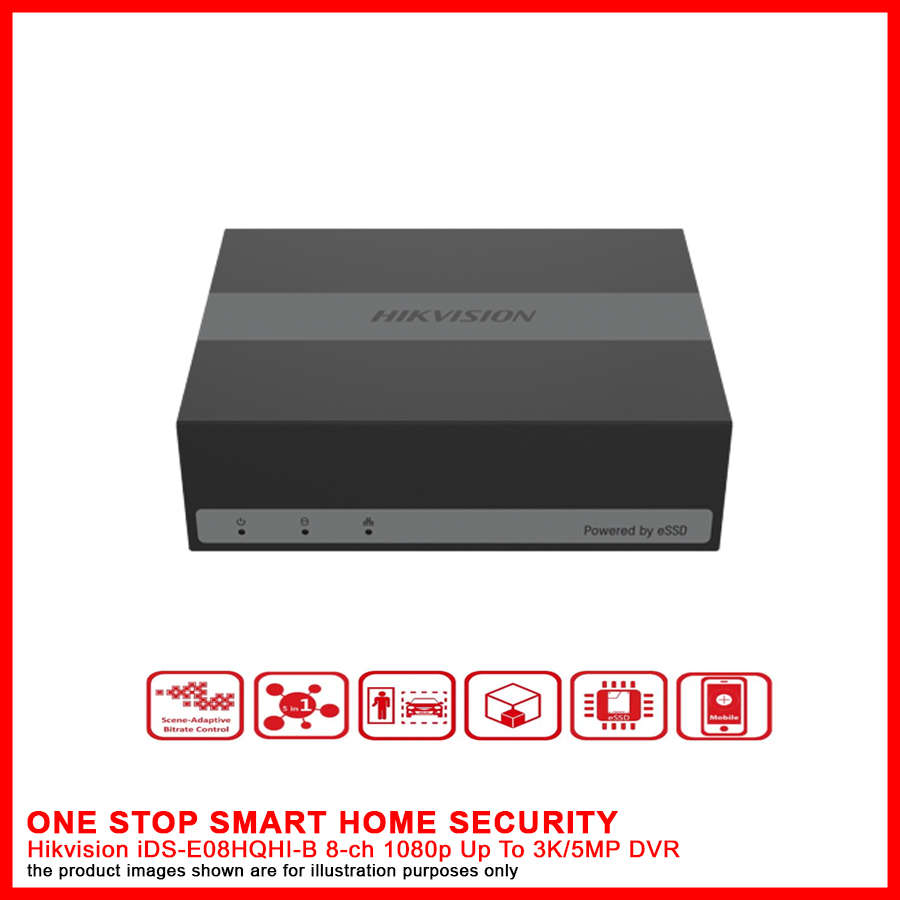

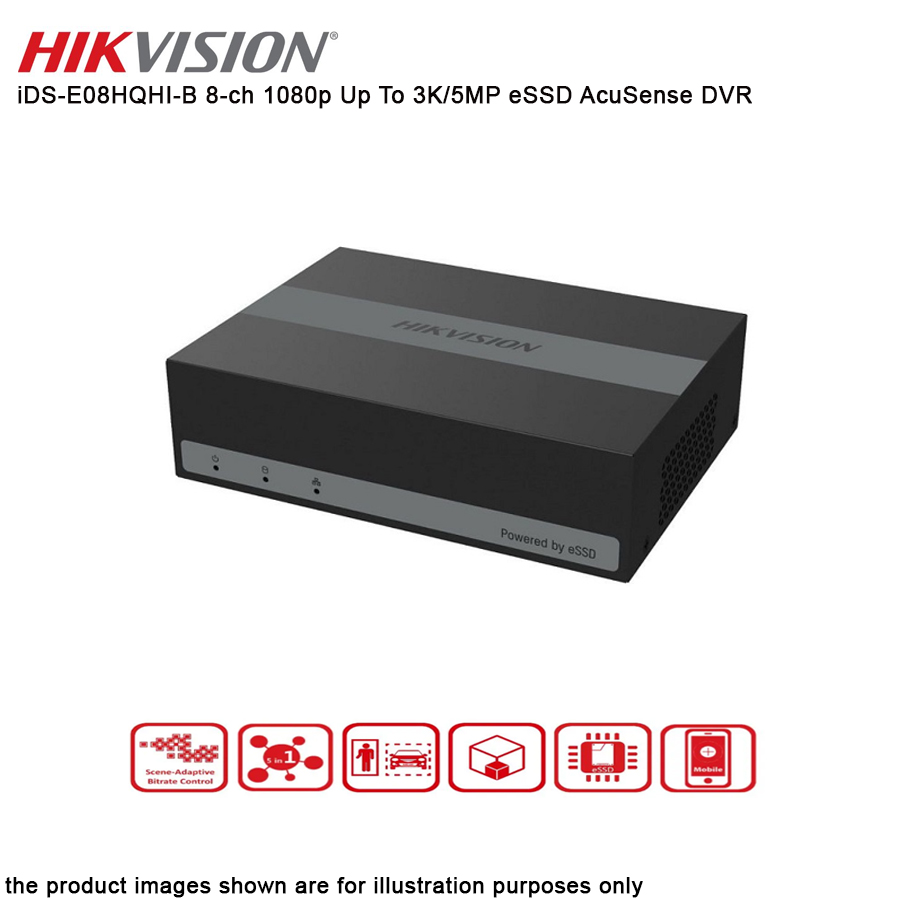

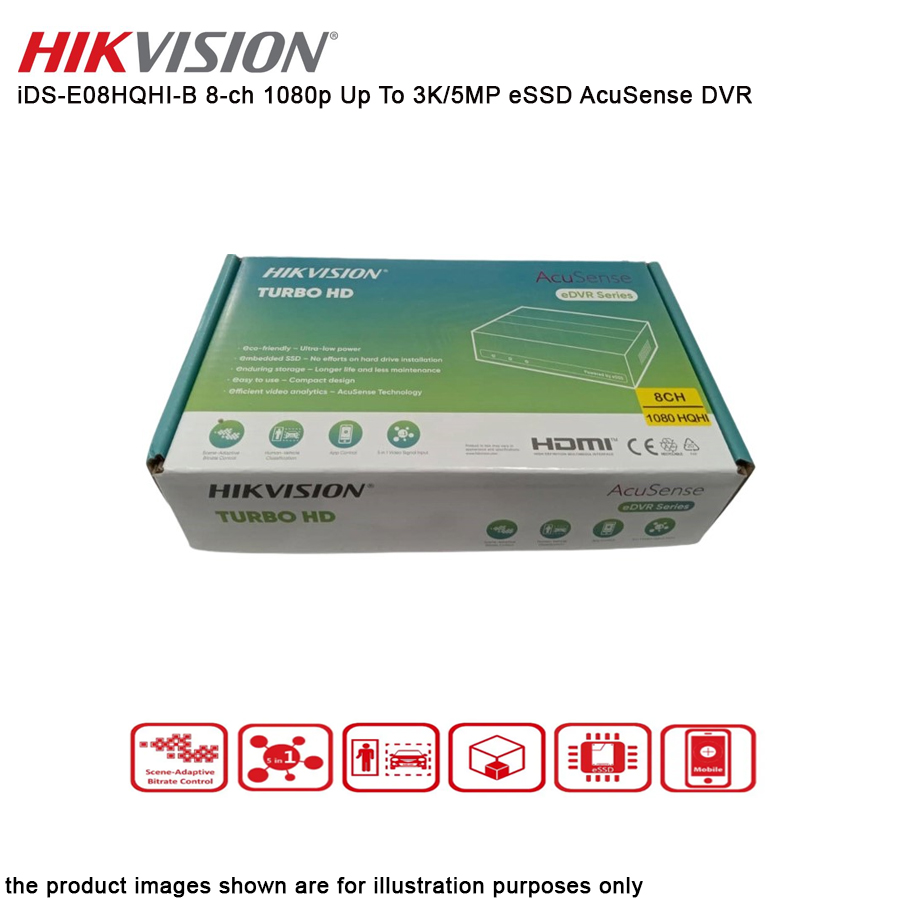

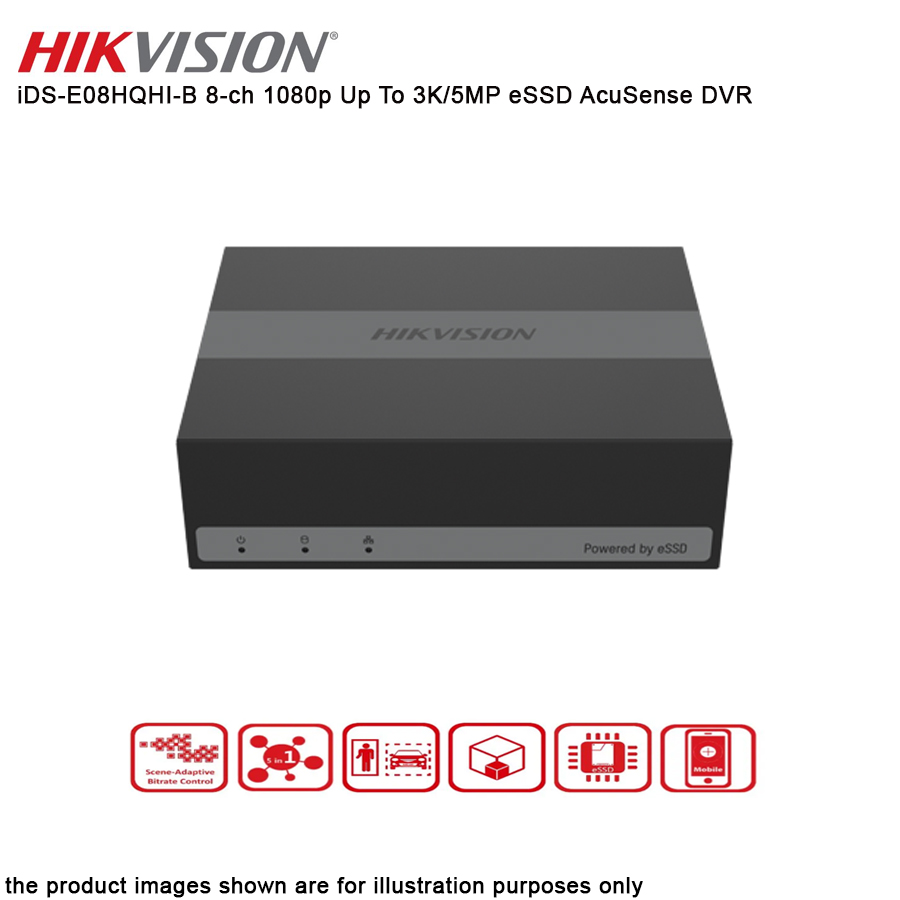

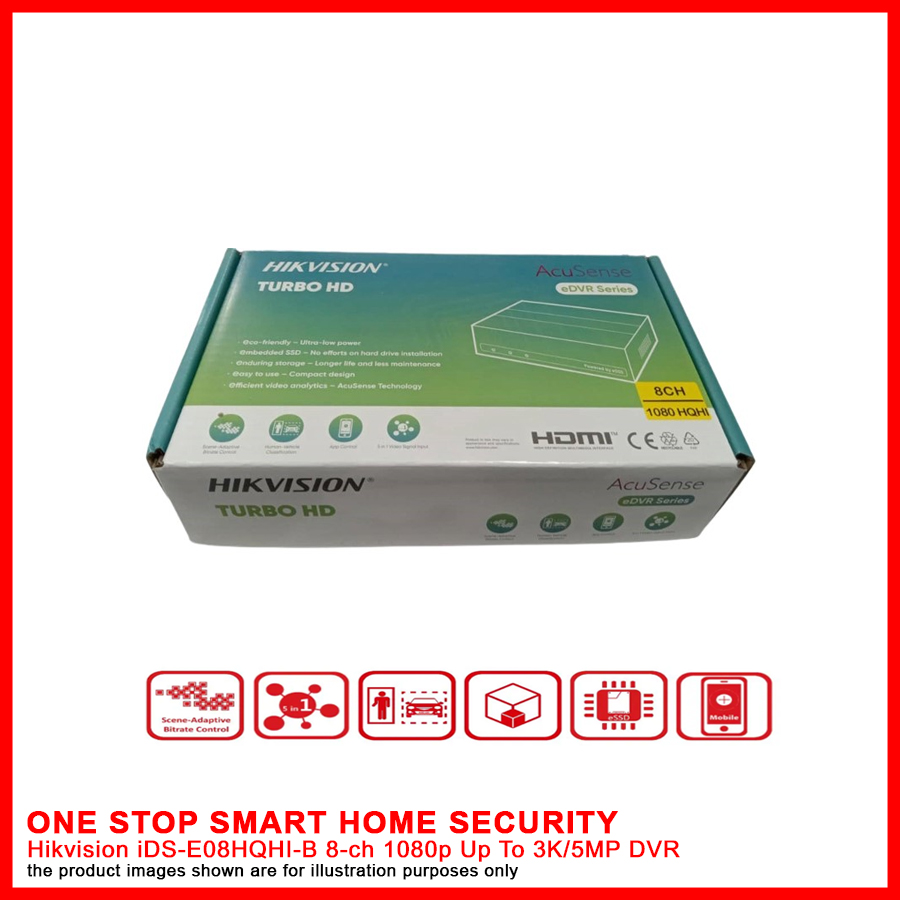

Ipohonline HIKVISION iDS-E08HQHI-B 8 channel 1080p 1U H.265 3K 5MP eSSD AcuSense HDMI VGA CCTV DVR 1TB 2 WEEKS

Motion Detection 2.0

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Up to 4-ch

Recording

H.265 Pro/H.265

When 1080p Lite mode is not enabled:
5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;
When 1080p Lite mode is enabled:
5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;

Main stream:
When 1080p lite mode not enabled:
For 5MP stream access:
3K/5MPLITE @12FPS；4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
5MP/3K lite/ 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)

According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

G.711u

Audio Bitrate

64 Kbps

Video And Audio

2-ch
Up to 6 MP resolution
Support H.265+/H.265 IP cameras

8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60

5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Support

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

HDMI/VGA simultaneous output

8-ch via coaxial cable

1-ch via HDMI

4-ch

Network

96 Mbps
Incoming bandwidth: 8 Mbps

64

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

OPTIONAL 4/1

Rear panel: 2 × USB 2.0

General

12 VDC, 1 A

≤ 8.2 W (with eSSD)

-10 °C to 45 °C (14 °F to 113 °F)

10% to 90%

170 × 121.6 × 46 mm (6.7 × 4.79 × 1.81 inch)

≤ 0.5 kg (with eSSD, 1.1 lb.)
