Specifications
| Model | DS-7608NI-Q1/8P |
| Video/Audio Input | |
| IP Video Input | 8-CH, Up To 8MP Resolution |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video/Audio Output | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1-CH, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1-CH, 1920x1080p/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-CH, RCA (Linear, 1kΩ) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live View/Playback Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-CH |
| Capability | 1-CH @8MP/4-CH @1080p |
| Network Management | |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity | Up To 6TB Capacity For Each Disk |
| External Interface | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2xUSB 2.0 |
| POE Interface | |
| Interface | 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Power | ≤ 75W |
| Standard | IEEE 802.3 AF/AT |
| General | |
| Power Supply | 48 VDC |
| Power | ≤ 90W |
| Consumption (Without Hard Disk) | ≤ 10W (Without Enabling PoE) |
| Working Temperature | -10ºC To +55ºC (+14ºF To +131ºF) |
| Working Humidity | 10 To 90% |
| Chassis | 1U Chassis |
| Dimensions | 315x240x48mm (W×D×H) |
| Weight (Without Hard Disk) | ≤ 1kg |

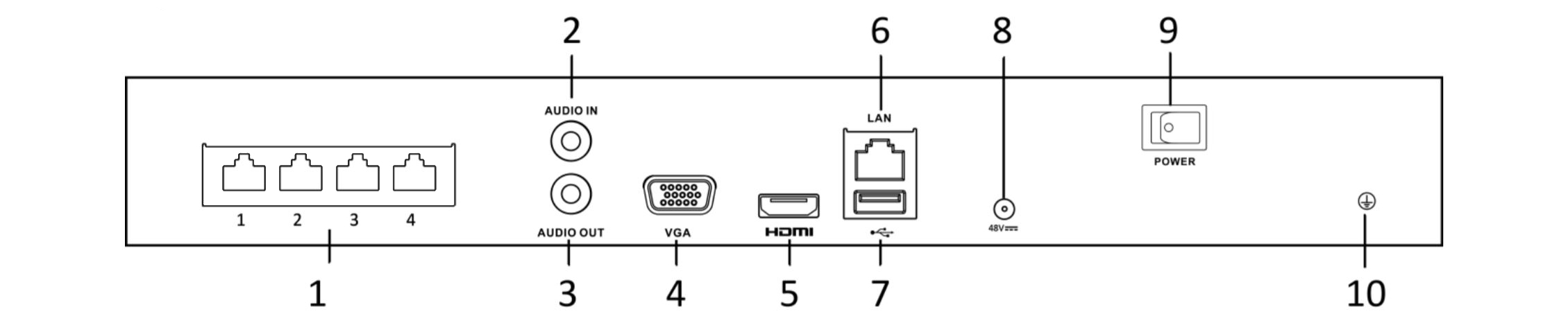

- Network Interfaces With POE Function (4 Interfaces For DS-7604NI-Q1/4P And 8 Interfaces For DS-7608NI-Q1/8P)
- Audio In
- Audio Out
- VGA Interface
- HDMI Interface
- LAN Network Interface
- USB 2.0 Interface
- 48VDC Power Supply
- Power Switch
- GND
What In the Box
- 1 x Hikvision DS-7608NI-Q1/8P 8 Channel 8MP 4K Plug and Play IP Network Video Recorder with PoE
- 1 x Power Cord
- 1 x Power Adapter
- 1 x Network Cable
- 1 x Mouse
- 1 x Set Of Screw
- 1 x Quick Start Guide
Warranty
1 Years Warranty
Local Manufacturer Warranty
