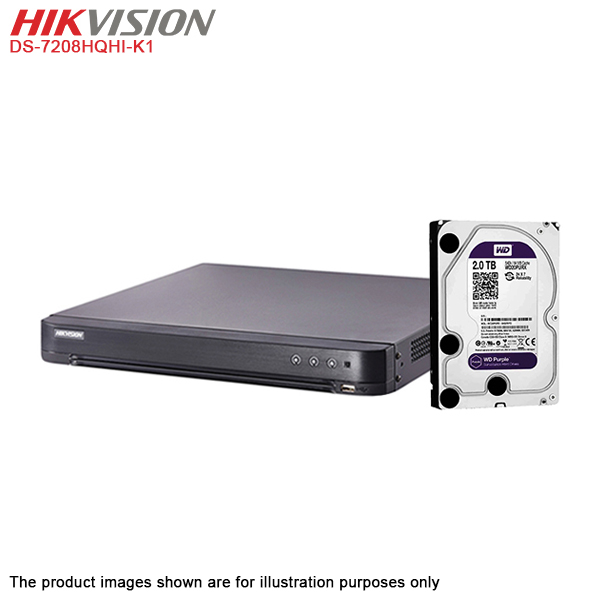

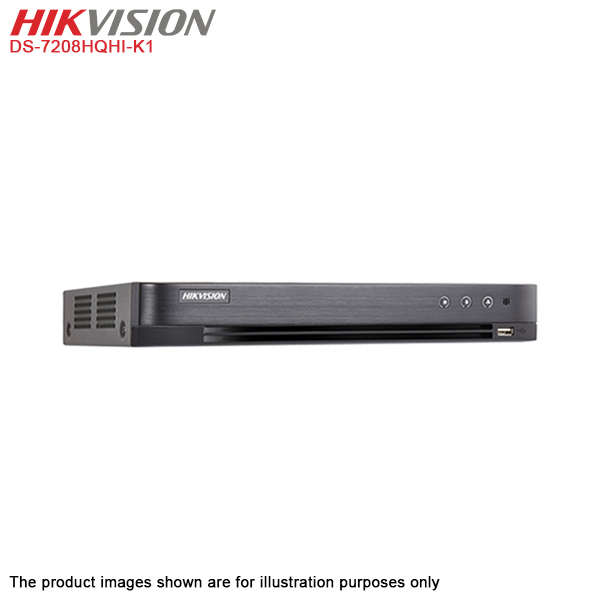

Hikvision DS-7208HQHI-K1 DVR
| Video / Audio Input | |
| Audio Input | 1-CH |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Analog And HD-TVI Video Input | 8-CH, BNC Interface (1.0Vp-p, 75Ω) Connection |
| Supported Camera Types | Support HDTVI Input : 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Support AHD Input : 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI Input : 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS Input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1KΩ) |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input) |
| Video / Audio Output | |
| CVBS Output | 1-CH BNC (1.0Vp-p, 75Ω) Resolution PAL : 704x576 NTSC : 704x480 |
| HDMI / VGA Output | 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | When 1080p Lite Mode Not Enabled : 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF When 1080p Lite Mode Enabled : 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF |
| Frame Rate | Main Stream When 1080p Lite Mode Not Enabled For 3MP Stream Access : 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps For 1080p Stream Access : 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) For 720p Stream Access : 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) When 1080p Lite Mode Enabled 3MP@15fps 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Sub-Stream WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N) |
| Video Bit Rate | 32Kbps - 6Mbps |
| Stream Type | Video / Video & Audio |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1KΩ) (Using The Audio Input) |
| Audio Output | 1-CH RCA (Linear, 1KΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Synchronous Playback | 8-CH |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up To 6TB Capacity For Each Disk |
| External Interface | |
| External Interface | 1; 10M / 100M Self-Adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; Standard RS-485 Serial Interface, Half-Duplex |
| General | |
| Power Supply | 12V DC |
| Consumption | ≤ 7.5W (Without Hard Disks) |
| Working Temperature | -10ºC To + 55ºC (14ºF To 131ºF) |
| Working Humidity | 10% To 90% |
| Dimensions | 315x242x45 MM |
| Weight | ≤ 1.78 KG |

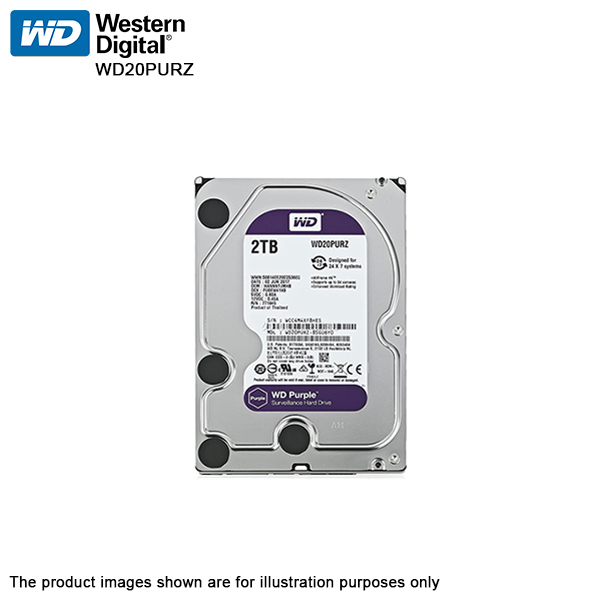

Western Digital WD20PURZ HDD
| Model Number | WD20PURZ |
| Formatted Capacity | 2TB |
| Form Factor | 3.5-Inch |
| Advanced Format | Yes |
| RoHS Compliant | Yes |
| Cameras Supported | Up To 64 |
| Drive Bays Supported | 8 |
| Firmware Feature Name | AllFrame 4K |
| Tarnish Resistant Components | No |
| Interface Transfer Rate (Max) Buffer To Host Host To / From Drive (Sustained) |
6 Gb/s 145 MB/s |
| Cache (MB) | 64 |
| Performance Class | 5400 RPM |
| Load / Unload Cycles | 300,000 |
| Annualized Workload Rating | 180TB/YR |
| Non-Recoverable Read Errors | <1 In 10 |
| MTBF | 1,000,000 |
| Limited Warranty | 3 |
| Average Power Requirements (W) | Read/Write : 4.4 Idle : 4.1 Standby and Sleep : 0.4 |
What In The Box
- 1 x Hikvision DS-7208HQHI-K1 8 Channel up to 4MP Turbo HD TVI AHD CVI CVBS IP CCTV DVR
- 1 x 2TB Surveillance CCTV HDD
- 1 x Power Adapter
- 1 x Mouse
- 1 x User Manual
Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at Service@accessglobal.com
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
