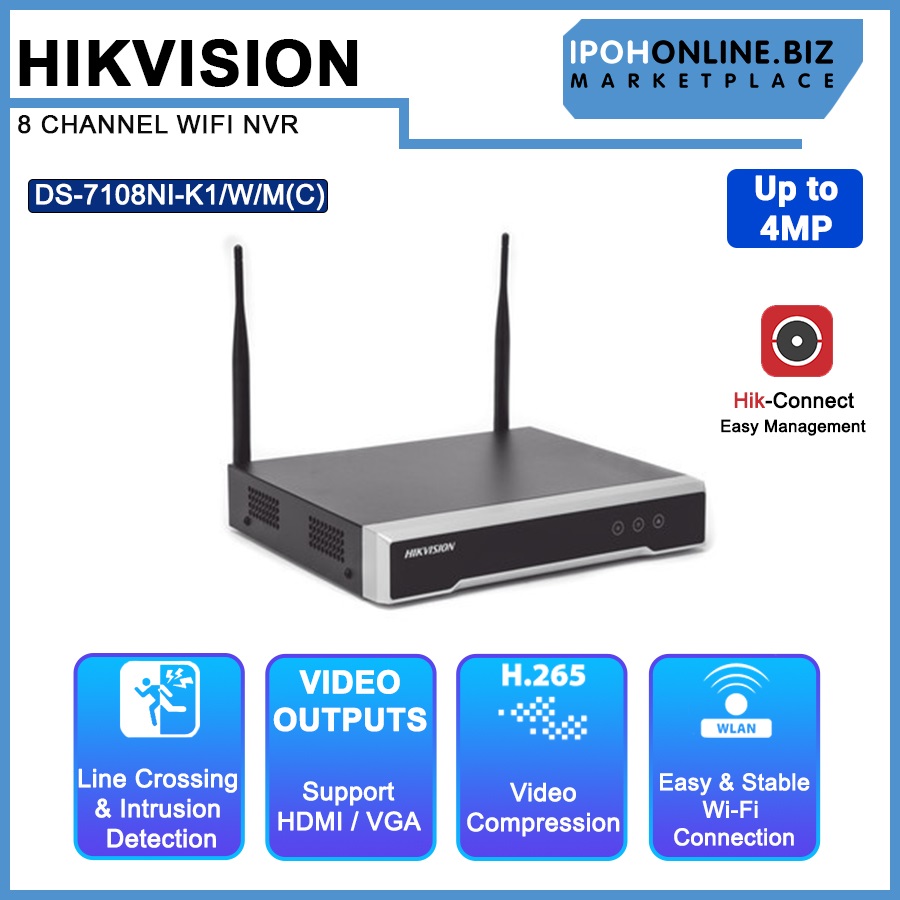

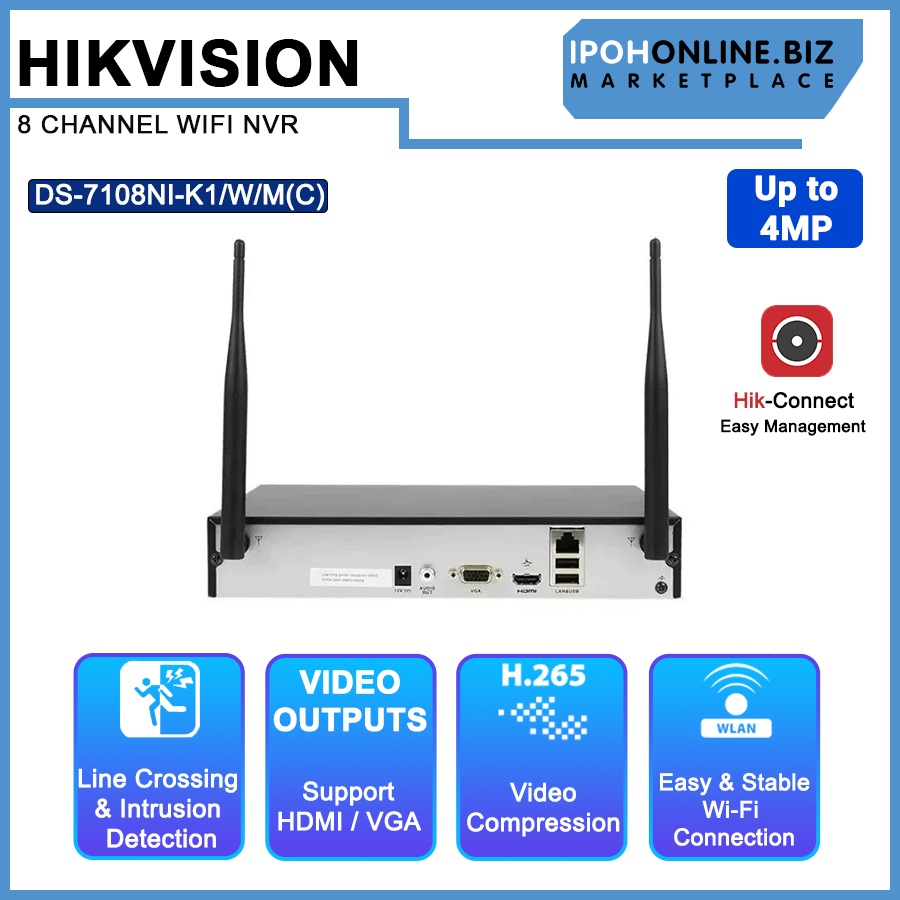

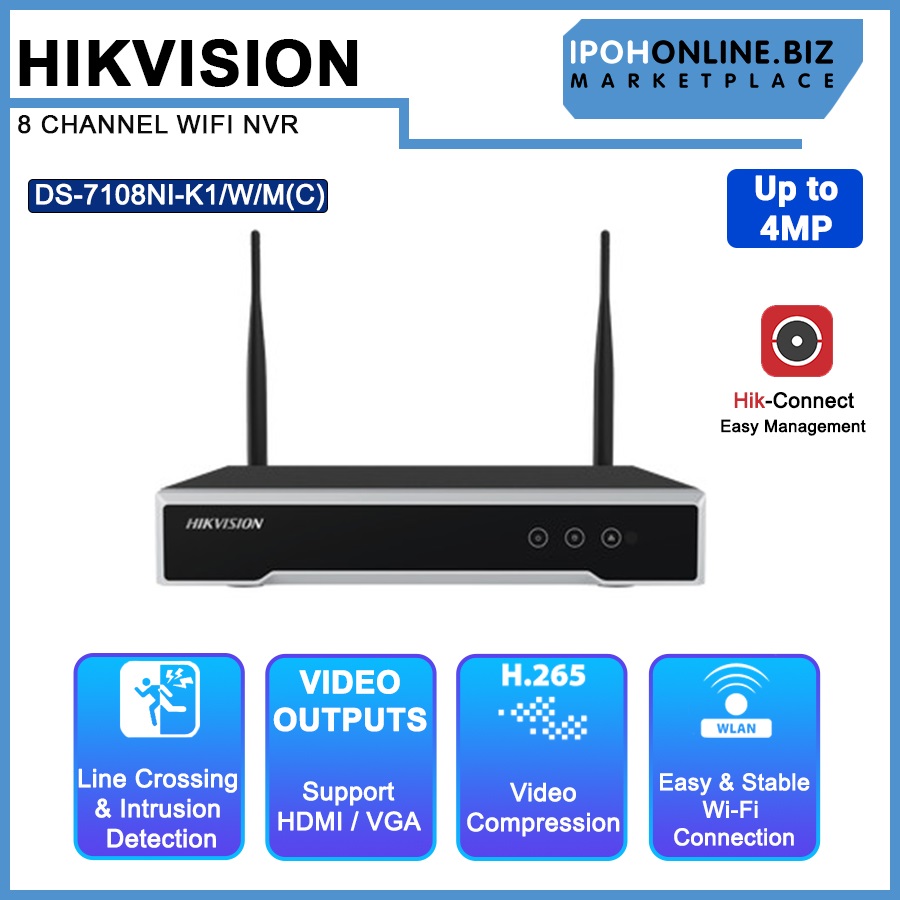

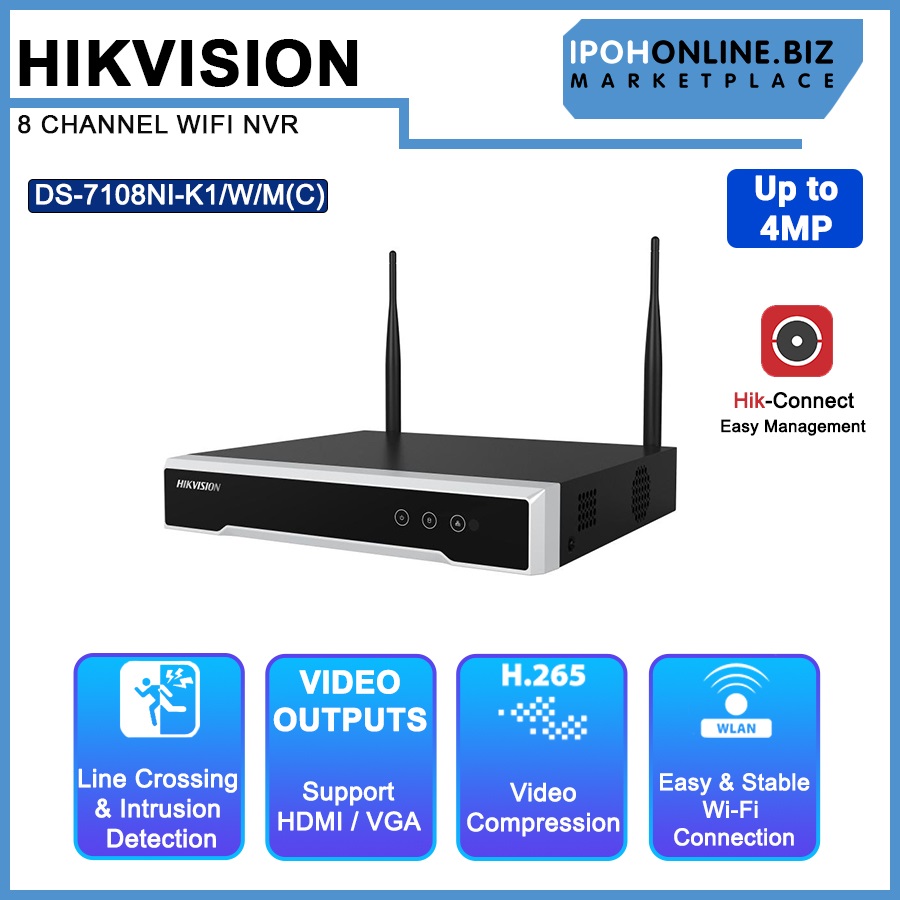

Ipohonline HIKVISION DS-7108NI-K1/W/M(C) 8 Channel Up to 4 MP WIFI NVR for Ezviz and Hikvision HDMI VGA Outputs

Features

• Up To 8 Channel IP Cameras Can Be Connected
• Supports Decoding H.265+/H.265/H.264+/H.264 Video Formats
• Up To 4 MP High-Definition Live View, Storage And Playback
• Up To 4-ch @ 1080P Decoding Capacity
• 1 HDD For Continuous Video Recording
• Easy To Install Through Automatic Wireless Connection
• Easy To Manage Through Hik-Connect App

Specification

Video And Audio

• IP Video Input ： 8-CH (Up To 4 MP Resolution)
• Incoming Bandwidth : 50 Mbps
• Outgoing Bandwidth : 40 Mbps
• HDMI Output : 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output : 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Audio Output : 1-CH, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format : H.265+/H.265/ H.264+/H.264
• Recording Resolution : 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Playback Mode : Normal/Smart, Event, Tag, Eternal File
• Synchronous Playback : 8-ch
• Live View Window Division : 1/4/6/8/9
• Aux Port Window Division : 1/4/6/8/9
• Decoding Capability : 4-ch@1080p (25 fps), 4-ch@4 MP (12 fps)
• Stream Type : Video, Video & Audio
• Audio Compression : G.711ulaw, G.722, G.726, MP2L2

Network

• Remote Connection : 16
• Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

Wireless Parameter

• Frequency Band : 2.4 GHz
• Antenna Structure : 2 × 2MIMO
• Transmission Speed : 144 Mbps
• Transmission Standard : IEEE 802.11b/g/n

Auxiliary Interface

• SATA : 1 SATA Interface
• Capacity : Up To 6 TB Capacity For Each Disk
• Alarm In/Out : N/A
• USB Interface : Rear Panel : 2 × USB 2.0

General

• Power Supply : 12 VDC, 1.6 A
• Consumption : ≤ 10 W
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Chassis : Mini 1U
• Material : Metal box
• Dimension (W × D × H) : 265 × 246 × 48 mm (10.4" × 9.7" × 1.9")
• Weight : ≤ 1.6 kg (Without HDD, 3.5 lb.)

Certification

• Obtained Certification : CE, FCC
• CE : EN50130-4, EN 61000-3-2,EN 61000-3-3

What In The Box

• 1 x HIKVISION DS-7108NI-K1/W/M(C) 8 Channel Up to 4 MP WIFI NVR for Ezviz and Hikvision HDMI VGA Outputs

Warranty

2 Year Warranty
Local Manufacturer Warranty
