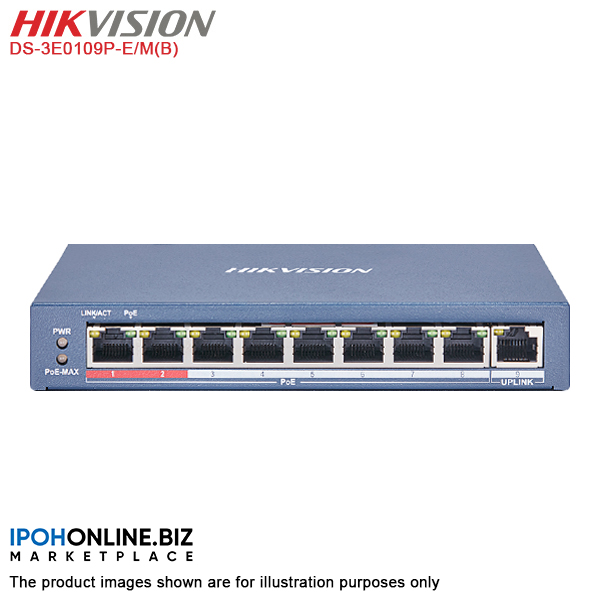

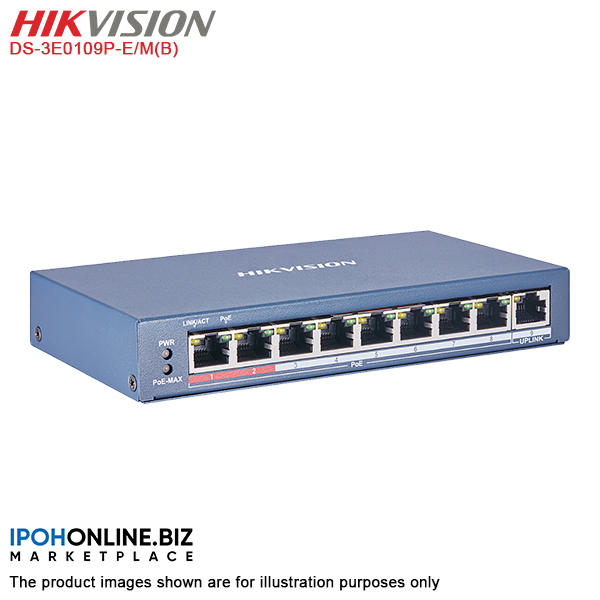

HIKVISION DS-3E0109P-E/M(B) L2 8 x 100M PoE Switch + 1 x 100M Uplink Port Up To 250m Transmission Distance
Specification
| Model | DS-3E0109P-E/M(B) |
| Network Parameters | |
| Port Number | 8 x 100M PoE Ports, 1 x 100M Ethernet Port |
| Port Type | RJ45 Port, Full Duplex, MDI/MDI-X Adaptive |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Processing Type | Store-And-Forward Switching |
| Ports With High Priority | 1 To 2 Ports |
| Ports For Long-Distance Transmission | 1 To 8 Ports |
| MAC Address Table | 2 K |
| Exchange Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.339 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| Power Supply Standard | IEEE 802.3af, IEEE 802.3at |
| Power Supply Cable Core | Supports 8-Core Power Supply, Ethernet Cable 1/2/3/6 And 4/5/7/8 Provide Simultaneous Power Supply |
| PoE Port | 1 To 8 |
| Max. Port Power | 30 W |
| Max. Machine Power | 60 W |
| Mechanical Structure | |
| Shell | Metal Material, Fan-Free Design |
| Weight | 0.35 KG |
| Dimension | 170 mm x 27.6 mm x 93.1 mm (L x H x D) |
| Environment | |
| Operating Temperature | 0ºC To 40ºC |
| Storage Temperature | -40ºC To 85ºC |
| Relative Humidity | 5% To 95% (No Condensation) |
| Power Supply | |
| Power Supply Specification | 48 VDC, 1.35 A |
What In The Box
- 1 x HIKVISION DS-3E0109P-E/M(B) L2 8 x 100M PoE Switch + 1 x 100M Uplink Port Up To 250m Transmission Distance
- 1 x Power Adapter
- 1 x Power Cable
- 1 x User Manual
Warranty
1 Year Warranty
Local Manufacturer Warranty
