Specification
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1920 |
| Min. Illumination | Color : 0.01 Lux @ (F2.0, AGC ON), B/W : 0 Lux With IR |
| Shutter Speed | 1/3s To 1/100,000s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan : 0º To 360º, Tilt : 0º To 180º, Rotate : 0º To 360º |
| Lens | |
| Lens Type | Fixed Focal Lens, 2.8mm And 4mm Optional |
| Focal Length & FOV | 2.8mm, Horizontal FOV 98.0º, Vertical FOV 71.7º, Diagonal FOV 127.0º 4mm, Horizontal FOV 75.3º, Vertical FOV 55.5º, Diagonal FOV 98.2º |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up To 30m |
| IR Wavelength | 850nm |
| Video | |
| Main Stream | 50Hz : 20fps (2560 x 1920), 25fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60Hz : 20fps (2560 x 1920), 30fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 50Hz : 25fps (1280 x 720, 640 x 480, 640 x 360) 60Hz : 30fps (1280 x 720, 640 x 480, 640 x 360) |
| Video Compression | Main Stream : H.265+/H.265/H.264+/H.264 Sub-Stream : H.265/H.264/MJPEG |
| Video Bit Rate | 32Kbps To 16Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | 1 Fixed Region For Main Stream |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up To 6 Channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up To 32 Users. 3 Levels : Administrator, Operator And User 3 User Levels : Administrator, Operator And User |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-In Required Live View : IE 10+ Plug-In Free Live View : Chrome 57.0+, Firefox 52.0+ Local Service : Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, AGC, White Balance Adjustable By Client Software Or Web Browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) | 120dB |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
| Event | |
| Basic Event | Motion Detection, Video Tampering, Exception |
| Linkage | Upload To FTP, Notify Surveillance Center, Send Email |
| General | |
| Power | 12 VDC ± 25%, 0.4A, Max. 5W, Ø5.5mm Coaxial Power Plug PoE : 802.3af, Class 3, 36V To 57V, 0.2A To 0.15A, Max. 6.5W |
| Dimension | 177.6mm x 67.8mm x 66.2mm (7" x 2.7" x 2.6") |
| Package Dimension | 216mm x 121mm x 118mm (8.5" x 4.8" x 4.6") Approx. 270g (0.6 lb.) |
| With Package Weight | Approx. 481g (1.1 lb.) |
| Storage Conditions | -30ºC To 60ºC (-22ºF To 140ºF). Humidity 95% Or Less (Non-Condensing) |
| Startup And Operating Conditions | -30ºC To 60ºC (-22ºF To 140ºF). Humidity 95% Or Less (Non-Condensing) |
| Language | English, Ukrainian |
| General Function | Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
What In The Box

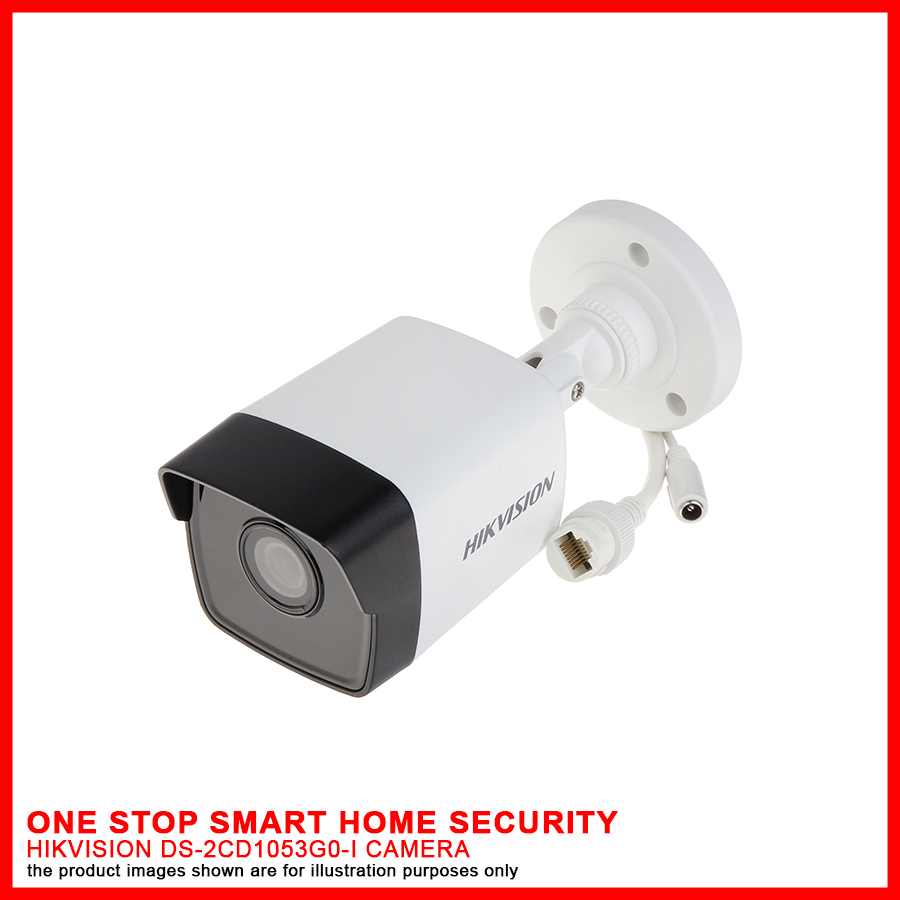

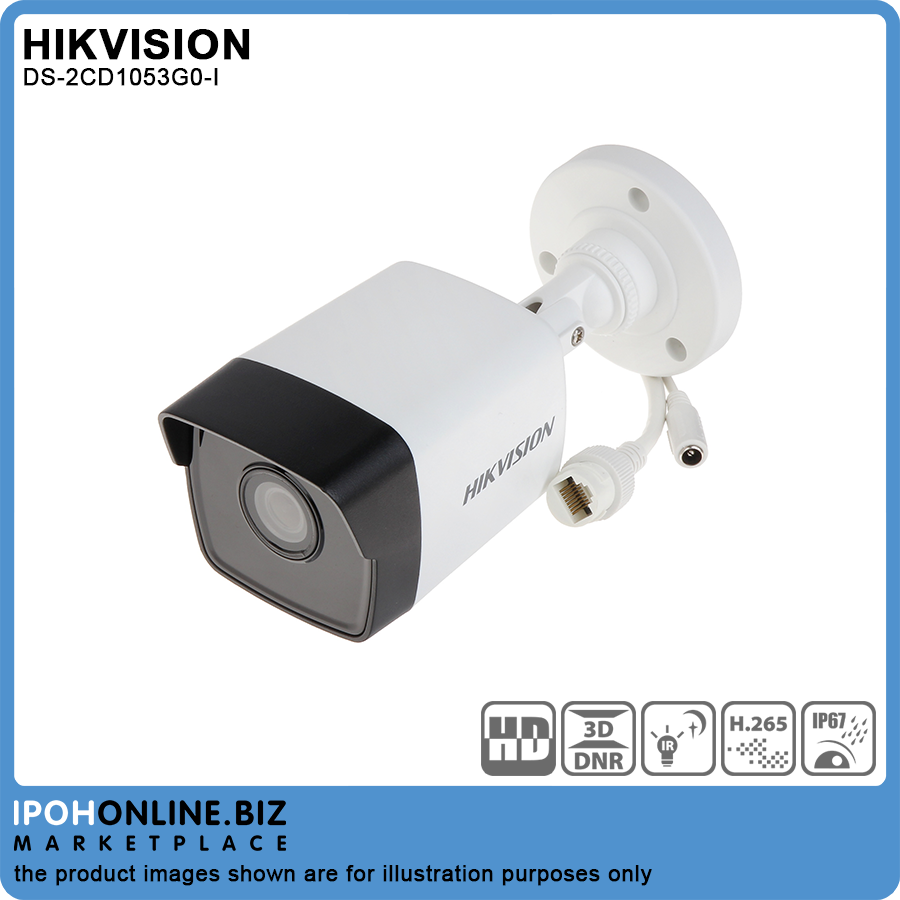

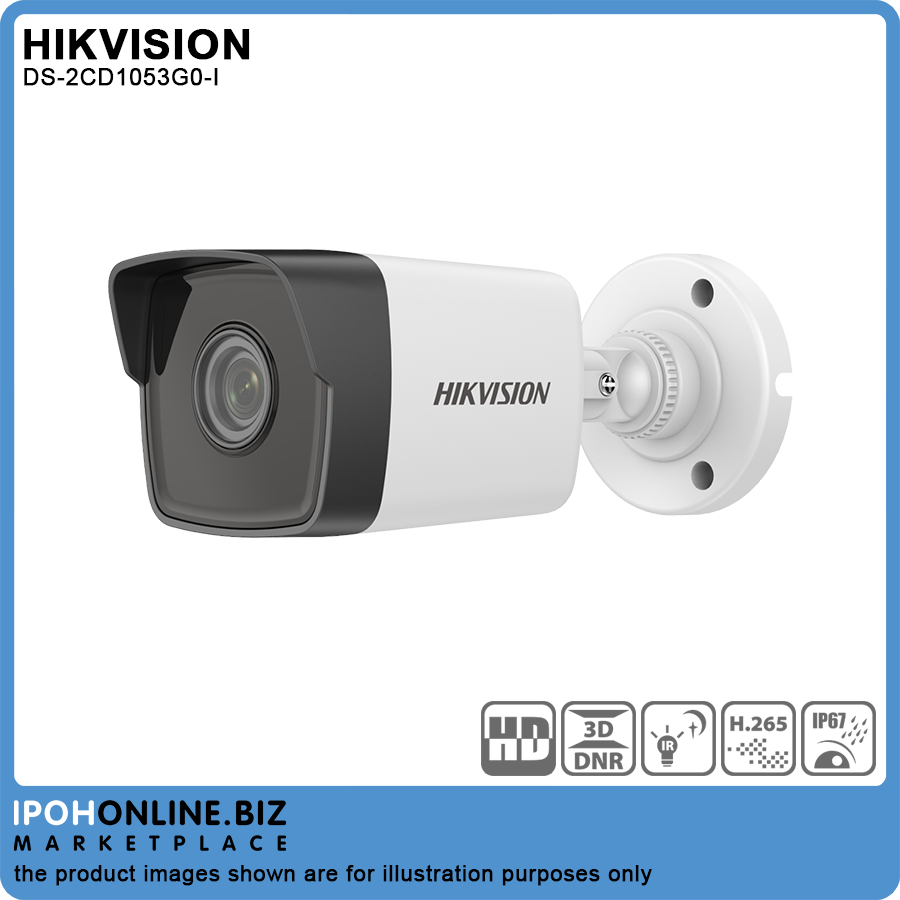

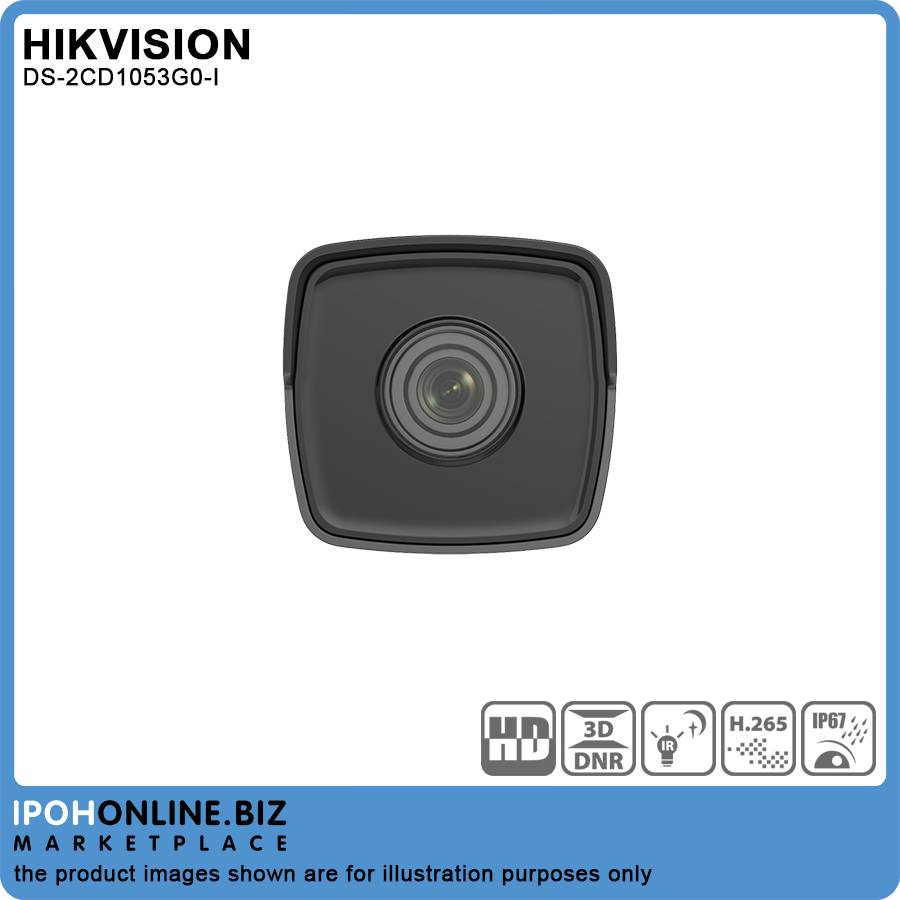

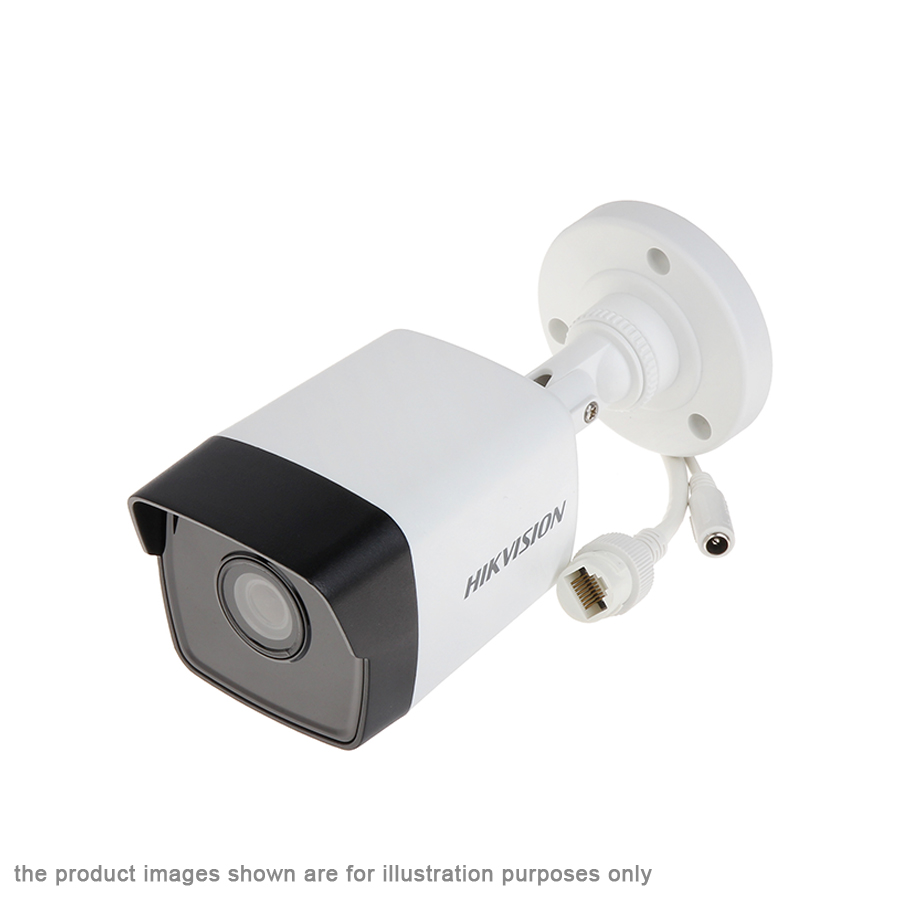

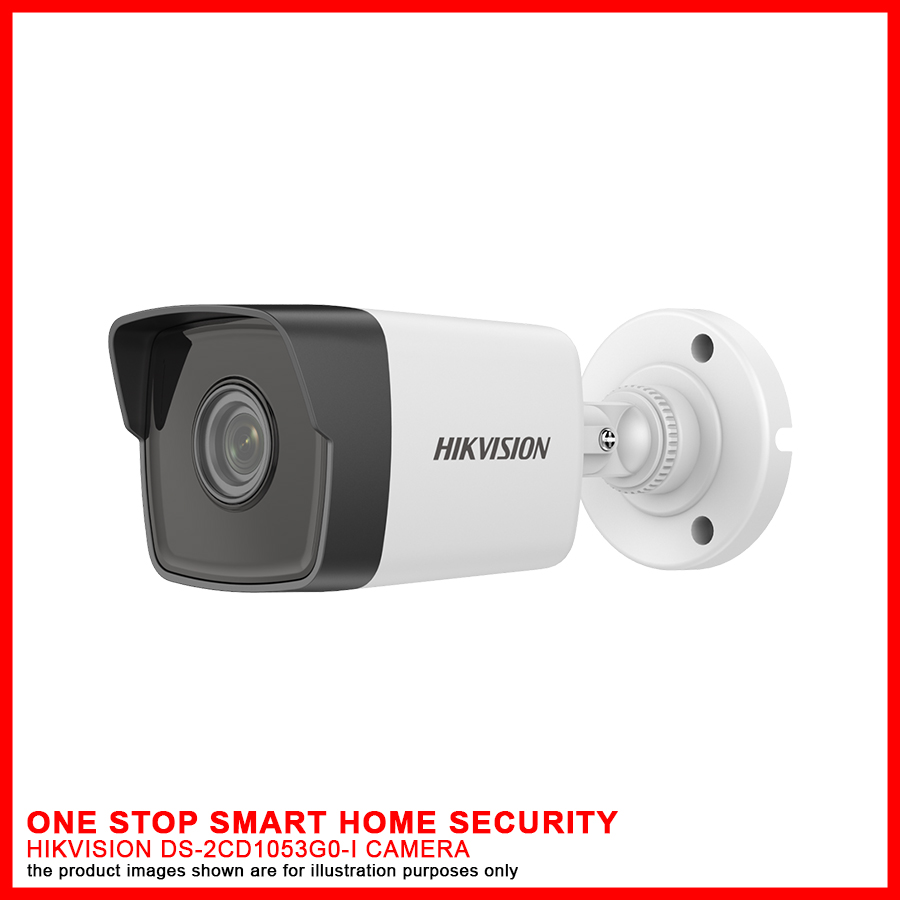

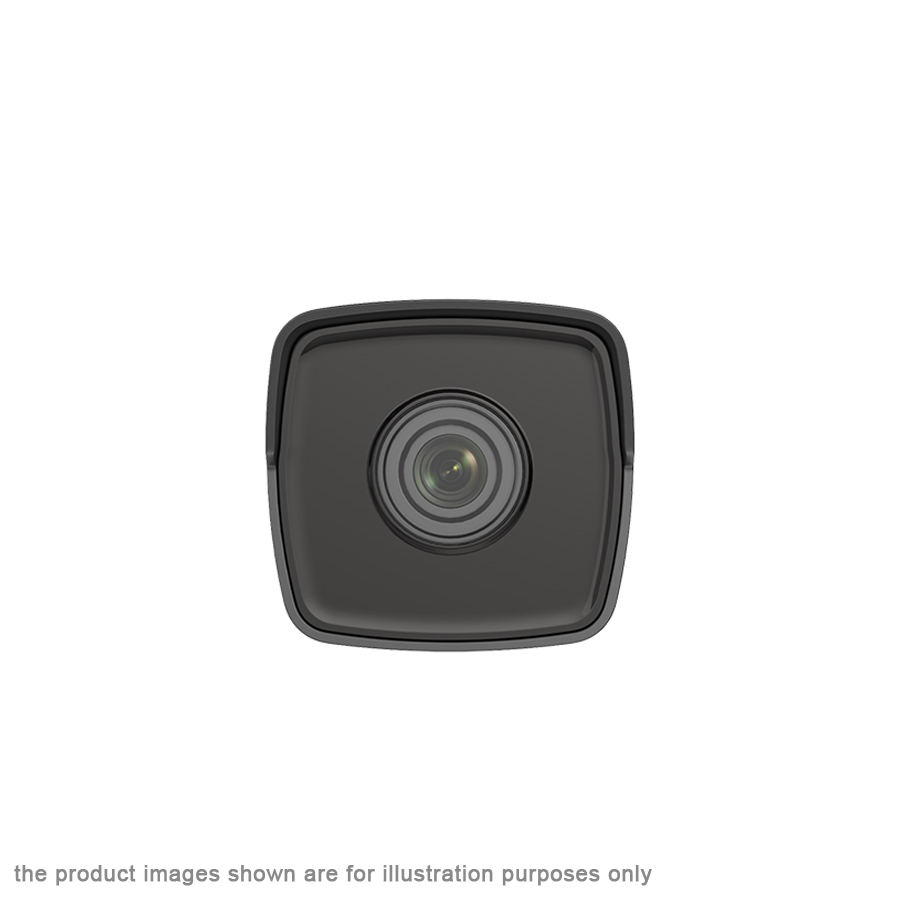

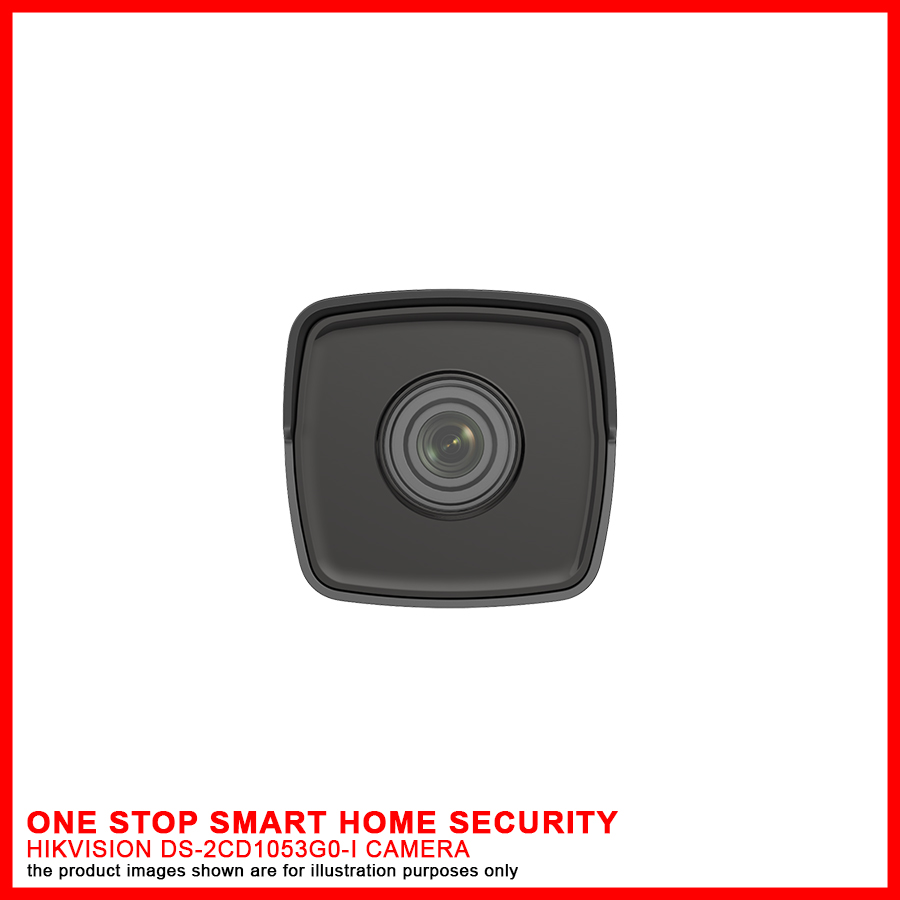

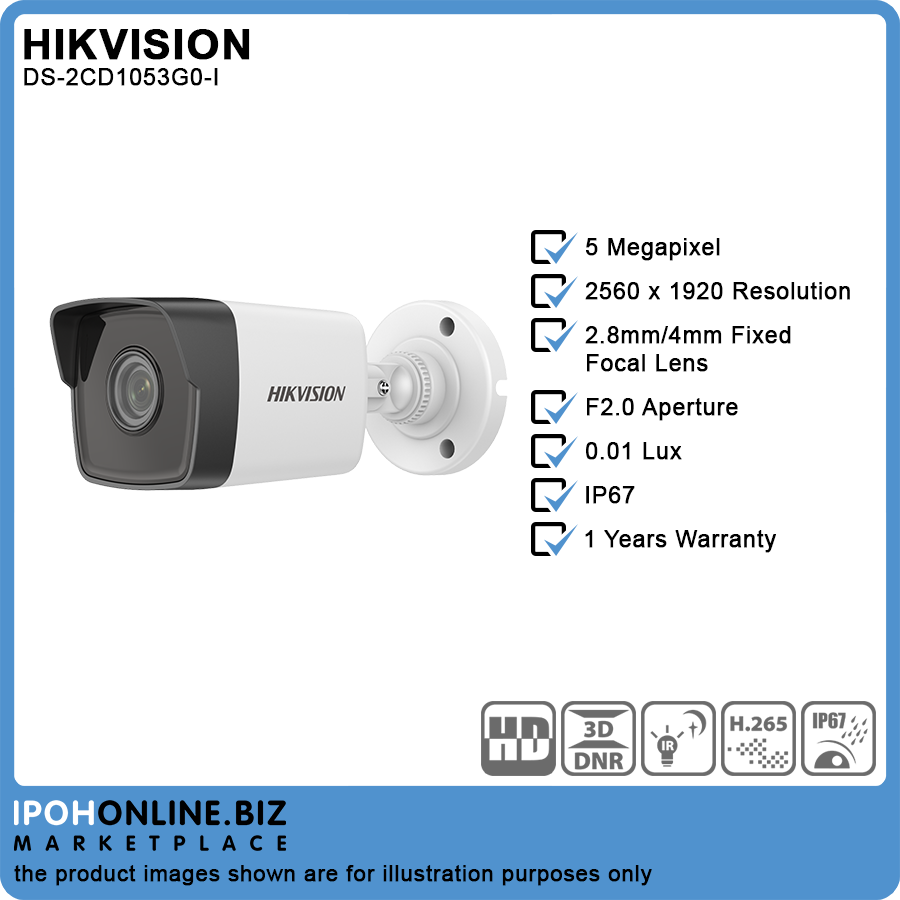

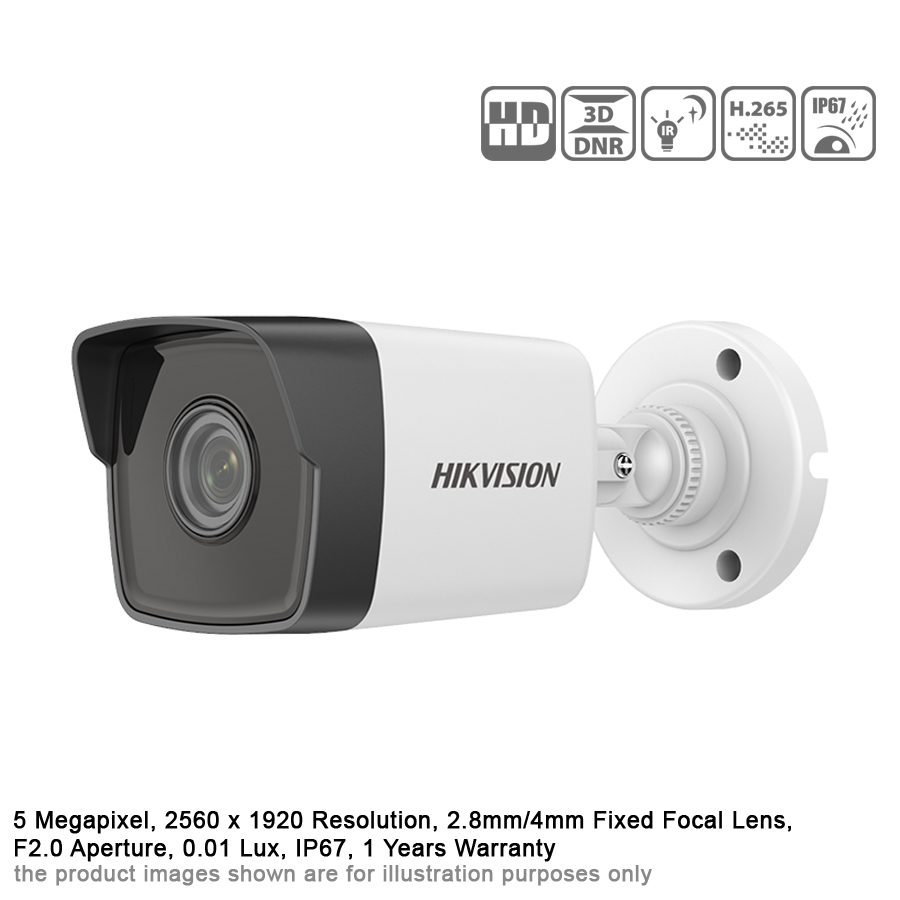

- 1 x HIKVISION DS-2CD1053G0-I 5MP 4mm H.265 4K Ultra HD IP Bullet Network Camera
- 1 x Screw Set
- 1 x Drill Template
- 1 x User Manual
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
